VP-440H2 Enhanced Quick Start (P/N: 2900-300930QS REV 3)

P/N:

2900- 300930QS

Rev:

Scan for full manual

VP-440H2 Quick Start Guide

This guide helps you install and use your VP-440H2 for the first time.

Go to www.kramerav.com/downloads/VP-440H2 to download the latest user manual and check if

firmware upgrades are available.

Step 1: Check what’s in the box

VP-440H2 4K Presentation Switcher Scaler

1 Power cord

1 Bracket set

1 Power supply (48V DC)

1 Quick start guide

4 Rubber feet

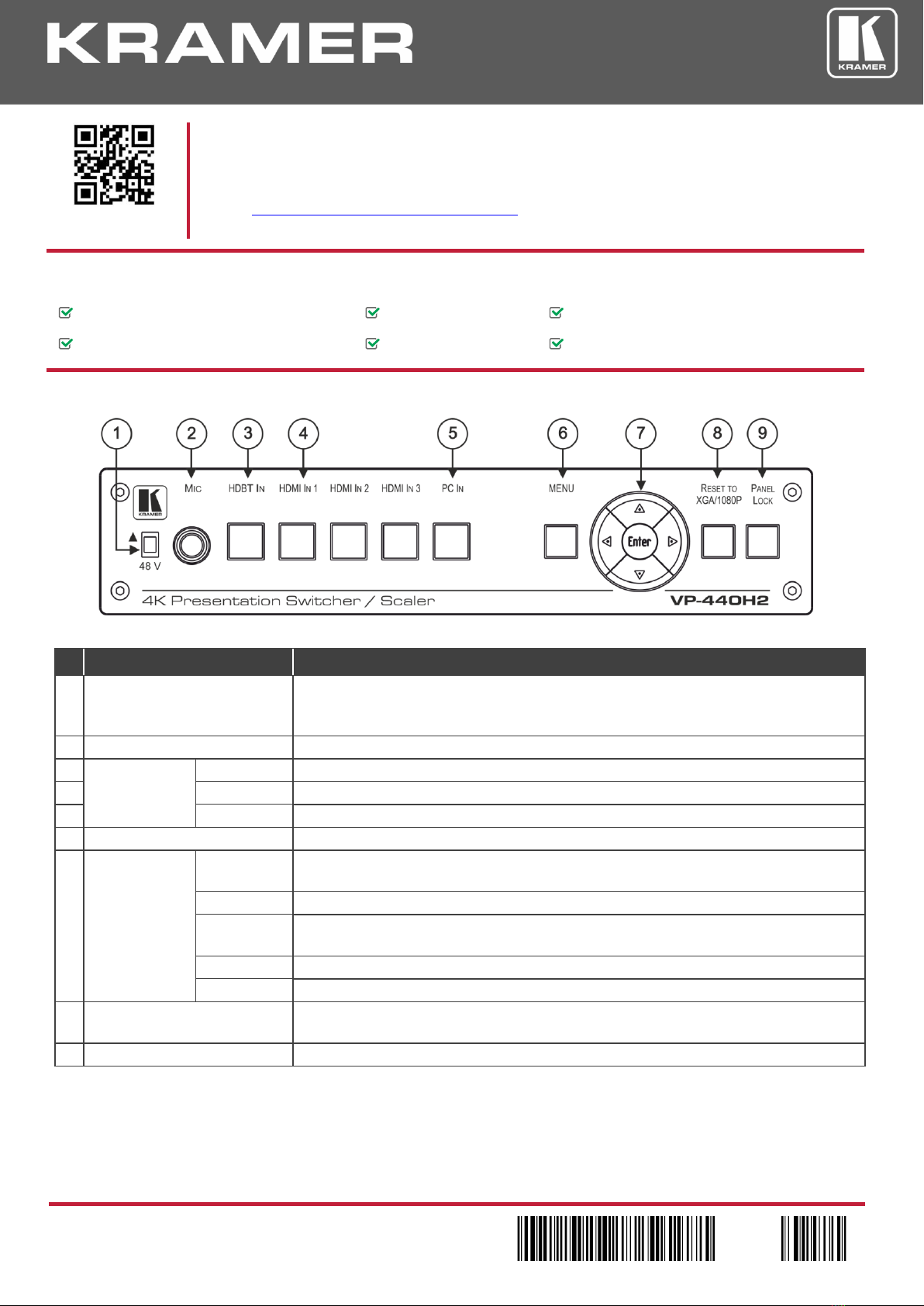

Step 2: Get to know your VP-440H2

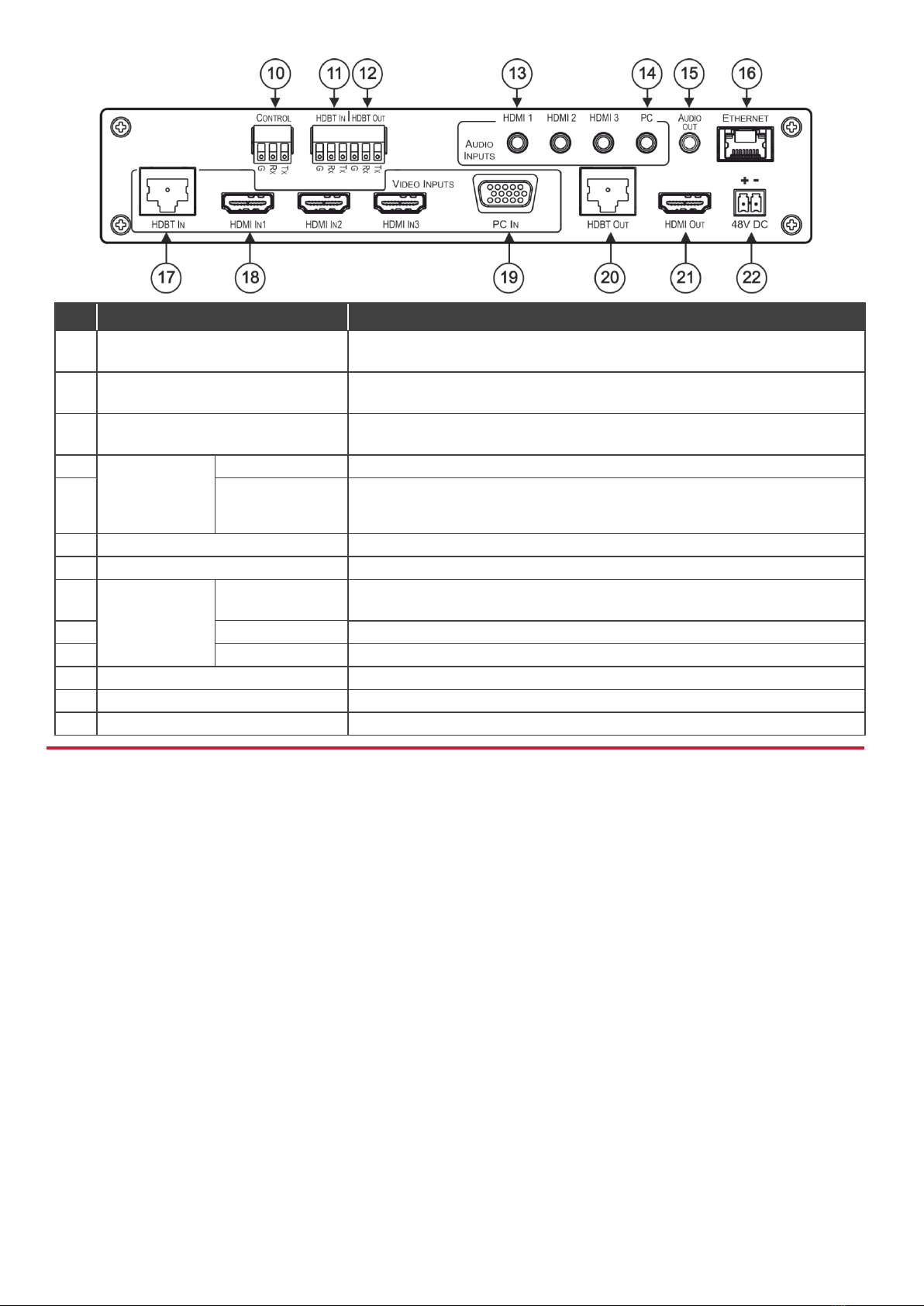

Feature

Function

48 V () Slide Switch

Slide up (48V) to select a condenser type microphone; slide down to select a dynamic type

microphone (we recommend that you slide down if a microphone is not connected to the

VP-440H2).

MIC 6.3mm Jack

Connect to the microphone source.

Input Selector

Buttons

HDBT IN

Press to select the HDBT input.

HDMI IN

Press to select the HDMI input (from 1 to 3).

PC IN

Press to select the computer graphics input.

MENU Button

Displays the OSD menu.

Navigation

Buttons



Press to decrease numerical values or selectfrom several definitions.

When not in the OSD menu, press to reduce the output volume.



Press to move up the menu list values.



Press to increase numerical values or select from several definitions.

When not in the OSD menu, press to increase the output volume.



Press to move down the menu list.

ENTER

Press to accept changes and change the SETUP parameters.

RESET TO XGA/1080p Button

Press and hold for about 5 seconds to toggle the output resolution between XGA and 1080p,

alternatively.

PANEL LOCK Button

Press and hold for about 5 seconds to lock/unlock the front panel buttons.

Feature

Function

CONTROL (Tx, Rx, GND) Terminal

Block Connectors

Connect to the PC orthe serial controller to control the device.

HDBT IN (Tx, Rx, GND) Terminal Block

Connectors

Connect to a controller to control peripheral devices that are connected to the HDBT

transmitter (for example, a Blu-ray player connected to WP-20).

HDBT OUT(Tx, Rx, GND) Terminal

Block Connectors

Connect to a controller to control peripheral devices that are connected to the HDBT

receiver (for example, a projector connected to TP-580Rxr).

AUDIO INPUT

Unbalanced

Stereo 3.5 Mini

Jack

HDMI

Connect to the analog audio HDMI source (from 1 to 3).

Connect to the analog audio computer graphics source.

AUDIO OUT 3.5 Mini Jack

Connect to an unbalanced stereo audio acceptor.

ETHERNET Connector

Connects to the PC or other controller through computer networking.

VIDEO INPUT

Connectors

HDBT IN RJ-45

Connect to an HDBT transmitter (for example, WP-20).

Can supply PoE (up to 13W) to the transmitter.

HDMI IN

Connect to the HDMI source (from 1 to 3).

PC IN on15-pin HD

Connect to the computer graphics source.

HDBT OUT RJ-45 Connector

Connect to an HDBT receiver (for example, TP-580Rxr).

HDMI OUT Connector

Connect to the HDMI acceptor.

48V DC Power Terminal Block

+48VDC connector for powering the unit.

Step 3: Install VP-440H2

To mount the VP-440H2 in a rack, use an RK-1 rack adapter. Alternatively, attach the rubber feet to the underside of the

VP-440H2 and place it on a table.

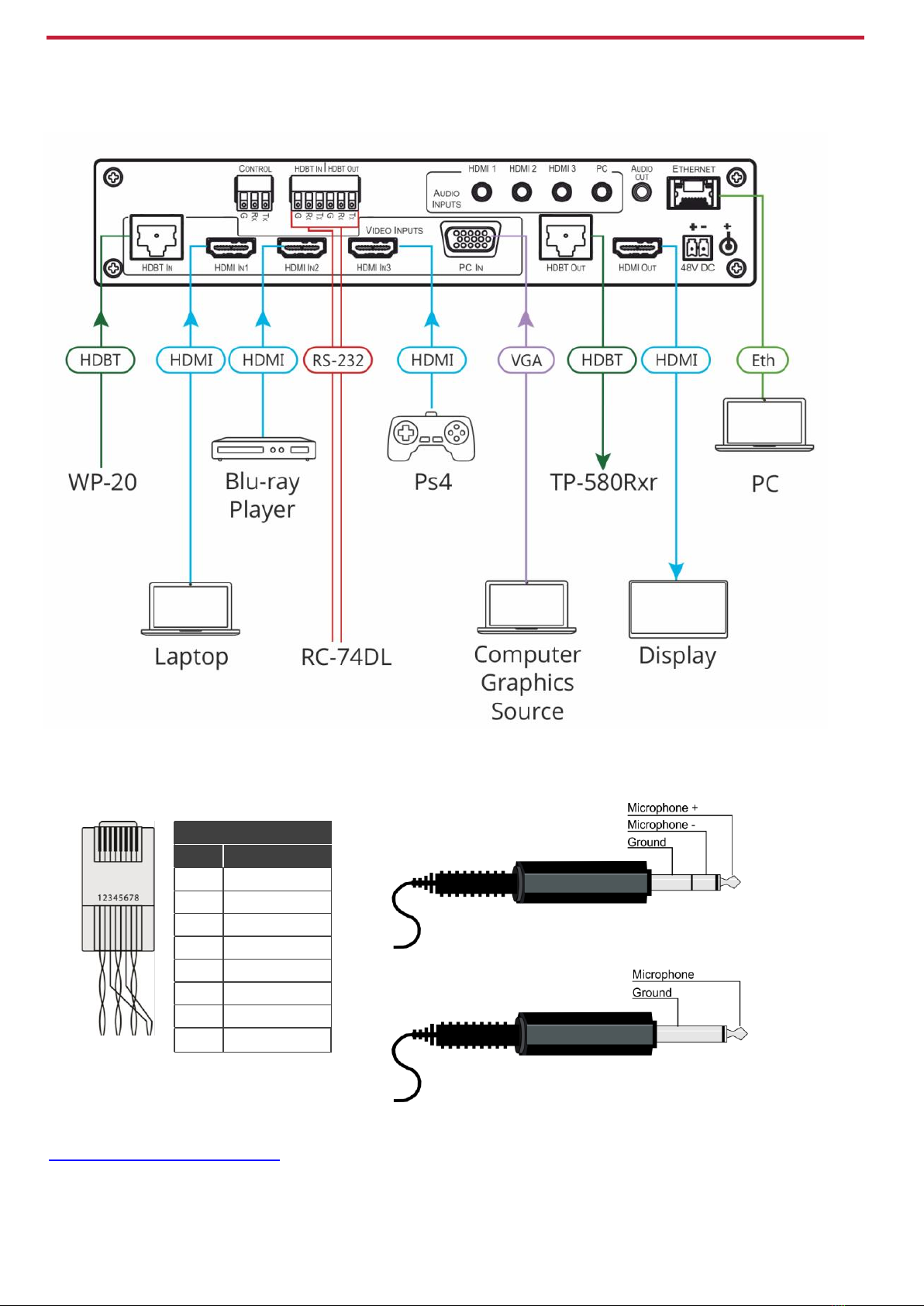

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VP-440H2. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to VP-440H2.

RJ-45 Pinout:

Microphone Pinout:

For the Ethernet connector, see the wiring

diagram below

The microphone 6mm jack pinout for a condenser microphone

The microphone 6mm jack pinout for a dynamic microphone.

PIN EIA /TIA 568B

Wire Color

Orange / White

Orange

Green / White

Blue

Blue / White

Green

Brown / White

Brown

For optimum range and performance use the

recommended Kramer cables available at

www.kramerav.com/product/VP-440H2.

Step 5: Connect the power

Connect the 48V DC power adapter power cord to VP-440H2 and plug it into the mains electricity.

Safety Instructions (DC)

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

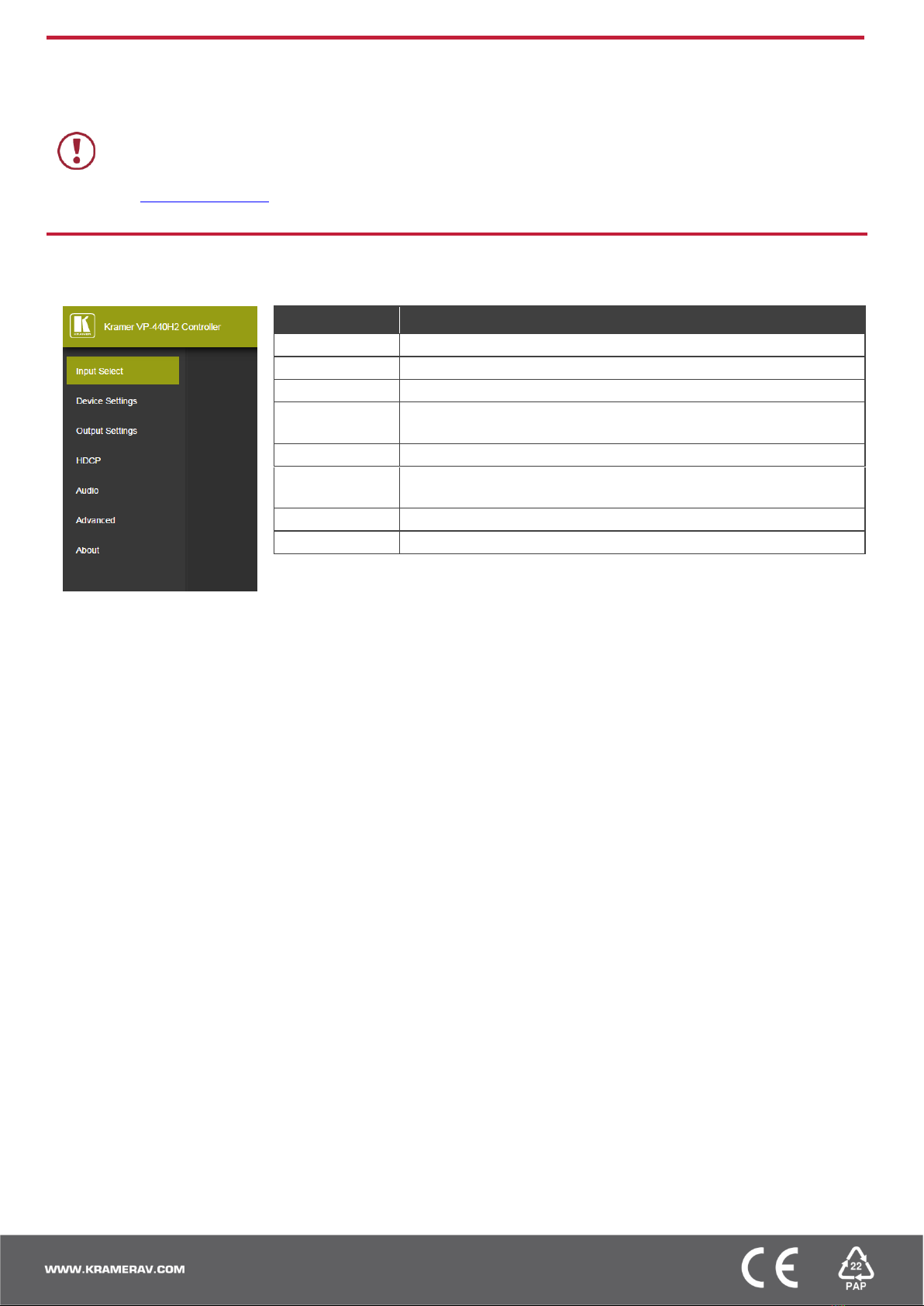

Step 6: Control and operate VP-440H2 via the front panel buttons and via

Web pages:

OSD Menu:

Menu Items


Adjust contrast brightness and color, and fine-tune the image.

Input

Select input source.

Output

Select method for 4K input to 4K output handling, image size and resolution.

Audio

Select audio source, audio parameters (bass, treble and so on), microphone

settings and volume per input.

OSD

Set OSD position, transparency and so on.

Advanced

Select HDCP on each of the inputs and outputs, manage the EDID and

define IP settings.

Info.

View device information.

Factory

Reset to factory default settings.
