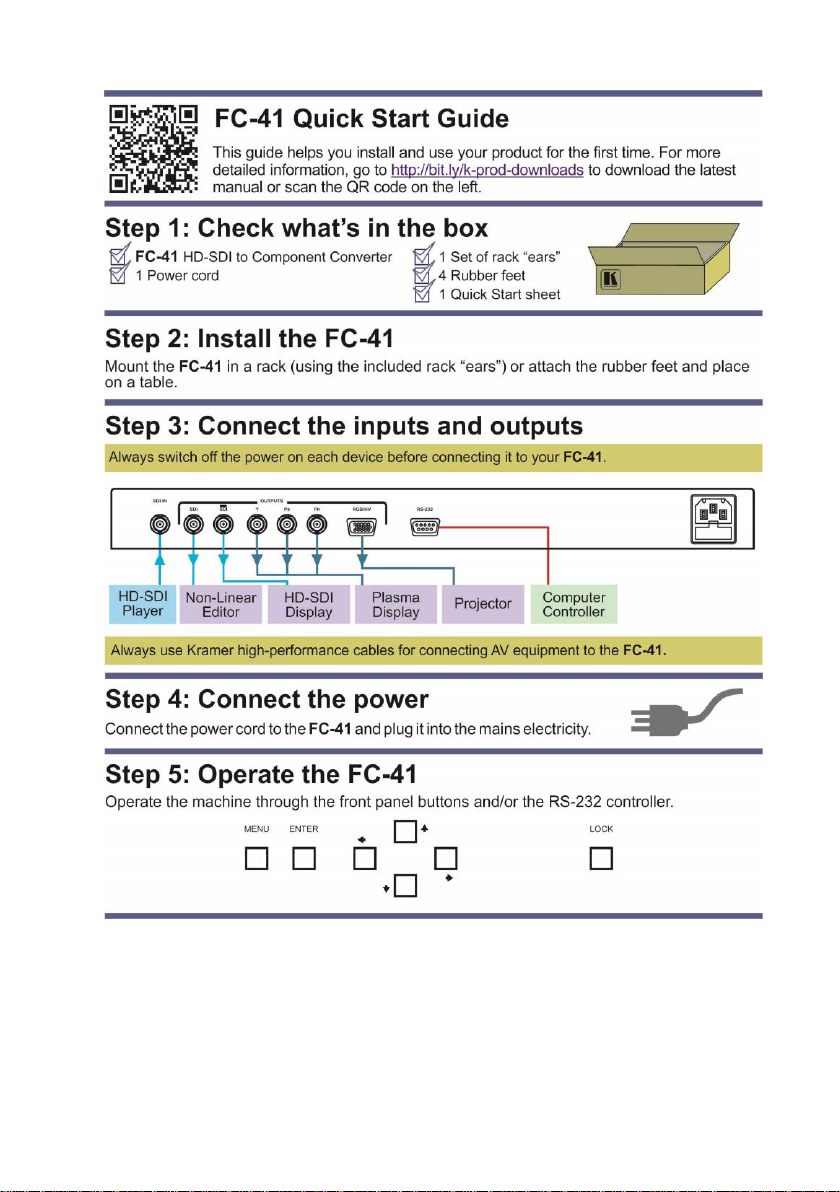

Kramer FC-41 Manual de usuario

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

FC-41

HD-SDI to Component

Converter

P/N: 2900-000328 Rev 4

FC-41 – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the FC-41 HD-SDI to Component Converter 4

4Installing in a Rack 7

5Connecting the FC-41 8

5.1 Connecting to the FC-41 via RS-232 9

6Using the FC-41 HD-SDI to Component Converter 11

6.1 Locking the Front Panel 11

6.2 Operating the FC-41 HD-SDI to Component Converter 11

7Technical Specifications 13

8Communication Protocol 14

Figures

Figure 1: FC-41 HD-SDI to Component Converter Front Panel 5

Figure 2: FC-41 HD-SDI to Component Converter Rear Panel 6

Figure 3: Connecting the FC-41 HD-SDI to Component Converter 9

Figure 4: Crossed Cable RS-232 Connection 10

Figure 5: Straight Cable RS-232 Connection with a Null Modem Adapter 10

FC-41 - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer FC-41 HD-SDI to Component

Converter, which is ideal for the following typical applications:

Broadcast and production video studios

Postproduction and duplication studios

Non-linear editing

FC-41 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check

if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer FC-41 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

FC-41 - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

FC-41 - Overview

3 Overview

The Kramer FC-41 is a high performance converter for HD-SDI. It converts an

HD-SDI input signal to component (Y, PB, PR) and RGB/HV signals.

In addition, the FC-41 features:

Component and SDI outputs on BNC connectors, and an RGBHV output on

a 15-pin HD computer graphics video connector

An SDI input which is reclocked and equalized, and distributed to two

HD-SDI outputs

Output resolution which is the same as that of the input and is compatible

with 720p and 1080i up to 60Hz, as well as 1080p up to 30Hz

ProcAmp controls, with memory for saving and loading 16 setups

A component output with tri-level syncs

A highly accurate color bar generator with eight built-in test patterns

A lockable front panel to prevent unintentional tampering with the unit

The FC-41 converter can be controlled via its front panel with a user-friendly LCD,

and also has an RS-232 interface. It is housed in a 19” 1U rack mountable

enclosure, and is fed from a 100-240 VAC universal switching power supply.

3.1 Defining the FC-41 HD-SDI to Component Converter

This section defines the FC-41.

FC-41 - Overview

FC-41 –Overview

Figure 1: FC-41 HD-SDI to Component Converter Front Panel

Feature

Function

POWER Switch

Illuminated switch for turning the unit ON or OFF

SETUP / MENU LCD Display

Displays the setup and the menu

MENU Button

Press to open the menu (see Section 6.2)

ENTER Button

Press to load and save a set up, and to accept changes

Button

Press to decrease numerical values or select from several definitions

Button

Press to move up the menu list values

Button

Press to increase numerical values or select from several definitions

Button

Press to move down the menu list

LOCK Button

Press and hold for about 3 seconds to lock/unlock the front panel buttons

FC-41 - Overview

Figure 2: FC-41 HD-SDI to Component Converter Rear Panel

Feature

Function

SDI IN BNC Connector

Connects to the HD/SD SDI source

OUTPUTS

SDI BNC Connector

Connects to the HD-SDI acceptor (the output is reclocked and equalized)

SDI BNC Connector

Connects to the HD-SDI acceptor (the output is reclocked and equalized)

Y BNC Connector

Connects to the component video acceptor

PB BNC Connector

PR BNC Connector

RGB/HV 15-pin HD Connector

Connects to the RGB or RGBHV acceptor

RS-232 9-pin D-sub Port

Connect to the PC or the remote controller

Power Connector with Fuse

AC connector, enabling power supply to the unit

FC-41 –Overview

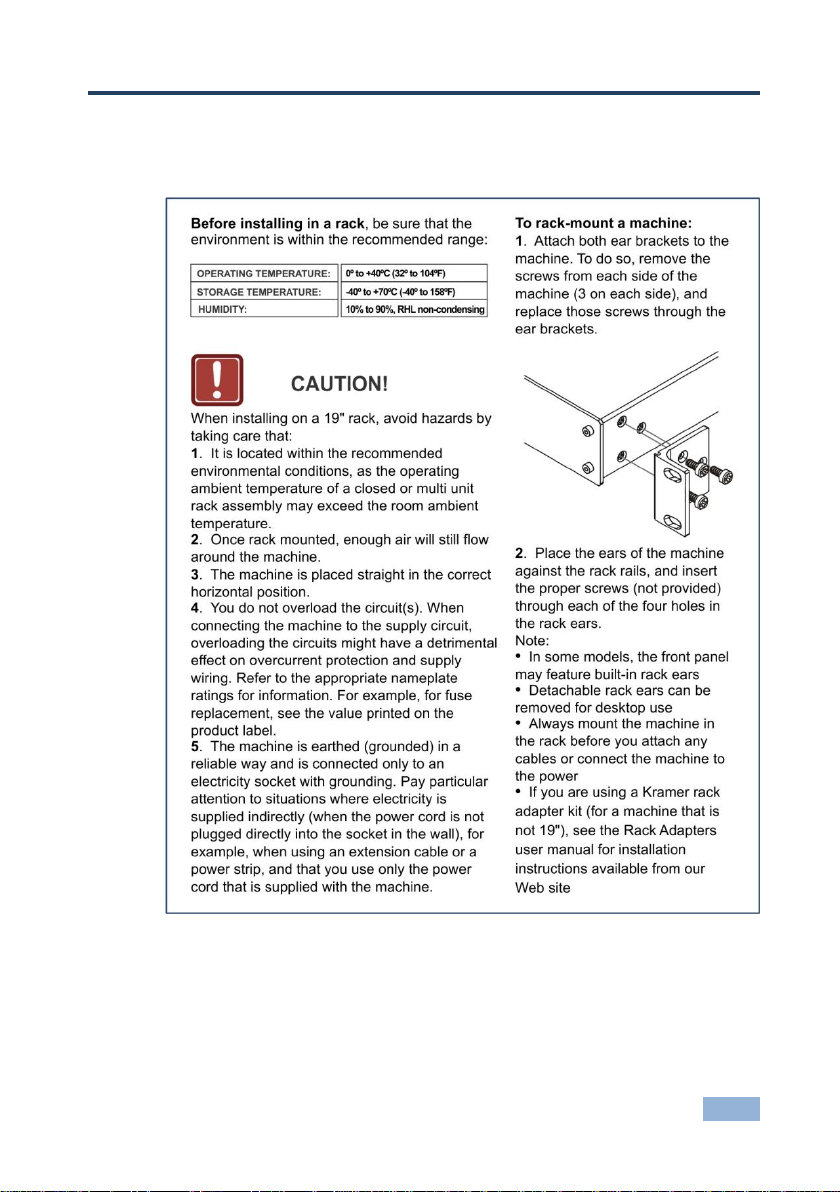

FC-41 - Installing in a Rack

4 Installing in a Rack

This section provides instructions for rack mounting the unit.
