Kramer FC-14 Manual de usuario

Kramer Electronics, Ltd.

USER MANUAL

Model:

FC-14

RGBHV to Component Transcoder

Contents

Introduction 1

Getting Started 1

Overview 1

Your RGBHV to Component Transcoder 2

Using Your RGBHV to Component Transcoder 3

5.1

Converting an RGB Source 4

5.2

Converting an RGBS Source 5

5.3

Converting an RGBHV Source 6

5.4

Converting a VGA Source 7

Technical Specifications 8

Figures

Figure 1: FC-14 RGBHV to Component Transcoder 2

Figure 2: Converting from an RGB Camera to a BETACAM VCR 4

Figure 3: Converting from an RGBS Workstation to a Plasma Monitor 5

Figure 4: Converting from a High Resolution Graphics Source to a Plasma Monitor 6

Figure 5: Converting from a VGA Graphics Source to a Plasma Monitor 7

Tables

Table 1: Front Panel FC-14 RGBHV to Component Transcoder 3

Table 2: Rear Panel FC-14 RGBHV to Component Transcoder 3

Table 3: Technical Specifications of the FC-14 RGBHV to Component Transcoder 8

Introduction

1 Introduction

Dedication by Kramer Electronics since 1981, to the development and

manufacture of high quality video/audio equipment, makes the Kramer line

an integral part of the finest production and presentation facilities in the world.

In recent years, Kramer has redesigned and upgraded most of the line, making

the best even better! The Kramer line of professional video/audio electronics

is one of the most versatile and complete available, and is a true leader in

terms of quality, workmanship, price/performance ratio and innovation. In

addition to our high quality transcoders, we also offer excellent switchers and

matrices, distribution amplifiers, remote controllers, processors, interfaces

and computer-related products.

Congratulations on purchasing your Kramer FC-14 RGBHV to Component

Transcoder.

This product is ideal for displaying RGB video on:

 Plasma monitors

 Other display devices equipped with component video inputs

The package includes the following items:

 FC-14 RGBHV to Component Transcoder

 Power supply

 This user manual and the Kramer concise product catalog/CD

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

3 Overview

The high quality Kramer FC-14 RGBHV to Component Transcoder is an

adjustment-free, multi-standard converter that converts RGB video to

component video (Y, B-Y, R-Y, sometimes called YUV or Y, Pb, Pr).

The FC-14 supports different sync variants on the RGB inputs:

 Separate H & V (RGBHV)

 Separate composite sync (RGBS)

 Sync-on-green (RGsB)

 Sync-on-all (RsGsBs)

Your RGBHV to Component Transcoder

KRAMER ELECTRONICS, LTD.

In addition, the FC-14:

 Recognizes any sync polarity and is compatible with both video level

(0.3V) and TTL level syncs

 Transcodes any RGB video (progressive scan or interlaced) to component

format, making it ideal for standard definition video as well as for

high-definition video (VGA, SVGA and XGA)

 Uses high quality analog circuitry – eliminating the artifacts associated

with digitizing and allowing the unit to operate with any video resolution!

To achieve the best performance:

 Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise levels

(often associated with low quality cables)

 Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer FC-14 in a

location free from moisture and away from excessive sunlight and dust

4 Your RGBHV to Component Transcoder

Figure 1 illustrates the front and rear panels of the FC-14. Tables 1 and 2

define the front and rear panels of the FC-14, respectively.

Figure 1: FC-14 RGBHV to Component Transcoder

Using Your RGBHV to Component Transcoder

Table 1: Front Panel FC-14 RGBHV to Component Transcoder

# Feature Function

1 POWER Switch

Illuminated switch supplying power to the unit

2 RGBHV Button Selects RGBHV as the input format

3 RGBS Button Selects RGBS as the input format

4 RGsB Button Selects RGsB as the input format

5 RsGsBs Button Selects RsGsBs as the input format

Table 2: Rear Panel FC-14 RGBHV to Component Transcoder

# Feature Function

1 R IN BNC Connector

2 G IN BNC Connector

3 B IN BNC Connector

Connects to the component video source when selecting

RGB/S or YUV as the input. Automatically detects

whether RGBS or RGsB is input when in the RGB mode

4 H/S IN BNC Connector Connects to the horizontal sync input

5 12V DC Power Connector  VDC, 80mA

6 V IN BNC Connector Connects to the vertical sync input

7 R-Y OUT BNC Connector

8 B-Y OUT BNC Connector

9 Y OUT BNC Connector

Connects to the component video acceptor

10 RGBHV IN DB15F Connector

Connects to the component video source

5 Using Your RGBHV to Component Transcoder

You can use your FC-14 RGBHV to Component Transcoder to convert the

following source signals to component video signals:

 An RGB source (see section 5.1)

 An RGBS source (see section 5.2)

 An RGBHV source (see section 5.3)

 A VGA source (see section 5.4)

Using Your RGBHV to Component Transcoder

KRAMER ELECTRONICS, LTD.

5.1 Converting an RGB Source

You can convert an RGB signal to Y, B-Y, R-Y, via a FC-14 RGBHV to

Component Transcoder, as the example in Figure 2 illustrates, as follows:

1. Connect the RGB video camera to the R, G and B BNC inputs.

2. Connect the Y, B-Y, and R-Y outputs to the BETACAM VCR.

3. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

4. Press the RGsB input format selector.

The camera’s RGB signal converts and outputs to the BETACAM VCR.

5. Switch on the power.

The Power switch illuminates.

Figure 2: Converting from an RGB Camera to a BETACAM VCR

Using Your RGBHV to Component Transcoder

5.2 Converting an RGBS Source

You can convert an RGBS signal to Y, B-Y, R-Y, via a FC-14 RGBHV to

Component Transcoder, as the example in Figure 3 illustrates, as follows:

1. Connect the RGBS workstation to the R, G, B and H/S BNC inputs.

2. Connect the Y, B-Y, and R-Y outputs to the plasma monitor.

3. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

4. Press the RGBS input format selector.

The RGBS workstation’s signal converts and outputs to the plasma

monitor.

5. Switch on the power.

The Power switch illuminates.

Figure 3: Converting from an RGBS Workstation to a Plasma Monitor

Using Your RGBHV to Component Transcoder

KRAMER ELECTRONICS, LTD.

5.3 Converting an RGBHV Source

You can convert an RGBHV signal to Y, B-Y, R-Y, via a FC-14 RGBHV to

Component Transcoder, as the example in Figure 4 illustrates, as follows:

1. Connect the high resolution graphics source to the R, G, B, H/S and V

BNC inputs.

2. Connect the Y, B-Y, and R-Y outputs to the plasma monitor.

3. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

4. Press the RGBHV input format selector.

The signal from the RGBHV high resolution graphics source converts and

outputs to the plasma monitor.

5. Switch on the power.

The Power switch illuminates.

Figure 4: Converting from a High Resolution Graphics Source to a Plasma Monitor

Using Your RGBHV to Component Transcoder

5.4 Converting a VGA Source

You can convert and output a VGA signal (or SVGA, XGA, UXGA) to Y,

B-Y, R-Y, via a FC-14 RGBHV to Component Transcoder, as the example in

Figure 5 illustrates, as follows:

1. Connect the VGA graphics source to the RGBHV DB15F input

connector.

2. Connect the Y, B-Y, and R-Y outputs to the plasma monitor.

3. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

4. Press the RGsB input format selector.

The signal from the RGsB VGA graphics source converts and outputs to

the plasma monitor.

5. Switch on the power.

The Power switch illuminates.

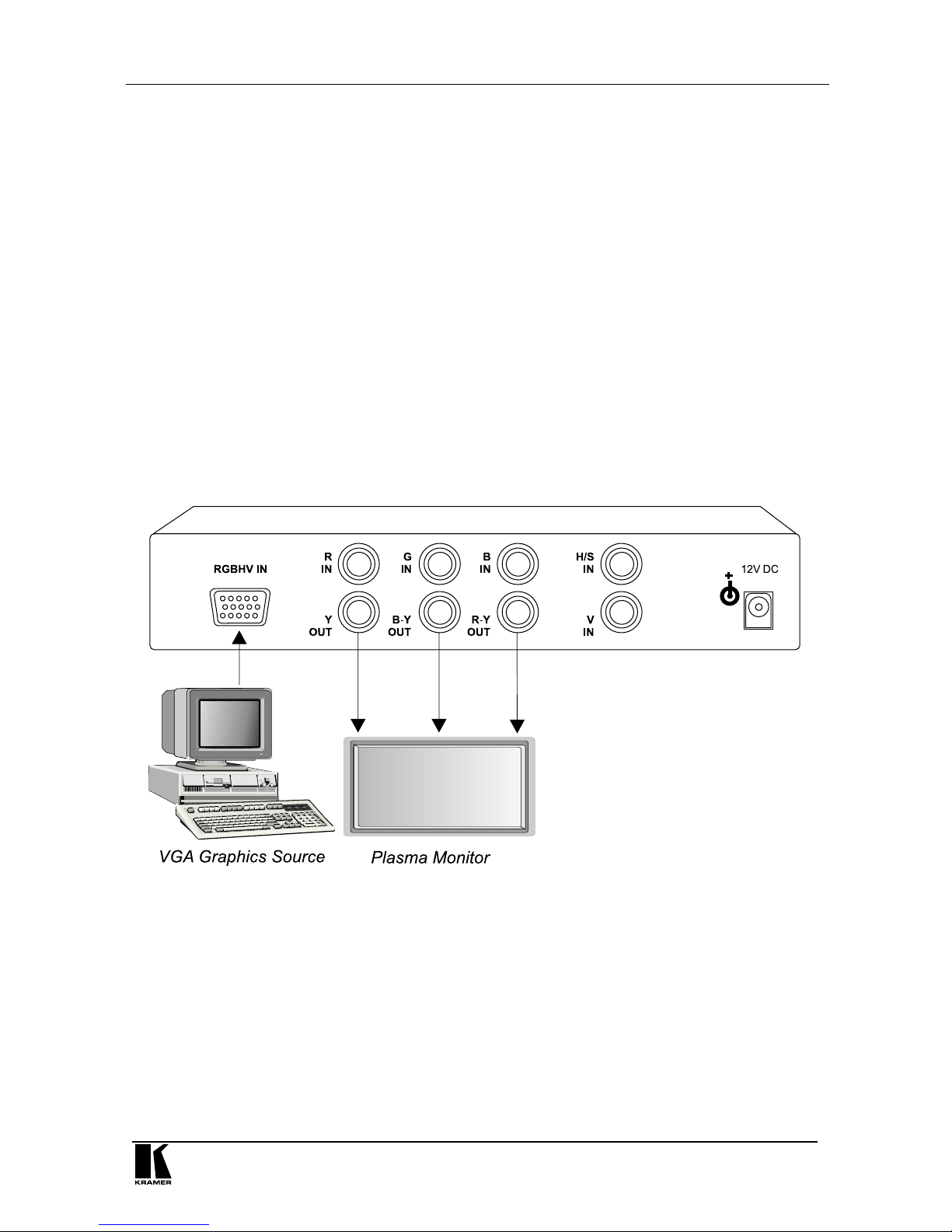

Figure 5: Converting from a VGA Graphics Source to a Plasma Monitor

Technical Specifications

KRAMER ELECTRONICS, LTD.

6 Technical Specifications

Table 3 includes the technical specifications:

Table 3: Technical Specifications of the FC-14 RGBHV to Component Transcoder

Inputs: R, G, B, H/S and V on BNC connectors; RGBHV IN on a DB15F connector

Outputs: 1 component video - (Y, B-Y, and R-Y) on BNC connectors

Video Bandwidth: 120 MHz -3dB

Max. Video Level: 1.5 Vpp @ green input

Non Linearity: 0.3%

Video S/N: 60 dB

Differential Gain: 0.1%

Differential Phase:

0.4 Deg

K-Factor: <0.05%

Control: 4 selector buttons

Dimensions: 22cm x 18cm x 4.5cm (8.6" x 7" x 1.8") W, D, H.

Power Source: 12 VDC, 80mA

Weight: 1.2 kg. (2.65 lbs.) approx.

Accessories: Power supply
