Pyro 650-103L, 550SX Edition

Modifying the Logo 550SX to fit

the Kontronik Pyro 650-103L

Parts Needed

•Mod 1, 106T Main Gear- MIK4621

•Mod 1, 11T or 12T Pinion- MIK4635 or MIK4636

–Note: the above parts are for the 600SX, which has a

thicker main gear and matching pinion

•(1) 6x13x5 Bearing- can use MIK4521 (two come per

package)

•(1) 6x9x0.2 Shim

Step One- Cut Motor Shaft

The motor shaft on the Pyro 650-103L needs 8mm

removed from the end. This is to prevent the shaft from

damaging and interfering with the installation of the

battery.

Step One- Cut Motor Shaft

•Always protect the motor from metal particles.

•Add chamfer to end of shaft.

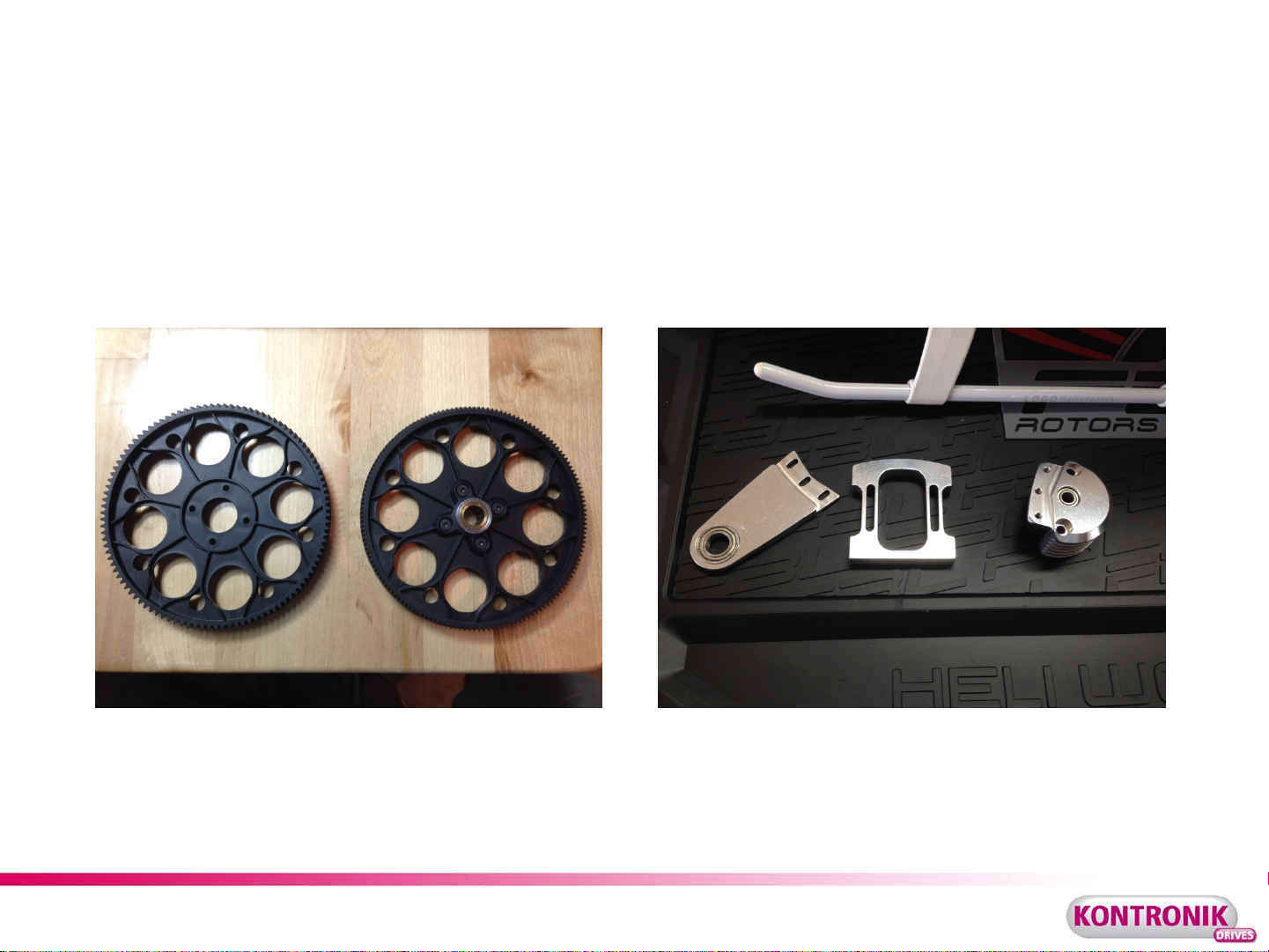

Step Two- Install Mod 1 Main

Gear

•If you have previously installed the Mod .7 main

gear in your 550SX, please remove it along with the

counter bearing components.

•Remove the auto hub from the Mod .7 gear (if

installed) and install in the new Mod 1 main gear.

•Follow the steps in the manual for installing the new

gear with the appropriate shims.

Step Two- Install Mod 1 Main

Gear

Step Three- Install new bearing

in Counter Bearing Support

•The counter bearing support on the motor side is

used on both the 550SX and 600SX models. The only

difference is the 550SX has a bearing with a 5mm ID

and the 600SX has a bearing with a 6mm ID. Since

the powerful Pyro 650-103L has a 6mm motor shaft,

the appropriate bearing must be installed.

•Carefully press the existing bearing out of MIK4714.

This is easily accomplished with a simple vice and

correctly sized socket. Of course if you have an

Arbor Press, this is more precise for installation and

removal.

Step Three- Install new bearing

in Counter Bearing Support

•Insert the new bearing (6x13x5) in the existing

location and press until fully seated.

Step Four- Install Motor

•Loosely install the pinion on the motor shaft and

install into the frame with the counter bearing

support. Follow the Logo instruction manual for

proper sequence of installation.

•Remember to add thread lock to appropriate

screws and check to see the motor wires are not

rubbing against and components.

Step Four- Install Motor
