mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 1



mITX-BYT - QUICK INSTALLATION GUIDE

Thank you for purchasing the Kontron mITX-BYT embedded board. This document provides information to allow you to quickly

install this product.

Packing Checklist

1. Take the mITX-BYT out of the packing box and check if the unit is properly secure in the plastic bag.

2. Check the contents of the carton box: (*: optional)

mITX-BYT main board

Rear I/O Shield

COM Port Cable*

DIO Cable*

1-Port USB 2.0 Cable*

SATA Cable*

SATA Power Cable*

LPT Cable*

PS/2 Cable*

mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 2

Jumper and Internal Connector Locations

Jumper List

Item

Designation

Description

JP1

Panel & Backlight Power Selection for LVDS1

JP2

Backlight Power Enable Selection for LVDS1

JP3

AT / ATX Mode Selection

JP4

LVDS1 Backlight DC / PWM Selection

JP5

Signal / Power Selection for COM5

JP6

Signal / Power Selection for COM6

JP7

Signal / Power Selection for COM3

JP8

Signal / Power Selection for COM4

JP9

ME F/W Selection

JP10

MPCIE Activity LED Indication

JP11

Signal / Power Selection for COM2

JP12

Signal / Power Selection for COM1

JP13

USB Power Selection

JP15

RTC Reset Selection

mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 3

Internal Connector List

Item

Designation

Description

ATX1

4-pin ATX Power Input Connector

BAT1

CR2032 Battery Holder

COM3

RS-232 Port 3 Pin Header

COM4

RS-232 Port 4 Pin Header

COM5

RS-232 Port 5 Pin Header

COM6

RS-232 Port 6 Pin Header

CN1

Panel Backlight Wafer for LVDS1

CN2

Keyboard & Mouse Wafer

CN3

Digital Input / Output Pin Header

CN5

USB2.0 Port USB DN1 Pin Header

CN8

HDD Power Output Wafer

CN10

Right Channel 3W Audio AMP Output Wafer

CN11

Left Channel 3W Audio AMP Output Wafer

SIM1

SIM Interface Wafer for MPCIE1

DIMM1

Primary DDR3 Memory SO-DIMM Socket

DIMM2

Secondary DDR3 Memory SO-DIMM Socket

FAN1

CPU FAN Wafer

FAN2

SYSTEM FAN Wafer

FP1

Front Panel 1 Pin Header

FP2

Front Panel 2 Pin Header

LVDS1

Primary 24-bit, 1-channel LVDS Panel Connector

MPCIE1

Half Size Mini-PCIE Express v1.2 Socket

PEG1

PCIE Express x1Slot

SATA1

Serial ATA Port 0 Connector

SATA2

Serial ATA Port-1 mSATA Socket (Full Size)

LPT1

Parallel Port Pin Header

mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 4

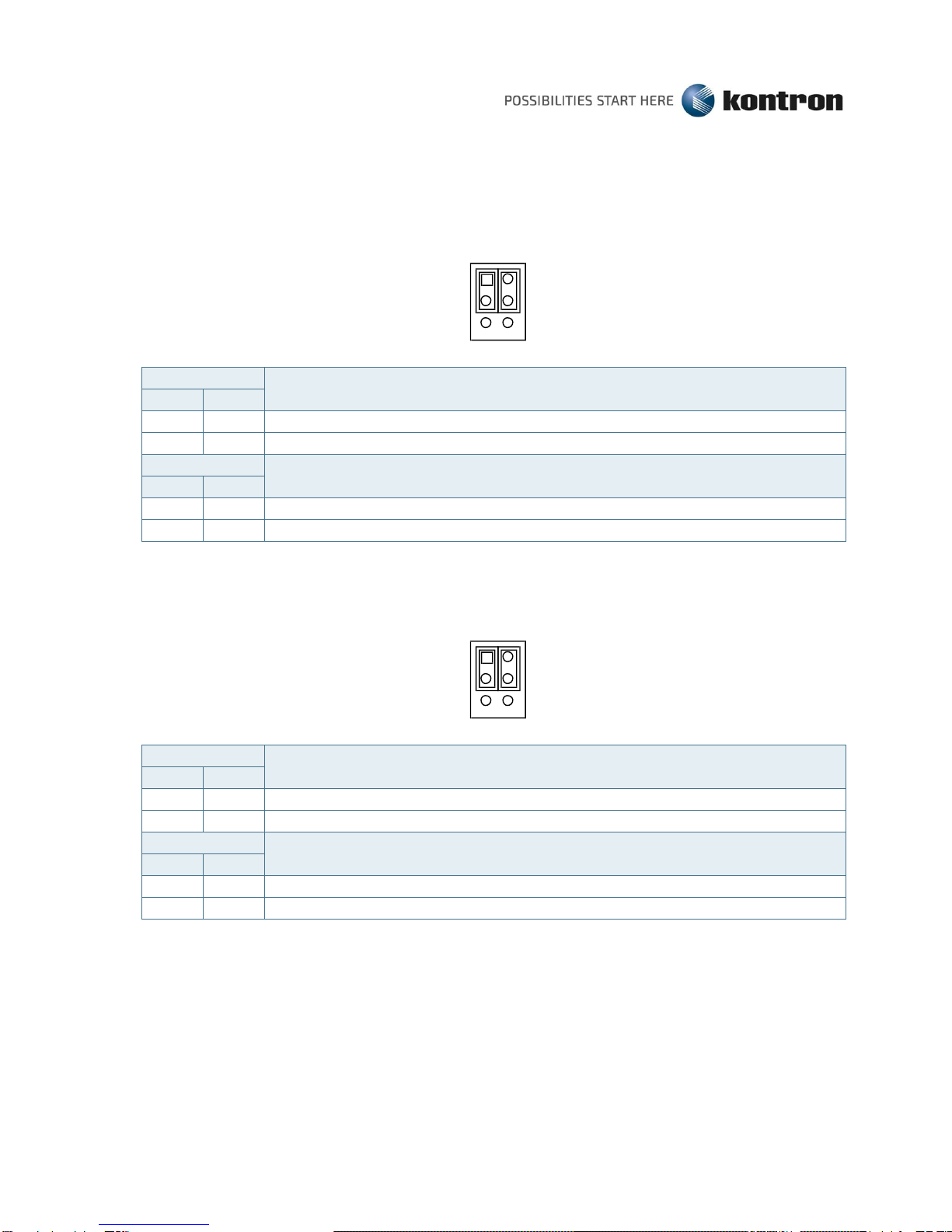

Jumper Settings

Panel & Backlight Power Selection for LVDS1 (JP1)

Jumper 1 Position

Description

Pin 1-3

Pin 3-5

Backlight Power = +12V

Backlight Power = +5V

Jumper 2 Position

Description

Pin 2-4

Pin 4-6

Panel Power = +3.3V

Panel Power = +5V

“X” = Jumper set (short) and “-” = jumper not set (open)

Backlight Power Enable Selection for LVDS1 (JP2)

Jumper 1 Position

Description

Pin 1-3

Pin 3-5

Backlight Enable Voltage = +3.3V

Backlight Enable Voltage = +5V

Jumper 2 Position

Description

Pin 2-4

Pin 4-6

Active High

Active Low

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 5

AT / ATX Power Mode Selection (JP3)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

ATX Mode

AT Mode

“X” = Jumper set (short) and “-” = jumper not set (open)

LVDS1 Backlight DC / PWM Selection (JP4)

Jumper 1 Position

Description

Pin 1-2

Pin 2-3

DC Mode

PWM Mode

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 6

Signal / Power Selection for COM1 ~ COM6 (JP5 ~ JP8, JP11, JP12)

Jumper 1 Position

Description

Pin 1-3

Pin 3-5

Pin 5-7

Pin 7-9

Pin 1 = +12V

Pin 1 = +5V

Pin 1 = DCD

Jumper 2 Position

Description

Pin 2-4

Pin 4-6

Pin 6-8

Pin 8-10

Pin 9 = +12V

Pin 9 = +5V

Pin 9 = RI

“X” = Jumper set (short) and “-” = jumper not set (open)

ME F/W Selection (JP9)

Jumper Position

Description

Pin 1-2

ME F/W Disabled

Normal Operation

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 7

MPCIE Activity LED Indication (JP10)

Signal

Note

LED+

LED-

USB Power Selection (JP13)

Jumper Position

Description

Pin 1-2

USB power is always supply.

USB power will be cut off in S4 & S5 state.

“X” = Jumper set (short) and “-” = jumper not set (open)

RTC Reset Selection (JP15)

Jumper Position

Description

Pin 1-2

Enable Clear CMOS RTC content

(board does not boot with the jumper in this position)

Normal operation (default position)

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-BYT - Quick Installation Guide - Version 1.1 // www.kontron.com // 8

Real I/O Panel Connector Locations

Item

Designation

Description

Power Input DC Jack

CN4

LAN1 & USB2.0 Port 0,1 Connector

CN6

LAN2 & USB2.0 Port 2,3 Connector

USB1

USB3.0 Port 0 Connector

VGA1

VGA Connector

HDMI1

HDMI Connector

CN9

RS-232 / 422 / 485 Port 1, 2 Connector

AUDIO1

2 Stack-up Azalia Audio Phone Jack
