Konig SEC-CAMIP20 Manual de usuario

SEC-CAMIP20

IP NETWORK CAMERA

QUICK INSTALLATION GUIDE

For details, refer to advanced manual supplied on CD.

Advanced manual and software only in English

Introduction:

Professional network IP CCTV colour camera with weatherproof housing and IR

LEDs for night vision. Ideal for live monitoring via internet. Including software,

bracket and power adapter.

Note: Quick installation guide in multiple languages. Complete manual only in

English. Software only in English.

System requirements:

• 10 Base-T Ethernet or 100 Base-TX Fast Ethernet

• CD-ROM drive

• Intel Pentium II 266 MHz CPU or above

• 32 Mb memory (64 Mb recommended)

• 800 x 600 VGA resolution or above

Camera installation:

1. Slide the camera into the camera holder.

2. Line up mounting holes of the camera holder and the bracket.

3. Insert thumb screw, adjust camera to desired angle and tighten screw.

1. Select a mounting location.

Use the mounting bracket

as a guide and mark the

screw holes with a pencil.

2. Align the bracket over the

holes or wall anchors and

tighten the screws to secure

the bracket to the wall or

ceiling.

Attach Stand to

Mounting Surface

Loosen up the thumb screw

and adjust the camera to

desired angle, then tighten the

screw.

Connect the Ethernet cable to

the network cable connector,

then connect it to the network.

Connect the external power

supply to the DC power input

connector, and connect it to

your wall outlet.

Setup Wizard:

The Setup Wizard is a

convenient tool that will guide

you through the installation

of your camera easily and

quickly. After connecting the

camera to your computer, you

can install the Setup Wizard

and complete the conﬁguration

now.

1. Insert the Installation CD-

ROM into your CD-ROM

drive.

Click Install Wizard.

180° rotation availability,

90° of aiming availability for the lens.

DC 5 V

ADSL

2. Click Next.

3. Click Yes.

4. Click Next.

5. Click Finish.

To run the Setup Wizard, click Start -> Programs -> Setup Wizard.

Using the Setup Wizard:

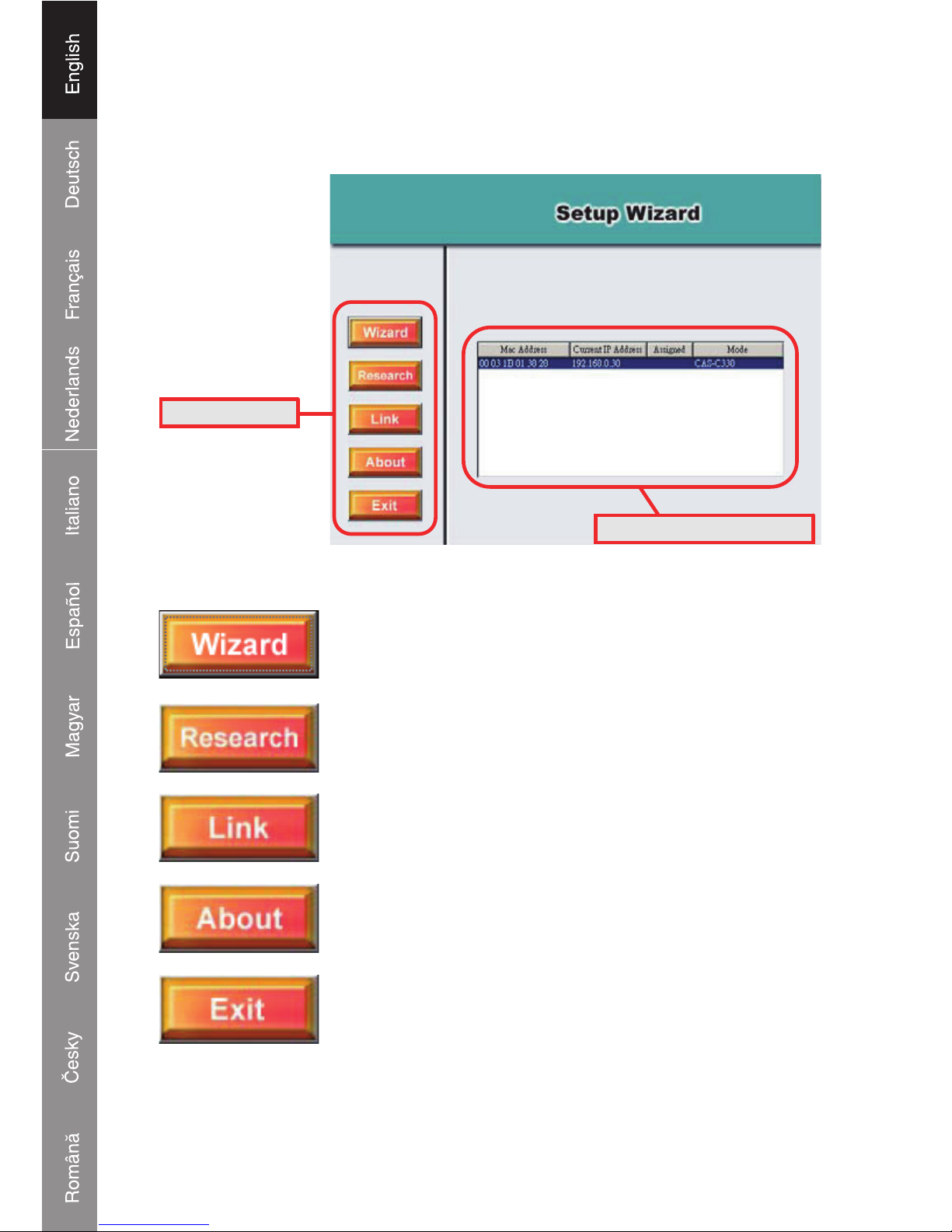

When you launch the Setup Wizard, the main window will appear as shown and

the connected camera will be displayed in the list.

Control buttons

The connected camera list

Click Wizard to begin conﬁguring the selected camera.

Click Research allows you to search the connected camera

again.

Click Link to launch the web browser and view the images.

Click About to show the general information of the selected

camera.

Click Exit to close the Setup Wizard.

Changing the Admin ID and Password:

By default settings, the Admin ID and Password are blank.

For security purposes, you are recommended to set an Admin ID and Password

immediately.

Click Wizard.

The dialog box as shown appears,

asking you to enter the Admin ID

and Password.

Click OK.

If required, select the Change

options and enter the new Admin

ID and Password.

Click Next.

The settings of IP Address, Subnet

Mask and Default Gateway must

correspond with your camera and

networking settings. Please check

with your network administrator for

correct settings.

Click Next.

The factory default

IP address : 192.168.0.20

Quick Installation:

This window displays the settings you

set up. For any change, click Back

to modify your settings. Otherwise,

click Restart to save and apply the

settings.

The conﬁguration is completed

and you will return to the main

window. Click Link to launch the

web browser and view the images.

Speciﬁcations:

Image sensor: color CMOS Sensor

Sensitivity: 0.8lux

Lens: 6.0 mm

LED’s: 40 IR LEDs

S/N ratio: >48

Connector: RJ45

Housing: IP44

Temperature operation: -5°C - 40°C

Weight: 0.84kg

Dimensions: L187*W76*H204mm

Power: DC5V, switching type

Declaration of conformity

We,

Nedis B.V., De Tweeling 28, 5215MC ’s-Hertogenbosch,

The Netherlands, Tel.: 0031 73 599 1055, Email: info@nedis.com

Declare that product:

Name: König security

Model: SEC-CAMIP20

Description: IP NETWORK CAMERA

Is in conformity with the following standards

EMC: EN 55022:1998+A1:2000+A2:2003, EN 61000-3-2/-3,

EN 55024:1998+A1:2001+A2:2003,

EN 61000-4-2/-3/-4/-5/-6/-11

LVD: EN 60950-1, 2001+A11

Following the provisions of the 73/23/EEC (93/68/EEC) and 2004/108/EC

directive.

‘s-Hertogenbosch, 24 April 2008

Mrs. J. Gilad

Purchase Director

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an

authorized technician when service is required. Disconnect the product from

mains and other equipment if a problem should occur.

Maintenance:

Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modiﬁcations of

the product or damage caused due to incorrect use of this product.

General:

Designs and speciﬁcations are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of

their respective holders and are hereby recognized as such.

Attention:

This product is marked with this symbol. It means that used electrical

and electronic products should not be mixed with general household

waste. There is a separate collections system for these products.
