DVB-T SCARTxx

Digital Terrestrial Receiver

User manual for the installation and operation of the

önig SCARTxx terrestrial receiver

READ THIS FIRST!

This user manual helps you to get familiar with the installation and operation of the

König SCARTxx terrestrial receiver.

lease read this user manual before using the receiver.

Store this user manual on a safe place so you will always be able to use it for

reference.

SAFETY PRECAUTIONS:

To reduce risk of electric shock, this product should ONLY be opened by an

authorized technician if service is required. Disconnect the product from mains and

other equipment if a problem should occur.

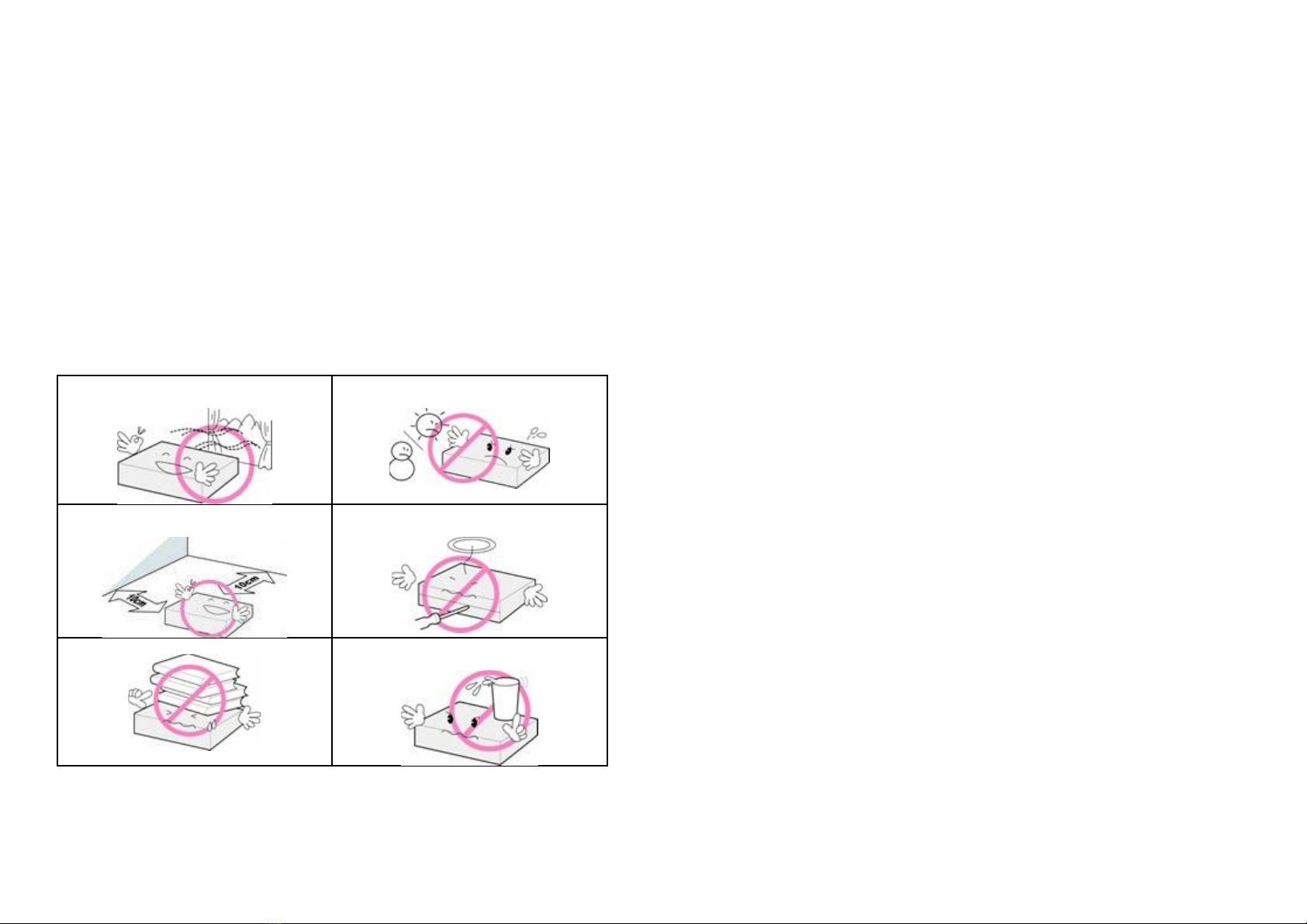

Remarks to the installation, use and care of the receiver:

lace the product in a well-ventilated

area.

Don’t install in the cold or under direct

sunlight.

Leave a minimum 10cm gap all around

the product.

Don’t disassemble, repair, or reorganize

the product.

Don’t place objects on top of the product. Don’t place cups that hold water or other

liquids on top of the product.

INTRODUCTION

Features:

This user manual covers the installation of the SCARTxx terrestrial receiver and the

necessary steps to operate various features. This manual also explains special

features available only in this receiver and will allow you to get full advantage of

these features.

This receiver offers:

•400 channels

•Multilanguage OSD (On Screen Display) with 256 Colors

•Favorite lists

•E G (Electronic rogram Guide) for On Screen Channel Information

•Teletext

•Automatic and manual installation

•Multi-Language function (Menu, Audio)

•Editing Functions

•Digital Tuner

•Fully DVB-T, M @ML and M EG-2 compliant

•arental lock control

Contents of the packaging:

After purchasing the receiver, unpack it and check to make sure that all of the

following Items are included in the packaging:

•SCARTxx Receiver

•Remote control

•2x AAA batteries

•ower adapter

Remote control functions

Standby: ower on/off

CH+/CH-: ress to change channel.

V-/V+: ress to adjust volume

Numeric key: ress to change channel

TV/RADIO: ress to switch to TV or Radio mode

Channel list: ress key to enter channel list

Audio: ress key to select audio mode

E G: ress key to display E G screen

ress [OK] key can play the current channel in full screen

ress key [1] to display all information of the selected channel

ress key [2] to display the current channel detail information

FAV+/-: ress key to change between favorite channels

Exit: ress key to exit current menu

Menu: ress key to enter the menu or exit current menu

Mute: ress key to mute the sound

AUSE: ress key to pause the screen

RECALL: ress key to return to previous channel

FAV: ress key to list favorite channels

Info: ress key to open information screen

Subtitle: ress key to switch subtitle on or off

TXT: ress key to enter teletext mode

INSTALLATION

Channel setup

When first time power on, it will show welcome page like below:

- ress [Up/Down] key to select submenu.

- ress [Left/Right] key to select region and OSD language.

- ress [Left/Right] key to select “scan mode”.

- ress “Search” to start searching.

- ress [Exit] after all channels are have been searched

OPERATION

ain enu

- ress [Up/Down] key to select submenu.

- ress [OK] key to enter the selected item.

Channel menu

- ress [Up/Down] to select submenu.

- ress [OK] to enter the selected item.

TV Channel List

- ress [Up/Down] key to preview the current highlighted program.

- ress [Menu] or [Exit] keys to enter full screen playing mode.

- ress key [0] ~ [4] to:

0: Delete all

1: Add favorite mark

2: Lock selected channel

3. Move selected channel

4. Delete selected channel

Radio Channel List

The operation of the “Radio Channel List” is the same as “TV Channel List”

TV Favorite List

The “TV Favorite List” will show all the favorite channels in the list.

- ress key [0] ~ [4] to:

0: Delete all favorites

2: Lock selected channel

3. Move selected channel

4. Delete selected channel

Radio Favorite List

The operation of the “Radio Channel List” is the same as “TV Channel List”

Delete All Favorites

This operation will remove all favorite channels (including TV and radio favorite

channels).

Delete All

This operation will delete all channels (including TV and radio channels)

System Setup

- ress [Up/Down] key to select submenu.

- ress [OK] key to enter the selected item.

OSD Language

- ress [Left/Right] key to select language.

- ress [Exit].

TV System

- ress [Left/Right] key to select Auto, AL or NTSC.

- ress [Left/Right] key to select 4:3LB/4:3 S/16:9.

- ress [Left/Right] key to select CVBS, CVBS+RGB.

- ress [Left/Right] key to select LCN on or off.

- ress [Exit].

Region and Time

- ress [Left/Right] key to select region.

- ress [Left/Right] key to select GMT Usage. Change values by demand.

- ress [Exit].

Sleep Timer

- ress [Left/Right] key to select on/off.

- ress [Left/Right] key to choose: Off /10min /30min /60min /90min /120min.

- ress [Exit].

OSD Setting

- ress [Left/Right] key to select subtitle on/off.

- ress [Left/Right] key to set OSD transparency.

- ress [Left/Right] key to set OSD pallete.

- ress [Exit].

Parental Lock

You can set a password for anyone who wishes to operate in the “Installation” menu.

You can also set a password for the locked channels. Refer to chapter about how to

set a locked channel.

ress [OK] key. A dialogue will prompt to input the password. The default password

is “3330”. When you input the correct password a screen like below will appear:

- ress [Left/Right] key to select menu lock on/off.

- ress [Left/Right] key to select channel lock on/off.

- ress [Exit].

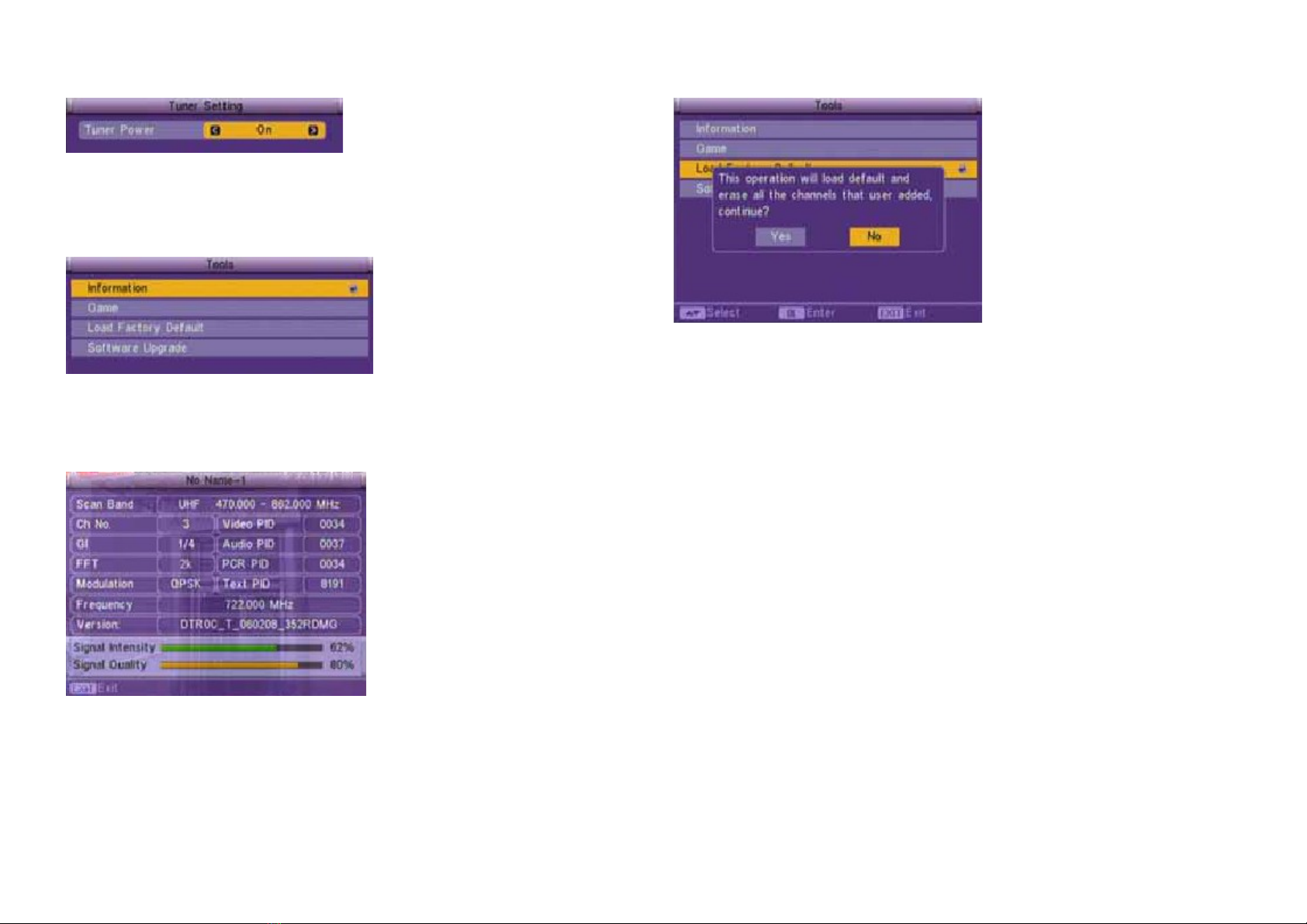

Tuner Setting

- ress [Left/Right] key to select tuner power on/off.

- ress [Exit].

Tools

- ress [Up/Down] key to select submenu.

- ress [OK] key to enter the selected item.

Information enu

- When you enter the “Information” menu you will see a screen like above. The

screen displays some parameters of information of current channel

- ress [Exit].

Load Factory Default

- ress [OK] key to enter the selected item.

- Confirm yes or no to load factory default.

TECHNICAL SPECIFICATIONS

Tuner and Channel

•Frequency Range: 51MHz to 860MHz

•Channel bandwidth: 6/7/8MHz

•Demodulation: COFDM 2K,8K

•Mapping: Q SK,16-QAM,64-QAM

•Guard-Interval: 1/2,2/3,3/4,5/6,7/8

•Demodulation: COFDM

MPEG Transport Stream & A/V Decoding

•Transport Scream: M EG-2 ISO/IEC 13818 Transport Stream Specification

•rofile Level: M EG-2 M @ML

•Frame Rate: 25Hz for AL, 30Hz for NTSC

•Video Resolution: 720x576 ( AL), 720x480 (NTSC)

•Audio Decoding: M EG/MusiCAM Layer M 3, AC3

•Audio Mode: Single channel, Dual channel, Joint stereo, Stereo

•Sampling Rate: 32, 44.1,48kHz

Enviromental Condition

•Operating Temperature: 0 ~ 40oC

•Operating Humidity Range: 10 ~ 85% RH, Non-condensing

Designs and specifications are subject to change without a notice.

No guarantee or liability can be accepted for any changes and modifications of

the product or damage caused due to incorrect use of this product.
