Konica Minolta Magicolor 3300 Manual de usuario

magicolor 3300

Installation Guide

1800737-002A

Thank You

Thank you for purchasing a magicolor 3300. You have made an excellent choice. Your

magicolor 3300 is specially designed for optimal performance in Windows, Macintosh,

UNIX and other environments.

Trademarks

KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered

trademarks of KONICA MINOLTA HOLDINGS, INC.

magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING

SOLUTIONS U.S.A., INC.

Proprietary Statement

software may not be reproduced, modified, displayed, transferred, or copied in any

form or in any manner or on any media, in whole or in part, without the express

written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

Center Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights

Reserved. This document may not be copied, in whole or part, nor transferred to any

other media or language, without written permission of KONICA MINOLTA BUSINESS

TECHNOLOGIES, INC.

Manual Notice

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make

changes to this manual and to the equipment described herein without notice.

Considerable effort has been made to ensure that this manual is free of inaccuracies

and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

makes no warranty of any kind including, but not limited to, any implied warranties of

merchantability and fitness for a particular purpose with regard to this manual.

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for,

or liability for, errors contained in this manual or for incidental, special, or

consequential damages arising out of the furnishing of this manual, or the use of this

manual in operating the equipment, or in connection with the performance of the

equipment when so operated.

Registering the Printer

Internet—Go to Go to www.euro.konicaminolta.net/register and follow the instructions

given there.

CD-ROM—Follow the instructions on the Software Utilities CD-ROM.

Contents

Getting Acquainted with Your Printer .........................................................5

Printer Features .......................................................................................5

Space Requirements ................................................................................6

Location Requirements ............................................................................7

Printer Parts .............................................................................................8

Documentation Set .......................................................................................9

Setting up Your Printer ...............................................................................10

Shipment Contents ................................................................................. 10

Unpacking the Printer .............................................................................11

Installing the Imaging Unit ......................................................................12

Preparing the Toner Cartridges ..............................................................14

Loading the Upper Media Tray ..............................................................16

Loading the Multipurpose Tray ...............................................................18

Installing Accessories ................................................................................19

Plugging in/Turning on the Printer ............................................................20

About the Interface Panel ...........................................................................21

What’s Next? ...............................................................................................21

Configuration Menu Overview ................................................................23

About the Control Panel .............................................................................24

Selecting a Message Window Language ...............................................24

Contentsiv

Control Panel Indicators ........................................................................ 25

Control Panel Keys ................................................................................ 26

Menu, Select, Previous, and Next Keys ................................................ 26

Manually Selecting an Ethernet IP Address .......................................... 27

Troubleshooting ......................................................................................... 28

Additional Assistance ............................................................................. 30

Color Registration .................................................................................. 31

Accessories and Consumables ................................................................ 34

Accessories ........................................................................................... 34

Consumables ......................................................................................... 35

Safety Information ...................................................................................... 36

Regulatory Compliance ......................................................................... 36

FCC Compliance Statement ................................................................. 36

Canadian Users Notice ......................................................................... 37

CE Marking (Declaration of Conformity) ................................................ 37

Laser Safety ........................................................................................... 38

International Notices .............................................................................. 38

Warranty Considerations ........................................................................... 39

Getting Acquainted with Your Printer 5

Getting Acquainted with Your Printer

Printer Features

Feature Details

Print speed (color and

monochrome black) Media

size Print quality

(dots per inch/dpi) Print speed

(pages per

minute/ppm)

Letter Standard—600x600 Up to 26

Quality—1200x1200

full speed

Fine—1200x1200

half speed Up to 13

A4 Standard—600x600 Up to 24

Quality—1200x1200

full speed

Fine—1200x1200

half speed Up to 12

SDRAM 256 MB (expandable to 512 MB)

500-sheet upper media tray Standard

100-sheet multipurpose

media tray Standard

500-sheet (1x500) high-

capacity input feeder (HCIF)* Optional

1,000-sheet (2x500) high-

capacity input feeder (HCIF)* Optional

IEEE-1284 parallel Standard

Ethernet Standard

USB 1.1 Standard

Internal IDE Hard Disk Optional

Time-of-Day Clock magicolor 3300 DN (110 Volt)—Standard

magicolor 3300 DN (220 Volt)—Optional

magicolor 3300 EN—Optional

Autoduplex Printing magicolor 3300 DN—Standard

magicolor 3300 EN—Optional

* Only one high-capacity input feeder may be installed at a time.

Getting Acquainted with Your Printer6

Space Requirements

Top View

Front View Side View

Getting Acquainted with Your Printer 7

Location Requirements

WARNING!

Obstructing the ventillation grilles could present a fire hazard.

Do not tilt the printer more than 10° when moving it.

WARNING!

Do not connect the groundwire to gas or water pipes or grounding for

telephones.

For further details, refer to the User’s Guide on the Documentation CD-ROM.

With these characteristics... But away from...

On a hard, flat, stable, level (±5° or

less slant at any point around the

machine) surface.

Direct sunlight. Heating and cooling

sources, extreme temperature or

humidity changes, wind, and dust.

Open flames or items that can easily

burn.

Close to an easily accessible

grounded power supply (on an

exclusively dedicated power outlet)

that meets printer specifications.

Near your computer. At the length 2

m (6.5') or less for an IEEE 1284

bidirectional parallel connection.

A connection to the same electrical

circuit as high-current machines.

Noise-generating equipment, such

as a copier or air conditioner, and

strong magnetic or electromagnetic

fields, such as a refrigerator.

With enough space to allow

adequate ventillation and easy

servicing.

Water, water pipes, liquid (drink)

containers, and corrosive chemicals

or vapors, such as ammonia.

With an ambient temperature range

of 10°–32° C (50°–90° F) and rela-

tive humidity range of 15%–85%

(noncondensating).

Small, loose metal parts, such as

paper clips and staples.

At an altitude of 0–3,100m (0–

10,170'). Excessive vibration.

Getting Acquainted with Your Printer8

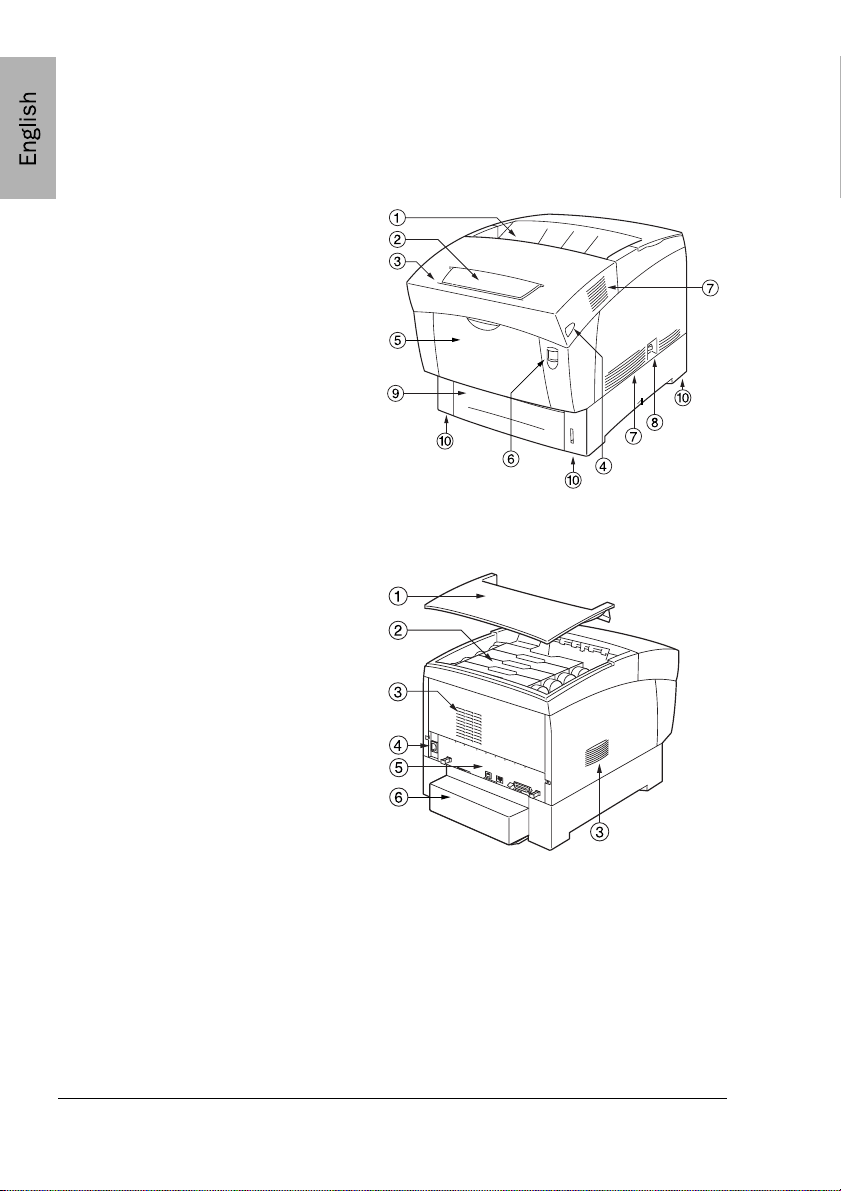

Printer Parts

The following drawings illustrate the parts of your printer referred to through-

out this guide, so please take some time to become familiar with them.

Front View

Rear View

1—Top cover/face-down output

tray

2—Control panel and message

window

3—Front cover

4—Cover Button B

5—Multipurpose tray (shown

closed)

6—Cover Button A

7—Ventillation grilles

8—Power switch

9—Standard upper

media tray

10—Media level guide

11—Carrying grips (both sides)

1—Top cover

2—Toner cartridges

3—Ventillation grilles

4—AC power connection

5—Interface panel

6—Media tray cover

Documentation Set 9

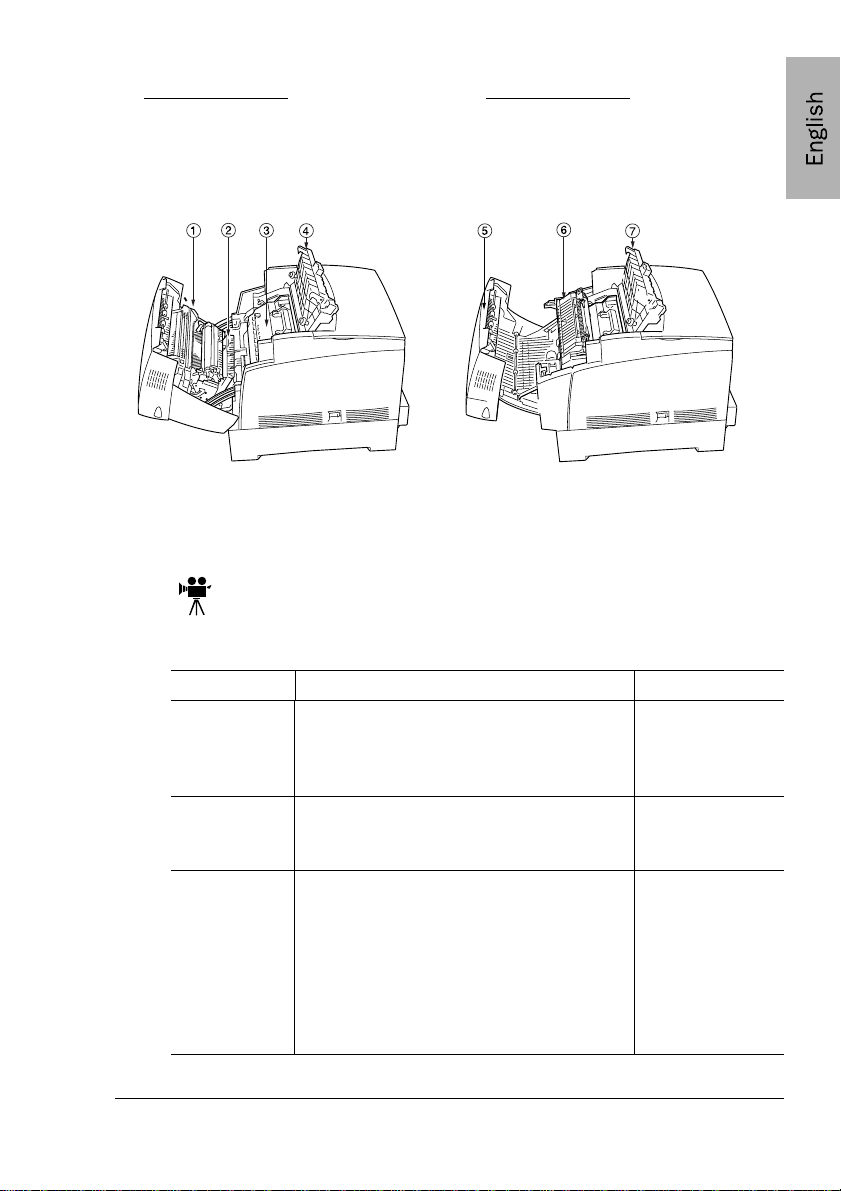

Top Internal View

Documentation Set

If you’re using the Acrobat PDF version of this guide, click this icon to

play a QuickTime video clip of the procedure described in the text.

Acrobat Reader and a download link to QuickTime are provided on the

Documentation CD-ROM.

Manual Description Location

Installation

Guide You’re looking at this document right now.

This guide provides information about

printer installation, the interface panel and

the control panel.

Hardcopy and

Documentation

CD-ROM

Quick Setup

Guide This document provides illustrations to

help you quickly and easily setting up your

printer.

Documentation

CD-ROM

User’s Guide This guides you through the day-to-day

operation of your printer, including infor-

mation on printing files, refilling print

media, and replacing toner. It also

includes information on additional acces-

sories; cleaning, and maintaining your

printer; improving print quality; and trou-

bleshooting printer problems.

Documentation

CD-ROM

Pressing Button A (see Front View)

1—Transfer unit

2—Registration rollers

3—Imaging unit

4—Imaging unit cover

Pressing Button B (see Front View)

5—Duplexer rotator

6—Fuser unit

7—Imaging unit cover

Setting up Your Printer10

SettingupYourPrinter

WARNING!

Your printer weighs approximately 29.5 kg (65 lbs) without

consumables and accessories. Be sure to have help when lifting and

moving it.

Shipment Contents



Printer (with 500-sheet upper media tray, 100-sheet multipurpose tray)



Consumables

aImaging unit

bFour toner cartridges (already installed)



Power cord



Two CD-ROMs (Software Utilities and Documentation)



Installation Guide

Interface cables aren’t included in the shipment. If you need cables, contact

your local vendor or computer store.

CrownBooks

1and2 These manuals provide detailed

information about Crown architecture,

color printing, menu configuration, and

advanced computer/network connection

and configuration.

Documentation

CD-ROM

Service &

Support

Guide

This lists global sources of service and

support for your printer. The most

up-to-date information can also be found

at www.euro.konicaminolta.net.

Documentation

CD-ROM

Manual Description Location

Otros manuales para Magicolor 3300

Tabla de contenidos

Otros manuales de Impresora de Konica Minolta

Konica Minolta

Konica Minolta PagePro 1400W Manual de usuario

Konica Minolta

Konica Minolta bizhub 224e Manual de usuario

Konica Minolta

Konica Minolta magicolor 7450 II Manual de usuario

Konica Minolta

Konica Minolta magicolor 7450 II Manual de usuario

Konica Minolta

Konica Minolta Magicolor 2530 DL Instrucciones originales

Konica Minolta

Konica Minolta Magicolor 5440 dl Guía de inicio rápido

Konica Minolta

Konica Minolta Magicolor 2450 Manual de usuario

Konica Minolta

Konica Minolta Magicolor 5440 dl Manual de usuario

Konica Minolta

Konica Minolta bizhub C550 Series Manual de usuario

Konica Minolta

Konica Minolta MAGICOLOR 7450II GA Manual de usuario

Konica Minolta

Konica Minolta bizhub 4050 Manual de usuario

Konica Minolta

Konica Minolta PagePro 1400W Manual de usuario

Konica Minolta

Konica Minolta Magicolor 5450 Manual de usuario

Konica Minolta

Konica Minolta Magicolor 2490 MF Manual

Konica Minolta

Konica Minolta PAGEPRO 5650EN Manual de usuario

Konica Minolta

Konica Minolta PagePro 1400W Manual de usuario

Konica Minolta

Konica Minolta magicolor 1650EN Instrucciones originales

Konica Minolta

Konica Minolta Magicolor 2550 Guía de inicio rápido

Konica Minolta

Konica Minolta BIZHUB PRO C6500 Manual de usuario

Konica Minolta

Konica Minolta bizhub 4000P Manual de usuario

Konica Minolta

Konica Minolta PagePro 1350W Guía de inicio rápido

Konica Minolta

Konica Minolta magicolor 5670EN Manual de usuario

Konica Minolta

Konica Minolta bizhub 163 Manual de usuario

Konica Minolta

Konica Minolta Magicolor 4650EN Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
