INSTALLATION MANUAL
Applied Machine: /
/
I. Outline of Installation Procedures for bizhub 162/bizhub 210 System
When installing the machine and associated options as a system, follow the order shown on the upper.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
Installation Manual and perform the procedures correctly.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
• Make available collective manpower of an appropriate size for transporting the machine. (Machine mass:
38 kg/83-3/4 lb)
MB-501
SF-501
AD-504*
JS-503
✱Electron System Options
PF-502 DK-701 DK-703
Machine
FK-505
DK-702
HT-502
EM-101/EM-102
SU-502
Electron System Options
MC-503
NC-502
IC-205
MK-501* DF-502OC-504*
DF-605* * : bizhub 210 only
4034IXC003DA
4034-7142-01E.fm 1 ページ ２００５年２月２８日 月曜日 午後４時５５分
E-2
II. Installation Space (unit: mm (inch))
bizhub 210 + DF-605 + MB-501 + PF-502 + DK-703
III. Pre-installation Check Items
1. Select a level and stable place for installing the
machine.
2. Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
3. Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
4. Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
5. Avoid a hot and humid environment, or a place
exposed to direct sunlight.
6. Avoid a dusty location, or a place near volatile
and flammable substances.
7. Avoid a poorly ventilated place.
1099 (43-1/4)
599 (23-1/2) 400 (15-3/4)
375 (14-3/4) 1100 (43-1/4)
1069 (42)
1475 (58)
4034IXC002DA
100
(4) 356
(14)
4034-7142-01E.fm 2 ページ ２００５年２月２８日 月曜日 午後４時５５分
E-3
IV. Accessory Parts
*1 Varies depending on the applicable marketing
area
*2 Not included in bizhub 210
V. Removing the Machine
1. Holding onto the portions shown in the illustra-
tion, remove the machine while maintaining a
level position.
Note:
Machine mass: 38 kg/83-3/4 lb
Make available collective manpower of an appro-
priate size for transporting the machine.
VI. Removing Protective Tape, Packing
and Other Shipping Materials
1. Remove the protective tape from different parts of
the machine.
2. Open the Right Door.
No. Name Q’ty
1. User’s Guide*1 1
2. User’s Guide (GDI printer controller)*1 1
3. Installation Manual (this manual) 1
4. Manual Holder 1
5. Seal 1
6. Size Label 1 set
7. Power Cord*1 1
8. Starter 1
9. CD-ROM (GDI & TWAIN Driver)*1 1
10. Original Cover*2 1
4686U083AA
1171U013AA
4034U001AB
4034U002AA
4034-7142-01E.fm 3 ページ ２００５年２月２８日 月曜日 午後４時５５分

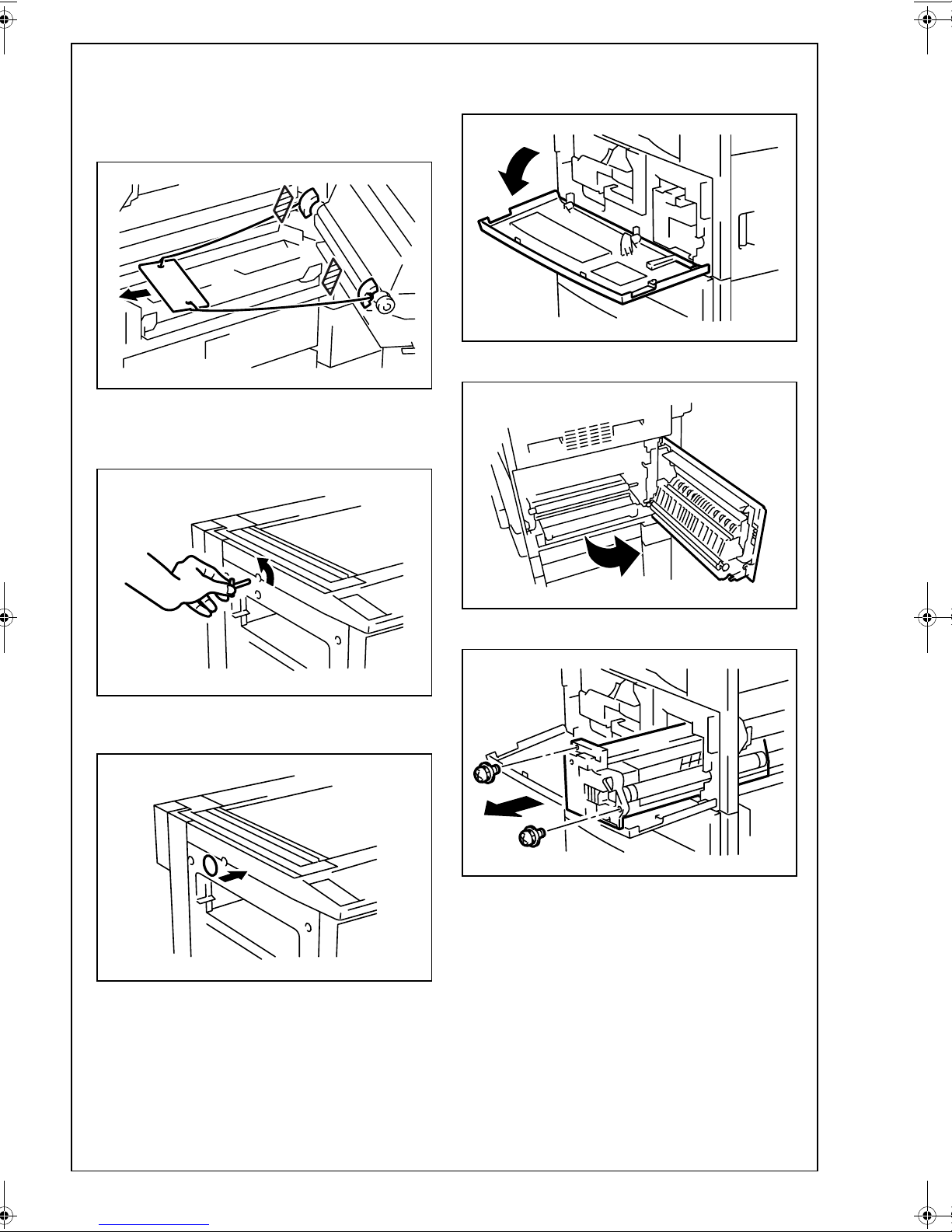

E-4
3. Remove the protective tape and the protective
parts of Image Transfer Roller.
Note:
There is a string that is wound around the Image
Transfer Roller shaft two to three times.
4. Close the Right Door.
5. Remove the protective tape and the Scanner Fix-
ing Pin.
6. Affix the Seal (accessory) in the position as
show.
VII. Loading the Starter
1. Open the Front Door.
2. Open the Right Door.
3. Remove two screws and the Imaging Unit.
4034IXC005DA
4021U026AA
4021U003AA
4034U003AA
4034U002AA
4021U005AC
4034-7142-01E.fm 4 ページ ２００５年２月２８日 月曜日 午後４時５５分

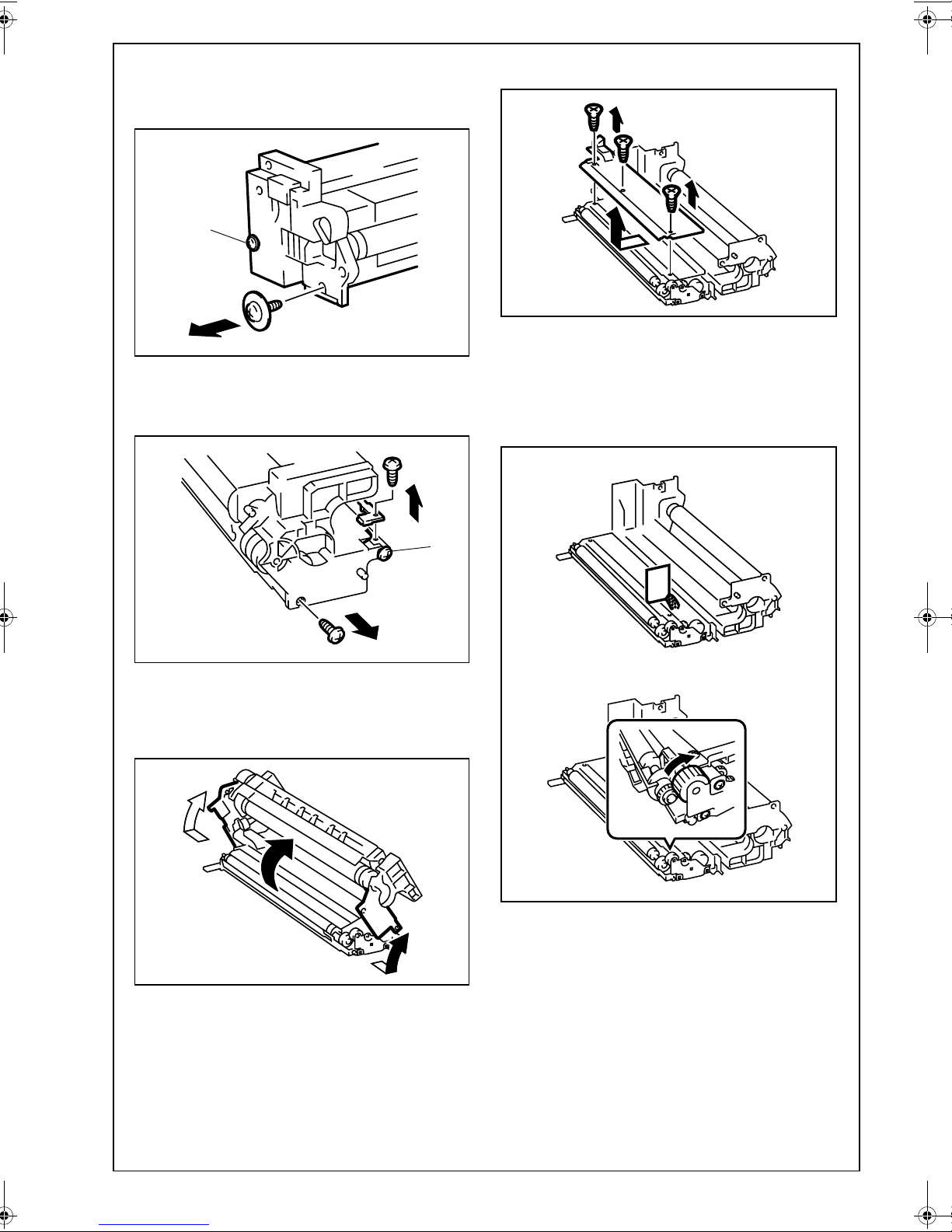

E-5
4. Remove one screw at the location shown from
the front side of the Imaging Unit.
Loosen screw ➀.
5. Remove two screws at the location shown from
the rear side of the Imaging Unit.
Loosen screw ➁.
6. Opening both ends of the Cleaning Assy, swing it
down toward the rear as illustrated.
Note:
Cover the PC Drum with a cloth or similar item.
7. Remove the cover. (three screws)
8. Load the Imaging Unit with a packet of starter.
Note:
• Before pouring the starter, shake the packet
well.
• Rotate gear clockwise to add starter on mag
roller.
9. Reinstall the cover. (three screws)
4021U012AC
➀
4021U011AB
➁
4021U007AC
4034U005AA
4021U040AA
4506U007AA
4034-7142-01E.fm 5 ページ ２００５年２月２８日 月曜日 午後４時５５分
E-6
10. Return the Cleaning Assy pushed toward the
rear at step 6 to the original position.
Note:
Before reinstalling the Cleaning Assy, be sure to
place the connector and harness into the slit prop-
erly.
11. Fix Imaging Unit with the screws removed at
step 4 and 5.
12. Fully open the Right Door and slide the Imaging
Unit back into the machine.
Note:
When reinstalling the Imaging Unit, slowly push it
until you feel that the drum gear is blocked and
then slide it all the way toward the rear. Doing
these steps all at once could damage the drum
gear.
13. Close the Front Door.
14. Close the Right Door.
15. Plug the power cord in the machine.
VIII. ATDC Sensor Adjustment
1. Turn ON the Power Switch.
2. Call the SERVICE MODE to the screen.
(See the Service Manual for how to call the SER-
VICE MODE to the screen.)
3. Press the ▼key four times to shown the Func-
tion mode.
4. Press the Yes key.
4021U066AB
4021U042AC
4035U001AA
4506U008AA
C4506O009AA
4506U008AA
4506U022AA4506U009AA
4034-7142-01E.fm 6 ページ ２００５年２月２８日 月曜日 午後４時５５分

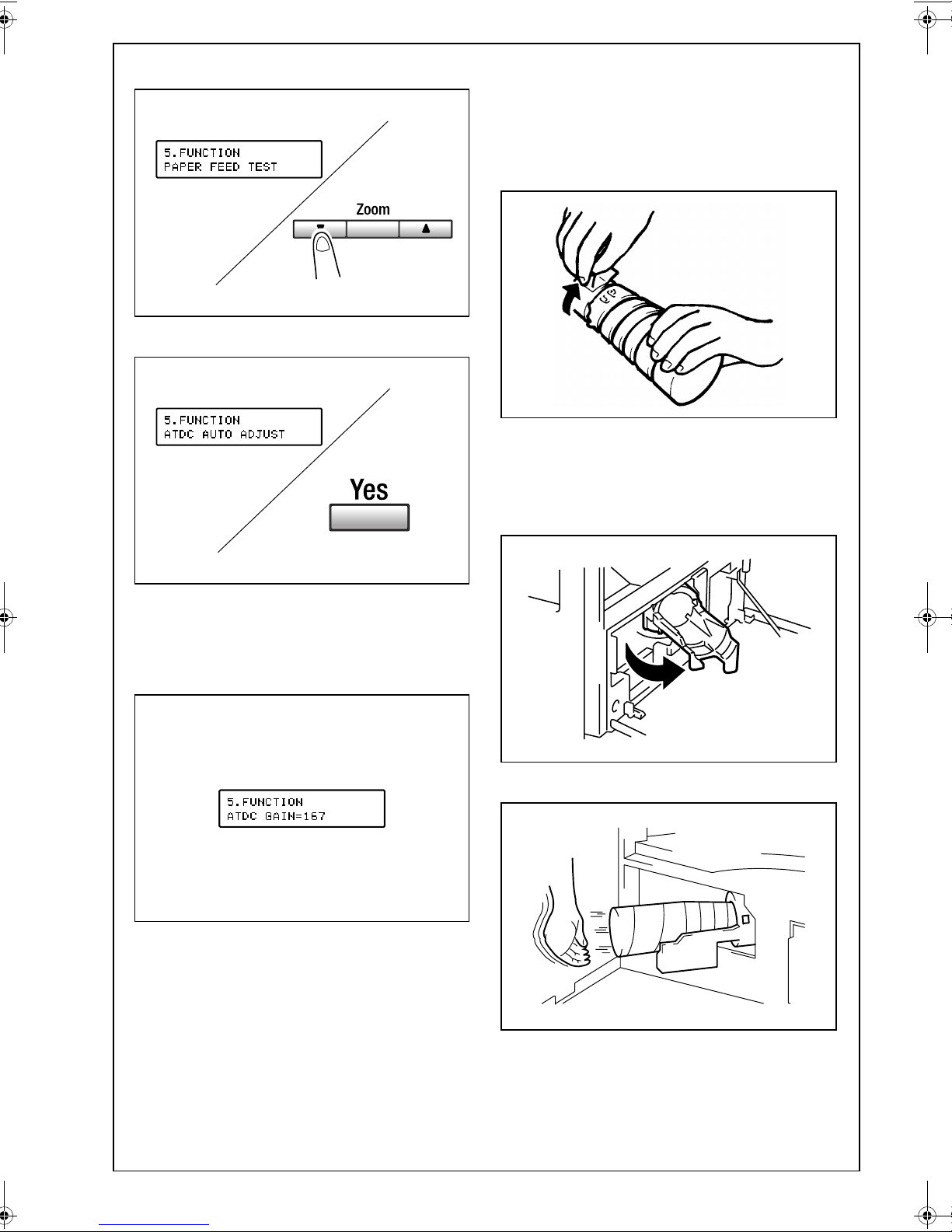

E-7
5. Press the ▼key two times.
6. Press the Yes key.
7. After the ATDC Sensor adjustment procedure has
been completed, open the Front Door and enter
the ATDC level setting value displayed on the
screen in the Adjust Label.
(Adjustment time: 3 min.)
IX. Installing the Toner Bottle
1. With the seal on the Toner Bottle facing up, slowly
peel off the seal as illustrated.
Note:
Slowly peel off seal, as some toner may puff out
from the bottle.
2. Open the Front Door.
3. Swing open the Bottle Holder to the front and
position the Toner Bottle.
Note:
Make sure that the UP marking faces up.
4. Tap the bottom of Toner Bottle three to four times.
C4506O009AA
4506U156AA
4506U022AA4034IXE001DA
4506U159CA
1139O139OA
4021U014AA
4021O243AA
4034-7142-01E.fm 7 ページ ２００５年２月２８日 月曜日 午後４時５５分
E-8
5. Close the Bottle Holder and the Front Door. X. Loading Paper
1. Slide out the 1st Tray.
2. Press down on the Paper Lifting Plate.
3. Load the paper in the tray.
Note:
Do not load so much paper that the top of the
stack is higher than the ▼mark.
4021U015AA
4034U006AA
4034U007AA
4034U008AA
4034-7142-01E.fm 8 ページ ２００５年２月２８日 月曜日 午後４時５５分
E-9
4. Slide the Edge Guide and Trailing Edge Stop
against the edges of the paper stack.
5. Slide the tray back into the machine.
XI. Mounting the Original Cover (Option
for bizhub 210 only)
Install the Original Cover.
XII. Affixing the Size Label
Affix the size label to the 1st Tray.
XIII. Installing the Manual Holder
Mount the Manual Holder as shown.
4034U009AA
4021U060AA
4034U010AA
4034U011AA
4034-7142-01E.fm 9 ページ ２００５年２月２８日 月曜日 午後４時５５分
