SERVICE MANUAL

VERTICAL CRANKSHAFT

COMMAND CV17-745

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

Contents

Section 1. Safety and General Information ............................................................................

Section 2. Special Tools ..........................................................................................................

Section 3. Troubleshooting .....................................................................................................

Section 4. Air Cleaner and Air Intake System ........................................................................

Section 5. Fuel System and Governor....................................................................................

Section 5B. Electronic Fuel Injection (EFI) Fuel System ......................................................

Section 6. Lubrication System ................................................................................................

Section 7. Retractable Starter .................................................................................................

Section 8. Electrical System and Components .....................................................................

Section 9. Disassembly ...........................................................................................................

Section 10. Inspection and Reconditioning ...........................................................................

Section 11. Reassembly...........................................................................................................

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.1

Section 1

Safety and General Information

Section 1

Safety and General Information

Safety Precautions

To ensure safe operation please read the following statements and understand their meaning.Also

refer to your equipment manufacturer's manual for other important safety information.This manual

contains safety precautions which are explained below. Please read carefully.

WARNING

Warning is used to indicate the presence of a hazard that can cause severe personal injury, death,

or substantial property damage if the warning is ignored.

CAUTION

Caution is used to indicate the presence of a hazard that will or can cause minor personal injury or

property damage if the caution is ignored.

NOTE

Note is used to notify people of installation, operation, or maintenance information that is important

but not hazard-related.

For Your Safety!

These precautions should be followed at all times. Failure to follow these precautions could result in

injury to yourself and others.

CV17-745

Rotating Parts can cause severe

injury.

Stay away while engine is in

operation.

WARNING

Rotating Parts!

Keep hands, feet, hair, and

clothing away from all moving

parts to prevent injury. Never

operate the engine with covers,

shrouds, or guards removed.

Hot Parts can cause severe burns.

Do not touch engine while operating

or just after stopping.

WARNING

Hot Parts!

Engine components can get

extremely hot from operation. To

prevent severe burns, do not

touch these areas while the

engine is running—or immediately

after it is turned off. Never operate

the engine with heat shields or

guards removed.

Accidental Starts can cause

severe injury or death.

Disconnect and ground spark plug

leads before servicing.

WARNING

Accidental Starts!

Disabling engine. Accidental

starting can cause severe injury

or death. Before working on the

engine or equipment, disable the

engine as follows: 1) Disconnect the

spark plug lead(s). 2) Disconnect

negative (-) battery cable from

battery.

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.2

Section 1

Safety and General Information

Carbon Monoxide can cause

severe nausea, fainting or death.

Do not operate engine in closed or

confined area.

WARNING WARNING

Electrical Shock can cause injury.

Do not touch wires while engine is

running.

CAUTION

Uncoiling Spring can cause severe

injury.

Wear safety goggles or face

protection when servicing retractable

starter.

WARNING

Explosive Gas can cause fires and

severe acid burns.

Charge battery only in a well

ventilated area. Keep sources of

ignition away.

Lethal Exhaust Gases!

Engine exhaust gases contain

poisonous carbon monoxide.

Carbon monoxide is odorless,

colorless, and can cause death if

inhaled.Avoid inhaling exhaust

fumes, and never run the engine

in a closed building or confined

area.

Spring Under Tension!

Retractable starters contain a

powerful, recoil spring that is under

tension. Always wear safety

goggles when servicing retractable

starters and carefully follow

instructions in "Retractable Starter"

Section 7 for relieving spring

tension.

Explosive Gas!

Batteries produce explosive

hydrogen gas while being

charged. To prevent a fire or

explosion, charge batteries only in

well ventilated areas. Keep

sparks, open flames, and other

sources of ignition away from the

battery at all times. Keep batteries

out of the reach of children.

Remove all jewelry when servicing

batteries.

Before disconnecting the negative

(-) ground cable, make sure all

switches are OFF. If ON, a spark

will occur at the ground cable

terminal which could cause an

explosion if hydrogen gas or

gasoline vapors are present.

Electrical Shock!

Never touch electrical wires or

components while the engine is

running. They can be sources of

electrical shock.

Explosive Fuel can cause fires and

severe burns.

Stop engine before filling fuel tank.

WARNING

Explosive Fuel!

Gasoline is extremely flammable

and its vapors can explode if

ignited. Store gasoline only in

approved containers, in well

ventilated, unoccupied buildings,

away from sparks or flames. Do not

fill the fuel tank while the engine is

hot or running, since spilled fuel

could ignite if it comes in contact

with hot parts or sparks from

ignition. Do not start the engine

near spilled fuel. Never use

gasoline as a cleaning agent.

Cleaning Solvents can cause

severe injury or death.

Use only in well ventilated areas

away from ignition sources.

WARNING

Flammable Solvents!

Carburetor cleaners and solvents

are extremely flammable. Keep

sparks, flames, and other sources

of ignition away from the area.

Follow the cleaner manufacturer’s

warnings and instructions on its

proper and safe use. Never use

gasoline as a cleaning agent.

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.3

Section 1

Safety and General Information

Engine Identification Numbers

When ordering parts, or in any communication

involving an engine, always give the Model,

Specification and Serial Numbers, including letter

suffixes if there are any.

The engine identification numbers appear on a decal,

or decals, affixed to the engine shrouding. See Figure

1-1.An explanation of these numbers is shown in

Figure 1-2.

Figure 1-1. Engine Identification Decal Location.

Figure 1-2. Explanation of Engine Identification Numbers.

A. Model No.

Version Code

S = Electric Start

C V 18 S

Command Engine

Vertical Crankshaft

Horsepower

17 = 17 HP

18 = 18 HP

20 = 20 HP

22 = 22 HP

23 = 23 HP

25 = 25 HP

26 = 26 HP

Numerical Designation

730

740

745

Identification

Decal

Variation of

Basic Engine

B. Spec. No. 61500

Engine Model Code

Code Model

72 CV17

61 CV18

65 CV20

67 CV22 (624 cc)

69 CV25

75 CV22/23 (674 cc)

79 CV26

CV730-0001

CV740-0001

CV745-0001

Complete Spec Number

(IncorporatingModel

No. with Variation No. of

Basic Spec.)

C. Serial No.

Year Manufactured Code

Code Model

21 1991

22 1992

23 1993

24 1994

25 1995

26 1996

27 1997

28 1998

Factory Code

3305810334

Code Model

29 1999

30 2000

31 2001

32 2002

33 2003

34 2004

35 2005

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.4

Section 1

Safety and General Information

Oil Recommendations

Using the proper type and weight of oil in the

crankcase is extremely important. So is checking oil

daily and changing oil regularly. Failure to use the

correct oil, or using dirty oil, causes premature engine

wear and failure.

Oil Type

Use high-quality detergent oil of API (American

Petroleum Institute) Service Class SG, SH, SJ or

higher. Select the viscosity based on the air

temperature at the time of operation as shown in the

followingtable.

Refer to Section 6 - “Lubrication System” for detailed

procedures on checking the oil, changing the oil and

changing the oil filter.

Fuel Recommendations

WARNING: Explosive Fuel!

Gasoline is extremely flammable and its vapors can

explode if ignited. Before servicing the fuel system,

make sure there are no sparks, open flames or other

sources of ignition nearby as these can ignite gasoline

vapors. Disconnect and ground the spark plug leads to

prevent the possibility of sparks from the ignition system.

General Recommendations

Purchase gasoline in small quantities and store in clean,

approved containers.Acontainer with a capacity of 2

gallons or less with a pouring spout is recommended.

Such a container is easier to handle and helps eliminate

spillage during refueling.

Do not use gasoline left over from the previous season,

to minimize gum deposits in your fuel system and to

ensureeasy starting.

Do not add oil to the gasoline.

Do not overfill the fuel tank. Leave room for the fuel to

expand.

Fuel Type

For best results, use only clean, fresh, unleaded

gasoline with a pump sticker octane rating of 87 or

higher. In countries using the Research method, it

should be 90 octane minimum.

Unleaded gasoline is recommended as it leaves less

combustion chamber deposits and reduces harmful

exhaust emissions. Leaded gasoline is not

recommended and must not be used on EFI engines,

or on other models where exhaust emissions are

regulated.

Gasoline/Alcohol blends

Gasohol (up to 10% ethyl alcohol, 90% unleaded

gasoline by volume) is approved as a fuel for Kohler

engines. Other gasoline/alcohol blends are not

approved.

Gasoline/Ether blends

Methyl Tertiary Butyl Ether (MTBE) and unleaded

gasoline blends (up to a maximum of 15% MTBE by

volume) are approved as a fuel for Kohler engines.

Other gasoline/ether blends are not approved.

NOTE: Using other than service class SG, SH, SJ or

higher oil or extending oil change intervals

longer than recommended can cause engine

damage.

NOTE: Synthetic oils meeting the listed

classifications may be used with oil changes

performed at the recommended intervals.

However to allow piston rings to properly seat,

a new or rebuilt engine should be operated for

at least 50 hours using standard petroleum

based oil before switching to synthetic oil.

Alogo or symbol on oil containers identifies theAPI

service class and SAE viscosity grade. See Figure 1-3.

*Use of synthetic oil having 5W-20 or 5W-30 rating is

acceptable, up to 40°F.

**Synthetic oils will provide better starting in extreme cold

(below -10°F).

Figure 1-3. Oil Container Logo.

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.5

Section 1

Safety and General Information

¹Perform these maintenance procedures more frequently under extremely dusty, dirty conditions.

²Have a Kohler Engine Service Dealer perform this service.

³Cleanout Kits 25 755 20-S (black) or 25 755 21-S (gold) allow cooling areas to be cleaned without removing shrouds.

Storage

If the engine will be out of service for two months or

more, use the following storage procedure.

1. Clean the exterior surfaces of the engine. On

Electronic Fuel Injected (EFI) engines, avoid

spraying water at the wiring harness or any of the

electrical components.

2. Change the oil and oil filter while the engine is still

warm from operation. See “Change Oil and Oil

Filter” in Section 6.

3. The fuel system must be completely emptied, or

the gasoline must be treated with a stabilizer to

prevent deterioration. If you choose to use a

stabilizer, follow the manufacturer’s

recommendations, and add the correct amount

for the capacity of the fuel system.

Fill the fuel tank with clean, fresh gasoline. Run

the engine for 2 to 3 minutes to get stabilized fuel

into the rest of the system. Close the fuel shut-off

valve when the unit is being stored or transported.

To empty the system, run the engine until the tank

and the system is empty.

4. Remove the spark plugs and add one tablespoon

of engine oil into each spark plug hole. Install the

spark plugs, but do not connect the plug leads.

Crank the engine two or three revolutions.

5. On equipment with an EFI engine, disconnect the

battery or use a battery minder to keep the battery

charged during storage.

6. Store the engine in a clean, dry place.

Periodic Maintenance Instructions

WARNING:Accidental Starts!

Disabling engine. Accidental starting can cause severe injury or death. Before working on the engine or

equipment, disable the engine as follows: 1) Disconnect the spark plug lead(s). 2) Disconnect negative (-)

battery cable from battery.

Maintenance Schedule

These required maintenance procedures should be performed at the frequency stated in the table.They should

also be included as part of any seasonal tune-up.

• Replace fuel filter1(EFI engines). Section 5B

Daily or Before

Starting Engine

Maintenance Required Refer to:Frequency • Fill fuel tank. Section 5

• Check oil level. Section 6

• Check air cleaner for dirty1, loose, or damaged parts. Section 4

• Check air intake and cooling areas, clean as necessary1. Section 4

• Service precleaner element1. Section 4

Every 25 Hours • Replace air cleaner element1. Section 4

• Change oil. (More frequently under severe conditions.) Section 6

• Remove cooling shrouds and clean cooling areas1,3. Section 4

• Check oil cooler fins, clean as necessary (if equipped). Section 6

• Check spark plug condition and gap. Section 8

• Change oil filter. Section 6

Annually or

Every 500 Hours • Have bendix starter drive serviced2. Section 8

• Have solenoid shift starter disassembled and cleaned2. Section 8

Every 100 Hours

Every 200 Hours

Every 1500 Hours • Have crankshaft spline lubricated2. Section 2

Every 500 Hours

Every 250 Hours • Replace heavy-duty air cleaner element and check inner element1. Section 4

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.6

Section 1

Safety and General Information

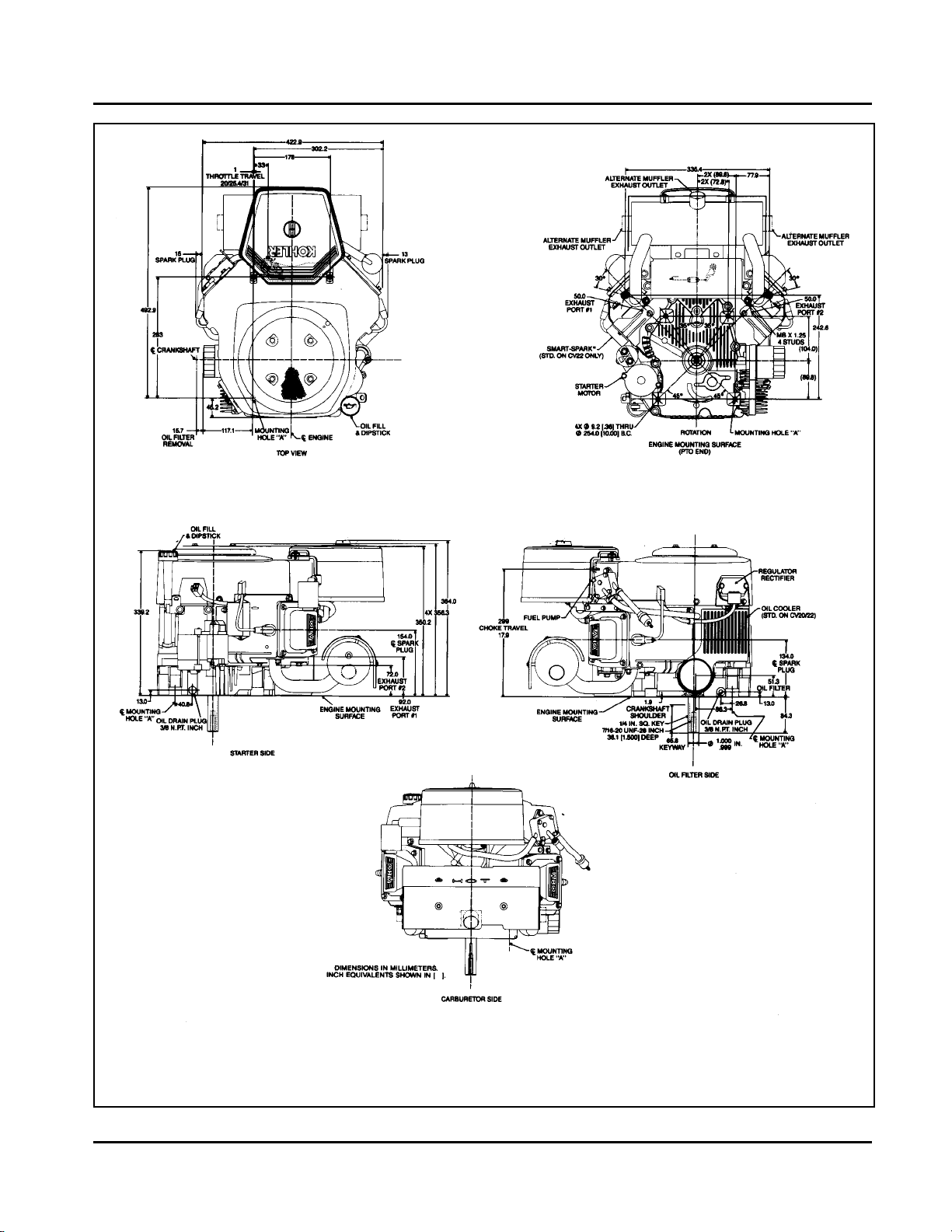

Figure 1-4. Typical Engine Dimensions CV Series with Standard Flat Air Cleaner.

(Baseengineillustrated)

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.7

Section 1

Safety and General Information

Figure 1-5. Typical Engine Dimensions CV Series with Commercial Mower Air Cleaner.

(Baseengineillustrated)

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

1.8

Section 1

Safety and General Information

Figure 1-6. Typical Engine Dimensions CV EFI Series with Heavy-Duty Air Cleaner.

Dimensions in millimeters.

Inch equivalents shown in ().

Kohler Engine Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

Tabla de contenidos

Otros manuales de Motor de Kohler

Kohler

Kohler K92 Manual de usuario

Kohler

Kohler Command PRO EFI Manual de usuario

Kohler

Kohler CS4 Manual de usuario

Kohler

Kohler Command PRO EFI Series Manual de usuario

Kohler

Kohler CH-11-16 Manual de usuario

Kohler

Kohler Command 6 HP Manual de usuario

Kohler

Kohler Lombardini 6 LD 260 Manual de lista de piezas

Kohler

Kohler LOMBARDINI MARINE KDI 1903TCR-MP Manual de usuario

Kohler

Kohler CV11-16 Manual de usuario

Kohler

Kohler AEGIS LH630 Manual de usuario

Kohler

Kohler COMMAND 20-25 HP Manual de usuario

Kohler

Kohler Command PRO CH20 Manual de usuario

Kohler

Kohler Command PRO CH940 Manual de usuario

Kohler

Kohler Magnum MV16 Manual de usuario

Kohler

Kohler Courage XT-6 Manual de usuario

Kohler

Kohler SFGLD480 Guía de solución de problemas

Kohler

Kohler Command Pro CH255 Manual de usuario

Kohler

Kohler KD83V16 Manual de instalación y funcionamiento

Kohler

Kohler Lombardini 12 LD 477-2 Guía del usuario

Kohler

Kohler Lombardini LDW FOCS 502 Euro 2 Manual de usuario

Kohler

Kohler KD 625/2 Manual de usuario

Kohler

Kohler KDI Series Manual de instrucciones

Kohler

Kohler KD350D Manual de usuario

Kohler

Kohler COMMAND CH18 Manual de usuario

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

MTD

MTD OHV Series Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario

Bosch

Bosch Rexroth 70 Series Manual de usuario

Wacker Neuson

Wacker Neuson WM 130 Instrucciones de funcionamiento
