Kohler K-1014 Manual de usuario

Installation Guide

Drop-In Bath Whirlpool

K-1014, K-1110, K-1158,

K-1170, K-1330, K-1368,

K-1369, K-1375, K-1384,

K-1398, K-1418, K-1433,

K-1457, K-1460, K-1461,

K-1477, K-1487, K-1492,

K-1496

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page “Français-1”

Español, página “Español-1”

1019749-2-G

Important Information

WARNING: When using electrical products, basic precautions should always be followed, including

the following:

DANGER: Risk of electric shock. Connect only to circuits protected by a Ground-Fault

Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).

Building materials and wiring should be routed away from the pump body and other heat-producing

components of the unit.

Install to permit access for servicing.

A pressure wire connector marked ″Earth/Ground″is provided within the wiring compartment. To reduce

the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply

panel with copper wire equivalent in size to the circuit conductor supplying this equipment.

Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit

connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to

comply with local requirements.

Grounding is required. The unit should be installed by a qualiﬁed service representative, and grounded.

WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.

WARNING: Risk of electric shock. Disconnect power before servicing.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before

beginning installation, including the following requirements.

NOTICE: Follow all local plumbing and electrical codes.

Product Information

Electrical Requirements

The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage

Circuit-Breaker (ELCB). The GFCI or ELCB protect against line-to-ground shock hazard. Use a 208 - 240 V, 20

A, 50/60 Hz dedicated service for the whirlpool.

Product Notices

WARNING: Unauthorized modiﬁcation may cause unsafe operation and poor performance of the

whirlpool. Do not relocate the whirlpool pump, or make other modiﬁcations to the whirlpool system,

as this could adversely affect the performance and safe operation of the whirlpool. Kohler Co. shall not

be liable under its warranty or otherwise for personal injury or damage caused by any such

unauthorized modiﬁcation.

Features

″-N1″Series: Components include a pump, heater, control, shut-off valve, neckjets, pulse cannister, and

illuminated switch (user keypad).

″-H2″Series: Components include a pump, heater, control and illuminated switch (user keypad).

The whirlpool pump and piping are factory-assembled.

Connections and Service Access

Before installation, ensure proper access to the ﬁnal connections.

1019749-2-G 2 Kohler Co.

Product Information (cont.)

NOTICE: Provide generous, unrestricted service access to the pump. You must provide access for

servicing the pump and controls. The access must be located immediately next to the pump. Study the

roughing-in information packed with the whirlpool.

Table of Contents

Important Information .............................................................. 2

Product Information ............................................................... 2

Electrical Requirements .......................................................... 2

Product Notices ................................................................ 2

Features ..................................................................... 2

Connections and Service Access ................................................... 2

Thank You For Choosing Kohler Company .............................................. 4

Tools and Materials ............................................................... 4

Before You Begin ................................................................. 4

Prepare the Site ................................................................. 5

Prepare the Site ................................................................. 6

Prepare the Whirlpool ............................................................. 6

Secure the Whirlpool to the Subﬂoor .................................................. 7

Cut the Pump Banding Straps ....................................................... 8

Install the Plumbing ............................................................... 8

Install the Optional Pillow - For Models Without Neckjets .................................... 8

Make Electrical Connections ......................................................... 9

Install the Whirlpool Trim Kit ........................................................ 10

Install the Neckjet Pillow (″-N1″Series Only) ............................................ 10

Test Run the Whirlpool ............................................................ 10

Install the Optional Apron .......................................................... 12

Complete the Finished Wall/Deck .................................................... 12

Complete the Concrete Installation ................................................... 12

Clean-Up After Installation ......................................................... 12

Conﬁrm Proper Operation .......................................................... 13

Operating Sequence ............................................................. 13

Troubleshooting Procedures ........................................................ 14

Kohler Co. 3 1019749-2-G

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before

you start installation. If you encounter any installation or performance problems, please don’t hesitate to

Company.

Tools and Materials

Before You Begin

CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the

piping or pump for structural support of the whirlpool.

We recommend this whirlpool for drop-in, corner, or alcove installation.

Inspect the whirlpool for damage before you begin installation.

You must install this whirlpool to an adequately supported, level subﬂoor.

When used, the optional apron must be installed before the ﬁnished ﬂoor and wall materials are

completed.

Conﬁrm adequate support for a rim-mounted faucet; large faucets that may be inadvertently used

as a means of support are not appropriate or safe for this installation.

• Conventional woodworking or concrete

installation tools and materials

• Drop cloth

Plus:

Silicone Sealant Measuring Tape Pencil Level

Safety Glasses Pipe Wrench

1019749-2-G 4 Kohler Co.

1. Prepare the Site

Concrete Construction

NOTICE: Adequate ﬂoor support must be provided. Consult the roughing-in sheet packed with your

whirlpool for speciﬁc ﬂoor loading requirements.

CAUTION: Risk of product damage. Do not support the whirlpool by the rim.

Make sure the ﬂooring offers adequate support for your whirlpool, and verify that the subﬂoor is

ﬂat and level.

This whirlpool may be installed next to the wall or in an island installation. An island installation

requires a four side surround. In both instances, make sure the deck is supported by brick or

concrete.

Install an access panel to allow the pump to be serviced.

Construct brick or concrete supports.

Provide a 1/16″(2 mm) gap between the whirlpool rim and the concrete or brick framing. Frame

the ﬂoor, or construct a frame for a raised installation, in accordance with the roughing-in

information packed with the whirlpool.

Position the plumbing according to the roughing-in information packed. Cap the supplies, and

check for leaks.

Brick

Bath

1/16"

(2 mm)

Tile

Approved

Tile Backing

Typical

access

panel

Tile

Approved

Tile Backing

Brick

Whirlpool may be installed

next to the wall or as an

island installation.

Install an access panel to allow

the pump to be serviced.

Kohler Co. 5 1019749-2-G

2. Prepare the Site

Wood Construction

NOTICE: Adequate ﬂoor support must be provided. Consult the roughing-in sheet packed with your

whirlpool for speciﬁc ﬂoor loading requirements.

CAUTION: Risk of product damage. Do not support the whirlpool by the rim.

Make sure the ﬂooring offers adequate support for your whirlpool, and verify that the subﬂoor is

ﬂat and level.

The whirlpool may be used in a drop-in, corner, or alcove installation. Construct 2x4 stud framing

designed for your particular installation. Frame the ﬂoor, or construct a frame for a raised

installation in accordance with the roughing-in information packed with the whirlpool.

Use the roughing-in cut-out information to carefully lay out and cut the rough deck material.

Install an access panel to allow the pump to be serviced.

Position the plumbing according to the roughing-in information. Cap the supplies, and check for

leaks.

3. Prepare the Whirlpool

We recommend a tiling-in bead for straight-rimmed whirlpools, if one or more sides of the

whirlpool contact a wall. This bead prevents water from seeping between the whirlpool rim and the

wall. Follow the instructions packed with the tiling-in bead to install the bead now.

Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect

the trap at this time.

Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to

scratch the surface of the whirlpool.

Construct 2x4

stud framing

according to

the roughing-in

information.

Position

the rough

plumbing.

Verify that the subfloor

offers adequate support,

and is flat and level.

Typical access panel

Frame the floor according to

the roughing-in information.

Position the

rough plumbing.

Verify that the subfloor offers

adequate support, and is flat

and level.

Typical access panel

1019749-2-G 6 Kohler Co.

4. Secure the Whirlpool to the Subﬂoor

CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the

piping or pump for structural support of the whirlpool.

Choose the installation option that best applies to your particular installation. Follow the

appropriate instructions.

If the subﬂoor is not level, shim the whirlpool support blocks as necessary.

Option for Using a Cement or Mortar Bed

Spread a 2″(5.1 cm) thick layer of cement or mortar on the subﬂoor where the whirlpool will be set.

This will help secure, level, and support the unit. Clear all the material away from the pump control

and support block locations.

NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an

acceptable, durable bond.

NOTE: The pump control (when the pump banding straps are cut) and support blocks must rest

directly on the subﬂoor.

Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,

carefully lift the whirlpool into place, and make sure the pump control and support blocks do not

rest in the bed material.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support

blocks.

Option for Using Construction Adhesive

Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support

blocks.

Option for Using Silicone Sealant

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support

blocks.

Apply a continuous bead of high-quality silicone sealant around the entire rim of the whirlpool.

Clear spaces

for support

blocks.

Apply a bead of

silicone sealant

around the entire rim

Apply construction

adhesive to the

support blocks.

Spread a 2" (5.1 cm)

layer of cement or

mortar bed material.

Clear space for

pump.

Kohler Co. 7 1019749-2-G

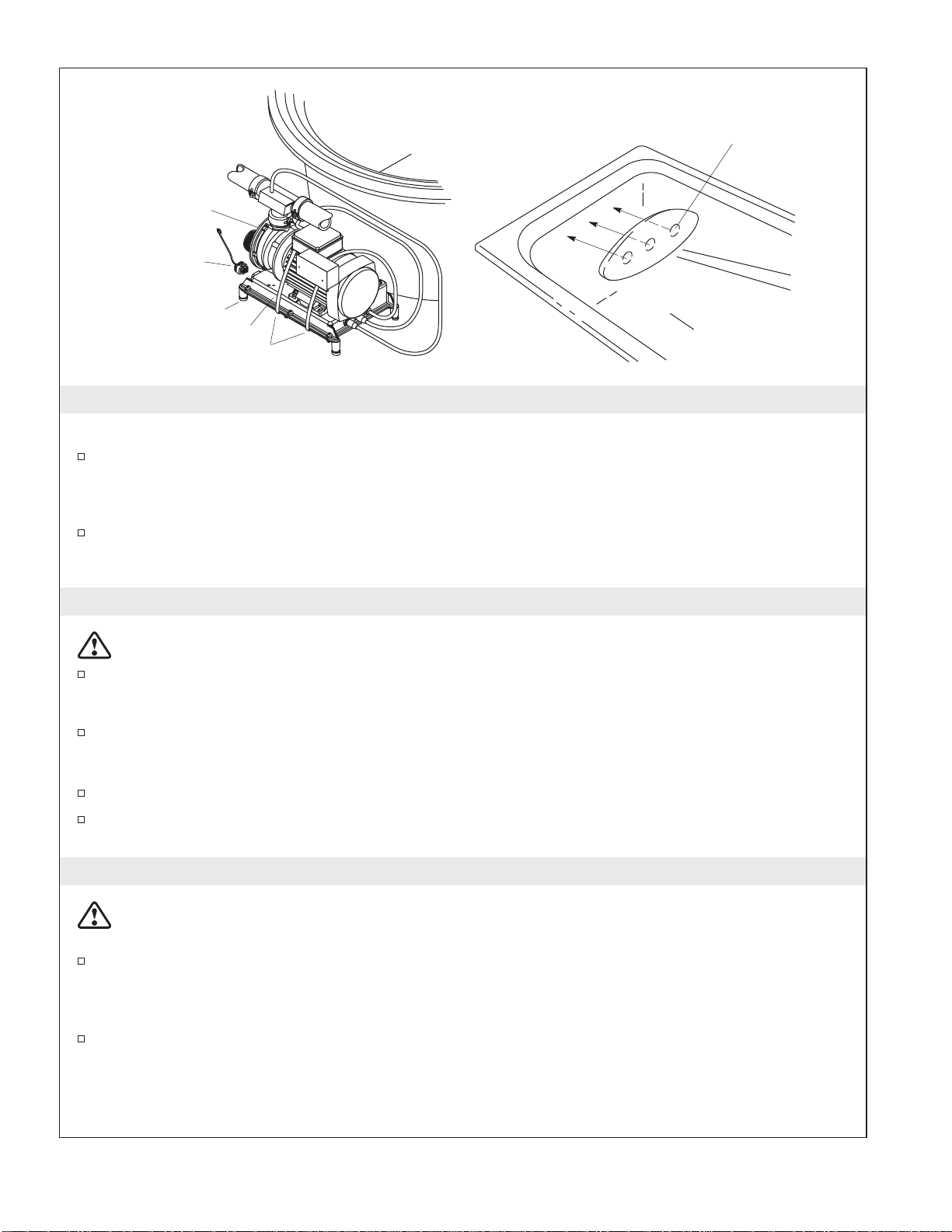

5. Cut the Pump Banding Straps

IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.

Use tin snips to cut the two pump banding straps from the whirlpool pump.

NOTE: Do not raise the pump higher than it was before you cut the pump banding straps. If the pump is

raised too high, it will not prime properly. Make sure the rubber isolation feet are in place.

To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the

shipping bracket after the pump banding straps are cut. The pump control contains rubber isolation

feet to reduce pump noise.

6. Install the Plumbing

CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.

Connect the drain to the trap according to the drain manufacturer’s instructions.

NOTICE: An access panel will simplify future maintenance.

Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the

faucet trim until instructed. Open the hot and cold water supplies, and check the supply

connections for leakage.

Run water into the whirlpool, and check the drain connections for leakage.

If your whirlpool requires grip rails, install them now according to the installation instructions

packed with the grip rails.

7. Install the Optional Pillow - For Models Without Neckjets

CAUTION: Risk of property damage. Do not submerge the pillow underwater, or use as a seat

cushion.

Clean the whirlpool surface of any soap ﬁlm or oils. Suction cups are located on the back side of the

pillow. Moisten the back side of the pillow at the suction cup locations, and position the pillow in

the appropriate location on the whirlpool. Press ﬁrmly at the suction cup locations with the heel of

your hand.

Detach the pillow by lifting it off the whirlpool surface.

Pump

Wiring

Harness

Rubber Isolation Feet

Control

Cut the pump banding straps.

Moisten the back of the pillow and

firmly press the suction cups against

the whirlpool surface.

Optional Pillow-

For Models

Without Neckjets

1019749-2-G 8 Kohler Co.

8. Make Electrical Connections

NOTE: The product model number is printed on a label on the pump side of the whirlpool bath. This

label also identiﬁes the electrical rating of the product. All whirlpools come equipped with a wiring

junction box and are designed to operate between 208 VAC and 240 VAC at either 50 HZ or 60 Hz.

WARNING: Risk of electrical shock. Make sure the power has been disconnected before performing

the following procedures. Refer to the “Important Information” section.

WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the pump to a

properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).

This will provide additional protection against line-to-ground shock hazard. A 208-240 V, 20 A, 50/60

Hz dedicated circuit is required.

IMPORTANT! The load neutral is not used. There should be no connection to the load neutral terminal

on the Ground-Fault Circuit-Interrupter (GFCI) breaker. The green wire with the yellow stripe is the

equipment ground and needs to be connected to the neutral bus in the main circuit breaker box.

The whirlpool bath control and system have been pre-wired at the factory. A licensed electrician

should make a routine service connection to the junction box.

Connect service to the junction box. The junction box contains blue, brown, and green with a yellow

stripe colored wires.

Follow local electrical codes. Bond in accordance with national and local codes.

A wiring harness has been pre-wired at the factory, allowing communication between the keypad,

all features, and the control. No additional wiring is required, but ensure that all wires are securely

fastened.

NOTE: Your wiring harness included an antenna for the optional remote control. Do not alter or damage

this antenna during installation.

Heater (models may vary) T-style (shown)

or In-line (not shown) Heater Electrical Cord

Wiring Harness

Junction Box

Control

Pump Electrical Cord

From

Control

Brown (L2)

* Connections to be Made

at the Circuit Breaker

S/N

* Equipment Ground Wire Connectors

Neutral Bus

(In Breaker Box)

120/240 VAC

Source

Typical Two-Pole

Circuit Breaker

with GFCI

* Line Neutral

(White Curly

Wire)

Typical Wiring Connection for North America

Ground

(Green with

Yellow Stripes)

*L1

No Connection

(Load Neutral)

Field Wiring

(From Junction Box

to GFCI Breaker)

Electrician to provide suitable

strain relief cable.

Wire

Connector

Blue (L1)

*L2

240 V

120 V

240 V

120 V

Breaker Box

L1 L2N

Bond in accordance with national and local codes.

Open bonding lugs are located at the top of the

junction box.

Kohler Co. 9 1019749-2-G

9. Install the Whirlpool Trim Kit

Install the whirlpool trim kit according to the instructions packed with the trim kit. Pay particular

attention to the jet installation steps below - they are very important and are included here to help

you obtain smooth, trouble-free jet operation.

NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to

permit easy rotation and proper operation of the jet.

Install the O-ring onto the ﬁrst shoulder of the jet. Lubricate the O-ring with silicone lubricant to

prevent noisy operation of the jet.

Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into

position. Do not force the jet.

NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.

10. Install the Neckjet Pillow (″-N1″Series Only)

The whirlpool is supplied with one pillow and two slip covers. The pillow includes a built-in

magnetic reed switch. The neckjets will not operate unless the pillow is installed. Always use a slip

cover to prevent water from spraying from the whirlpool.

Choose a slip cover, and ﬁt it over the pillow.

Carefully slide the pillow down onto the neckjet body grooves until it is secure. The neckjets are

now ready for use.

We recommend periodic cleaning of the slip cover. Follow the cleaning instructions on the label

attached to the slip cover.

11. Test Run the Whirlpool

Check all electrical connections, and make sure the electrical power to the whirlpool is turned on.

Make sure all union connections to the pump and heater are securely hand tightened.

Verify that the pump banding straps have been cut, and that the pump control is resting directly on

the subﬂoor. Ensure that the rubber isolation feet are in place.

Fill the whirlpool to a level at least 2″(5.1 cm) above the top of the highest jet.

Operate the whirlpool for 5 minutes (refer to the ″Operating Sequence″section) and check all

whirlpool piping connections, on the back side, for leaks.

Slide the O-Ring

onto the first

shoulder of the jet.

Inspect and

lubricate the

O-Ring.

Insert the jet into the housing,

and lightly push and rotate

until it snaps in position.

Housing

Slide the pillow onto

the neckjet body.

Fit the slip cover

over the pillow.

Neckjet Body

1019749-2-G 10 Kohler Co.

Otros manuales para K-1014

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Bañera de Kohler

Kohler

Kohler K-870 Instrucciones de montaje

Kohler

Kohler Sterling 7111 Series Instrucciones de montaje

Kohler

Kohler K-1143 Instrucciones de montaje

Kohler

Kohler Birthday Bath K-100 Instrucciones de montaje

Kohler

Kohler Windward BubbleMassage K-1114-G Guía de inicio rápido

Kohler

Kohler K-819 Instrucciones de montaje

Kohler

Kohler Mariposa K-1239-CB Guía de inicio rápido

Kohler

Kohler K-1160 Guía de inicio rápido

Kohler

Kohler K-1849-VB Guía de inicio rápido

Kohler

Kohler Mariposa K-1239-GLW Manual de usuario

Kohler

Kohler K-1106 Manual de usuario

Kohler

Kohler K-1158 Guía de inicio rápido

Kohler

Kohler K-1418 Instrucciones de montaje

Kohler

Kohler K-856 Guía de inicio rápido

Kohler

Kohler REVIVAL K-1375-RV Manual de usuario

Kohler

Kohler PRELUDE K-8266T Manual de usuario

Kohler

Kohler Underscore K-1969-H2-0 Instrucciones de montaje

Kohler

Kohler K-812-N1 Instrucciones de montaje

Kohler

Kohler K-1173-VB Guía de inicio rápido

Kohler

Kohler K-1246 Guía de inicio rápido

Kohler

Kohler Archer K-2595-G Manual de usuario

Kohler

Kohler K-1166-C1 Instrucciones de montaje

Kohler

Kohler K-710 Instrucciones de montaje

Kohler

Kohler K-820-GC Guía de inicio rápido

Manuales populares de Bañera de otras marcas

Agua

Agua BARTOLI-66 Manual de usuario

PAA

PAA PRELUDE Manual de usuario

BETTE

BETTE SILHOUETTE Manual de usuario

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW Manual de usuario

Oliveri

Oliveri Naples Manual de usuario

Lyons

Lyons Elite ETLxx663219 Series Manual de usuario

Woodbridge

Woodbridge BJ500 Instrucciones de montaje

Whirlpool

Whirlpool Ariel ARL-702 Manual de usuario

TEIKO

TEIKO EXCELLENT DUO Manual de usuario

American Standard

American Standard Colony 5-1/2' x 32" Manual de usuario

American Standard

American Standard 3052OD.X0X Guía de inicio rápido

agape

agape MARSIGLIA AVAS1075 Manual de usuario

Kallista

Kallista P50045-G5 Instrucciones de montaje

Ariel

Ariel AM Series Manual de usuario

Agua

Agua BAHLI-60 Manual de usuario

DURAVIT

DURAVIT XViu 700443 Manual de usuario

American Standard

American Standard Colony 2740 Series Manual de usuario

Rapsel

Rapsel OFURO Manual
