Kogan KASDA5123HA Manual de usuario

KOGAN 5.1.2 CHANNEL 320W

DOLBY ATMOS SOUNDBAR

WITH SUBWOOFER & REAR SPEAKERS

KASDA5123HA

•Do not expose this product to high temperatures and wet environments.

•To reduce the risk of electronic shock or fire, do not remove the cabinet cover.

•Do not attempt to repair the product yourself. If the product shows any signs of

damage, cease use immediately and contact help.Kogan.com for support.

•Do not place the product where it may come into contact with water, moisture or other

liquids. If the product is exposed to liquid, cease use immediately and contact

help.Kogan.com for support.

•Soundbar

•Wireless subwoofer

•Wireless rear speakers

•Remote control

•Power cord for the soundbar

•Power cord for the subwoofer

•AC adaptor for rear speakers

•AUX cable

•Rear speaker connecting cable

•User guide

COMPONENTS

SAFETY & WARNINGS

Control panel (soundbar)

No. Name Description

1 Power button Power the soundbar.

2 Mode button Switch between modes.

3 Play/pause button Play/pause tracks.

4 Previous/Volume decrease

button

•Short press the button to decrease volume.

•Long press the button to play the previous track.

5 Next/Volume increase button •Short press the button to increase volume.

•Long press the button to play the next track.

OVERVIEW

Ports (soundbar)

Back view (subwoofer)

6 HDMI OUT (ARC) port 10 Coaxial port

7 HDMI IN port 11 Optical port

8 USB port 12 Power switch

9 AUX port 13 AC IN port

14 Pair button

15 Indicator light

16 Power switch

17 AC IN port

Rear speakers

18 RS IN port

19 RS OUT port

20 DC IN port

21 Pair button

22 Indicator light

System overview

Rear speaker

RS IN port RS output

Rear speaker

Power

input (Rear

Speaker)

AC adapter

(Rear Speaker)

Subwoofer

Soundbar

Remote control

Power button

Volume increase button

Previous button

EQ button

Mode button

Bluetooth button

Bass increase button

Bass decrease button

3D button

Mute button

Play/pause button

Next button

Volume decrease button

Track control button

Treble increase button

Treble decrease button

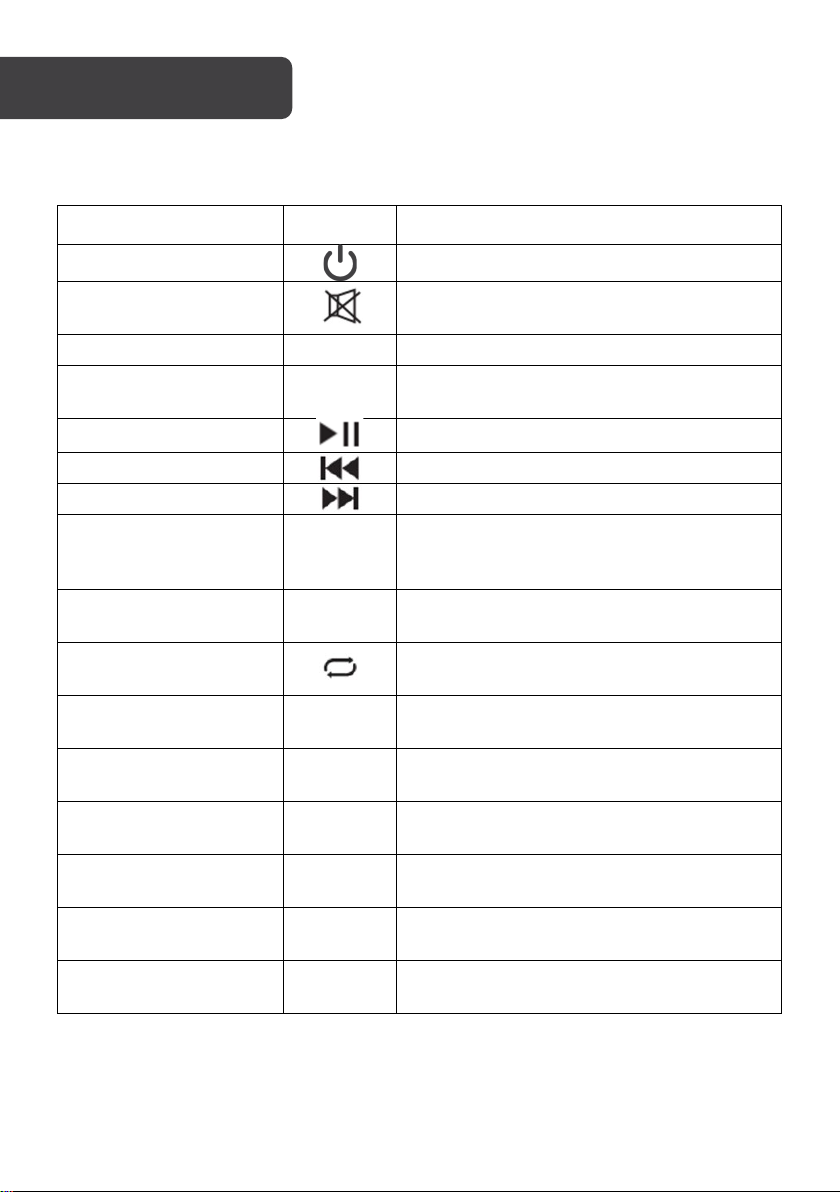

Remote control

Name Icon Description

Power button

Press this button to turn the soundbar on/off

Mute button

Press this button to mute/unmute the

soundbar.

Volume increase button VOL+ Press this button to increase the volume.

Volume decrease

button VOL- Press this button to decrease the volume.

Play/pause button

Press this button to play/pause tracks.

Previous button

Press this button to play the previous track.

Next button

Press this button to play the next track.

Mode button MODE

Press this button to switch between the

connection modes (HDMI ARC, Optical,

AUX, Coaxial, USB, Bluetooth, HDMI IN)

EQ button EQ Press this button to switch between the

equaliser modes (Music, Movie, News).

Track control button

When in USB mode, press this button to

switch between the track controls.

Bass increase button BASS + Press this button to increase the bass

(up to +5).

Bass decrease button BASS – Press this button to decrease the bass

(up to –5).

Bluetooth button BT Press this button to activate Bluetooth

mode on the soundbar.

3D button 3D Press this button to activate the 3D audio

mode.

Treble increase button TREBLE + Press this button to increase the treble

(up to +5).

Treble decrease button TREBLE – Press this button to decrease the treble

(up to –5).

OPERATION

Powering

1. Plug one end of the power cords for the soundbar and subwoofer into the AC IN ports

on both devices, then plug the other end into two power sockets. Switch the power

sockets on.

2. Place the power switch in the ON position on both the subwoofer and soundbar.

3. Plug one end of the provided AC adapter into the DC IN port of the left speaker, then

plug the other end into a power socket. Switch the power socket on.

4. Press the power button on the soundbar or remote control to turn the soundbar on.

5. Press the power button again to turn the soundbar off.

Connection modes

This soundbar features seven connection modes. The display on the front of the soundbar

will change when switching between modes.

HDMI ARC mode

This soundbar supports HDMI with an audio return channel (ARC). Many standard HDMI

ports support ARC but if unsure, check with the TV’s manufacturer. This allows the sound

from a TV to emit through the soundbar rather than the TV’s inbuilt speakers.

1. Connect one end of an HDMI cable (not supplied) into the HDMI OUT (ARC) port of the

soundbar. Connect the other end of the cable into your TV’s HDMI (ARC) port.

2. Press the mode button on the soundbar or remote control and change the soundbar to

HDMI ARC mode.

3. Ensure ‘HDMI ARC’ is selected as the TV’s audio output and the sound of media from

the TV should emit from the soundbar.

4. Use the remote control/soundbar to make audio adjustments.

Connection mode Display shows

HDMI ARC ARC/EARC

Optical OPT

AUX AUX

Coaxial COA

USB USB

Bluetooth BT

HDMI IN HDMI
