Kogan KAMNIBRFRGE Manual de usuario

46L MINI BAR FRIDGE

KAMNIBRFRGE

Please read carefully and follow all safety rules and instructions.

•Before you throw away your old mini fridge: take the door off, leaving the shelves in

place so that children may not climb inside easily.

•Never allow children to operate, play with or crawl inside the appliance.

•Never clean appliance parts with flammable fluids. The fumes can create a fire

hazard or explosion.

•Do not store or use gasoline or any other flammable vapours or liquids in the vicinity

of this or any other appliance. The fumes can create a fire hazard or explosion.

•This appliance is not intended for use by persons (including children) with reduced

physical sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.

SAFETY & WARNINGS

WARNING:

Risk of child entrapment. Junked or abandoned

appliances are dangerous, even if they are only left unattended for a

short period.

WARNING:

Do not use where children can touch the unit, nor let

children use the unit by themselves.

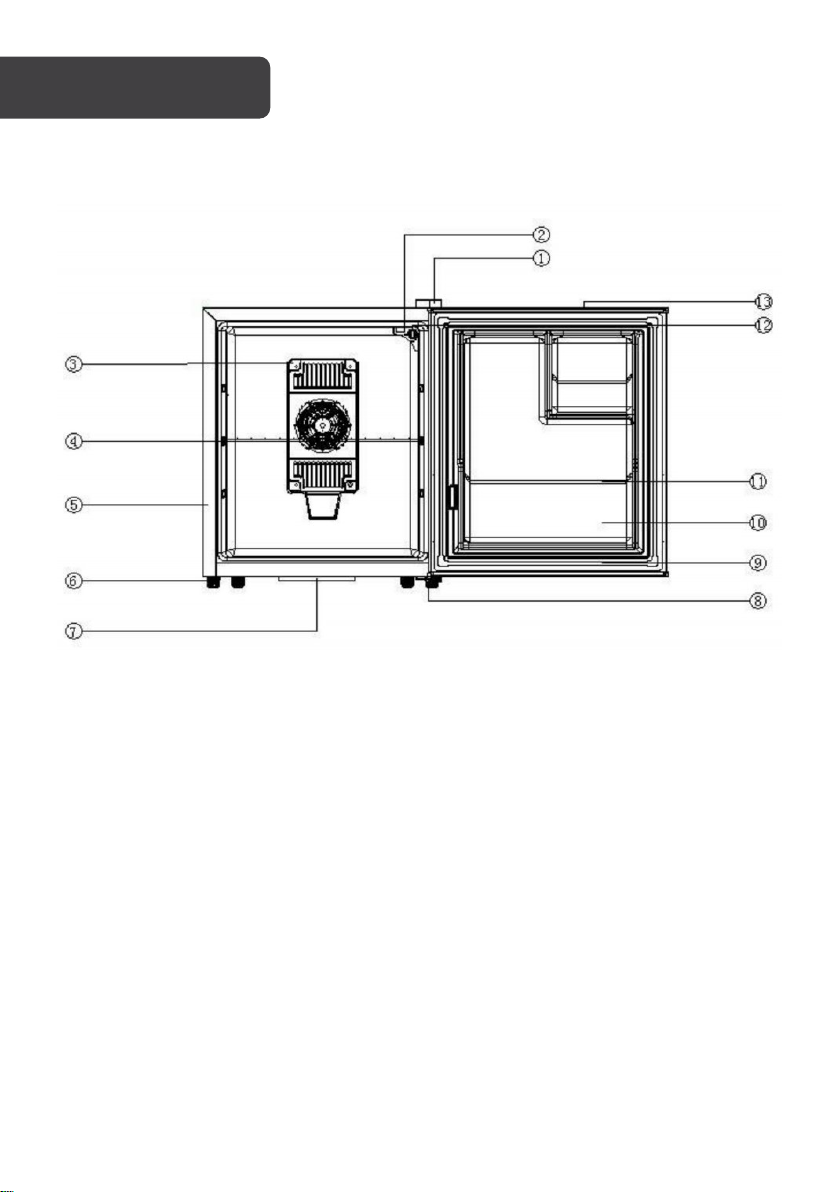

Upper door hinge cover

Lower door hinge

Light switch

Door seal

Fan cover

10.

Door

Shelf

11.

Tr i m

Cabinet

12.

Mechanical control knob

Feet

13.

Handle

Water tray

OVERVIEW

•Remove the exterior and interior packaging

•Before connecting the appliance to a power source, let it stand upright for

approximately 2 hours. This will reduce the possibility of a malfunction in the

cooling system from handling during transportation.

•Clean the interior surface with lukewarm water using a soft cloth.

•Place your appliance on a floor that is strong enough to support the appliance

when it is fully loaded. To level your appliance, adjust the front feet at the bottom of

the appliance.

•Install away from direct sunlight and sources of heat (stoves, heaters, radiators etc.)

Direct sunlight may affect the acrylic coating, and heat sources may increase

electrical consumption. Extreme cold or hot ambient temperatures may also cause

the appliance to not perform properly.

•Take care to place the fridge with a 2-3cm gap to the surrounding walls to allow for

proper air circulation.

•Not designed for placement in a basement.

•The appliance is intended for indoor use only.

Reversing the door swing

Step 1

Step 2

1. Remove the plastic covering from the top door hinge and unscrew the two screws

from the bottom bracket. Remove the foot from the opposite side.

2. Place the pieces to one side for now.

INSTALLATION

Step 3

Step 4

3. Slide the door down about 15cm and off the top hinge pin and then lift it away from

the fridge.

4. Remove the two screws from the top bracket and replace them on the other side.

You will need to remove the plastic caps from the other side first.

Step 5

5. Slide the door back onto the top hinge, making sure it is facing the right way up.

Screw the bottom hinge into place on the new side. Replace the other foot on the

other side and then replace the plastic covering by clicking it back into place on the

door hinge.

Step 6

6. Check that the door is aligned horizontally and vertically and that the seals are

closed on all sides before finally tightening the bottom hinge.

INSTALLATION (cont’d)

It is recommended that you install the mini fridge in a location where the ambient

temperature is between 10-26°C. If the ambient temperature is above or below

recommended temperatures, the performance of the unit may be affected. For example,

placing in extreme cold or hot conditions may cause interior temperatures to fluctuate. The

range of 2-12°C may not be reached. The temperature may fluctuate depending on whether

the interior light is on or off or whether the bottles are located on the upper, middle, or lower

section.

Setting the temperature

There is a mechanical control knob inside the cabinet. Rotate the knob to adjust the

temperature.

The temperature adjustment knob allows temperature adjustment in the range of 2°C –

12°C in the cabinet. The knob is set at a certain point in the fridge during manufacturing,

and you can then adjust this yourself according to your requirements. When first using the

mini fridge, turn the knob to “High” to lower the temperature quickly. There is a light switch in

the control panel; press to turn the light on or off.

OPERATION

Light switch

Temperature adjustment knob

LED light

Cleaning your mini fridge

•Unplug the mini fridge and remove the bottles.

•Wash the inside with a warm water and baking soda solution. The solution should

be about 2 tablespoons of baking soda to a litre of water.

•The outside of the mini fridge should be cleaned with a mild detergent and warm

water.

•Draw out the water box at the bottom, and wash.

Moving your mini fridge

•Remove all bottles.

•Securely tape down all loose items inside the mini fridge.

•Turn the levelling legs up to the base to avoid damage.

•Tape the door closed.

•Ensure the mini fridge stays in the upright position during transportation.

CARE & MAINTENANCE

Issue

Solution

Fridge is not operating.

Check that the plug is plugged in securely

and that the circuit breaker has not been

tripped in your meter box.

Fridge is not cold enough.

•

Check the temperature control

setting. External environment may

require a higher setting.

•The door is being opened too often.

•The door is not closed completely.

•The door seal does not seal properly.

•The fridge does not have the correct

clearance around it.

The light does not work.

Contact the Kogan customer support team.

The fridge is vibrating during use.

Check to ensure that the fridge is level.

The fridge seems to make too much noise.

•The fridge is not level.

•Check that the fan is unobstructed.

The door will not close properly.

•The fridge is not level.

•The doors were reversed and not

properly installed.

•The seal is weak.

•The shelves are out of position.

LED does not display.

•Main control board does not work.

•There is some problem with the plug.

•Contact the Kogan customer support

team.

LED display error.

Contact the Kogan customer support team.

Buttons are not functional.

Temperature controller panel is damaged

Door does not close tightly

Check the door seal if it is in proper position.

Check if items are placed in their correct

positions. Weak magnetic door seal.

TROUBLESHOOTING

NOTES
