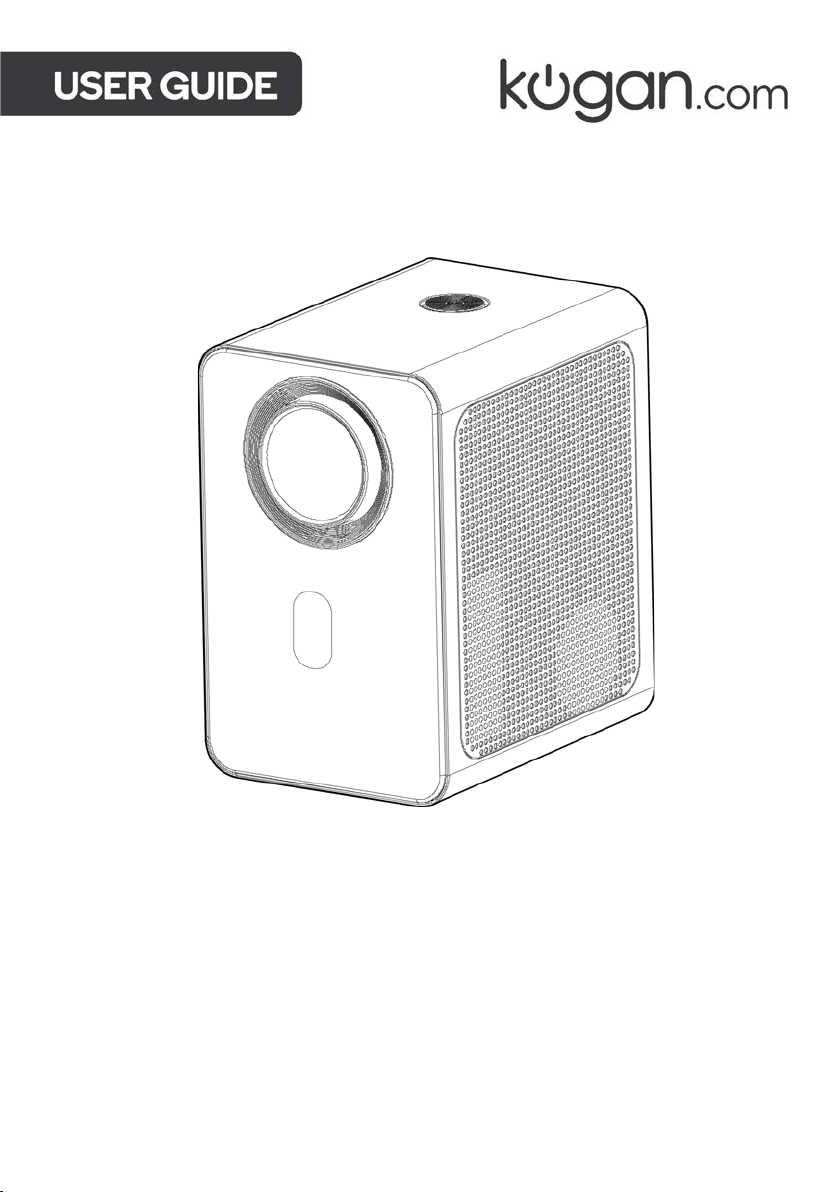

Kogan M800 Manual de usuario
4500 LUMENS FHD WI-FI
MINI PROJECTOR
(M800)
KAM800PRRA
Read this user guide fully and carefully before using the product.
• Do not look directly into the light from the projector.
• A direct burst of intense light can harm your eyes and cause severe damage to the eyes
of infants.
• Do not use or store the projector in a damp, humid environment.
• Do not attempt to repair this product yourself. If the product or its power supply
experiences any malfunction or damage, cease use immediately and contact
help.Kogan.com for support.
• Ensure the projector is a safe distance from any heat-emitting devices or the service life
of the projector may be shortened.
• It is strongly suggested not to use the projector for more than 6 hours consecutively.
SAFETY & WARNINGS
Projector
Remote Control
Power Cable
3-in-1 AV Cable
HDMI Cable
Tripod
Carry Bag
User Guide
Warranty Card
COMPONENTS
Indicator Light
Lens
OVERVIEW
Power
AV
USB
HDMI
Audio output
(3.5MM)
Power input
Remote Control
Focus adjust
button
Menu
Confirm
Volume decrease
Mute
Home
Volume increase
Directional buttons
Back
Source
Power
Place the projector on a flat horizontal surface
Tripod Mount:
This projector can be mounted on the included tripod using the 6mm (1/4’’) thread hole on
the button of the projector.
6mm (1/4’’) thread hole
INSTALLATION
Getting started
1. Connect the projector to a power outlet using the power cable.
2. Press the power button on the projector or remote control.
3. The boot screen appears.
4. Press the focus adjust buttons on the remote control to adjust the focus until the
picture is clear.
OPERATION
Connect Input Devices
Use the source button to select the desired input source: USB, HDMI & AV.
On the remote control: Press “ ” and press “ ” or “ ” to select the source. To
confirm press “OK”.
USB:
1. Insert a USB storage device into the USB port on the projector.
2. Choose “USB” on the input select screen.
3. Select the file you want to play.
PC:
1. Connect the projector to a PC using the included HDMI cable.
2. Select “HDMI” on the input select screen.
MacBook or MacBook Air:
1. Connect the projector to a MacBook or MacBook Air using either a USB-C to
HDMI adapter or a Mini Display to HDMI adapter (adapters not included).
2. Select “HDMI” on the input select screen.
USB
AV
HDMI
Game Console:
1. Connect a game console to the projector using the supplied HDMI cable. Turn on
both the projector and game console.
2. Select “HDMI” on the input select screen.
Headphones/Speakers:
1. Connect your headphones or speakers to the 3.5mm audio output on the
projector.
2. Turn on the projector.
3. The projector will output all audio to the connected device.
AV:
1. Connect the projector to your AV device using the supplied 3-in-1 AV cable.
2. Turn on both the projector and the AV device.
3. Select “AV” on the input select screen.
Amazon Fire TV Stick:
1. Plug the TV Stick into the HDMI port of the projector.
2. Choose “HDMI” on the input select screen.
AV
USB
Video
Audio out (L)
Audio out (R)
HDMI
AV
Audio Out
Component
Audio signal line
Video Player
Notes: Only 1080P TV Sticks are supported. 4K TV Sticks are not supported.
