Kogan KACAR12DVRA Manual de usuario
.$&$5'95$
USER MANUAL
1. Packaging Accessories
①
②
③
④
⑤
1. Vehicle Camcorder 2. Suction Cup
3. Car Charger 4. SB Cable
5. Li-ion Battery

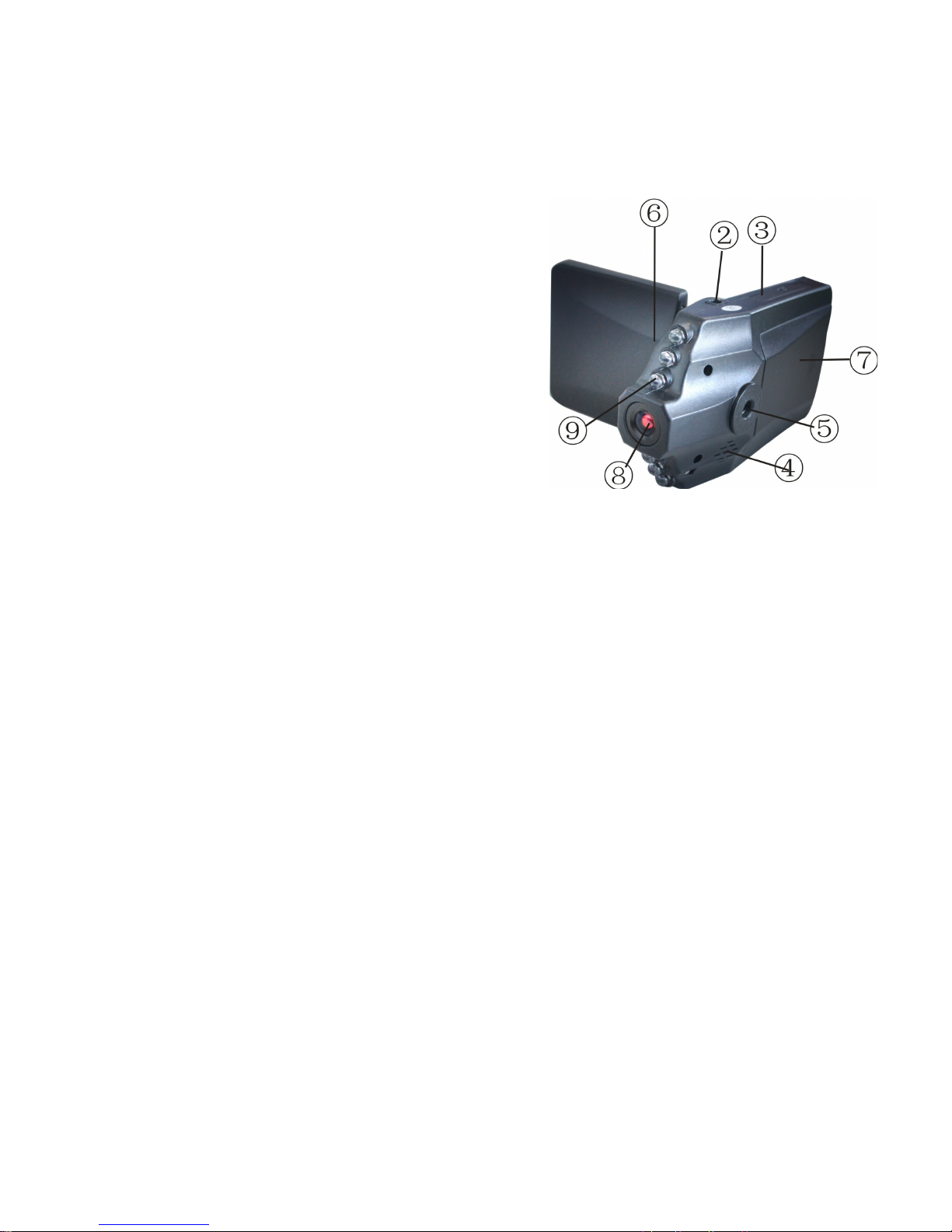

2.Product picture and Function
1. SB Slot
2. 5VDirect Current Slot
3. SD/MMC Card Slot
4. Speaker
5. Mount Hole
6. Microphone
7. Battery Cover
8. Lens
9. IR LED
10. Power ON/OFF Button with Charging
Indicator(Red)
11. REC Button
With working Indicator (Blue)
12. 2.5inch LCD
13. Menu Button
14. Down Button
15. p Button
16. Mode Button (Video/Camera/Playback)
3.Operations
Two Power options:
a se Li-ion battery
DVR can be activated after it has been placed on the vehicle by
pressing the Power on/off for 3 seconds and turned off by
pressing it again.
Charging: connect with SB cable or car charger. The Power
button indicator shows red and turns off when it is full.
b Connect with Car Charger
DVR will record automatically when the car starts, then turns off and
saves the last file when the car stops.
Note: Just 5V output voltage is required.
5.Function Information
A Video Mode
DVR will enter into default video mode when turned on. The recording
file is saved on the SD/MMC Card. To stop recording by pressing REC.
(When powered up with a battery-powered, press the record button to
start recording)
B Camera mode
Turn on the DVR and press Mode Button to enter into the Camera
mode. To take photo by pressing REC Button (the blue button next to
power button)
C Playback Mode
Turn on the DVR and press Mode Button twice to enter into Playback
Mode, Press p or Down to select the previewed file, if it is a video
file, it can play or stop by pressing REC Button.
D Delete
In the playback mode, press Menu button to enter into the delete
interface.
Press p or Down to select the previewed file. If it is video file, it can
play or stop by pressing REC Button. If you want to delete it, press
Menu button to enter into delete mode , and then select single, all or
select by REC Button. Press P/Down to Confirm and press Rec
Button to delete. You can select Thumbnail mode to preview more files.
Volume (from 1 to 8) and protect under the Playback Mode.
6.Setting Mode
Turn on the DVR and press Menu Button twice enter to the setting
interface,
Confirm by REC Button and press p/Down button for the following
setting,
Press Menu Button again to exit after finished.
A Turn on the DVR and press Menu button twice enter into the setting
interface. confirm by REC button and press p/Down button for the
following setting, press menu button again to exit after finished.
1. Format; Cancel/Execute
2. English, Française,Deutsch,Italiana,Español,
Português,繁體中文,简体中文，日本語，Pусский
3. Auto Off; 1 Min/ 3 Min/ 5 Min/ Off
4. System Reset; Cancel/Execute
5. Light Frequency; 60HZ/50HZ
6. TV Output ; NTSC/PAL
7. Date Input ; Off/Set
B Turn on the DVR and press Menu button enter into the setting
interface under the Video mode. confirm by REC button and press
p/Down button for the following setting, press Menu button again to
exit after finished.
1. Size: VGA/QVGA/SXGA
2. EV: +2.0 +5/3 +4/3 +1.0 +2/3 +1/3 +0.0 -1/3 -2/3 -1.0 -4/3 -5/3-2.0
3. White Balance: Auto/Daylight/Cloudy/Tungsten/Fluorescent
4. Time Stamp: Off/Date Only/ Date&Time
5. Motion Detect; Off/on
6. Audio Mode; On/Off
7. Video time;3 Min/5 Min/10 Min/15 Min
8. Flip screen; Off/On
9. IR LED; On/Off
