Kodak Photo Printer 6850 Manual de usuario

KODAK Photo Printer 6850

User Guide

Eastman Kodak Company

343 State Street

Rochester, New York 14650

Kodak is a trademark of Eastman Kodak Company.

ENERGY STAR is a U.S. registered trademark.

Part Number 4J7961_US

November 2011 1

Safety and Regulatory Information

Important Safety Information

CAUTION:

Use of controls or adjustments, or performance of

procedures other than those specified in this manual may

result in injury and/or damage to the printer.

• The power outlet should be easily accessible and installed

near the printer.

• Position the power cable so that it cannot be pulled on or

tripped over.

• Never allow the power cable to contact hot surfaces.

• The power outlet must be grounded. An ungrounded outlet

can cause fire, electric shock, or harmful interference to

nearby electrical devices.

• Use only the power cable provided with the printer.

• Do not operate the printer with a damaged power cable.

• Always unplug the power cable from the printer before

cleaning or when the printer is not in use.

• If the printer has been dropped or damaged, be sure a

qualified service person examines the printer before you use

it.

• Do not block the filter openings on the printer cabinet.

• Do not expose the printer to moisture or water.

• Do not allow any foreign objects or liquids to fall or spill inside

the printer. Fire or electric shock could result.

• The thermal head becomes extremely hot during normal

operation. Do not touch it.

• Alcohol pads are used to clean the thermal head and other

internal printer components. In the United States for health,

safety, and environment information, call 585-722-5151.

Customers outside the U.S. can contact their local KODAK

Service Representative.

2November 2011

Safety Labels

Please observe the important safety warnings that are posted on

the printer.

This label is posted behind the trim tray.

CAUTION HOT SURFACE

To avoid burns, use caution when closing the cover.

CAUTION HOT SURFACE

The thermal head becomes extremely hot

during normal operation. Do not touch it.

CAUTION SHARP OBJECTS

The metal edges of the printer may be sharp.

CAUTION SHARP CUTTER BLADE

There are sharp cutter blades inside the printer. Do not

insert hands or objects.

P/N 2J5439

1641132233

P/N 2J5452

1641132183

P/N 2J5451

1641132182

November 2011 3

Regulatory and Safety Compliance

Safety

Complies with UL 60950-1:2006 Third Edition—CAN/CSA C22.2

No. 60950-1-03

EN 60950-1:2006+A11:2009

IEC 60950-1:2005 2nd Edition

Tested for Norwegian IT Power systems 240V phase to phase

Electromagnetic Compatibility (EMC)

NOTE: This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15

of the FCC rules. These limits are designed to provide

reasonable protection against interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

interference to radio communications. Operation of this

equipment in a residential area is likely to cause

interference in which case the user will be required to

correct the interference at his or her own expense.

Requirements of the EMC directive 89/336/EEC were met

through compliance with the following:

• EN 55022: 94 (class A) with Amendments A1:95 and A2:97

• EN 55024: 98 ITE Immunity includes the following:

EN 61000-4-2 ESD

EN 61000-4-3 Radiated RF immunity

EN 61000-4-4 EFT

EN 61000-4-5 Surge

EN 61000-4-6 Conducted RF immunity

EN 61000-4-11 Voltage dips and interruptions

• EN 61000-3-2 Harmonics

• EN 61000-3-3 Flicker

CAUTION:

This is a class A product. In a domestic environment this

product may cause radio interference in which case the user

may be required to take adequate measures.

“Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.”

This is a Class A product based on the standard of the Voluntary

4November 2011

Control Council for Interference from Information Technology

Equipment (VCCI). If this is used near a radio or television

receiver in a domestic environment, it may cause radio

interference. Install and use the equipment according to the

instruction manual.

Noise Emission

The operator-position noise emission value is less than 70 dB(A).*

* Average value specified in accordance to JIS Z8731

Disposal

This product contains a small amount of lead in the solder on the

circuit boards. Disposal of this material may be regulated due to

environmental considerations. For disposal or recycling

information, please contact your local authorities. In the USA,

contact the Electronics Industry Alliance at www.eiae.org.

In the European Union, this symbol indicates that

when the last user wishes to discard this product,

it must be sent to appropriate facilities for recovery

and recycling. Contact your local KODAK

Representative or refer to

www.kodak.com/go/recycle for additional

information on the collection and recovery

programs available for this product.

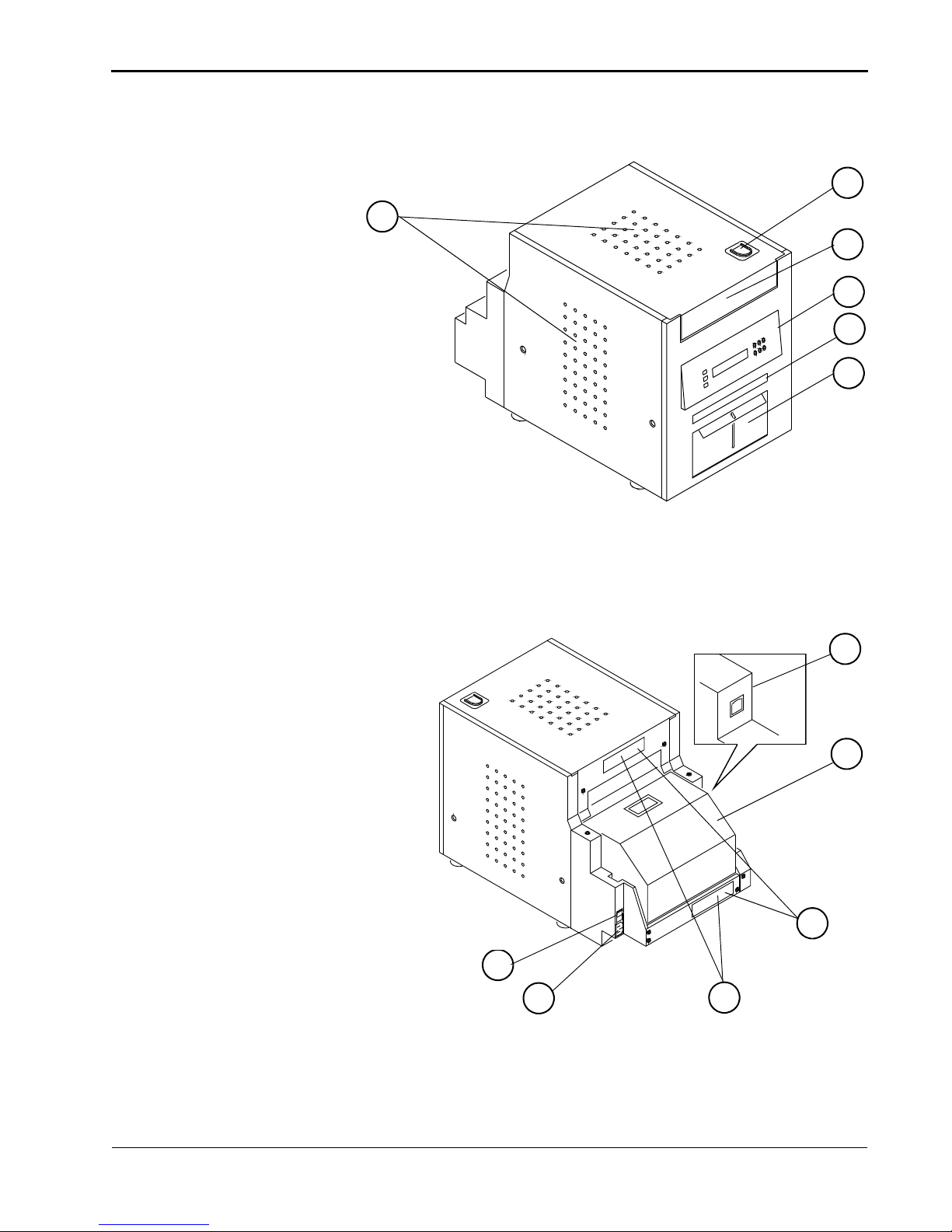

Product Overview

November 2011 i

A161_3004AC

Rear

Front

1. Filter openings

2. Cover release

3. Upper cover

4. Operator panel

5. Print exit slot (print catcher not shown)

8. Paper door

9. Data plate (location may vary)

10. Serial number/Bar code label

11. Power connector

7. USB connector

6. Trim tray

12. Power switch

(location may vary)

ii November 2011

Product Overview

Internal View with Ribbon Installed

1. Thermal head

2. Stripper plate

Internal View with Ribbon Removed

3. Cleaning roller, rear

4. Platen roller

5. Cleaning roller, front

Product Overview

November 2011 iii

Kodak

Photo Printer 6850

Power

Ready

Error

Rewind/Clear

Paper

Enter

Paper

AdvanceMenu

Operator Panel
