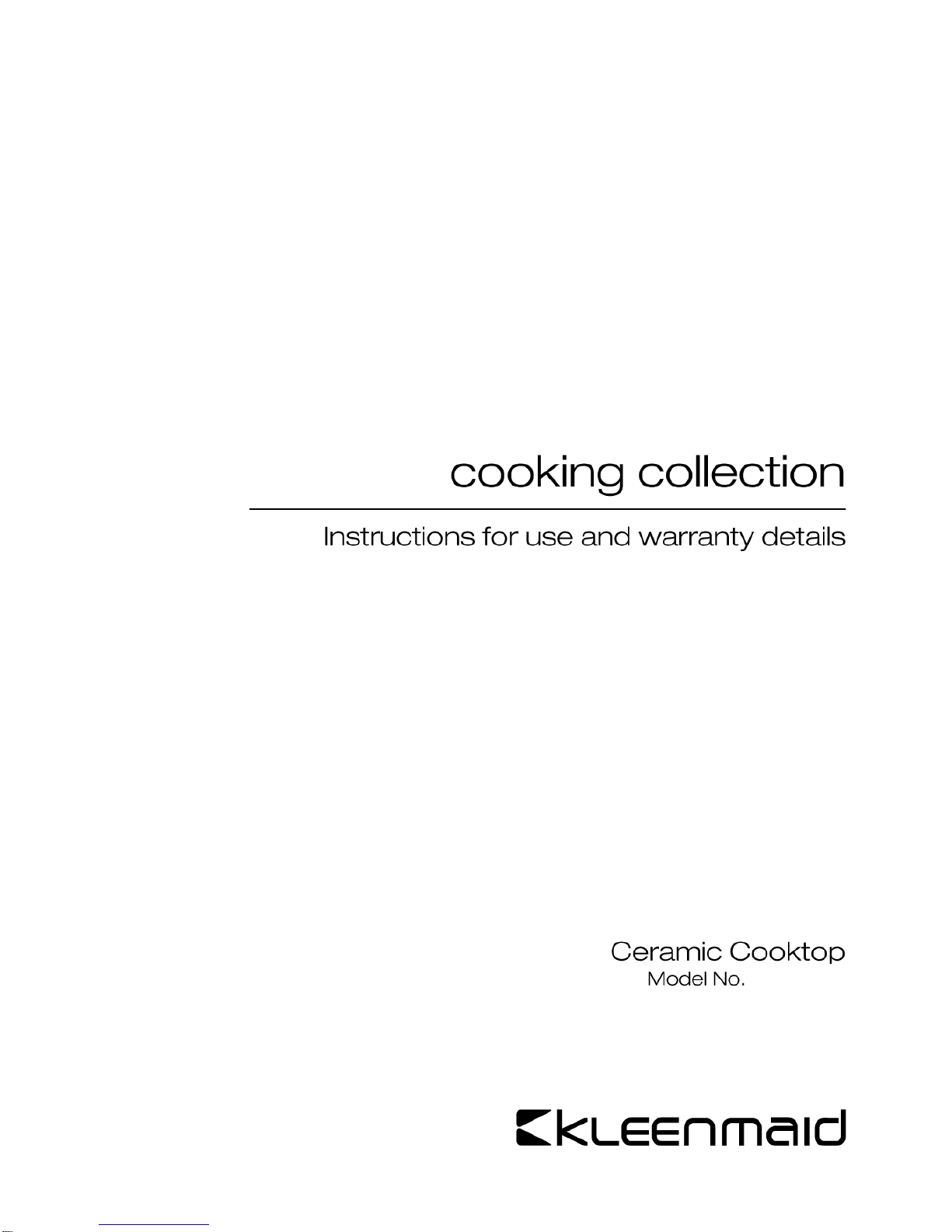

Kleenmaid KCCCT6020 Guía de instalación

KCCCT6020

Congratulations on the purchase

of your new Kleenmaid appliance.

Your new Kleenmaid appliance has been

designed and manufactured to give you

years of reliable performance.

For best results, carefully read the

instructions on how to install your new

appliance. Correct installation will avoid

delays and unnecessary service call costs.

Once installation is complete, please read

this entire instruction manual carefully and

get to know the controls and the features

of your new Kleenmaid appliance.

Again, congratulations and thank you for choosing Kleenmaid

SUMMARY

SAFETY.........................................................................................................................................2

RECAUTIONS BEFORE USING

........................................................................................................2

SING THE APPLIANCE

..................................................................................................................3

RECAUTIONS NOT TO DAMAGE THE APPLIANCE

..............................................................................4

RECAUTIONS IN CASE OF APPLIANCE FAILURE

................................................................................5

THER PROTECTIONS

...................................................................................................................5

DESCRIPTION OF THE APPLIANCE...........................................................................................6

ECHNICAL CHARACTERISTICS

.......................................................................................................6

ONTROL PANEL

..........................................................................................................................6

USE OF THE APPLIANCE............................................................................................................6

ISPLAY

......................................................................................................................................6

STARTING-UP AND APPLIANCE MANAGEMENT.....................................................................7

EFORE THE FIRST USE

.................................................................................................................7

ENSITIVE TOUCH

.........................................................................................................................7

TARTING

...............................................................................................................................7

ESIDUAL HEAT INDICATION

...........................................................................................................7

UTOMATIC COOKING

...................................................................................................................7

ONTROL PANEL LOCKING

.............................................................................................................8

COOKING ADVICES.....................................................................................................................9

XAMPLES OF COOKING POWER SETTING

........................................................................................9

MAINTENANCE AND CLEANING................................................................................................9

WHAT TO DO IN CASE OF A PROBLEM..................................................................................10

ENVIRONMENT PRESERVATION .............................................................................................10

INSTALLATION INSTRUCTIONS...............................................................................................11

ELECTRICAL CONNECTION .....................................................................................................12

SAFETY

Precautions before using

•Unpack all the materials.

•The installation and connecting of the appliance have to be

done by approved specialists. The manufacturer can not be

responsible for damage caused by building-in or connecting

errors.

•To be used, the appliance must be well-equipped and installed

in a kitchen unit and an adapted and approved work surface.

•This domestic appliance is exclusively for the cooking of food,

to the exclusion of any other domestic, commercial or industrial

use.

•Remove all labels and self-adhesives from the ceramic glass.

•Do not change or alter the appliance.

•The cooking plate can not be used as freestanding or as

working surface.

•The appliance must be grounded and connected conforming to

local standards.

•Do not use any extension cable to connect it.

•The appliance can not be used above a dishwasher or a

tumble-dryer: steam may damage the electronic appliances.

•This appliance is not intended to be operated by means of

external timer or separate remote control system

Using the appliance

•Switch the heating zones off after using.

•Keep an eye on the cooking using grease or oils: that may

quickly ignite.

•WARNING: Unattended cooking on a hob with fat or oil can be

dangerous and may result in a fire.

•Be careful not to burn yourself while or after using the

appliance.

•Make sure no cable of any fixed or moving appliance contacts

with the glass or the hot saucepan.

•Magnetically objects (credit cards, floppy disks, calculators)

should not be placed near to the engaged appliance.

•Metallic objects such as knives, forks, spoons and lids should

not be placed on the hob surface since they can get hot.

•In general do not place any metallic object except heating

containers on the glass surface. In case of untimely engaging or

residual heat, this one may heat, melt or even burn.

•Never cover the appliance with a cloth or a protection sheet.

This is supposed to become very hot and catch fire.

•CAUTION: The cooking process has to be supervised. A short

term cooking process has to be supervised continuously.

•This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

•Young children should be supervised to ensure that they do not

play with the appliance.

Precautions to avoid damage to the appliance

•Raw pan bottoms or damaged saucepans (not enamelled cast

iron pots,) may damage the ceramic glass.

•Sand or other abrasive materials may damage ceramic glass.

•

Avoid dropping (even small) objects on the vitroceramic surface.

•

Do not hit the edges of the glass with saucepans or hard objects.

•Make sure that the ventilation of the appliance works according

to the manufacturer’s instructions.

•Do not put or leave empty saucepans on the vitroceramic hobs.

•

Sugar, synthetic materials or aluminium sheets must not contact

the heating zones. These may cause breaks or other damage to

the vitroceramic glass by uneven cooling: switch on the

appliance and take them immediately out of the hot heating

zone (be careful: do not burn yourself).

•

Danger of fire: do not store any items on the cooking surface.

•Never place any hot container over the control panel.

•

If a drawer is situated under the installed appliance, make sure

the space between the content of the drawer and the underside

of the appliance is at least 2 cm. This is essential to ensure the

correct amount of ventilation.

•

Never put any inflammable object (for example, spray cans) into

the drawer situated immediately under the vitroceramic hob. The

drawers installed under the hob must be resistant to heat.

Precautions in case of appliance failure

•

If a defect is noticed, switch off the appliance and turn off the

electrical supply.

•

If the ceramic glass is cracked/fissured, you must unplug or

disconnect the appliance and contact after sales service.

•

Repairs must be performed by specialists. Do not open

the appliance yourself.

•WARNING: If the surface is cracked, switch off the appliance to

avoid the possibility of electric shock.

•If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person

in order to avoid a hazard.

Other protections

•

Be sure that the cooking pan is always centred on the cooking

zone. The bottom of the pan must cover as much as possible of

the cooking zone.

•

For the user of a pacemaker, the magnetic field could influence

its operation. We recommend obtaining information from the

retailer or the doctor.

•

Do not to use aluminium or synthetic material containers: they

could melt on hot cooking zones.

•

NEVER try to extinguish a fire with water, but first switch off

the appliance and then cover flame e.g. with a lid or a fire

blanket.

DESCRIPTION OF THE APPLIANCE

Technical characteristics

Type Total Power

Position of the

heating zone Diameter Nominal Power

KCCCT6020 6000 W

Front left

Rear left

Rear right

Front right

190 mm

155 mm

190 mm

155 mm

1800 W

1200 W

1800 W

1200 W

Control panel

USE OF THE APPLIANCE

Display

Display Designation Function

0 Zero The heating zone is activated.

1…9 Power level Selection of the cooking level.

A Heat accelerator Automatic cooking

E Error message Electronic failure.

H Residual heat The heating zone is hot.

L Locking Control panel locking.

On/Off key

[ + ] key

selection zone

Power display

[

] key for all 4

heating zones

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing

blue-tinted colour on the glass surface.

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key,

the corresponding command is activated. This activation is validated by a control light, a letter or a number in the

display and/or a “beep” sound.

In the case of a general use press only one key at the same time.

Starting-up

You must first switching on the hob, then the heating zone:

•Start-up/ switch off the hob:

Action Control panel Display

To start Press key [ ] [ 0 ]

Touch the key Press key [ ] Nothing or [ H ]

•Start-up/ switch off a heating zone:

Action Control panel Display

Zone selection Press key [ + ] [ 0 ]

Increase power Press key [ + ] [ 1 ] to [ 9 ]

Decrease power Press key [ - ] [ 9 ] to [ 1 ]

Stop Press key [ - ] [ 0 ] or [ H ]

If no action is made within 20 second the electronics returns in waiting position.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates

[ H ] on the display.

The symbol [ H ] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on light, don’t touch the heating zones and don’t put any heat sensitive

object on them. There are risks of burn and fire.

Automatic cooking

All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a

certain time, then reduces automatically its power on the pre-selected level.

•Switching on the automatic cooking:

Action Control panel Display

Zone selection Press key [ + ] [ 0 ]

Full power setting Press key [ + ] Pass from [ 1 ] to [ 9 ]

Automatic cooking Re-press key [ + ] [ 9 ] blinking with [ A ]

Power level selection Press key [ - ] [ 9 ] pass to [ 8 ] [ 7 ]

(for example « 7 ») [ 7 ] blinking with [ A ]

•Switching off the automatic cooking:

Action Control panel Display

Zone selection Press key [ + ] [ 7 ] blinking with [ A ]

Power level selection Press key [ - ] [ 0 ]

Extension zone ( according on model )

•Switch off/on the extension zone:

Action Control panel Display

Zone selection Press key [ + ] [ 0 ]

Increase power Press key [ + ] [ 0 ] to [ 9 ]

Switch off Touch key [ ] Extension zone

light is off

Switch on Touch key [ ] Extension zone

light is on

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel

can be locked (with exception to the On/Off key [ ]).

•Locking:

Action Control panel Display

Start Press [ ] [ 0 ] or [ H ]

Hob locking Press simultaneously [ - ]

and [ + ] at left No modification

Press key [ + ] [ L ] on 4 displays

•Unlocking:

Action Control panel Display

Start Press key [ 0/I ] 4 x [ L ]

In the 5 seconds after start:

Unlocking the hob Press simultaneously [ - ]

and [ + ] at left [ 0 ] or [ H ]

Press key [ - ]

Tabla de contenidos

Otros manuales de Placa de cocina de Kleenmaid

Kleenmaid

Kleenmaid cooking CCTB6010 Guía de instalación

Kleenmaid

Kleenmaid GCT6030 Guía de instalación

Kleenmaid

Kleenmaid SCALA CH1 Manual de usuario

Kleenmaid

Kleenmaid CH311XFF Manual de usuario

Kleenmaid

Kleenmaid ICK98X Manual de usuario

Kleenmaid

Kleenmaid CH17 Manual de usuario

Kleenmaid

Kleenmaid GCTK9012 Guía de instalación

Kleenmaid

Kleenmaid GCT6010 Manual de usuario

Kleenmaid

Kleenmaid ICT9031 Guía de instalación

Kleenmaid

Kleenmaid CCT9030 Manual de usuario

Kleenmaid

Kleenmaid ICK98X Instrucciones de uso

Kleenmaid

Kleenmaid IVK60 Manual de usuario

Kleenmaid

Kleenmaid GCTK6012 Guía de instalación

Kleenmaid

Kleenmaid ICT9030 Guía de instalación

Kleenmaid

Kleenmaid KCGCT6010 Guía de instalación

Kleenmaid

Kleenmaid KCGCT6011 Guía de instalación

Kleenmaid

Kleenmaid ICT6020 Guía de instalación

Kleenmaid

Kleenmaid ICT6020 Guía de instalación

Kleenmaid

Kleenmaid cooking ICTFX9020EX Guía de instalación

Kleenmaid

Kleenmaid ICK68X Guía de configuración

Kleenmaid

Kleenmaid CH605SX Guía de instalación

Kleenmaid

Kleenmaid CH40S Manual de usuario

Kleenmaid

Kleenmaid IVK61 Manual de usuario

Kleenmaid

Kleenmaid GCTE6010 Manual de usuario

Manuales populares de Placa de cocina de otras marcas

Bonnet

Bonnet OPTIMUM 700 Manual del propietario

Jenn-Air

Jenn-Air JGCP430 Manual de usuario

Frigidaire

Frigidaire FES367FCC Guía de inicio rápido

Ztove

Ztove EZ2 DUO Manual de usuario

Casselin

Casselin CSASRE24 Manual de usuario

Jenn-Air

Jenn-Air JGC2536EB00 Manual de usuario

Waldorf

Waldorf RN8603E-B Manual de instrucciones

Whirlpool

Whirlpool SMP658CNEIXL Manual de usuario

Wolf

Wolf CI243C/B Manual de usuario

Fulgor Milano

Fulgor Milano F5PGK305S1 Manual de usuario

GE JP389 Manual de usuario

Wells

Wells WV-2HFG Manual de usuario

IKEA

IKEA Lagan HGA4K Manual de usuario

Samsung

Samsung NA36N9755 Manual de usuario

Miele

Miele KM 404 Manual de usuario

Lacor

Lacor 69562 Hoja de especificaciones

Keating Of Chicago

Keating Of Chicago MG-2 Manual de usuario

Jenn-Air

Jenn-Air CCE1400 Manual de usuario
