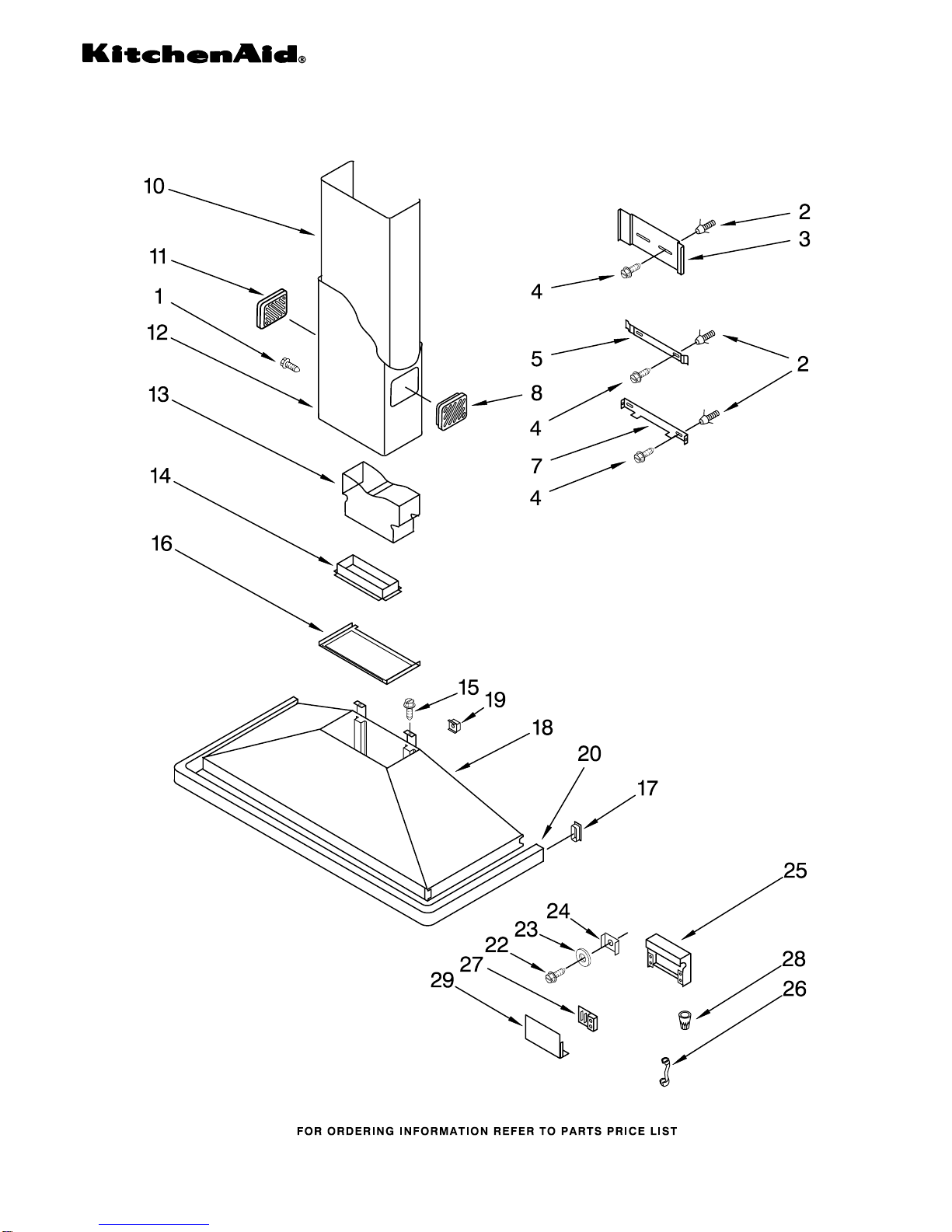

HOOD PARTS

For Models: KWCU205HWH0, KWCU205HSS0, KWCU205HBT0

(White) (Stainless) (Biscuit)

10−99 Litho in U.S.A. (rmb) Part No. 4360411

30" CANOPY HOOD

HOOD PARTS

For Models: KWCU205HWH0, KWCU205HSS0, KWCU205HBT0

(White) (Stainless) (Biscuit)

4360411

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4360315 Screw

2 4360318 Plug

3 4360319 Bracket

4 4360320 Screw

5 4360321 Bracket, Middle

7 4360322 Bracket, Wall

8 Air − Outlet

(Right)

4360323 White Model

4360332 Stainless Model

4360400 Biscuit Model

10 Pipe, Fitting

(Upper)

4360317 White Model

4360331 Stainless Model

4360373 Biscuit Model

11 Air − Outlet

(Left)

4360316 White Model

4360330 Stainless Model

4360398 Biscuit Model

12 Pipe Fitting

(Ductless)

4360313 White Model

4360328 Stainless Model

4360371 Biscuit Model

Pipe Fitting

(Duct)

4360314 White Model

4360329 Stainless Model

4360372 Biscuit Model

13 4360312 Air Duct

14 4360001 Damper

15 4360310 Screw

16 4360309 Cover, Diffuser

17 End Cap

4360306 White Model

4360325 Stainless Model

4360393 Biscuit Model

18 Hood

4360423 White Model

4360424 Stainless Model

4360425 Biscuit Model

19 4360074 Nut

20 Trim

4360417 White Model

4360418 Stainless Model

4360419 Biscuit Model

22 4360006 Screw

23 4360005 Washer

24 4360146 Guide, Ground

25 4360304 Box, Distribution

26 4360147 Strain Relief

27 4360391 Control, Speed

28 4360211 Wire Nut

29 4360303 Cover, Box

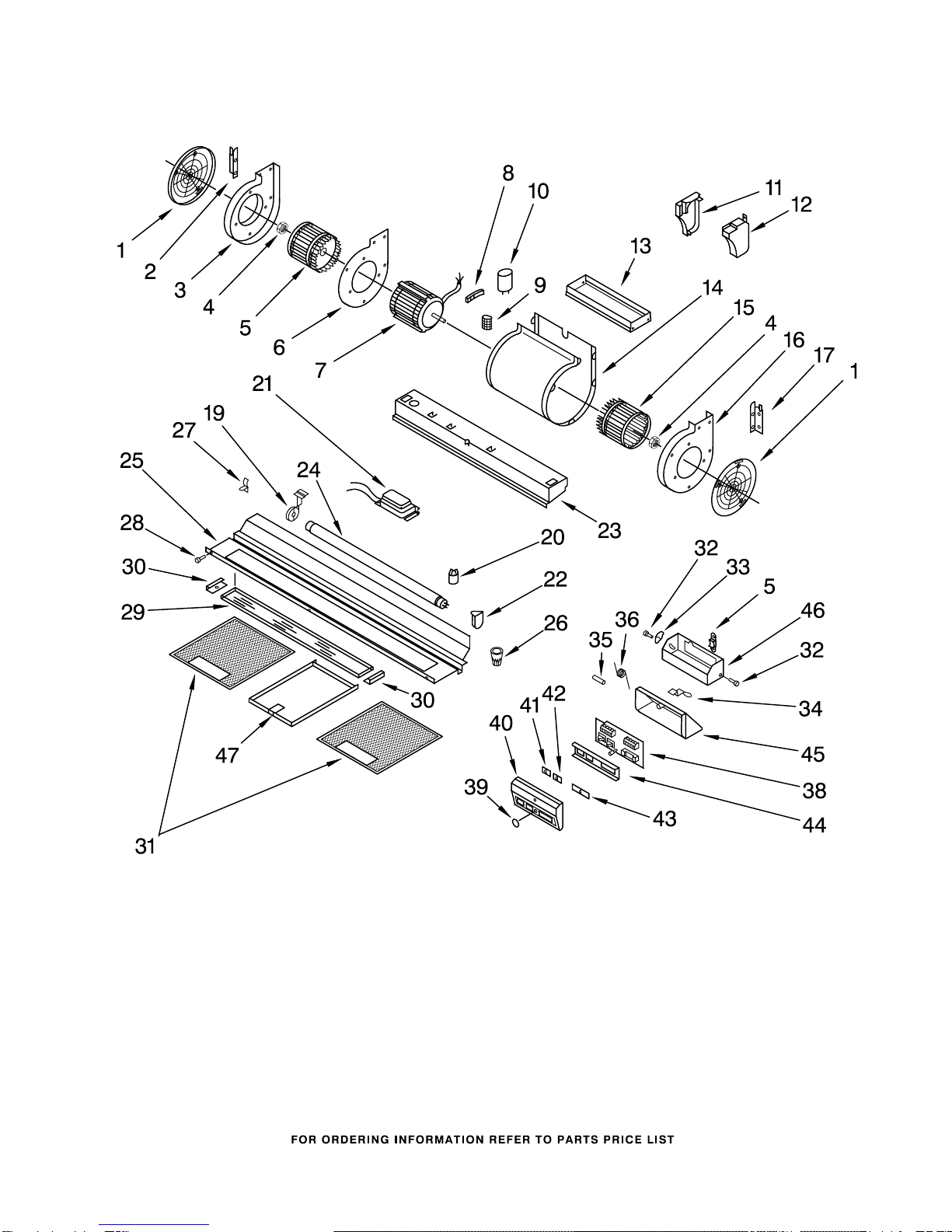

VENTILATION PARTS

For Models: KWCU205HWH0, KWCU205HSS0, KWCU205HBT0

(White) (Stainless) (Biscuit)

4360411

VENTILATION PARTS

For Models: KWCU205HWH0, KWCU205HSS0, KWCU205HBT0

(White) (Stainless) (Biscuit)

4360411

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4360257 Filter, Charcoal

2 4360389 Bracket, Diffuser

3 4360188 Cover, Blower

4 4360180 Nut

5 4360187 Impeller

6 4360185 Motor Mount

7 4360416 Motor

8 4360059 Block Capacitor

9 4360176 Terminal

10 4360175 Capacitor

11 4360060 Box, Electric

12 4360056 Cover, Box

13 4360255 Extension, Diffuser

14 4360184 Housing, Motor

15 4360181 Impeller

16 4360179 Cover, Blower

17 4360390 Bracket

19 4360261 Lampholder

20 4360260 Starter

21 4360045 Ballast

22 4360266 Lamp Holder

23 4360297 Support, Light

24 4360014 Light

25 Support, Light

4360414 White Model

4360413 Stainless Model

4360415 Biscuit Model

26 4360211 Wire Nut

27 4360299 Clamp, Wire

28 4360048 Pin

29 4360264 Glass Light

30 4360300 Side, Lighting

31 4360265 Filter, Grease

32 4360238 Pin

33 4360241 Lever, Switches

34 4360242 Clamp, Cable

35 4360244 Spring, Pin

36 4360243 Spring

37 4360239 Clamp, Cable

38 4360246 Control Board

39 4360028 Cover, Lamp

40 4360251 Cover, Box

41 4360250 Actuator, Lighting

42 4360249 Actuator, Motor

43 4360248 1−2−3 Actuator

44 4360247 Support, Actuators

45 4360245 Control Box

46 4360240 Housing, Control

Box

47 Spacer, Filter

4360420 White

4360421 Stainless

4360422 Biscuit

LITERATURE PARTS

LIT4360367

Use & Care Guide

LIT4360296

Wiring Diagram

ACCESSORY PARTS

4378615 Backsplash

4378616 Wire Racks

4378617 Rack Hanger Kits

Utensil Bars

4378618 Side

4378619 Rear

4378623 Filters (2−Pak)

Ductless Kit

4378622 White Model

8171290 Biscuit Model

4378621 Stainless Model
