KitchenAid KICU285HAL0 Manual de usuario

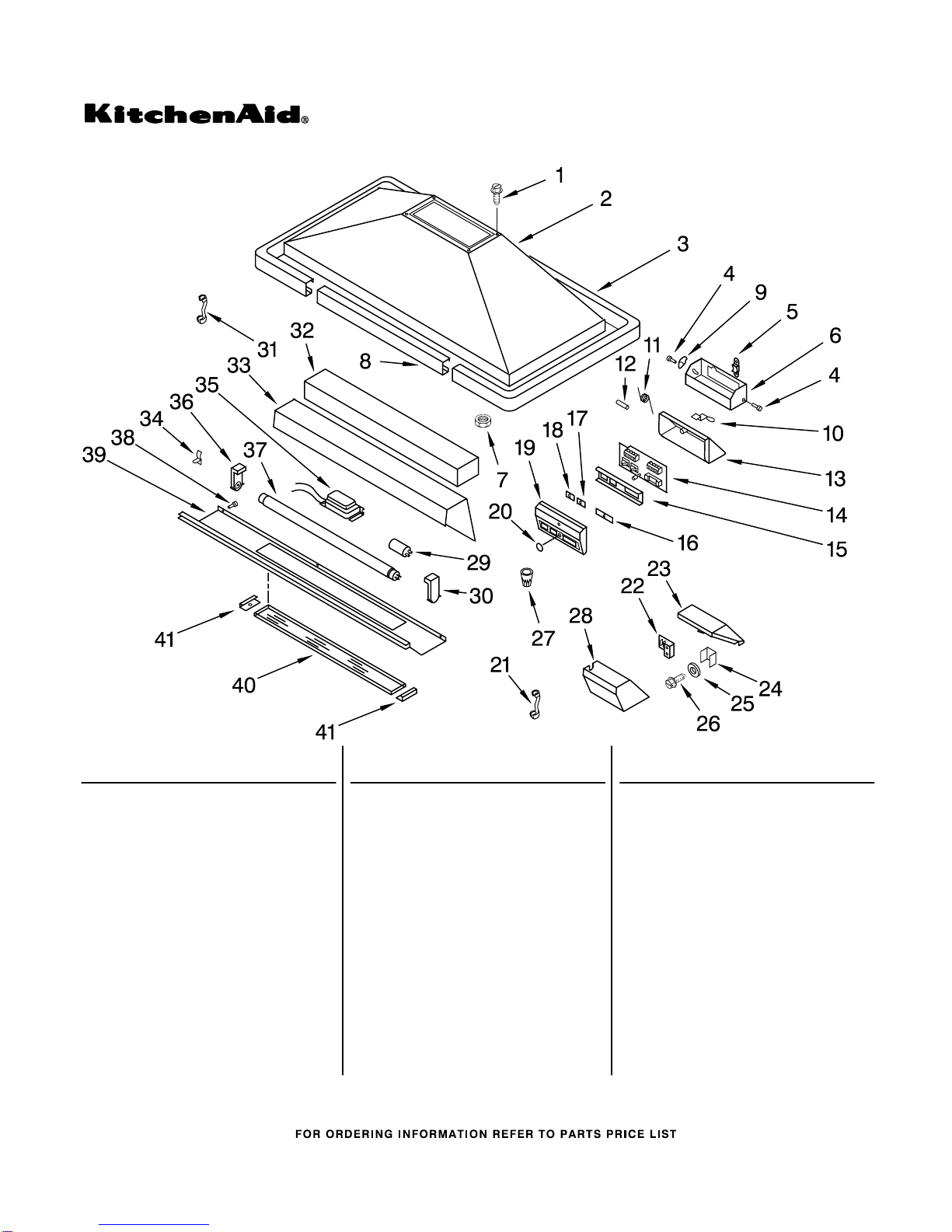

HOOD PARTS

For Model: KICU285HWH0, KICU285HAL0, KICU285HSS0

(White) (Biscuit) (Stainless)

11−01 Litho In U.S.A. (rmb) Part No. 8189813

48" ISLAND HOOD

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4360236 Screw

2 Hood, Canopy (Not

a Serviceable

Part)

3 Trim, Side

8189820 White Model

8189821 Biscuit Model

8189822 Stainless Model

4 4360238 Pin

5 4360239 Clamp, Cable

6 4360240 Housing, Control

7 4360074 Nut

8 Trim, Front

8189823 White Model

8189824 Biscuit Model

8189825 Stainless Model

9 4360241 Lever

10 4360242 Clamp, Cable

11 4360243 Spring

12 4360244 Pin

13 4360245 Control Box

14 4360246 Board, Control

15 4360247 Support, Actuators

16 4360248 Actuator, 1−2−3

17 4360249 Actuator, Motor

18 4360250 Actuator, Lights

19 4360251 Cover, Box

20 4360028 Cover, Lamp

21 4360147 Strain Relief

22 4360391 Control, Speed

23 4360253 Box, Distribution

24 4360146 Ground Guide

25 4360005 Washer

26 4360006 Screw

27 4360211 Nut, Wire (8)

28 4360254 Cover, Box

29 4360260 Starter

30 4360261 Holder

31 4360062 Strain Relief

32 4360258 Protection, Wiring

33 4360259 Support Neon

34 4360044 Clamp, Cable

35 4360045 Ballast

36 4360266 Lampholder

37 4360014 Light

38 4360048 Pin, Grille

39 Support, Light

8189829 White Model

8189830 Biscuit Model

8189831 Stainless Model

40 4360264 Glass, Light

41 4360263 Lighting, Side

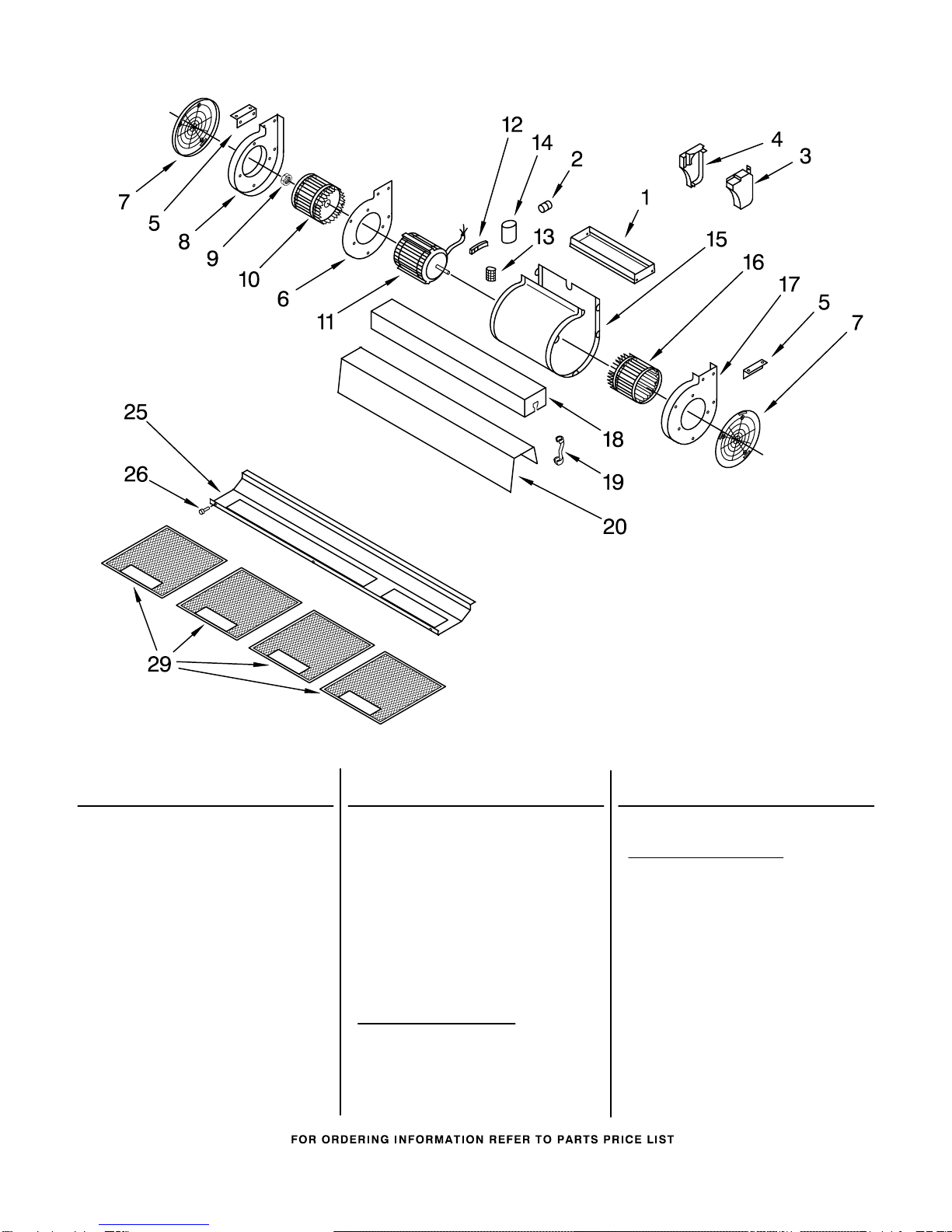

VENTILATION PARTS

For Model: KICU285HWH0, KICU285HAL0, KICU285HSS0

(White) (Biscuit) (Stainless)

8189813

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4360255 Extention, Diffuser

2 4360094 Grommet

3 4360056 Cover, Board

4 4360060 Board, Electric Box

5 4360256 Bracket, Diffuser

6 4360185 Motor Mount

7 4360257 Support, Filter

8 4360188 Cover, Blower

(Left Side)

9 4360180 Nut

10 4360187 Impeller, Left

11 4360212 Motor

12 4360059 Block, Capacitor

13 4360176 Terminal

14 4360175 Capacitor

15 4360184 Housing, Blower

16 4360181 Impeller, Right

17 4360179 Cover, Blower

(Right Side)

18 4360258 Protection, Wiring

19 4360062 Strain Relief

20 4360259 Support

24 4360211 Nut, Wire

25 Support, Filter

8189826 White Model

8189827 Biscuit Model

8189828 Stainless Model

26 4360048 Pin, Grille

29 4360265 Filter

LITERATURE PARTS

LIT4360369

Use & Care Guide,

Installation,

Template

LIT4360232

Wiring Diagram

ACCESSORY PARTS

4378615 Backsplash

4378616 Wire Racks

4378617 Rack Hanger Kits

Utensil Bars

4378618 Side

4378619 Rear

4378623 Filters (2−Pak)

Ductless Kit

4378626 White Model

8171292 Biscuit Model

4378625 Stainless Model

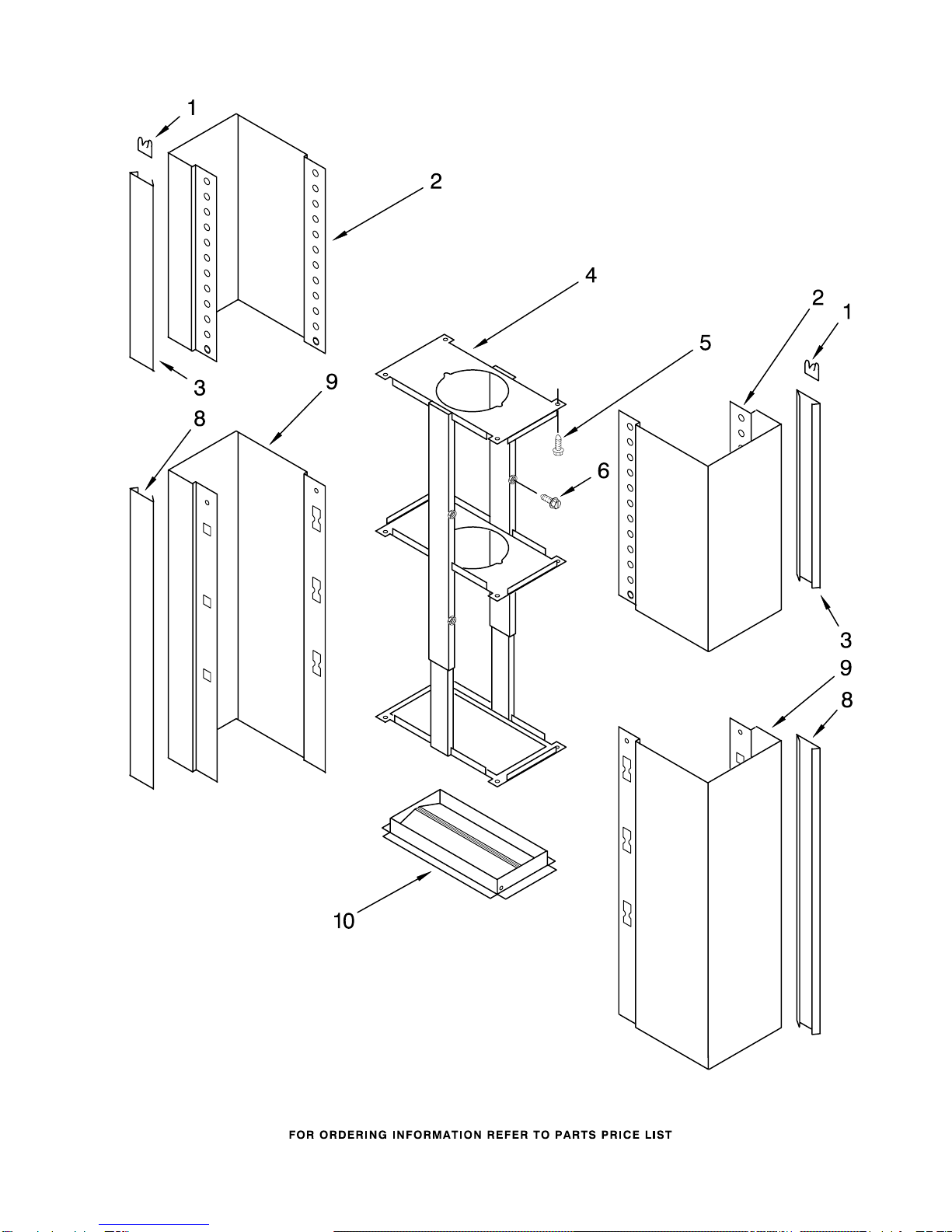

CHIMNEY PARTS

For Model: KICU285HWH0, KICU285HAL0, KICU285HSS0

(White) (Biscuit) (Stainless)

8189813

CHIMNEY PARTS

For Model: KICU285HWH0, KICU285HAL0, KICU285HSS0

(White) (Biscuit) (Stainless)

8189813

Illus. Part

No. No. DESCRIPTION

1 4360272 Spring, Moulding

2 Upper Chimney

4360271 White Model

4360407 Biscuit Model

4360282 Stainless Model

3 Moulding, Upper

4360273 White Model

4360408 Biscuit Model

4360283 Stainless Model

4 4360269 Frame, Telescopic

5 4360268 Screw

6 4360270 Screw

8 Moulding, Lower

4360274 White Model

4360409 Biscuit Model

4360284 Stainless Model

9 Lower Chimney

4360275 White Model

4360410 Biscuit Model

4360285 Stainless Model

10 4360178 Damper

FOLLOWING PARTS

NOT ILLUSTRATED

814380 Kit, Motor Mount
