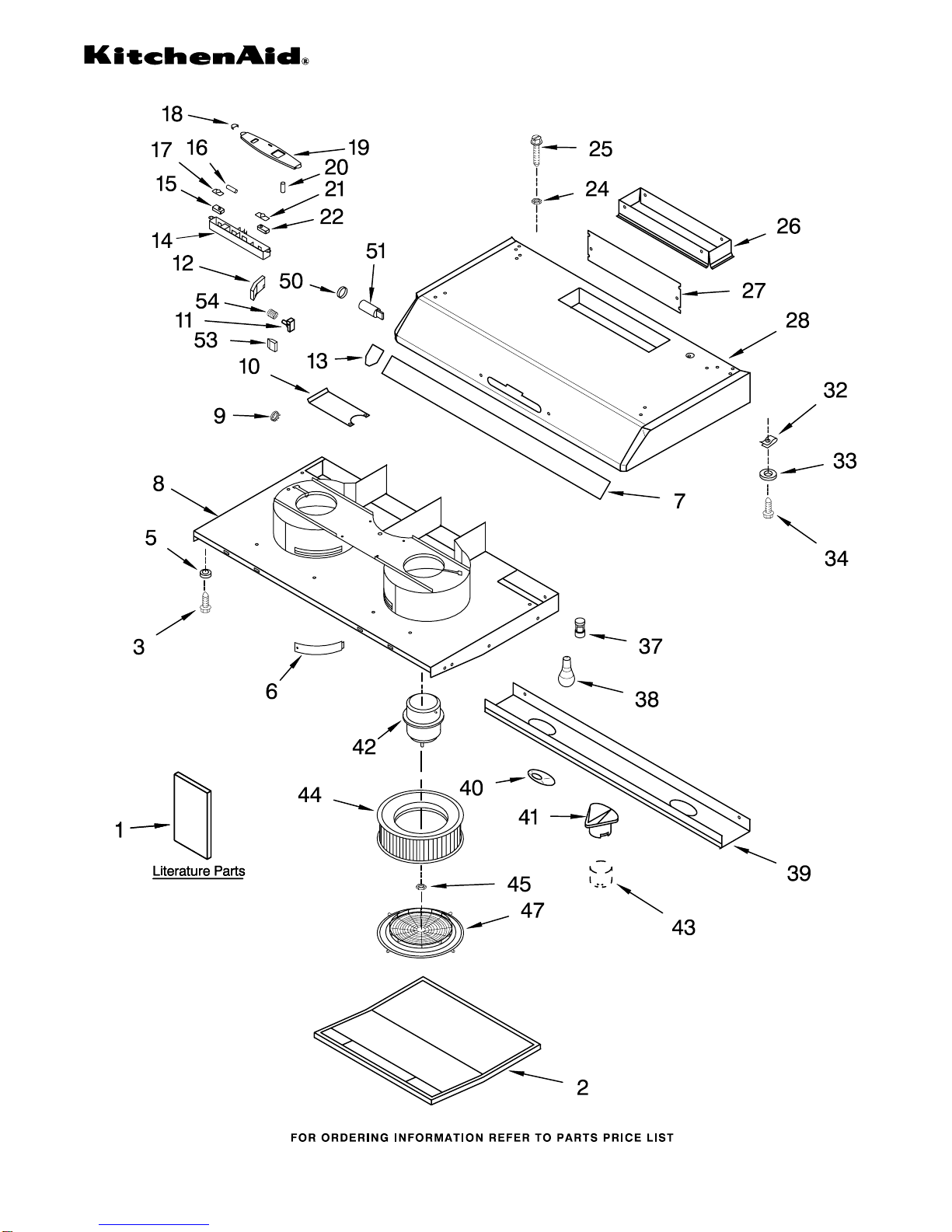

RANGE HOOD PARTS

For Model: KHTU100KWH1, KHTU100KBL1, KHTU100KBT1, KHTU100KSS1

(White) (Black) (Biscuit) (Stainless)

11−05 Litho In U.S.A. (jac) Part No. 8191104

30" RANGE HOOD

TRADITIONAL SERIES

VENTED AND NON−VENTED

RANGE HOOD PARTS

For Model: KHTU100KWH1, KHTU100KBL1, KHTU100KBT1, KHTU100KSS1

(White) (Black) (Biscuit) (Stainless)

8191104

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763392 Instructions,

Installation

8190058 Wiring Diagram

2 8189911 Filter, Metal

3 8189914 Screw

5 8189916 Grommet

6 8189917 Cover / Bracket

7 8189918 Glass, Visor

8 Housing, Fan Motor

8189922 White

8189919 Black

8189920 Biscuit

8189921 Stainless

9 4360094 Grommet

10 Cover, Wire

Left

8189926 White

8189923 Black

8189924 Biscuit

8189925 Stainless

Right

8189968 White

8189965 Black

8189966 Biscuit

8189967 Stainless

11 Pin, Pivot

Left

8189929 White

8189927 Black

8189928 Biscuit

Right

8189984 White

8189982 Black

8189983 Biscuit

12 Support, Visor

Left

8189932 White

8189930 Black

8189931 Biscuit

Right

8189964 White

8189962 Black

8189963 Biscuit

13 Endcap

Left

8189935 White

8189933 Black

8189934 Biscuit

Right

8189954 White

8189952 Black

8189953 Biscuit

14 8189936 Support, Switch

15 8189621 Switch, Slide SCL2

16 8189937 Lens, Light

17 Button, Control

8189942 White

8189940 Black

8189941 Biscuit

18 Cover

8189945 White

8189943 Black

8189944 Biscuit

19 Nameplate

8189948 White

8189946 Black

8189947 Biscuit

20 4360359 Light

21 Button, Control

8189951 White

8189949 Black

8189950 Biscuit

22 8189622 Switch, Slide SCL3

24 4360150 Nut

25 8190044 Screw, Mounting

26 4360001 Damper, Hood

27 4360190 Cover, Exhaust

28 Case (Main Body)

8189959 White

8189956 Black

8189957 Biscuit

8189958 Stainless

32 4360146 Nut, Ground

33 4360005 Washer

34 4360006 Screw

37 8189960 Socket, Lamp

38 8189961 Bulb, Light

39 Support, Light

8189972 White

8189969 Black

8189970 Biscuit

8189971 Stainless

40 8189973 Lens, Light

41 8189974 Channel, Grease

42 Motor, Fan

8189915 Left

8189975 Right

43 8189976 Cup, Grease

44 Wheel, Blower

8189913 Left

8189977 Right

45 8189978 Nut

47 8189979 Cover

50 8189980 Bracket, Capacitor

51 8189981 Capacitor

53 8189985 Pin, Visor Spring

54 8189986 Spring

Following Parts Not Illustrated

4396273 Filter Kit

2 Charcoal Filters

1 Vent Grate
