KitchenAid 5KMT223 Manual de usuario

INSTRUCTIONS / INSTRUCCIONES / INSTRUÇÕES / 说明书

5KMT223, 5KMT423,

KJC02A, KJC04A,

KJC02ASBNA

W10422399F_Final.indd 1 9/1/15 9:40 AM

ENGLISH

Table of Contents

TOASTER SAFETY ................................................................................................................... 2,3

ELECTRICAL REQUIREMENTS ................................................................................................ 4

ELECTRICAL REQUIREMENTS FOR BRAZIL ONLY .............................................................. 5

KITCHENAID TOASTER FEATURES......................................................................................... 6

SPECIAL TOASTING FUNCTIONS........................................................................................... 7

USING THE KITCHENAID TOASTER....................................................................................... 8

USING THE SPECIAL TOASTING FUNCTIONS ..................................................................... 9

TOASTER CARE ....................................................................................................................... 10

TROUBLESHOOTING ............................................................................................................ 11

TOASTER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions

should always be followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock, do not immerse cord,

plugs, or toaster in water or other liquid.

4. Close supervision is necessary when any appliance

is used by or near children.

W10422399F_Final.indd 2 9/1/15 9:40 AM

ENGLISH

5. Unplug Toaster from outlet when not in use and before

cleaning. Allow to cool before putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug

or after the appliance malfunctions or has been damaged

in any manner. Return appliance to the nearest Authorized

Service Facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended

by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter,

or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner,

or in a heated oven.

11. To disconnect, turn any control to “OFF,” then remove

plug from outlet.

12. Do not use appliance for other than intended use.

13. This appliance is not intended for use by persons (including

children) with reduced physical sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

14. Oversize foods, metal foil packages, or utensils must

not be inserted in toaster as they may involve a risk

of fire or electric shock.

15. A fire may occur if Toaster is covered with or touching

flammable material, including curtains, draperies, walls

and the like, when in operation.

16. Do not attempt to dislodge food when toaster

is plugged in.

17. Appliance is not intended to be operated by means

of an external timer or remote-control system.

18. This product is designed for household use only.

SAVE THESE INSTRUCTIONS

W10422399F_Final.indd 3 9/1/15 9:40 AM

ENGLISH

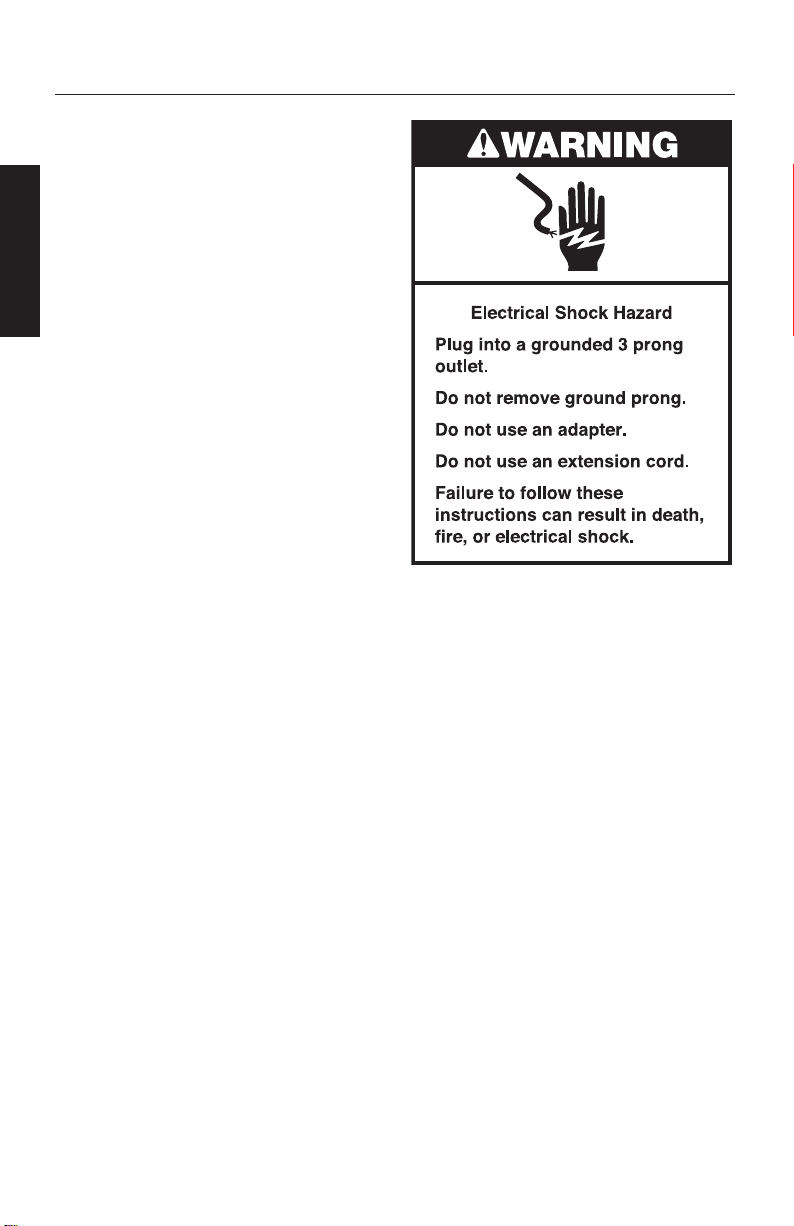

Electrical Requirements

Volts: 220-240 Volts AC only

Hertz: 50 Hz

(Brazil Only: 127 Volts AC / 60 Hz)

NOTE: To reduce the risk of electrical

shock, this plug will fit in an outlet only one

way. If the plug does not fit in the outlet,

contact a qualified electrician. Do not

modify the plug in any way.

Do not use an extension cord. If the power

supply cord is too short, have a qualified

electrician or serviceman install an outlet

near the appliance.

A short power supply cord (or detachable

power supply cord) should be used to reduce

the risk resulting from becoming entangled

in or tripping over a longer cord.

Longer detachable power supply cords

or extension cords are available and may

be used if care is exercised in their use.

If a longer detachable power supply cord

or extension cord is used:

• The marked electrical rating of the

cord set or extension cord should be

at least as great as the electrical rating

of the appliance.

• The cord should be arranged so that

it will not drape over the countertop

or tabletop where it can be pulled

on by children or tripped over

unintentionally.

If the appliance is of the grounded type, the

extension cord should be a grounding-type

3-wire cord.

W10422399F_Final.indd 4 9/1/15 9:40 AM

ENGLISH

Electrical Requirements for Brazil Only

Residence mains:

The mains wires must be of copper

with a minimum cross-section per ABNT

(NBR-5410.)

To protect this appliance and the mains

against over loading, this appliance must

be connected to a circuit that is protected

with a thermo-magnetic circuit breaker.

If the household circuit does not include

a circuit breaker, contact an electrician

to have one installed.

Electric outlet:

For your safety and to avoid damage

to your product, it is very important

that your product is earthed correctly.

Your appliance power cord features a

3-pin-shaped hexagon-shaped plug,

10A, per ABNT (NBR 14136).

Your residence electrical installation

must have a suitable electric outlet

for this type of plug. If not, it is your

responsibility to have one installed

by a qualified electrician.

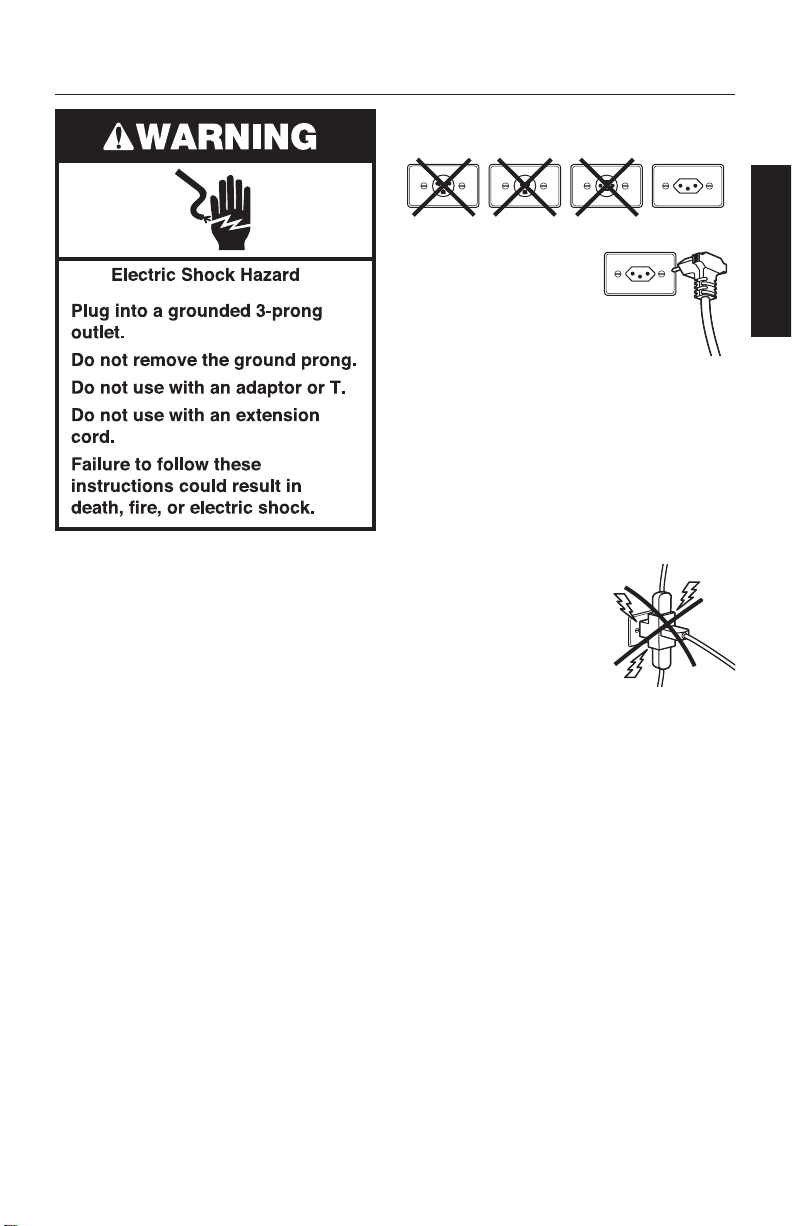

Use appropriate outlet type for your

appliance plug, as shown below:

Before operating

this appliance, make

sure the main voltage

at the installation site

is the same as indicated

on product technical

data label.

This information is also included on the

label attached to your appliance’s cord

near the plug.

IMPORTANT:

• If it is necessary to convert your 127V

appliance to 220V, use a 1.0 KVA stabiliser.

• If it is necessary to convert your 220V

appliance to 127V, use a 1.0 KVA stabiliser.

• Never plug your

appliance into

multi-plug adapters

with another

appliance in the

same socket. Do

not use an extension

cord. This type of connection may cause

electrical overload in the mains, and can

damage the appliance and could cause

a fire. The appliance should be plugged

into its own outlet.

• In case of oscillation in mains voltage,

install an automatic voltage stabiliser with

minimum rating of 2000 Watts between

the appliance and the socket.

• If the cord of this appliance is damaged,

it must be replaced. Contact your nearest

authorized KitchenAid Customer Care

Center.

W10422399F_Final.indd 5 9/1/15 9:40 AM

ENGLISH

KitchenAid Toaster Features

Dual Independent Controls

(4 Slot Model)

Heat System

Heavy gauge heating elements mounted

on extra-thick boards are installed in the

Toaster to ensure even browning.

Extra-Wide Slots

Handles crumpets, English muffins,

and thick breads easily.

Self-Centering Bread Racks

Centers thick or thin breads perfectly

for even toasting.

Removable Crumb Tray(s)

Durable, full-width, steel tray (two side-by-

side trays on 4-slot model) can be washed

in the top rack of a dishwasher.

Under Base Cord Wrap

Keeps extra cord out of sight and out

of the way.

Dial Shade Control

Rotating knobs for precision control. Turn

the knob to the right for darker or to the

left for lighter toasting.

Stylish Exterior

Stainless steel and painted steel surfaces

are constructed for durability and style.

Steel Interior

Durable and deep toasting cavity helps

to ensure even browning.

A. Dial shade control (7 settings)

B. Self-centering racks and steel interior

C. Extra-wide slots (3.8 cm)

D. Digital display

E. Toast/cancel button

F. Under base cord wrap

G. Special toasting functions

Feature not shown: Removable crumb tray

Same great features as 2-slot model

with dual cavities for 2-slice or 4-slice

toasting. One-Touch buttons and dial knobs

for each pair of slots work independently

of each other, allowing toasting of a crumpet

or other item in one pair of slots while

the second pair of slots could keep

a pastry warm.

W10422399F_Final.indd 6 9/1/15 9:40 AM

ENGLISH

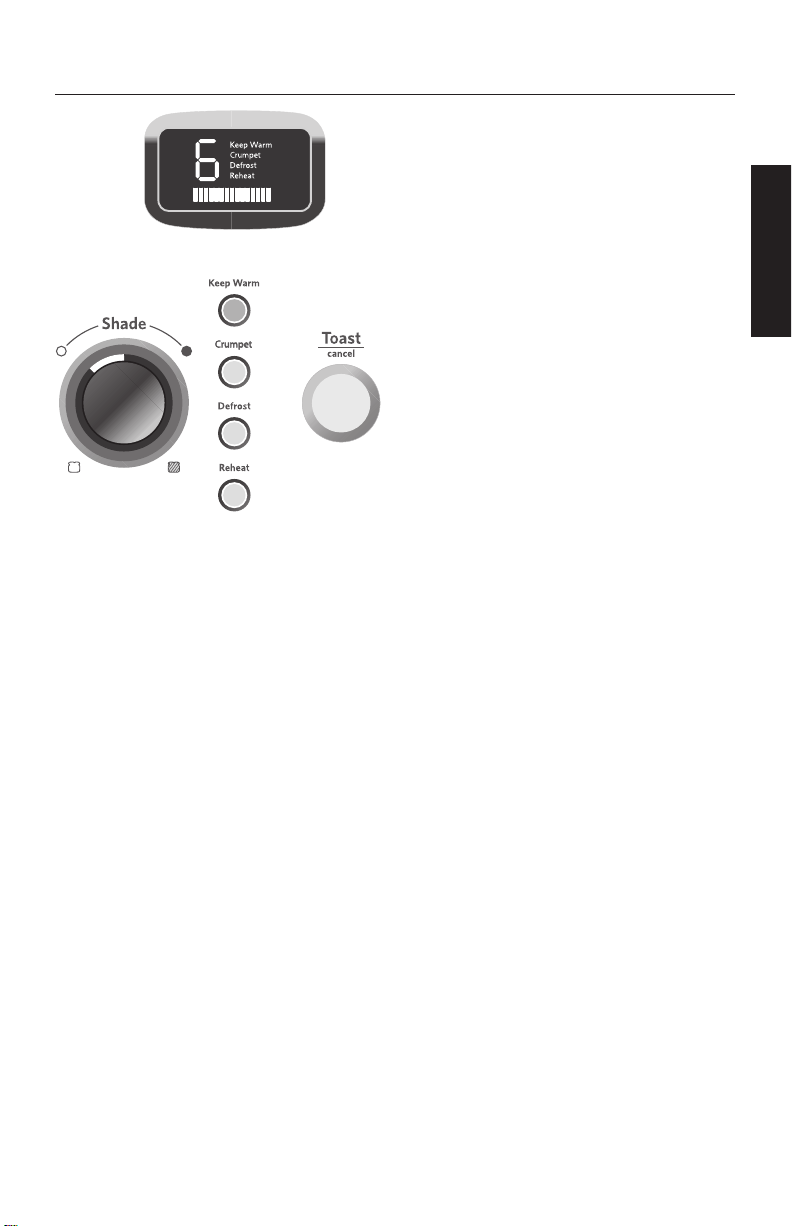

Special Toasting Functions

Digital Display

•Selected toasting shade and function

are displayed.

•A toasting progress bar counts down

the toasting time.

Keep Warm Button

Select to lower toasted foods to keep

warm until you are ready, for up to

a minute. The End-of-Cycle signal will

beep and the Toaster will shut off and

raise the food.

Crumpet Button

Toasts the porous side of a crumpet

or English muffin while gently warming

the outer surfaces.

Defrost Button

Defrosts and toasts frozen food.

Reheat Button

Quickly reheats previously toasted

food in under a minute.

Toast/Cancel Button

Lowers the bread and starts or cancels

the toasting cycle. A ring of light around

the button illuminates when the heaters

are actively toasting.

W10422399F_Final.indd 7 9/1/15 9:40 AM

ENGLISH

Using the KitchenAid Toaster

Before using your Toaster, check the

Extra-wide slots and remove any packing

or printed material that might have fallen

inside during shipping or handling. Do

not probe inside the Toaster with a

metal object.

You may see light smoke the first time you

use the Toaster. This is normal. The smoke

is harmless and will soon disappear.

TO USE:

1. Shorten cord, if necessary, by wrapping

cord under the base. The Toaster’s feet

are tall enough to allow the cord to exit

from under any side of the Toaster.

2. Plug into a grounded outlet.

3. Insert bread or other food to be toasted

in slot.

NOTE: For even toasting on 2-slot models,

toast only one bread type and thickness

at a time. For 4-slot models with Dual

Independent Controls, if toasting two

different breads is desired, be sure to toast

only one bread type in each pair of slots.

4. Press the TOAST/CANCEL button.

The centering racks will adjust slot width

automatically to hold food upright for even

toasting. When toasting is completed, and

End-of-Cycle signal will beep and the Toaster

will shut off and raise the toast.

5. Turn the Shade Control to select

the degree of darkness you want. Turn to

the right for darker toasting or to the left for

lighter. The LCD will display the shade level,

from 1 (light) to 7 (dark).

NOTE: Different types of bread and their

moisture levels may require different shade

settings. For example, dry bread will brown

more rapidly than moist bread and will

require a lighter setting.

6. (Optional) Press desired special toasting

function button. See “Using the Special

Toasting Functions” section for more

information.

7. To cancel toasting anytime, press TOAST/

CANCEL. The Toaster will shut off and raise

the toast.

W10422399F_Final.indd 8 9/1/15 9:40 AM

ENGLISH

Using the Special Toasting Functions

After you press TOAST/ CANCEL to

begin toasting, you can select the special

toasting functions by pressing the appropriate

button. After a toasting cycle is complete,

all functions will be cleared.

Crumpet Toasting

Selecting the Crumpet function will toast the

thickest crumpets and English muffins evenly,

gently warming the bottoms while toasting

the porous sides.

1. Insert the crumpet so that the flat side of

the crumpet faces outward and the porous

side faces the center of the Toaster. (See

illustration.)

2. Press the TOAST/CANCEL button.

3. Set the Shade Control to the desired level.

4. Press CRUMPET.

To cancel, press TOAST/CANCEL. The

Toaster will shut off and raise the crumpet.

To Defrost Frozen Items

The Defrost function will defrost and toast

frozen items quickly.

1. Insert the frozen item into bread slot. Use

Defrost for frozen foods only.

2. Press the TOAST/CANCEL button.

3. Set the Shade Control to the desired level.

4. Press DEFROST.

To cancel, press TOAST/CANCEL. The

Toaster will shut off and raise the food.

To Reheat Toasted Items

The Reheat function will reheat toast

and other items quickly.

1. Insert the previously toasted food into

bread slot. Do not place food with butter

or any other topping in the Toaster. Use

Reheat for dry foods only.

2. Press the TOAST/CANCEL button.

3. No Shade adjustment is necessary – the

Reheat function overrides whatever Shade

level you have set.

4. Press REHEAT.

To cancel, press TOAST/CANCEL. The

Toaster will shut off and raise the food.

To Keep Toasted Items Warm

The Keep Warm function will keep toasted

bread warm after toasting.

1. Insert the previously toasted food into

bread slot. Do not place food with butter

or any other topping in the Toaster. Use

Keep Warm for dry foods only.

2. Press the TOAST/CANCEL button.

3. No Shade adjustment is necessary – the

Keep Warm function overrides whatever

Shade level you have set.

4. Press KEEP WARM.

To cancel, press TOAST/CANCEL. The

Toaster will shut off and raise the food.

W10422399F_Final.indd 9 9/1/15 9:40 AM

ENGLISH

Toaster Care

1. Unplug the Toaster and let it cool before

cleaning.

2. Press and release the center of the crumb

tray then slide it out. Shake the crumbs

into a waste container. It is recommended

that the crumb tray be emptied after each

use. The crumb tray can be washed in the

top rack of a dishwasher.

IMPORTANT: The tray will be hot

immediately following a toasting cycle.

3. Wipe Toaster with a soft, damp cotton

cloth. Do not use paper towels, abrasive

cleansers or liquid cleaning products. Do

not immerse Toaster in water.

NOTE: If grease or oil splatters on the

Toaster, wipe splatters away immediately

using a clean, damp cotton cloth.

4. Return crumb tray to Toaster. Press it in

firmly until it clicks into position. Do not

use the Toaster without the crumb tray

in proper position.

NOTE: KitchenAid does not recommend

the use of a toaster cover.

W10422399F_Final.indd 10 9/1/15 9:40 AM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Tostadora de KitchenAid

KitchenAid

KitchenAid KPTT890OB - Pro Line Toaster Guía rápida

KitchenAid

KitchenAid 5KMT2204 Manual de usuario

KitchenAid

KitchenAid KMT3115 Manual de usuario

KitchenAid

KitchenAid 5KMT2115 Manual de usuario

KitchenAid

KitchenAid 5KMT2115BOB Manual de usuario

KitchenAid

KitchenAid KMT4116 Manual de usuario

KitchenAid

KitchenAid Pro Line KPTT890 Manual de usuario

KitchenAid

KitchenAid KMT4115CSS Manual de usuario

KitchenAid

KitchenAid 4KPTT780 Manual de usuario

KitchenAid

KitchenAid KMT222 Manual de usuario

KitchenAid

KitchenAid KMT2203 Manual de usuario

KitchenAid

KitchenAid 5KMT2204 Manual de usuario

KitchenAid

KitchenAid KMT2203 Manual de usuario

KitchenAid

KitchenAid 5KMT3115 Manual de usuario

KitchenAid

KitchenAid KTT570 Manual de usuario

KitchenAid

KitchenAid 5KMT3115 Manual de usuario

KitchenAid

KitchenAid KMT4115ER Manual de usuario

KitchenAid

KitchenAid KTT221 Manual de usuario

KitchenAid

KitchenAid KPTT890PM1 Manual de usuario

KitchenAid

KitchenAid 5KMT221 Manual de usuario

KitchenAid

KitchenAid KMT3115 Manual de usuario

KitchenAid

KitchenAid KMT2115 Manual de usuario

KitchenAid

KitchenAid KMT422 Guía

KitchenAid

KitchenAid 5KMT221EAC Manual de usuario

Manuales populares de Tostadora de otras marcas

Taurus

Taurus ARCTIC 960648 Manual de usuario

Redfox

Redfox TO 920 G Manual de usuario

Moulinex

Moulinex LS340D11 Manual de usuario

Amica

Amica TD 3021 Manual de usuario

Electrolux

Electrolux EAT978 Manual de usuario

SEVERIN

SEVERIN SA 9275 Manual de usuario

Breville

Breville the Big One BTS100 Manual de usuario

Sunbeam

Sunbeam TA2540 Manual de usuario

ARENDO

ARENDO 305716 Manual de usuario

Life

Life Crispy AT-001 Manual de usuario

Beko

Beko TAM 6201 I Manual de usuario

Zephir

Zephir ZHC485 Manual de usuario

H.Koenig

H.Koenig TOS9 Manual de usuario

ZIEGELMULLER

ZIEGELMULLER Ritter ET 10 Guía del producto

HURAKAN

HURAKAN HKN-TOP3 Manual de usuario

Philips

Philips HD2565 Manual de usuario

Bosch

Bosch DesignLine Plus TAT4P44 GB Series Manual de usuario

Panasonic

Panasonic NT-ZP1-V Manual de usuario
