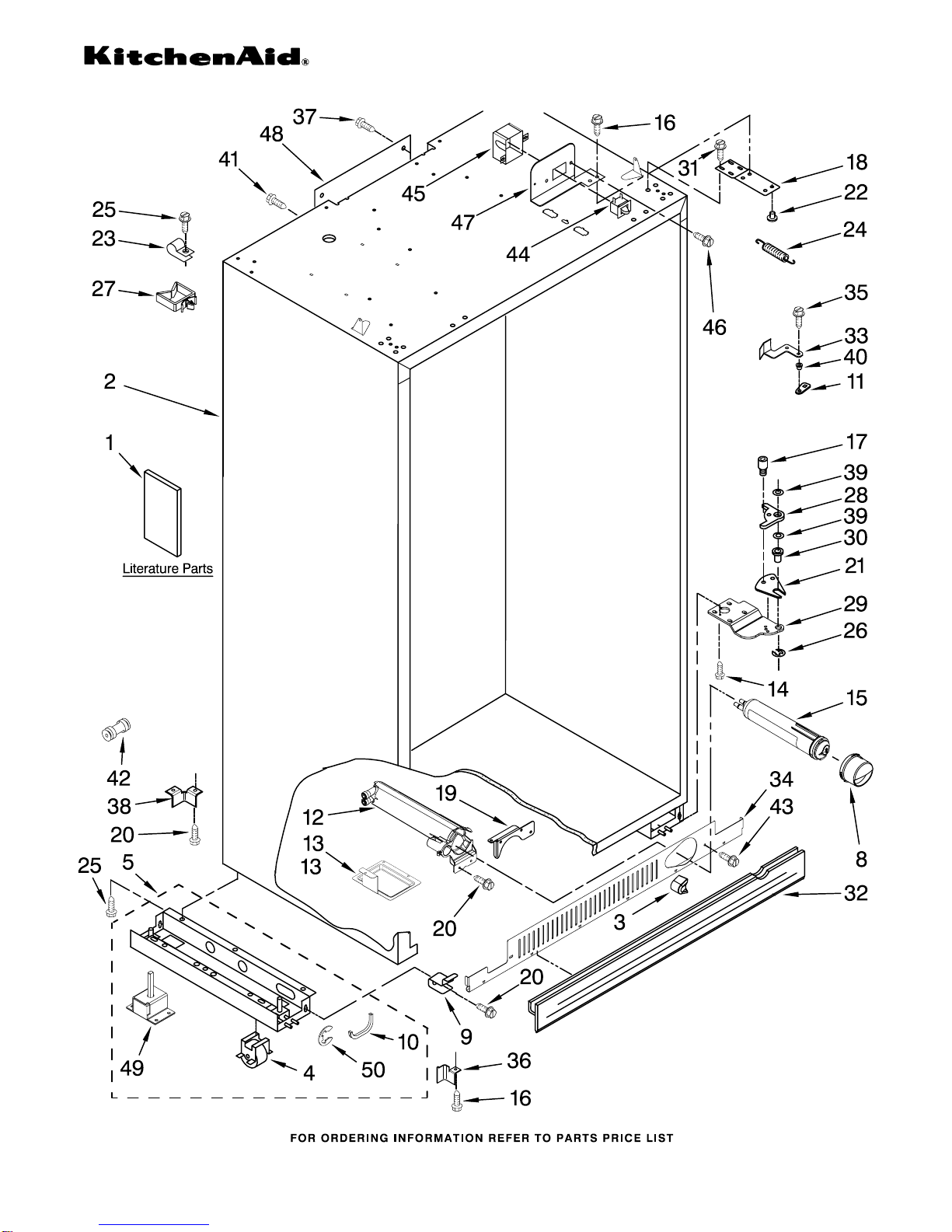

CABINET PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

02−10 Litho In U.S.A. (mjb)(bay) Part No. W10316710 Rev. A

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161714

Use & Care Guide

W10205634

Energy Guide

W10159832

Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

Sheet

2318069 Main Control

Service Sheet

W10291426

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2260503B Button, Filter

4 836054 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

W10138423

Right Side

W10279275

Left Side

8 Cap, Water Filter

2260518B Black

9 2307640 Mounting Stud,

Grille

10 2307584 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

W10121140

Housing, Water

Filter

13 2318189 Tray, Drip Filter

14 3400525 Screw

15 4396841 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 Hinge (Top)

2252292B RC, Black

2252292 RC, Chrome

2252291B FC, Black

2252291 FC, Chrome

W10223655

Bracket, Mtg

(Water Filter)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

23 2221070 Clamp, Tube

24 2221242 Spring, Door

Closure (2)

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2309472 Freezer Side

2309471 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209025B Black

33 Extension Arm,

Door Closer

2267192B Right, Black

2267192 Right, Chrome

2267193B Left, Black

2267193 Left, Chrome

34 Grille Bottom,

Front

2325185B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2316859 Bushing,

Extension Arm

41 1163283 Screw

42 Connector, Water

Tube

2209709 5/16−1/4"

2300868 1/4"

43 8281163 Screw

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

49 2005032 Leveler

50 2006841 Ring

CABINET TRIM PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132410

Black

W10132411

Stainless Steel

3 1163283 Screw

4 2316687 Cabinet, Trim

(Bottom)

5 486194 Screw

6 Cabinet, Trim Top

2313961B Black

2313961S Stainless Steel

7 Cabinet Trim

(Left Side)

W10132415

Black

W10132416

Stainless Steel

W10121451

Nutsert (4)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

Illus. Part

No. No. DESCRIPTION

W10175905

Wire, Shelf

3 2302883 Shelf, Fixed (2)

4 2259082 Basket

5 2256270 Front, Basket

6 Slide, Basket

W10267101

Right Side

W10267099

Left Side

7 8533928 Screw

REFRIGERATOR LINER PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

REFRIGERATOR LINER PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2003577 Guard, Air Return

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

W10169528

Baffle Control

Assembly

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

W10159487

Diverter, Crisper

17 2221296 Air Baffle

Assembly

18 2327509 Reservoir

19 488280 Screw

21 2309222 Diffuser Assembly

22 2317844 Thermistor Assy

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

Illus. Part

No. No. DESCRIPTION

1 2316545 Control Box Assy

2 2317000 Clip, Box

4 2310390 Wire, Jumper

5 2307592 Bracket,

Control Box

6 2307595 Shield,

Control Box

7 487539 Screw (2)

8 2306086 Display,

Ingredient Care

Center

9 2223857 Socket, Light

10 2326255 Light Bulb (2)

11 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

Illus. Part

No. No. DESCRIPTION

1 Panel, Decorative

Assembly

2313978B Black

2313978S Stainless Steel

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10185625

Cover, Unit Front

6 487415 Screw

W10167456

Wire Assembly

RC/FC Light Switch

8 2215910 Grommet

9 489348 Clamp

10 2003347 Tee Bolt (4)

11 1161548 Nut (4)

REFRIGERATOR SHELF PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

REFRIGERATOR SHELF PARTS

For Models: KSSO42QTB04, KSSO42QTX04

(Black) (Etched Aluminum)

W10316710

Illus. Part

No. No. DESCRIPTION

1 2222592 Shelf Assembly

2 2179375 Rack, Wine

3 2256277 Assembly, Meat Pan

Cover

4 2256427 Assembly, Crisper

Cover

5 2257582 Trim, Glass Rear

6 2252412 Crisper Pan (2)

7 Slide, Meat Pan

W10267073

Left Side

W10267075

Right Side

8 2302831 Trim, Glass Front

9 2256254 Trim, Glass Rear

10 2256248 Front, Crisper

Pan

11 2252255 Trim, Glass Side

Crisper Pan

12 2256250 Trim, Glass Side

Meat Pan

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

W10266850

Right Side

W10266848

Left Side

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

17 2256369 Pan Assembly

Meat

18 2256366 Front, Meat Pan

19 2257611 Trim, Glass
