KitchenAid KSSS36MAX05 Manual de usuario
1
REFRIGERATOR
CABINET PARTS
For Models: KSSS36MAX05
10−93 Litho In U.S.A. Part No. 4379175 Rev. A
2
CABINET PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
4379175
For Models: KSSS36MAX05
1 Cabinet (Not A
Serviceable Part)
2 1112019 Leveler, Front (2)
3 1113249 Retainer (2)
4 1112023 Roller, Front &
Rear (4)
5 1112695 Leveler,
Adjustable (2)
6 2000670 Adjusting Rod (2)
7 1113250 Sleeve,
Retainer (2)
8 1112937 Bushing, Rod (2)
9 489359 Screw
10 1112939 Hole Plug, Leveler
11 1112849 Cap, Grommet
13 1113122 Grommet, Wiring
14 2000833 Wiring Harness,
Cabinet
15 1112848 Drain Fitting
16 Gap, Cover
Assembly (Top)
2000305 Left Side
2000304 Right Side
17 2001295 Shoulder Screw
18 Hinge (Top)
2000306 Left Side
2000307 Right Side
19 2000770 Shim, Hinge
Top
20 1112805 Guard, Wiring
21 487534 Screw (2)
23 1112992 Door Closer
Assembly (2)
24 2000333 Bracket, Door
Closer
25 486194 Screw, 8 x 1/2
26 1112973 Tap Plate,
Hinge Butt (2)
27 1113227 Fastener (3)
28 Gap, Cover
Assembly (Bottom)
2001200 Left Side
2001199 Right Side
29 Hinge (Bottom)
2001733 Left Side
2001732 Right Side
30 1112942 Shim, Hinge (1)
1112943 Shim, Hinge (2)
Bottom (4)
31 2000490 Screw,
1/4−28 x 3/4
33 2001266 Tube clamp
34 2001962 Grille Base,
Front
35 489238 Screw (6)
36 2000727 Cover, Rear
37 1113123 Grommet, Wiring
38 1113079 Grommet, Flexible
41 2001377 Screw
42 2000530 Grommet
43 2001415 Screw (4)
44 489359 Screw
3
CABINET TRIMS AND BREAKER TRIM PARTS
For Models: KSSS36MAX05
4379175
4
CABINET TRIMS AND BREAKER TRIM PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
TOP GRILLE AND UNIT COVER PARTS
4379175
1 2001762 Breaker Trim &
Retainer Assembly
5 1112682 Magnet, Side (4)
6 1112683 Magnet,
Freezer (2)
7 1112679 Magnet,
Refrigerator (2)
9 2000321 Cabinet, Trim R.S
10 2000322 Cabinet, Trim L.S
11 2001297 Screw
12 1112800 Cabinet, Trim
(Bottom)
13 488649 Screw,
8−32 x 1/2 (8)
14 2001309 Cabinet, Trim Top
15 2000007 Retainer, Unit
Base (2)
16 487944 Washer (2)
1 2001315 Decorative
Panel Assembly
2 1113313 Back Up Panel
3 2001577 Top Grille
Assembly
4 2001088 Cover, Unit
5 486194 Screw, 8 x 1/2
6 1113300 Cover, Component
Assembly
7 1113317 Brace
For Models: KSSS36MAX05
5

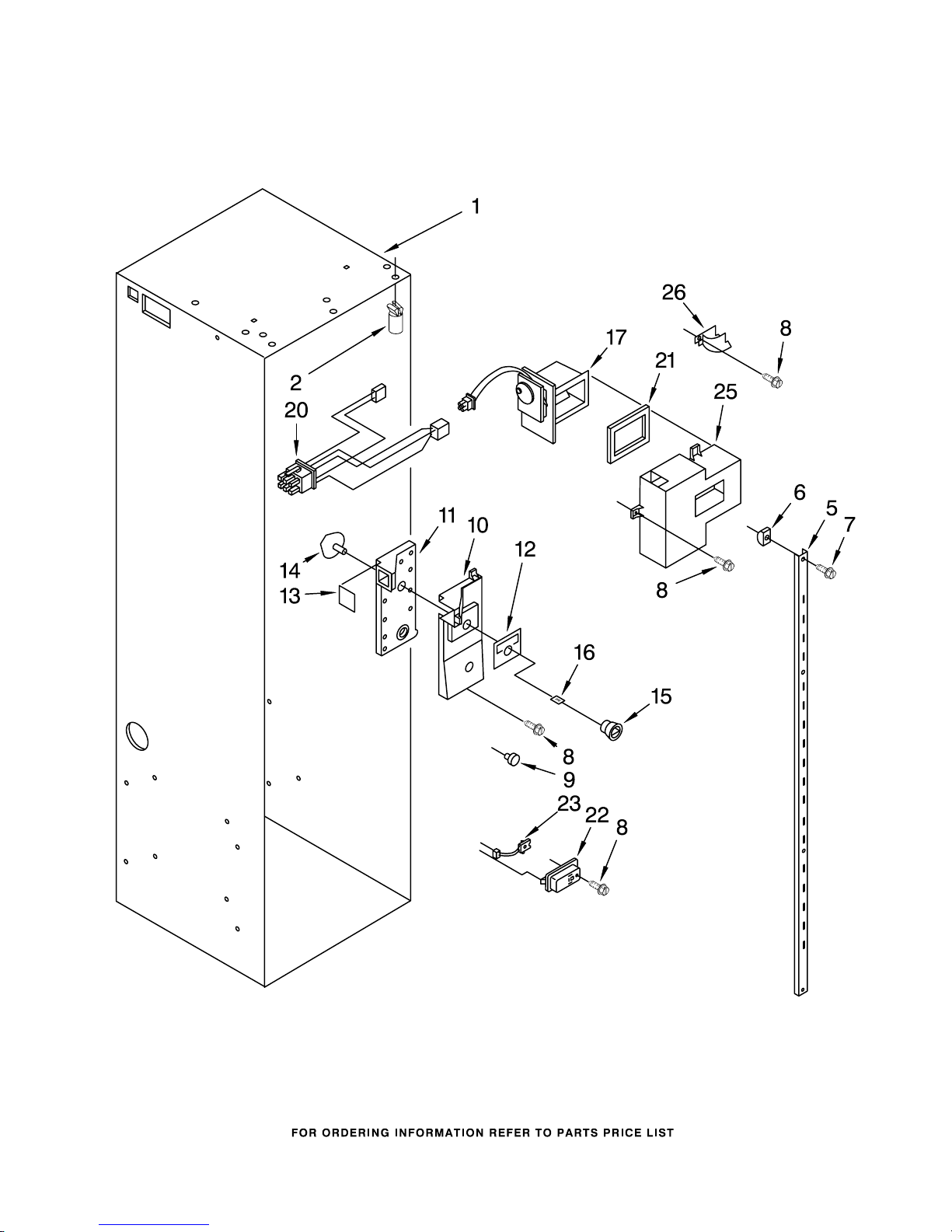

REFRIGERATOR LINER PARTS
4379175
For Models: KSSS36MAX05
6
REFRIGERATOR LINER PARTS
Illus. Part
No. No. DESCRIPTION
4379175
For Models: KSSS36MAX05
1 LINER (Not A
Serviceable Part)
2 1112591 Spacer, Control
Panel (3)
5 2001117 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 488357 Screw,
8 x 1−1/4 (8)
8 486194 Screw, 8 x 1/2
9 1112257 Hole Plug
10 2000740 Meat Pan, Air
Duct Cover
(Also Order 12)
11 2000337 Meat Pan, Air Duct
12 2001302 Inlay, Control
Meat Pan
13 2001326 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2001735 Control Knob,
Meat Pan
16 837444 Retainer, Knob
17 2000343 Air Baffle
Assembly
20 2001073 Wiring Harness,
Air Baffle
21 2001146 Seal
22 1116793 Cover, Thermistor
23 1116959 Thermistor
25 2000736 Air Baffle Cover
26 2000527 Guard, Air Return
FREEZER LINER PARTS
Illus. Part
No. No. DESCRIPTION
7
For Models: KSSS36MAX05
4379175
1 Liner (Not A
Serviceable Part)
2 1113649 Bracket, Light
3 1113650 Lens
4 1112613 Light, Socket
5 547225 Light, Bulb
6 538533 Support Clip,
Icemaker (2)
7 2000193 Grommet, Screw (2)
8 488552 Screw,
10−12 x 3/8 (2)
12 486194 Screw, 8 x 1/2
13 1112591 Spacer, Control
Panel (3)
14 842534 Clip, Air Duct (4)
16 1112260 Support,
Evaporator
17 658944 Stud, Shelf (8)
18 487559 Screw,
8−15 x 1−1/4 (8)
Illus. Part
No. No. DESCRIPTION
8
FREEZER CONTROL PANEL PARTS
4379175
For Models: KSSS36MAX05
1 1112595 Control Panel
2 1113963 Inlay, Control
Panel
3 1113466 Thermostat &
Barrier Assembly
4 488974 Screw (2)
5 1108112 Switch, Rocker Arm
6 1113132 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 1113767 Shield, Control
Panel
11 1112613 Socket, Light
12 486194 Screw, 8 x 1/2
13 547225 Light Bulb
14 1112707 Channel, Wiring
16 2001737 Knob, Thermostat
17 1115375 Clip, Wiring
REFRIGERATOR SHELF PARTS
9
For Models: KSSS36MAX05
4379175
REFRIGERATOR SHELF PARTS
10
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
FREEZER SHELF PARTS
4379175
For Models: KSSS36MAX05
1 1113542 Frame, Shelf
2 1112297 Glass, Shelf
3 1113546 Reflector, Shelf
4 1113790 Gasket, Glass (2)
5 1125913 Rack, Wine
7 1113550 Frame, Assembly
Meat Pan
9 1113893 Cover, Crisper
10 2000154 Glass, Crisper
11 2000742 Meat Pan,
Connector
14 2000887 Crisper Pan
15 1113870 Roller
(Includes Relay)
16 1113871 Eyelet, Roller
17 489211 Screw, 10−16 x 3/4
18 488307 Washer
19 2000891 Utility Pan
20 2000815 Meat Pan
23 1112324 Retainer, Glass
25 1112165 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 1113890 Crisper Spacer,
Left Side (2)
29 486194 Screw, 8 x 1/2
1 1113628 Solid Shelf
3 1113564 Shelf, Fixed (2)
1113636 Shelf, Fixed−Deep
4 2001551 Basket
5 1122529 Pan, Ice Cube
6 1122530 Trim, Ice Pan
7 1113633 Shelf, Fixed
Ice Pan
13 1113642 Trim, Basket
15 1113870 Roller
16 1113871 Eyelet, Roller
17 489211 Screw, 10−16 x 3/4
18 488307 Washer
22 Basket Slide
2000061 Right Side
2000062 Left Side
Right Side (2)
24 1113169 Stop, Roller
25 486194 Screw, 8 x 1/2
