KitchenAid KSSO36QTB02 Manual de usuario

CABINET PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

11−07 Litho In U.S.A. (mat) Part No. W10177763 Rev. A

36" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161714

Use & Care Guide

W10164071

Energy Guide

W10159832

Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

Sheet

2318069 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2260503B Button, Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

6 Cap, Water Filter

2260518B Black

7 2307640 Mounting Stud,

Grille

8 2307584 Grommet, Crossover

Tube

9 2005783 Cam, Door Closer

10 2260526 Housing, Water

Filter

11 2318189 Tray, Drip Filter

12 3400525 Screw

13 4396841 Filter, Water

14 489399 Screw

15 3400230 Screw, Door Stop

16 Hinge (Top)

2252292B RC, Black

2252292 RC, Chrome

2252291B FC, Black

2252291 FC, Chrome

17 2318190 Bracket, Mtg

(Water Filter)

18 489464 Screw

19 2004994 Lock, Adjustable

Bushing

20 2300082 Bushing

21 488649 Screw

22 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

23 486194 Screw

24 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

26 2006342 Gap, Cover

Assembly (Bottom)

27 Hinge (Bottom)

2309472 Freezer Side

2309471 Refrigerator Side

28 2302876 Bushing,

Adjustable

29 8533913 Screw 1/4−20 x 5/8

30 Skirt−Grille,

Bottom

2209024B Black

31 Extension Arm,

Door Closer

2267192B Right, Black

2267192 Right, Chrome

2267193B Left, Black

2267193 Left, Chrome

32 Grille Bottom,

Front

2325184B Black

33 2005921 Screw

34 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

35 1157158 Screw

36 2006617 Bracket, Support

Base (Rear) (2)

37 2006346 Washer

38 2266880 Bushing,

Extension Arm

39 1163283 Screw

40 Connector, Water

Tube

2209709 5/16−1/4"

2300868 1/4"

41 8281163 Screw

42 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

43 2215938 Cover, Switch (2)

44 487415 Screw (2)

45 Bracket, Switch

2221097 Right

2221096 Left

46 2215612 Cover, Rear

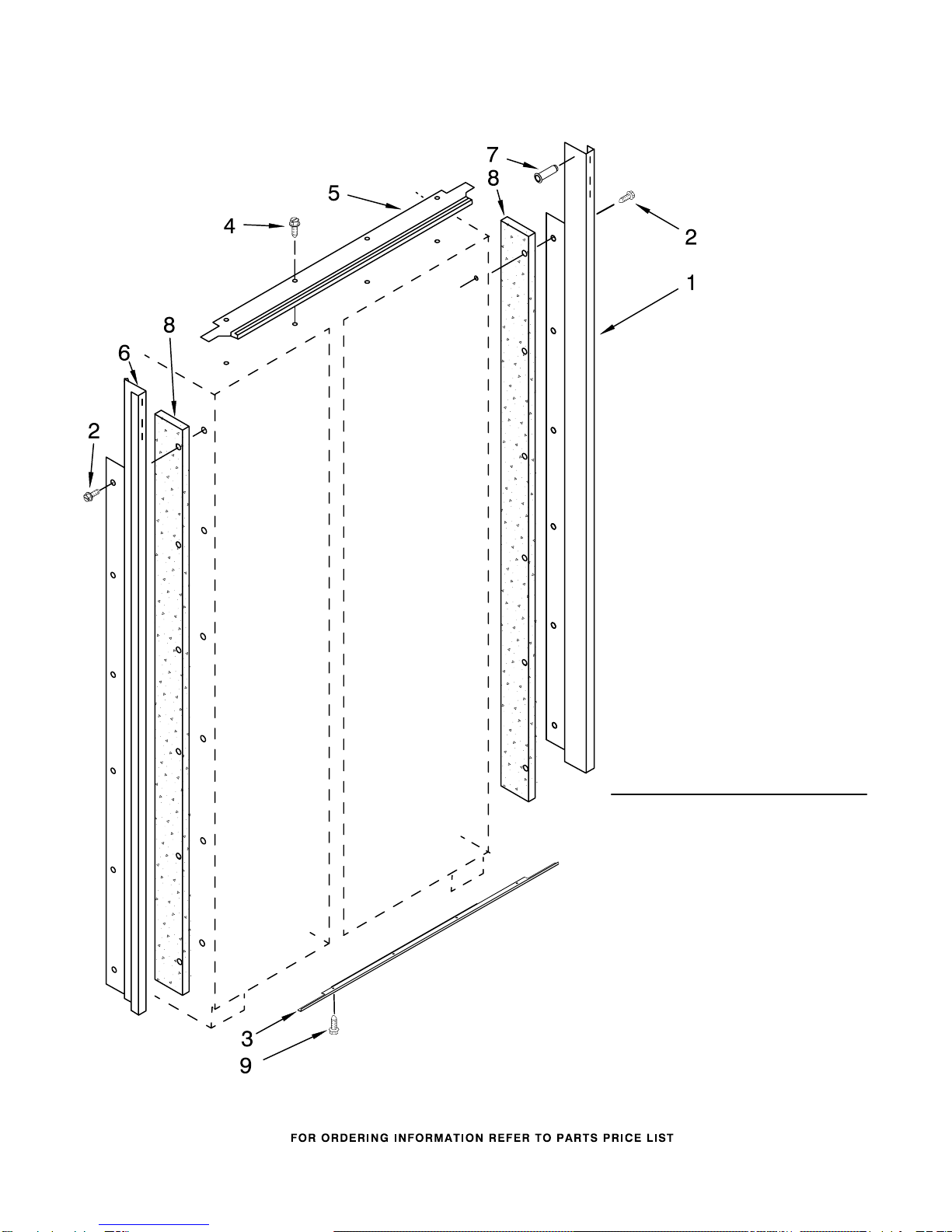

CABINET TRIM PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132410

Black

W10132411

Stainless Steel

2 1163283 Screw

3 2316686 Cabinet, Trim

(Bottom)

4 486194 Screw

5 Cabinet, Trim Top

2313960B Black

2313960S Stainless Steel

6 Cabinet Trim

(Left Side)

W10132415

Black

W10132416

Stainless Steel

W10121451

Nutsert (4)

8 2005925 Seal−Trim, Side

9 489464 Screw

FREEZER SHELF PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

Illus. Part

No. No. DESCRIPTION

1 2302867 Wire, Shelf (4)

3 2302882 Shelf, Fixed (2)

4 2259081 Basket

5 2256269 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

REFRIGERATOR LINER PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

REFRIGERATOR LINER PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2259077 Ladder, Shelf (2)

5 520965 Screw Support,

Ladder (8)

6 2006475 Screw

7 487539 Screw

8 2302937 Thermistor

9 2302986 Lid, Meat Pan

Baffle

W10169528

Baffle Control

Assembly

11 2171846 Release Valve

12 2310205 Jumper, Air Baffle

13 488357 Screw

14 486194 Screw

15 2003577 Guard, Air Return

16 2221296 Air Baffle

Assembly

17 2327509 Reservoir

18 488280 Screw

19 2309222 Diffuser Assembly

20 2317105 Cover, Thermistor

21 2188820 Thermistor

22 2302992 Spacer, Air−

Baffle

23 2309087 Cover, Diffuser

24 2259412 Seal, Air Duct

(Round Hole)

25 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

Illus. Part

No. No. DESCRIPTION

1 2316544 Control Box Assy

2 2317000 Clip, Box

3 2310390 Wire, Jumper

4 2324971 Bracket,

Control Box

5 2307594 Shield,

Control Box

6 487539 Screw (2)

7 2306086 Display,

Ingredient Care

Center

8 2223857 Socket, Light

9 2326255 Light Bulb (2)

10 8281185 Screw

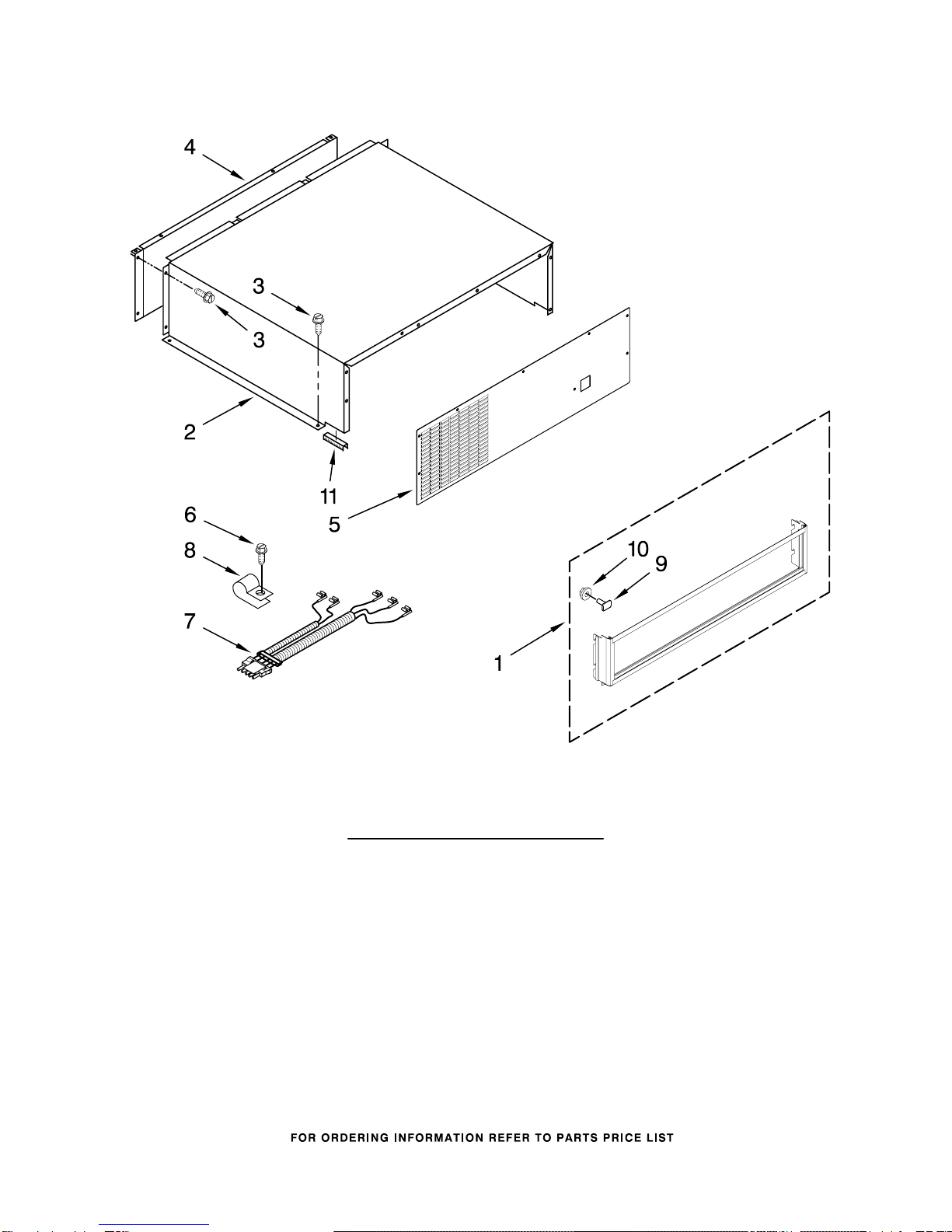

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

Illus. Part

No. No. DESCRIPTION

1 Top Grille Assy

2313977B Black

2313977S Stainless Steel

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10121229

Cover, Unit Front

6 487415 Screw

7 2310194 Wire Assembly

RC/FC Light Switch

8 489348 Clamp

9 2003347 Tee Bolt (4)

10 1161548 Nut (4)

11 2215910 Grommet, Flexible

REFRIGERATOR SHELF PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

REFRIGERATOR SHELF PARTS

For Models: KSSO36QTB02, KSSO36QTX02

(Black) (Etched Aluminum)

W10177763

Illus. Part

No. No. DESCRIPTION

1 2222591 Shelf Assy (4)

2 2179404 Rack, Wine

3 2302841 Assembly, Meat Pan

Cover

4 2302834 Assembly, Crisper

Cover

5 2257581 Trim, Glass Rear

6 2252411 Crisper Pan (2)

7 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

9 2256253 Trim, Glass Rear

10 2256247 Front, Crisper

Pan

11 2252255 Trim, Glass Side

Crisper Pan

12 2256250 Trim, Glass Side

Meat Pan

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302956 Right Side

2302957 Left Side

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

17 2256368 Pan Assembly

Meat

18 2256365 Front, Meat Pan
