KitchenAid KSSC36FMS03 Manual de usuario
1
CABINET PARTS
For Model: KSSC36FMS03
(Stainless Steel)
09−06 Litho In U.S.A. (dmm) Part No. W10115022
36" BUILT IN
REFRIGERATOR
2

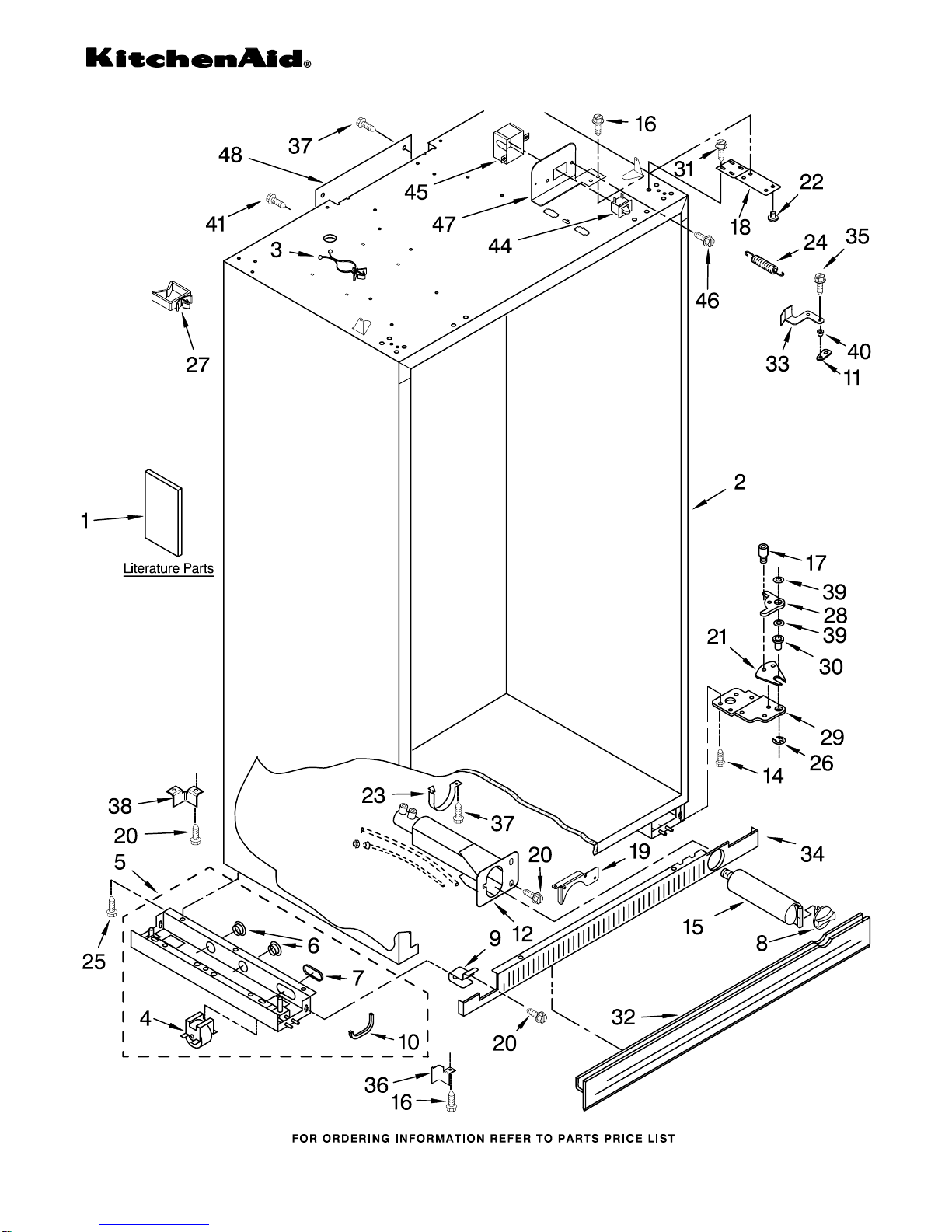

CABINET PARTS
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2320531 Use & Care Guide
2307362 Energy Label
2320619 Service & Wiring
Sheet
2306337 Icemaker and
Ingredient Care
Center
Service Sheet
2302865 Main Control
Service Sheet
2309069 Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2320650 Clamp, Tube
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
8 Cap, Water Filter
2186494B Black
9 2006442 Mounting Stud,
Grill
10 2005004 Grommet, Crossover
Tube
11 2005783 Cam, Door Closer
12 2209022 Housing, Water
Filter
14 3400525 Screw
15 2255709 Filter, Water
16 489399 Screw
17 3400230 Screw, Door Stop
18 2257644 Hinge (Top)
19 2307582 Bracket, Mount
(Water Filter)
20 489464 Screw
21 2004994 Lock, Adjustable
Bushing
22 2300082 Bushing
23 2209090 Clamp, Filter
Housing
24 Spring, Door
Closure
2221242 Right Side
2004517 Left Side
25 486194 Screw
26 2005008 Retaining Ring,
Adjustable Bushing
27 2320677 Wire Clip (5)
28 2006342 Gap, Cover
Assembly (Bottom)
29 Hinge (Bottom)
2006780 Freezer Side
2006779 Refrigerator Side
30 2302876 Bushing,
Adjustable
31 8533913 Screw 1/4−20 x 5/8
32 Skirt−Grille,
Bottom
2209024B Black
33 Extension Arm,
Door Closer
2266882 Right
2266881 Left
34 Grille Bottom,
Front
2209425B Black
35 2005921 Screw
36 Bracket, Support
Base (Front)
2006616 Left
2006556 Right
37 1157158 Screw
38 2006617 Bracket, Support
Base (Rear) (2)
39 2006346 Washer
40 2266880 Bushing,
Extension Arm
41 1163283 Screw
44 Switch, Rocker Arm
1118894 Refrigerator Door
Side
1115373 Freezer Door Side
45 2215938 Cover, Switch (2)
46 487415 Screw (2)
47 Bracket, Switch
2221097 Right
2221096 Left
48 2215612 Cover, Rear
3
CABINET TRIM PARTS
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
Illus. Part
No. No. DESCRIPTION
1 2222552S Cabinet, Trim
(Right Side)
3 1163283 Screw
4 2316686 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2313991 Cabinet, Trim Top
7 2222553S Cabinet Trim
(Left Side)
9 2005925 Seal−Trim, Side
10 489464 Screw
4
FREEZER SHELF PARTS
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
Illus. Part
No. No. DESCRIPTION
1 2302867 Wire, Shelf
2 2302870 Cover, Shelf
3 2302882 Shelf, Fixed (2)
4 2259081 Basket
5 2256269 Front, Basket
6 Slide, Basket
2259317 Right Side
2259318 Left Side
7 8533928 Screw
8 2266933 Door, Ice
9 2266930 Bucket, Ice
10 2266955 Spacer
5
REFRIGERATOR LINER PARTS
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
6
REFRIGERATOR LINER PARTS
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2306010 Thermistor
3 2208970 Air Duct
4 2209204 Clip, Thermistor
5 2259077 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 2006475 Screw
8 487539 Screw
9 2302937 Thermistor
10 2302986 Lid, Air Baffle
11 2320635 Baffle, Control
Assembly
12 2171846 Release Valve
13 2310205 Jumper, Air Baffle
14 488357 Screw
15 486194 Screw
17 2221296 Air Baffle
Assembly
21 2309222 Diffuser Assembly
22 2317105 Cover, Thermistor
23 2188820 Thermistor
24 2302992 Spacer, Air−
Baffle
25 2309087 Cover, Diffuser
27 2259412 Seal, Air Duct
(Round Hole)
28 2259398 Seal, Air Duct
(Square Hole)
7
CONTROL PANEL PARTS
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
Illus. Part
No. No. DESCRIPTION
1 2302771 Control Box
2 2303938 Insert, Control
Box
3 2302913 Circuit Board,
Housing Control
4 2310197 Control Box
Wire Harness
6 2221121 Support, Control
Box
7 489006 Screw (2)
9 2306086 Display Board,
Ingredient
Care Center
10 2302727 Shield, Light
11 2162085 Socket, Light
12 2255743 Light Bulb
13 486194 Screw
14 8281185 Screw
15 2257518 Overlay
TOP GRILLE AND UNIT COVER PARTS
8
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
Illus. Part
No. No. DESCRIPTION
1 2257410S Panel, Decorative
2 2259320 Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5 2320678 Cover, Unit Front
6 487415 Screw
7 2310194 Wire Assembly
RC/FC Light Switch
8 2005292 Nameplate
9 489348 Clamp
10 2004333 Nut
11 2254759 Bracket, Louver
12 2254760S Grille, Louver
13 488879 Screw
14 2215910 Grommet
REFRIGERATOR SHELF PARTS
9
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
REFRIGERATOR SHELF PARTS
10
For Model: KSSC36FMS03
(Stainless Steel)
W10115022
Illus. Part
No. No. DESCRIPTION
1 2222591 Shelf Assembly
2 2256250 Trim, Glass Side
Meat Pan
5 2179404 Rack, Wine
6 2221071 Egg Bin
9 2302841 Meat Pan Cover
Assembly
10 2302834 Crisper Cover
Assembly
13 2257581 Trim, Glass Rear
14 2252411 Crisper Pan (2)
17 Slide, Meat Pan
2302954 Left Side
2302955 Right Side
18 Trim, Glass Front
(Not Serviceable)
19 2256253 Trim, Glass Rear
21 2256247 Front, Crisper
Pan
23 2252255 Trim, Glass Side
25 Spacer, Crisper
2256222 Right Side (2)
2256223 Left Side (2)
27 Slide, Crisper
2302957 Right Side (2)
2302956 Left Side (2)
28 Spacer, Meat Pan
2256243 Left Side
2256244 Right Side
29 8533929 Screw
30 2256368 Pan Assembly
Meat
31 2256365 Front, Meat Pan
