KitchenAid KSCS23FVBL00 Manual de usuario

CABINET PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

04−08 Printed In U.S.A. (jdc) Part No. W10200763 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10162436

Use & Care Guide

W10152832

Service & Wiring

Sheet

2318510 Installation

Instructions

W10123733

Energy Guide

2220407 Modular Icemaker

Service Sheet

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 488500 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008B Black

2307008AP

Apollo Gray

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

(Includes #20)

13 Filler, Wrapper

2223893W White

2223893B Black

2223893AP

Apollo Gray

14 Grille

W10194056

White

W10194058

Black

W10194061

Midnight Grey

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007B Black

2307007AP

Apollo Gray

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

20 2307049 Door Closer, RC

21 2223409 Cover, Unit

22 2223387 Pin, Roller (4)

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2307152 Hinge Assembly,

Bottom−FC

(Includes #29)

26 Button, Water

Filter

2260503W White

2260503B Black

2260503MG

Midnight Grey

27 2260526 Housing, Water

Filter

28 4396841 Water Filter

29 2307051 Door Closer, FC

30 Cap, Water

Filter

2260502W White

2260502B Black

2260518MG

Midnight Grey

31 Cabinet (Not A

Serviceable Part)

32 489483 Screw

35 3400858 Screw

36 2304709 Tube, Filter

Outlet

37 2319868 Tube, Filter

Inlet

REFRIGERATOR LINER PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2224121 Escutcheon, Meat

Pan Control

3 2224123 Slide Meat

Pan Control

6 1118894 Switch, Rocker

Arm

7 2188820 Thermistor

8 3400893 Screw

9 2319866 Ladder, Shelf (2)

10 2301234 Housing, Door

Control

11 489084 Screw

12 2301235 Slide, Door

Control

13 2171846 Release Valve

14 2209204 Clip, Thermistor

15 2179404K Rack, Wine & Egg

16 1116793 Cover, Thermistor

17 489478 Screw

18 2304597 Gasket,

Air Baffle

19 2223403 Cover,

Air Baffle

20 2224076 Air Diffuser

Assembly

21 2220377 Air Baffle

22 2162085 Socket

23 2307107 Reservoir

24 2205813 Strap

25 2255743 Light Bulb

26 2223663 Light Lens

27 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

Illus. Part

No. No. DESCRIPTION

1 2224061 Shelf Assembly,

Cantilever (2)

2 2301025 Button, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2301023 Snack Pan

(Includes 30 & 31)

7 Glide Assembly,

Crisper Pan

2301548 Right Side

2301549 Left Side

8 2301001 Window,

Crisper Pan

9 2301567 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2301009 Glass, Cover

11 2301116 Gasket (Front)

12 2301115 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2301031 Crisper Pan

(Includes 8, 13

14, 19 & 31)

17 2223790 Meat Pan

(Includes 13,

14, 19 & 22)

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

19 489261 Screw

20 2223487 Deflector

21 Support Assembly

2301569 Right Side

2301570 Left Side

22 2203031 Handle

23 2216624 Egg Bin Assembly

25 2196485 Stud Assembly

26 2301566 Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

30 2301006 Window, Snack Pan

31 Cap, Snack Pan

2301016 Right Side

2301017 Left Side

FREEZER LINER PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

FREEZER LINER PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

3 2224051 Basket, Front

4 2196483 Stud Assembly

5 2223691 Basket, Deep (2)

6 8281158 Screw

7 2223500 Shelf Assembly,

Cantilever (2)

8 2224053 Front, Basket

9 Shelf Track

2223787 Right Side

2223788 Left Side

10 2254615 Shelf, Fixed

11 2223694 Basket, Lower

12 842534 Clip, Air Duct

13 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

14 2259487 Cover, Emitter

15 8534064 Screw

16 2198635 Spring

17 2198634 Pin

18 2198665 Tube, P.C. Board

19 1115373 Switch, Rocker Arm

20 2220398 P.C. Board

Emitter

21 2224125 Cover, Ice Maker

22 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

23 489478 Screw

24 489214 Screw

25 2162085 Light Socket

26 2255743 Light Bulb

27 8281185 Screw

28 2198633 Flipper

29 2255561 Cover, Receiver

30 2301340 Slide, Ice Maker

Shut Off

31 2255114 P.C. Board,

Receiver

32 2198643 Lens

33 2198589 Light Shield

34 2212340 Light Lens

35 2198641 Bracket, Ice Maker

Cover

36 2155597 Socket, Light

37 3400893 Screw

38 Ladder

2198609 Left Side

2198610 Right Side

39 2303378 Shield, Wiring

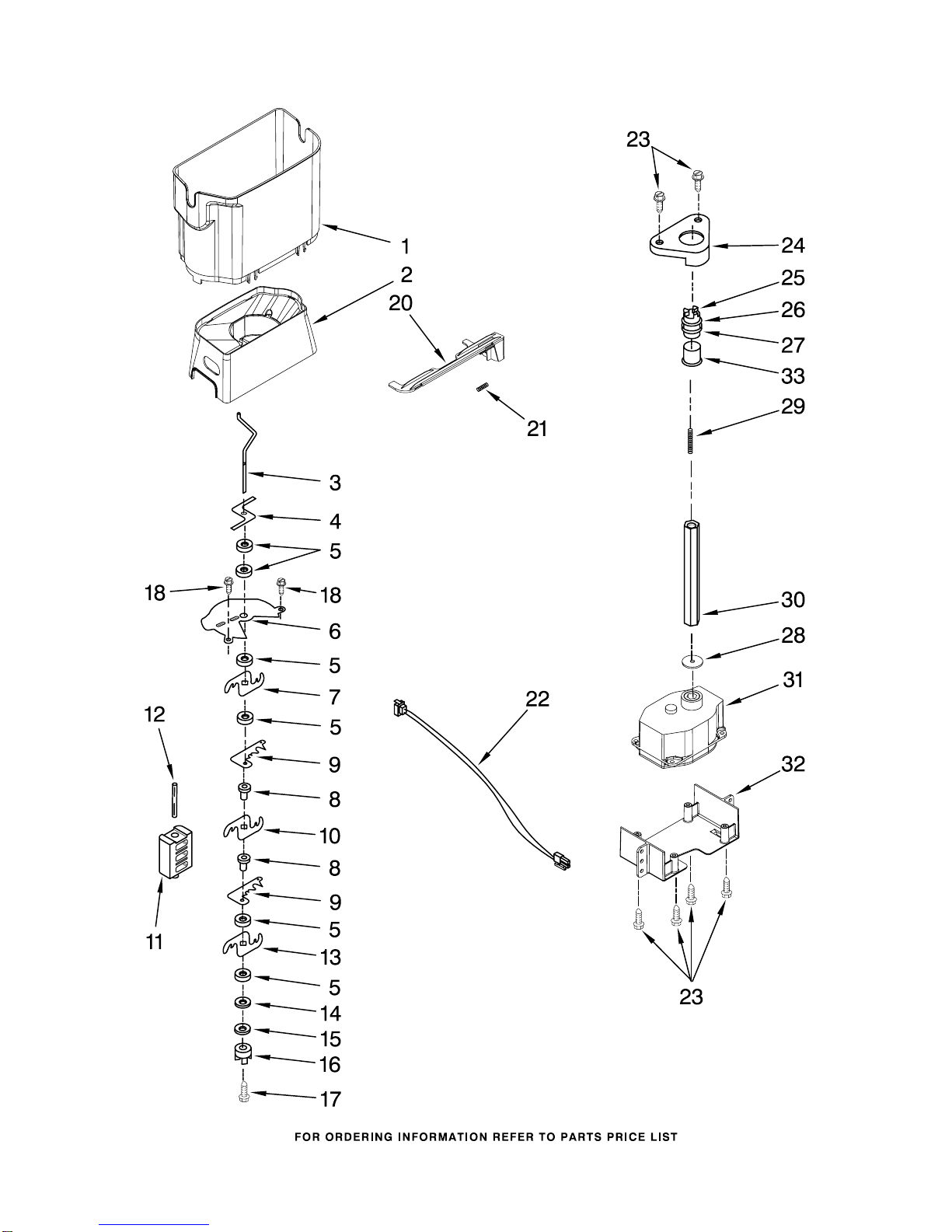

MOTOR AND ICE CONTAINER PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

MOTOR AND ICE CONTAINER PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

Illus. Part

No. No. DESCRIPTION

1 2305416 Ice Bin

2 2305294 Crusher Bin

3 2320327 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2305244 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

20 2305441 Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Assembly,

IDI Motor

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

28 2305382 Rubber Boot

29 2198607 Spring

30 2305243 Drive Shaft

31 2252130 Dispenser, Motor

32 2305208 Bracket, Motor

33 2212365 Sleeve, Coupling

100

W10127745

Ice Container

(Complete)

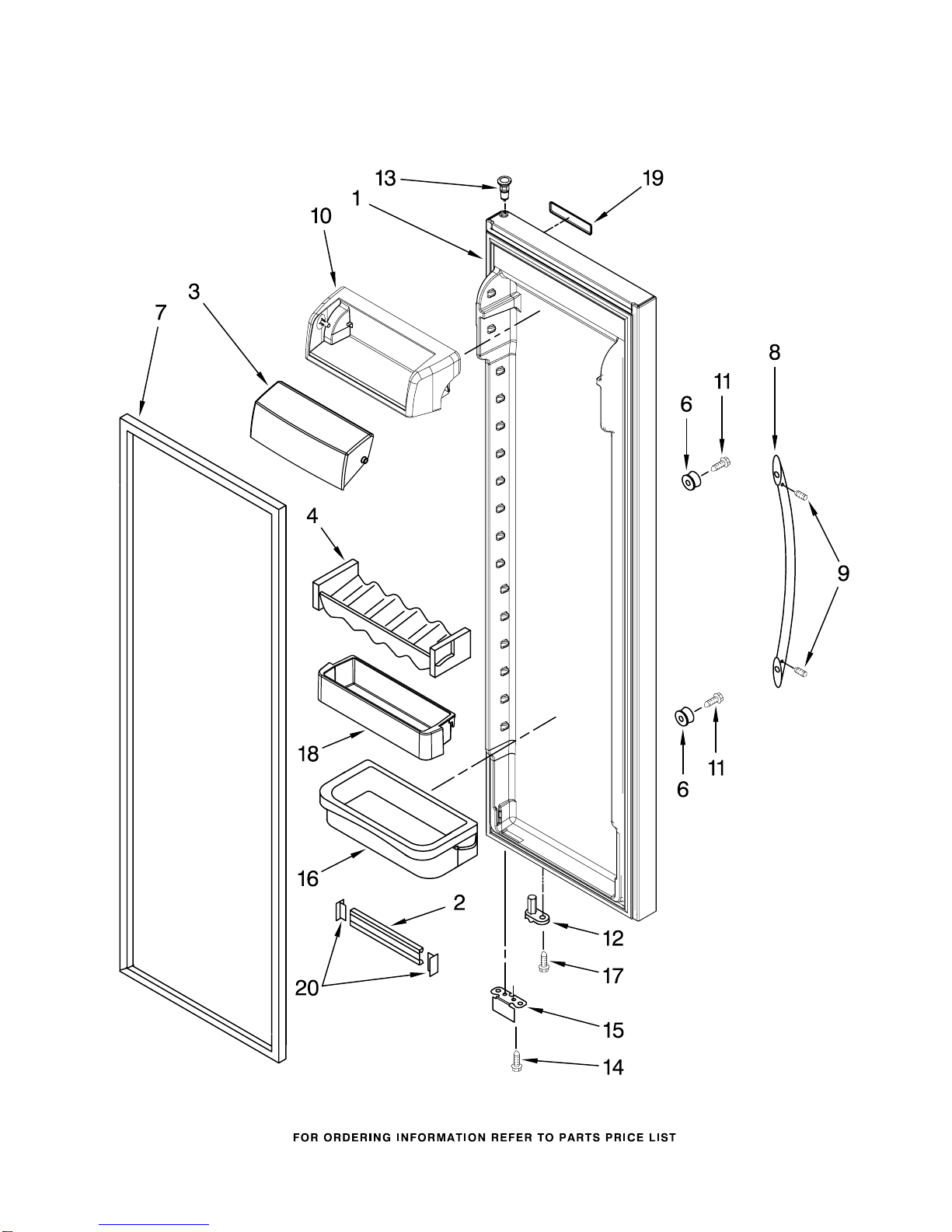

REFRIGERATOR DOOR PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

REFRIGERATOR DOOR PARTS

For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10200763

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

W10128346

White

W10128348

Black

2307199SAP

Monochromatic

Stainless

2307199S Stainless Steel

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223883 Caddy, Can

6 2219698 Stud, Handle

7 Door Gasket,

Magnetic

2223841 Mist Beige

2223911 Black

2326342 Apollo Grey

8 Handle

2319727W White

2319727B Black

2319727S Stainless Steel

9 Set Screw

W10010140

Chrome

W10010150

Black

10 2223879 Dairy Compartment

11 488208 Screw

12 2307048 Door Closer,

Upper Cam

13 2182181 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223860 Door Bin (3)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

19 Nameplate

W10046670

White

W10046640

Black

W10046610

Gray

20 2156006K Plug, Trim
