KitchenAid KSBS25INSS - 24.5 cu. Ft. Side Manual de usuario

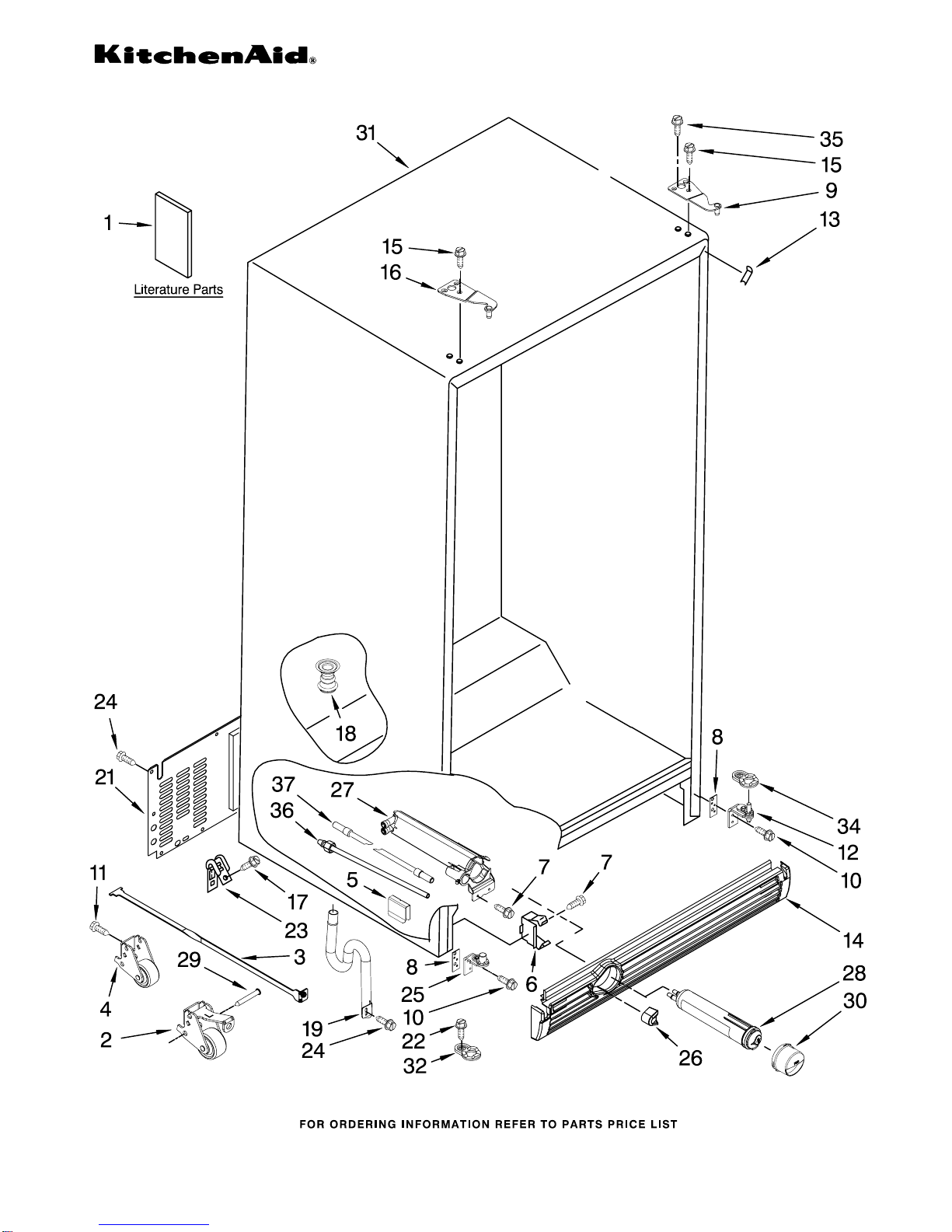

CABINET PARTS
1
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
04−07 Printed In U.S.A. (rrm) Part No. W10133385 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2318583 Use & Care Guide
2223419 Service & Wiring
Sheet
2318615 Energy Guide
628370 Modular Icemaker
Service Sheet
2223996 Installation
Instructions
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 489478 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008T Biscuit
2307008B Black
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
Includes # (34)
13 Filler, Wrapper
2223893W White
2223893T Biscuit
2223893B Black
14 Grille
2322234W White
2322234T Biscuit
2322234B Black
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007T Biscuit
2307007B Black
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
21 2223409 Cover, Unit
22 489483 Screw
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
Includes # (32)
26 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
27 2260526 Housing, Water
Filter
28 4396841 Water Filter
29 2223387 Pin, Roller(4)
30 Cap, Water
Filter
2260518W White
2260518T Biscuit
2260518B Black
31 Cabinet (Not A
Serviceable Part)
32 2307051 Door Closer (FC)
34 2307049 Door Closer (RC)
35 3400858 Screw
36 2304709 Tube, Filter
Outlet
37 2319868 Tube, Filter
Inlet

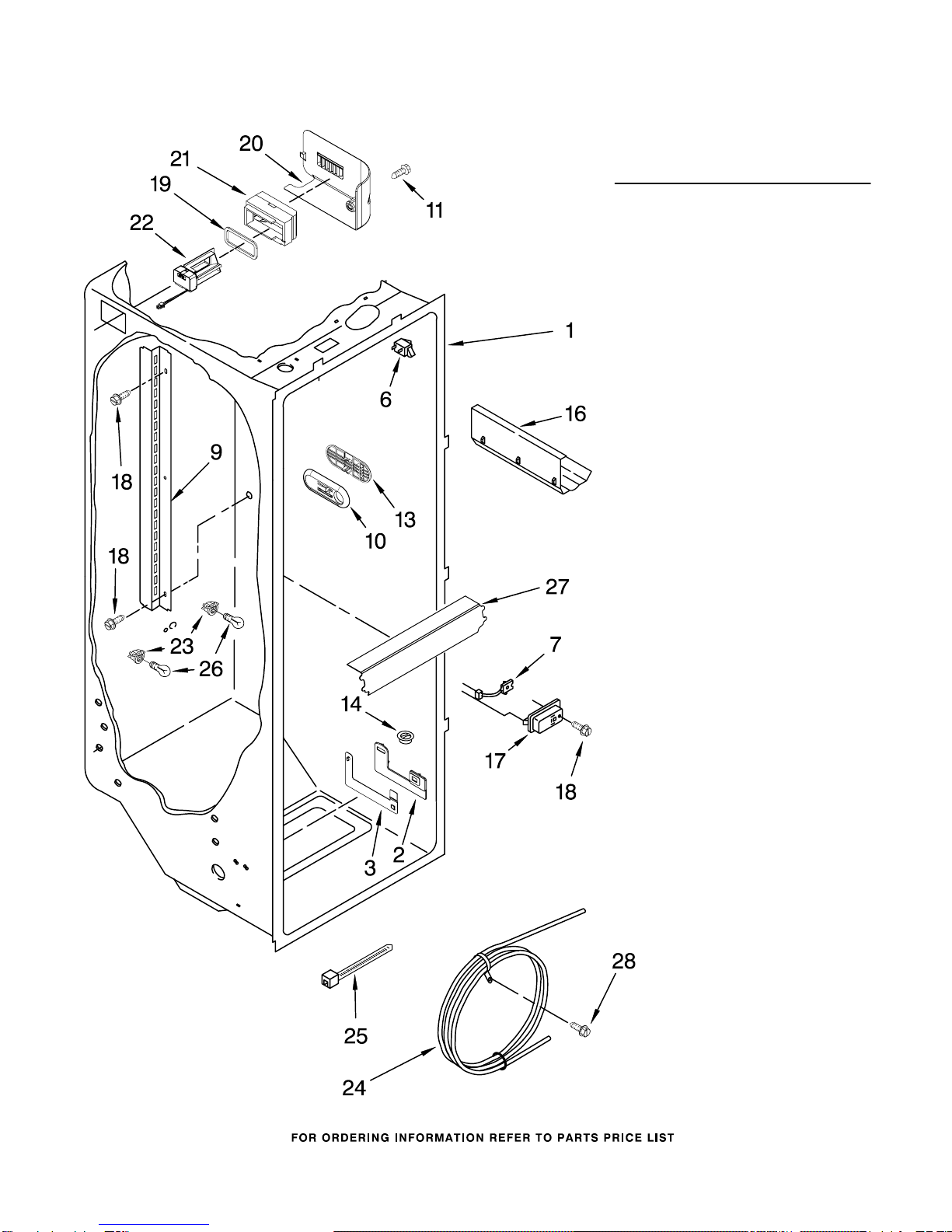

REFRIGERATOR LINER PARTS
3
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2224121 Escutcheon, Meat
Pan Control
3 2224123 Slide Meat
Pan Control
6 1118894 Switch, Rocker
Arm
7 2188820 Thermistor
9 2223456 Ladder, Shelf (2)
10 2301234 Housing, Door
Control
11 489084 Screw
13 2301235 Slide, Door
Control
14 2171846 Release Valve
16 2179375 Rack, Wine & Egg
17 2317105 Cover, Thermistor
18 489478 Screw
19 2304597 Gasket,
Air Baffle
20 2223403 Cover,
Air Baffle
21 2224076 Air Diffuser
Assembly
22 2220377 Air Baffle
23 2162085 Socket
24 2223876 Reservoir
25 2205813 Strap
26 2255743 Light Bulb
27 2223663 Light Lens
28 488280 Screw

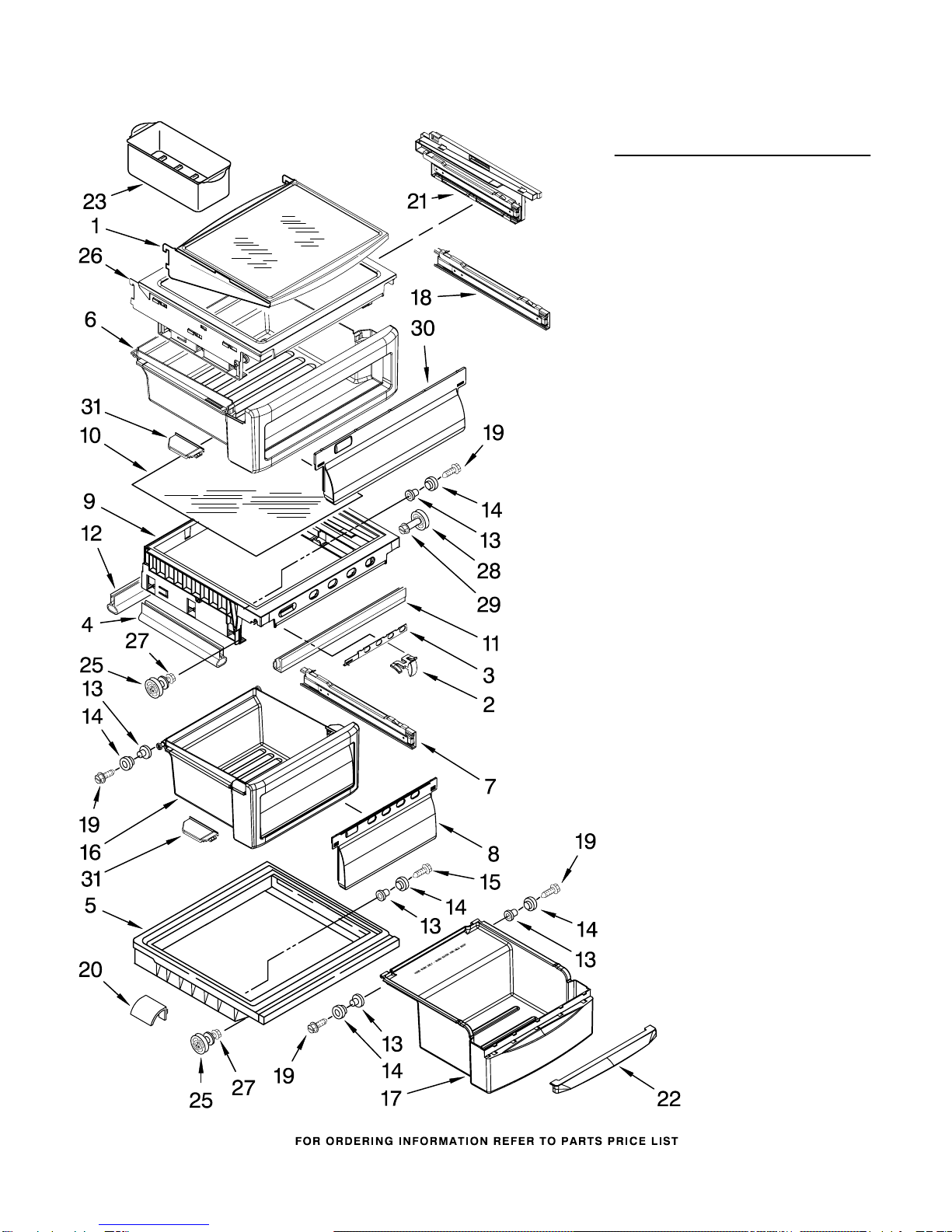

REFRIGERATOR SHELF PARTS
4
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
Illus. Part
No. No. DESCRIPTION
1 2224061 Shelf Assembly,
Cantilever (2)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2301023 Snack Pan
(Includes 30 & 31)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9 2301567 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2301027 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301031 Crisper Pan
(Includes 8, 13,
14, 19 & 31)
17 2223790 Meat Pan
(Includes 13,
14, 19 & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
23 2216625 Egg Bin
25 2196485 Stud Assembly
26 2301566 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side
FREEZER LINER PARTS
5
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
FREEZER LINER PARTS
6
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
6 2254611 Basket, Deep (2)
9 2223500 Shelf Assembly,
Cantilever (2)
11 2224053 Front, Basket
12 2223782 Front−Frzr.Basket
13 Shelf Track
2223787 Right Side
2223788 Left Side
14 2254615 Shelf, Fixed
15 2254612 Basket, Lower
16 489427 Screw
17 842534 Clip, Air Duct (2)
18 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
19 2259487 Cover, Emitter
20 8534064 Screw
22 2198635 Spring
23 2198634 Pin
24 2198665 Tube, P.C. Board
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2224125 Cover, Ice Maker
28 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 3400893 Screw
45 Ladder
2223414 Left Side
2223415 Right Side
46 2303378 Shield, Wiring

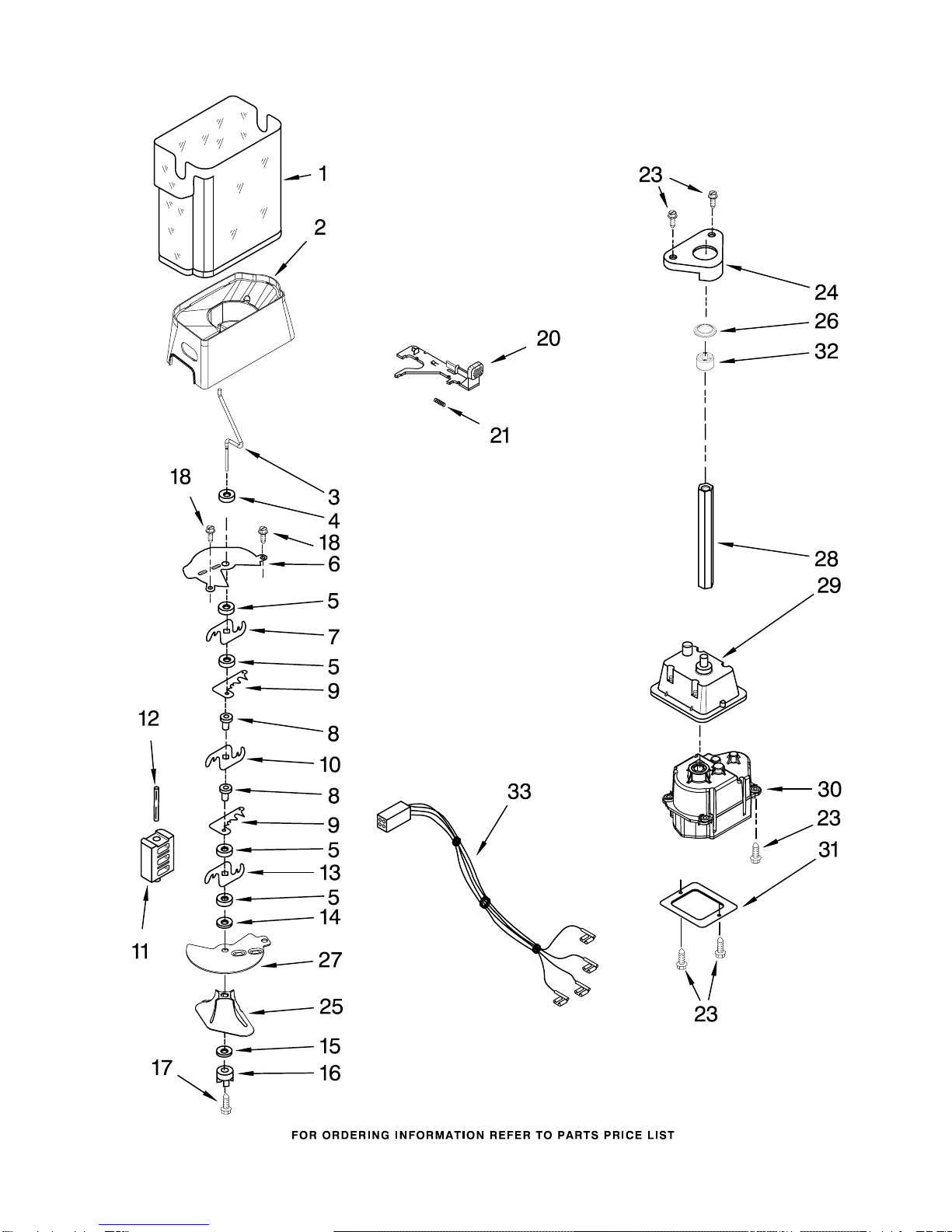

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
Illus. Part
No. No. DESCRIPTION
1 2223317 Ice Bin
2 2317256 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (6)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
20 2317272 Latch, Bin
21 2198608 Spring, Latch
23 8281163 Screw
24 2188919 Holder
25 2317243 Wiper
26 2198628 Seal
27 2317250 Divider−Chamber
28 2188916 Drive Shaft
29 2256154 Enclosure, Motor
30 2315547 Dispenser, Motor
31 2212305 Cover
32 2315559 Sleeve, Coupling
33 2187725 Wire Harness,
IDI Motor
100 2317268 Ice Container
Assembly

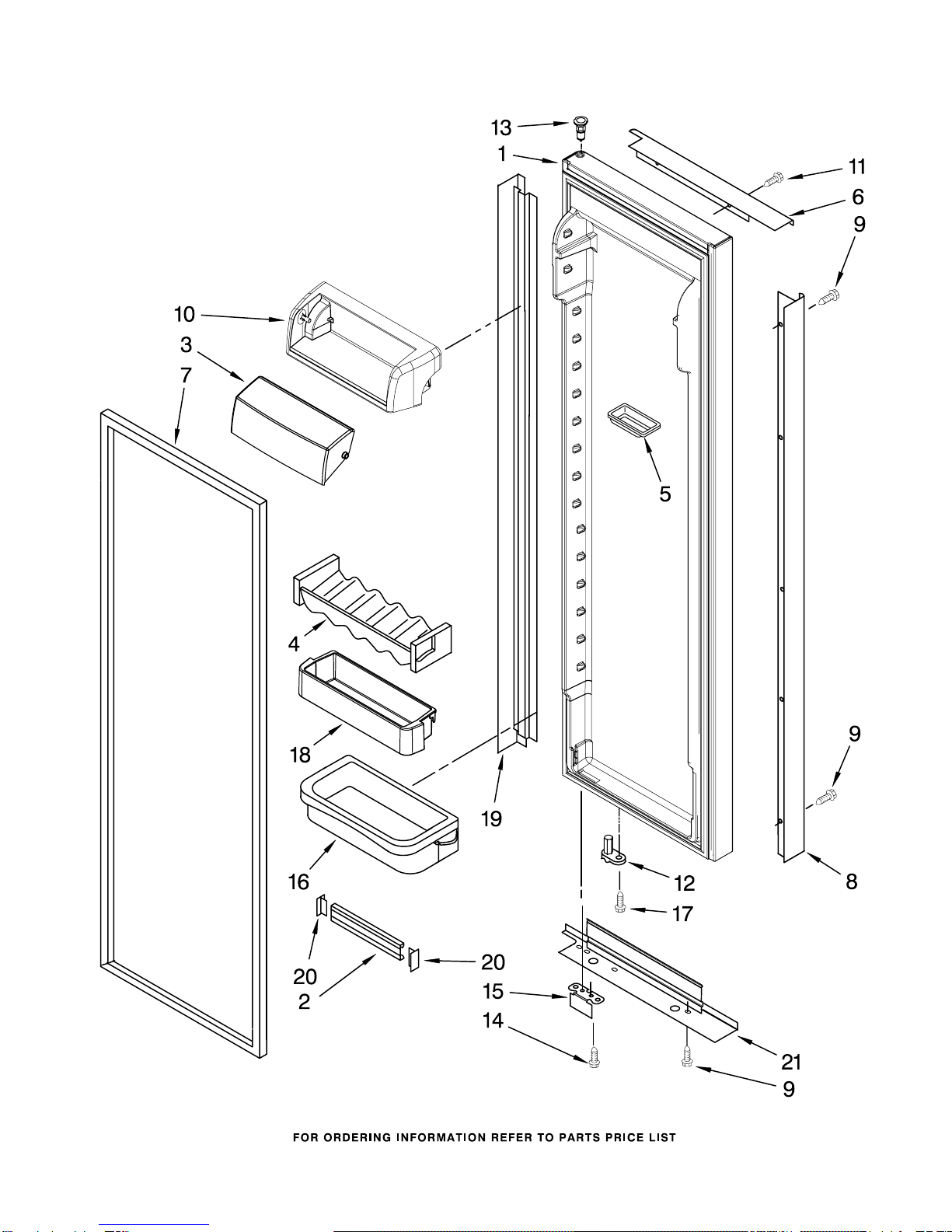

REFRIGERATOR DOOR PARTS
9
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
REFRIGERATOR DOOR PARTS
10
For Models: KSBS25INWH03, KSBS25INBT03, KSBS25INBL03, KSBS25INSS03
(White) (Biscuit) (Black) (Stainless Steel)
W10133385
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2307195W White
2307195T Biscuit
2307195B Black
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
5 2165792K Butter Dish
6 Trim, Top
2224096W White
2224096T Biscuit
2224096B Black
2224096S Stainless Steel
7 Door Gasket,
Magnetic
2223326 Mist Beige
2223909 Black
8 Handle
2223821W White
2223821T Biscuit
2223821B Black
2223821S Stainless Steel
9 3196537 Screw
10 2223879 Dairy Compartment
11 3196180 Screw
12 2307048 Door Closer,
Upper Cam
13 2308091 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
19 Trim, Hinge Side
2223824W White
2223824T Biscuit
2223824B Black
2223824S Stainless Steel
20 2156006K Plug, Trim
21 Trim, Bottom
2223823W White
2223823T Biscuit
2223823B Black
2223823S Stainless Steel
