KitchenAid KBLS22EVMS1 Manual de usuario

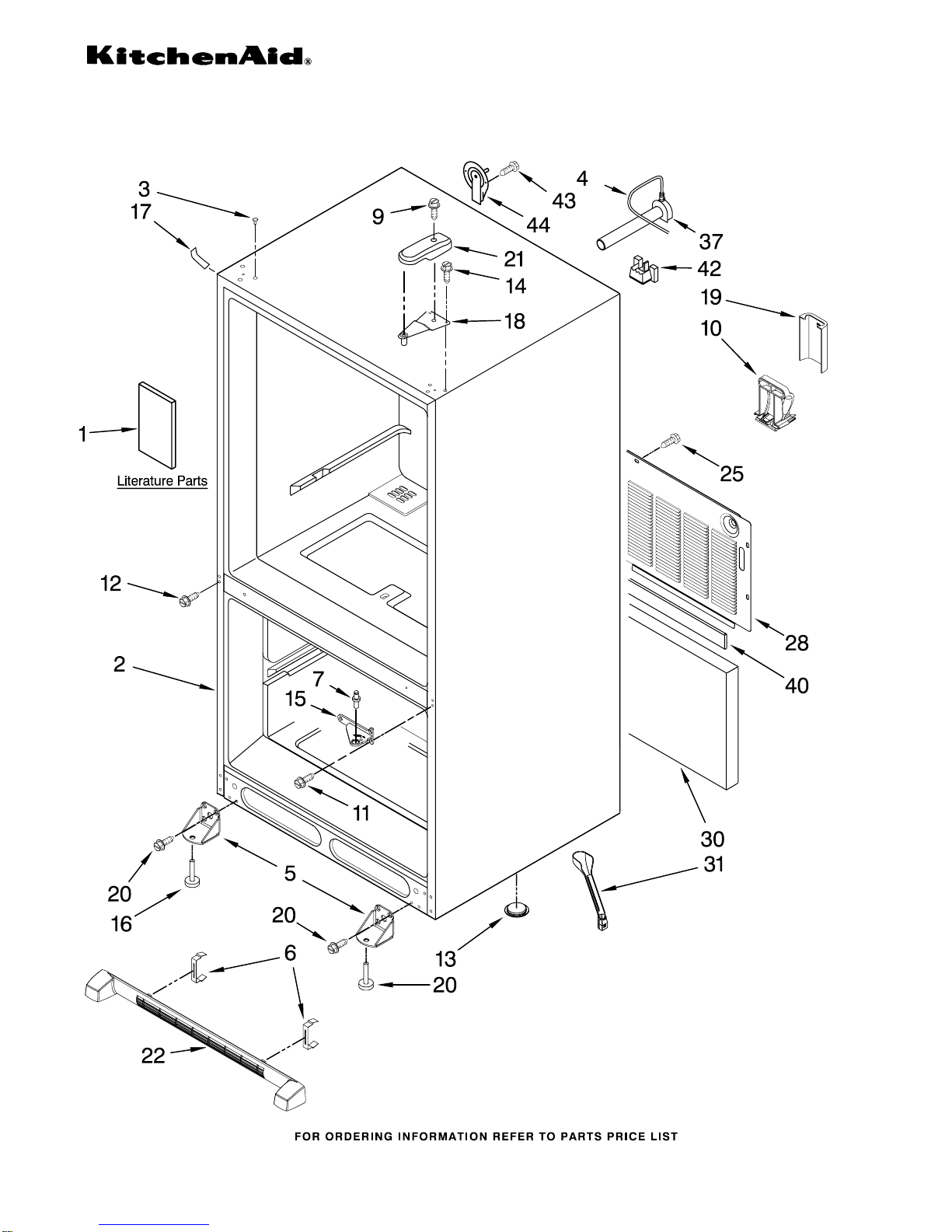

CABINET PARTS
1
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
Part No. W10268077 Rev. A
REFRIGERATOR
4−09 Litho in U.S.A. (mat) (eeb)
CABINET PARTS
2
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10137649
Use & Care Guide
W10212714
Energy Guide
W10238842
Tech Sheet
2 Cabinet (Not a
Serviceable Part)
3 Plug, Button (3)
12477601W
White
12246608 Black
4
B5705333SP
Tube, Plastic
5 Roller Foot
Assembly
W10212382
Left
W10212381
Right
6 12627302 Clip, Grille
7 10351006 Pin, Center Hinge
9 12990504 Screw
10 12831101 Sweep, Dual Tube
11 12992201 Screw
12 12990521 Screw
13 A3076901 Plug, Button
14 12992403 Screw
15 Hinge, Center
12607103WD
White
12607103ED
Black
12607103AP
Apollo Grey
16 10354002 Foot Brake (2)
17 Cover, Corner
12587703W
White
12587703B
Black
12587703AP
Apollo Grey
18
12566606ED
Hinge, Top Left
19
W10208593
Guard, Dual
Water Valve
20 12991302 Screw (8)
21 Cover, Hinge
12477601W
White
12477601B
Black
12477601AP
Apollo Grey
22 Grille Assembly
(Includes Clips)
W10236195
White
W10236196
Black
W10236194
Apollo Grey
25 12990511 Screw
28
W10210980
Cover, Unit
30 12820505 Insulation, Sound
31
W10210988
Tube, Drain
37
10463203SP
Elbow, Fill Tube
40 B5759655 Gasket
42 12777701 Block, Filter
43 12990504 Screw
44 12726003 Cover, Water Line
REFRIGERATOR LINER PARTS
3
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
REFRIGERATOR LINER PARTS
4
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12806301 Module, Light
3
W10217738
Overlay
4 12806405 Housing, Control
5
W10217475
Board, Control
6
C3680310V
Switch, Light (2)
7 12806501 Cover, Light
8
12806601V
Housing, Light
9
W10194422V
Bulb, Light (2)
10
12570701V
Socket, Light (2)
11 12806801 Insert,
Damper Cover
12 12990604 Screw
13 12806701 Cover, Damper
14 13012402 Insulation
15
W10207517
Control, Damper
17 12704801 Plate
18 12590620 Head, Water Filter
19
UKF8001AXX
Filter, Water
20 12568001 Cover, Filter
22
B8390302SP
Clip, Facade (2)
23
12706909SP
Facade, Disp.
24
12707303SP
Plate, Switch
25 12575501 Switch, Limit
26
12707205SP
Guide, Waterline
27
12251001SP
Clip, Waterline
28 12707005 Facade, Disp (Top)
29 12706111 Tank, Water
30 61006182 Union
31
12664501SP
Plug, Bypass
32 12990513 Screw
Following Parts Not Illustrated
W10224290
Harness, Control
(Refrigerator)
(Includes
Thermistor)
FREEZER LINER PARTS
5
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
FREEZER LINER PARTS
6
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 A3189392 Gasket, Foam
3 12002497 Gear (Left)
(Includes Item 7)
4 12804901 Cover, Light
5
12812902WD
Shaft
6
12570701V
Socket, Light
7 12002497 Gear (Right)
(Includes Item 3)
8 12990521 Screw (8)
9
W10194422V
Bulb, Light
10
12476401V
Housing, Light
11 12226111 Cover, Evaporator
12 12990511 Screw (4)
13 Bracket, Door
W10122147
Left
W10122148
Right
14 12805001 Housing, Light
15 13058002 Clip, Evap Motor
16 12466105 Switch, Light
17 12990504 Screw (2)
18 Cradle, Basket
12812303 Left
12812304 Right
19
W10120018
Slide, Drawer (2)
20 A3189395 Gasket, Bottom
21 Adapter, Slide
W10149390
Left
W10149391
Right
22 13024803 Grille, Fz Air
23 13057901 Shroud, Evap Fan
24 2169142 Blade, Fan
(Evaporator)
25
W10150583
Grommet
26 13062901 Motor, Evaporator
27 D7753903 Funnel, Drain
28 M0500703 Seal
29 B8381501 Gasket
31 12815301 Cover, Thermistor
32 12990501 Screw (6)
33
12991603V
Screw
34 12932103 Guide, Fill Tube
35
W10157765
Diverter, Air
Following Parts Not Illustrated
13014801 Harness, Fz Module
(Includes
Thermistor)

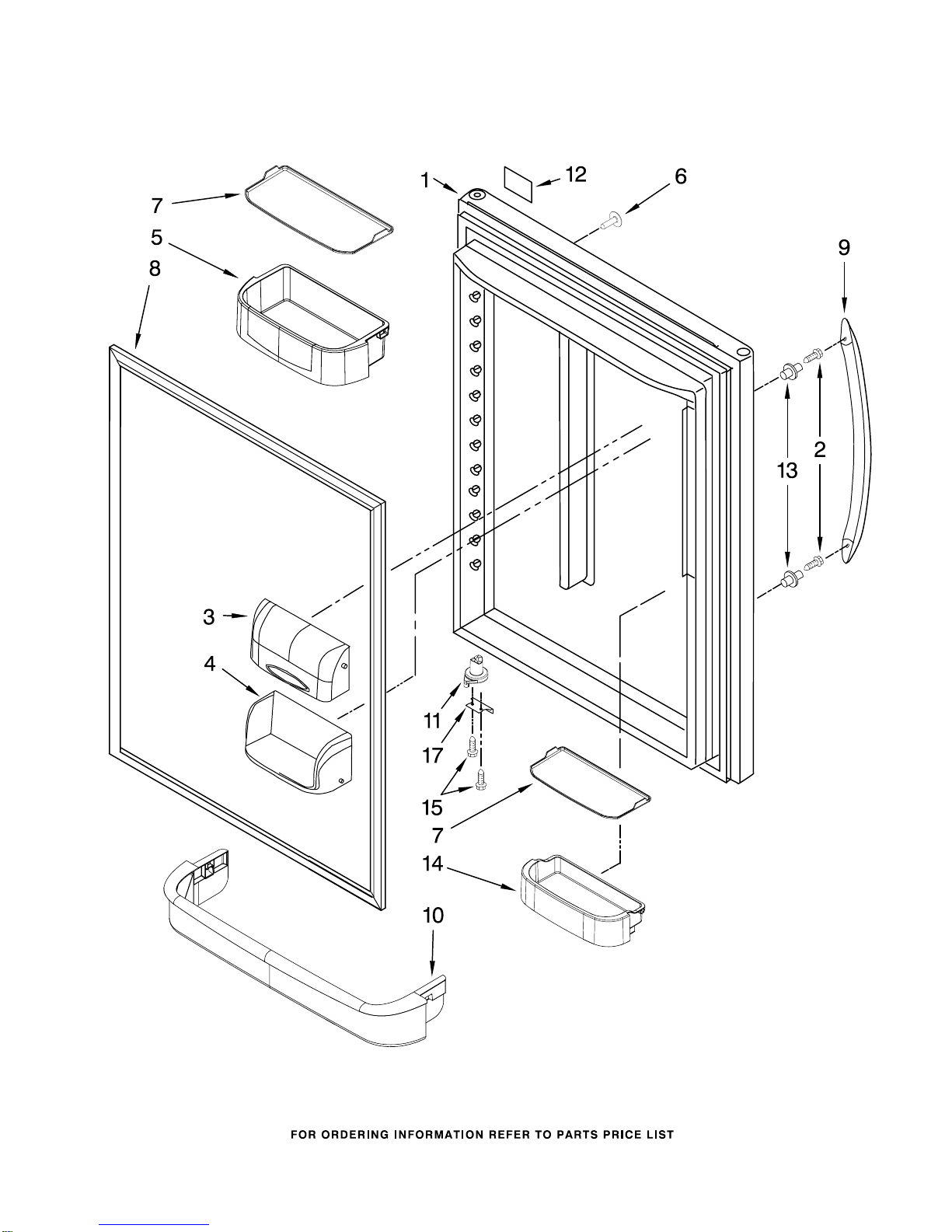

REFRIGERATOR DOOR PARTS
7
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
REFRIGERATOR DOOR PARTS
8
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
Illus. Part
No. No. DESCRIPTION
1 Door, Refrigerator
12658583WQ
White
12658583BQ
Black
13023869SQ
Stainless−RH
13023870SQ
Stainless−LH
2 12991703 Screw
3
12804701SP
Door, Dairy
4
12369502SP
Tray, Dairy
5
12849125SP
Bucket, Medium (3)
6 Plug, Handle Hole
12246607 Black
7
12567321SP
Gripper, Medium
8 Gasket, Door
W10164034
White
W10164035
Black
W10180621
Apollo Grey
9 Handle, Door
W10119642N
White
W10119643N
Black
W10119644N
Stainless
10 12690502 Retainer, Door
11 Closure, Door
12028505W
White
12028505B
Black
12028505AP
Apollo Grey
12 Nameplate
W10046670
White
W10046640
Black
W10046610
Apollo Grey
13 13001201 Mount, Handle
14
12643911SP
Bucket, Short
15 12990504 Screw
17 Stop, Door
10447111 White
10447112 Black
10447114 Apollo Grey

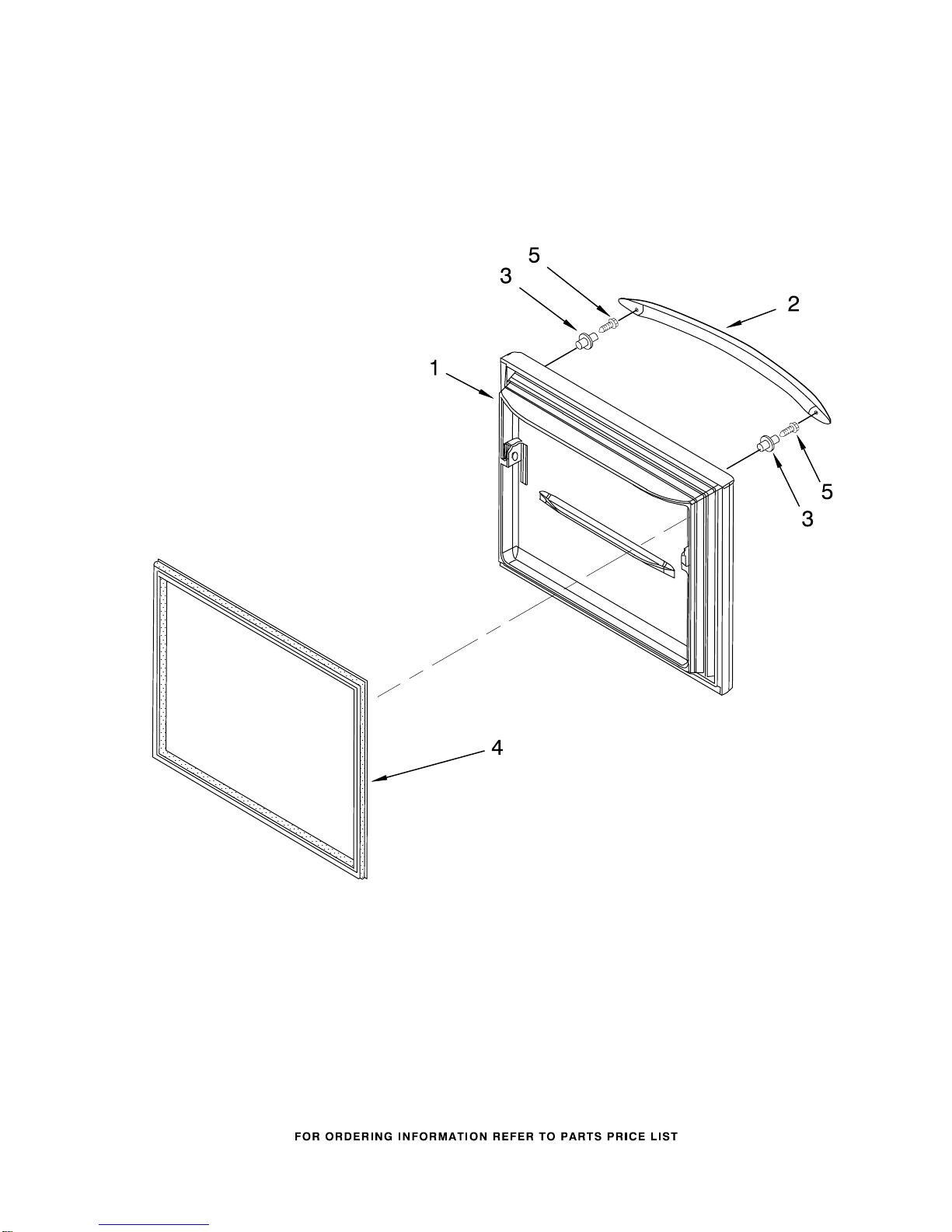

FREEZER DOOR PARTS
9
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
FREEZER DOOR PARTS
10
For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1
(White) (Black) (Monochromatic (Monochromatic
Stainless−RH) Stainless−LH)
W10268077
Illus. Part
No. No. DESCRIPTION
1 Door, Freezer
13092244WQ
White
13092244BQ
Black
13092210SQ
Stainless
2 Handle, Door
W10119642N
White
W10119643N
Black
W10119644N
Stainless
3 13001201 Mount, Handle
4 Gasket, Door
W10164036
White
W10164037
Black
W10180623
Apollo Grey
5 12991703 Screw
