CABINET PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

2−10 Litho In U.S.A. (mat) (mek)(bay)(eeb)(psw)(bay) Part No. W10214214 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10198858

Tech Sheet

W10187309

Owners Manual

W10187812

Tag, Energy

2 8170414 Elbow, Fill Tube

3 67003405 Plate, Pivot

4 8170924 Gasket

5 67005127 Roller

6 M0286708 Nut, Speed

7 67006118 Roller Assembly

8 67006287 Screw

9 67006521 Screw

10 12456801 Bracket, Roller

11 67006380 Screw

12 67006611 Bolt, Adjusting

(Front)

13 Cover, Left Hinge

67007156 White

67006726 Black

12629803AP

Apollo Grey

14 67006303 Screw

15 Hinge, Center (RT)

67002028 White

12655103ED

Black

12655102AP

Apollo Grey

16 67004092 Block, Filter

17 Cover, Corner

67003484 White

67003485 Black

12587703AP

Apollo Grey

12626911ED

Hinge, Top Left

W10208641

Bracket, Foot (2)

20 67006564 Screw

21 12579702 Shim, Hinge

22 Grille Assembly

(Includes Clips)

67006377 White

67006375 Black

12880103AP

Apollo Grey

23 M1205302 Pin

24 Cover, Right Hinge

12629801W

White

12629801B

Black

12629801AP

Apollo Grey

25 67006425 Screw

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 67006669 Screw

30 B5759649 Cover, Unit

31 67004099 Fill Tube Assy.

12626910ED

Hinge, Top Right

33 67003796 Insulation, Sound

34 67003868 Foot Brake

35 Cabinet (Not a

Serviceable Part)

36 M0104106 Clip

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

FREEZER LINER PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

FREEZER LINER PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear

(Includes RT & LT)

4 67003905 Cover, Light

5 67004017 Shaft

6 67002216 Socket, Light

8 67006473 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

W10167028

Clip, Evap Motor

16 67005653 Switch, Light

17 67006406 Screw

18 Cradle, Basket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer (2)

20 67003731 Gasket, Bottom

21 Bracket, Slide

W10122147

Left

W10122148

Right

W10175909

Cover, Fan Shroud

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet (2)

W10199049

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

REFRIGERATOR LINER PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

REFRIGERATOR LINER PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Bracket, Control

and Lights

W10175936

Overlay

W10203324

Housing

Electronic Control

W10207861

Electronic Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

Y12570701

Socket, Light

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 61006182 Union, Tube

W10117358

Insulation, Tank

W10153959

Tank, Water

W10158503

Dispenser

21 67006287 Screw

23 67006524 Housing, Filter

Head

24 12568001 Cover, Filter

25 UKF8001 Filter, Water

26 12664501 Head, Filter

27 B8390302 Clip, Waterline

28 67006415 Screw

29 67005674 Facade, Dispenser

30 12575501 Switch, Limit

31 67002742 Plate, Switch

32 67002816 Clip, Water Tube

33 67003728 Guide, Water

Line

Following Parts Not Illustrated

67005417 Harness, Control

(Refrigerator)

(Includes # 16)

REFRIGERATOR DOOR PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

REFRIGERATOR DOOR PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024048WQ

White

13024048BQ

Black

13024050SQ

Stainless Steel

13024052SQ

Mono Stainless

2 Bushing, Door

(Bottom Left)

67002722 White

67002721 Black

3 67003819 Compartment, Door

(Includes Item 4)

4 67001279 Tray, Dairy

5 67005672 Bin, Shelf

(Medium)

6 67006786 Screw

7 67006901 Screw

8 Gasket, Door

W10163894

White

W10163895

Black

W10179332

Apollo Grey

9 Door Handle

W10119642

White

W10119643

Black

W10119644

Stainless

10 67006113 Stud, Handle

11 Nameplate

W10046670

White

W10046640

Black

W10046610

Apollo Grey

12 67005673 Bin, Shelf (2)

(Large)

13 Door, Right

13024047WQ

White

13024047BQ

Black

13024049SQ

Stainless

13024051SQ

Mono Stainless

14 Mullion, Door

67003434 White

67004131 Black

12732501AP

Apollo Grey

15 67005626 Caddy, Can

16 Closure, Door

67003638 White

67003639 Black

12028505AP

Apollo Grey

17 Stop, Door

67003779 White

67003780 Black

10447114 Apollo Grey

18 Plug, Button

10712401 White

67004838 Black

19 Bushing, Door

(Upper Left)

12395501W

White

12395501B

Black

12395501AP

Apollo Grey

20 Bushing, Door

(Upper Right)

67004977 White

67004978 Black

10961006AP

Apollo Grey

21 67006287 Screw

22 Bushing, Door

(Lower Right)

67002732 White

67002731 Black

12028601AP

Apollo Grey

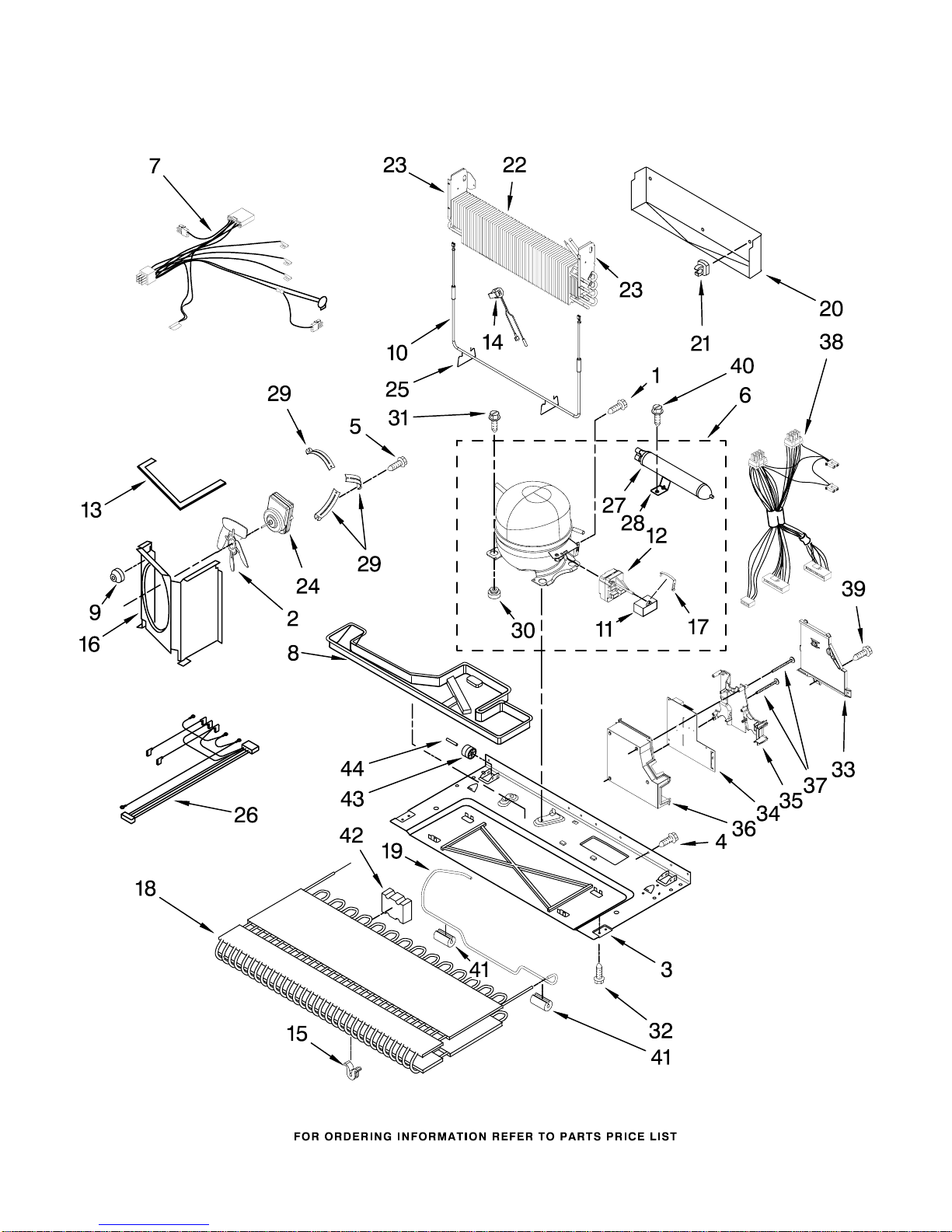

UNIT PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

UNIT PARTS

For Models: KBFS25EVWH00, KBFS25EVBL00, KBFS25EVMS00, KBFS25EVSS00

(White) (Black) (Monochromatic Stainless) (Stainless)

W10214214

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Base

4 67006425 Screw

5 8208234 Screw

W10134623

Compressor

W10171661

Harness, Evap

Heater

8 67007175 Pan, Drain

9 67004743 Grommet

10 67002493 Evaporator Heater

11 2264017 Capacitor

W10128791

Overload

(Includes Relay)

13 61003210 Gasket

W10165425

Thermostat

W10137529

Grommet (4)

12575309SP

Shroud, Condenser

17 2255199 Clip, Capacitor

18 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 67003720 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060202 Harness, Unit

W10143759

Drier (Service)

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

W10169124

Grommet

31 67006432 Screw

32 67006573 Screw (4)

33 67005421 Cover, HV

W10205114

Board, HV

35 67005418 Spacer, HV

36 67004969 Box, HV

37 67006550 Screw

38 12972902 Harness, HV

39 67006615 Screw (3)

40 67006737 Screw

41 67005680 Grommet (2)

42 67005491 Block, Condenser

43 67005149 Roller

44 67006434 Axle, Roller

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)

W10135026
