CABINET PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

8−07 Litho In U.S.A. (tpm) Part No. W10144700 Rev.B

REFRIGERATOR

CABINET PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

W10136989

Owners Manual

W10138143

Tag, Energy

2 M0114003 Clip

3 67003405 Plate, Pivot

4 B5759649 Gasket

5 67006118 Roller Assembly

6 12627302 Clip, Grille

7 A3076901 Plug, Bottom

8 67006611 Bolt, Adjustable

9 67006521 Screw

10 12456801 Bracket, Roller

11 67006380 Screw

12 M1205302 Pin, Roller

13 Cover, Left Hinge

12684201W

White

12684201B

Black

14 67006303 Screw

15 Hinge, Center (2)

67006379 White (RT)

67006277 White (LT)

67006443 Black (RT)

67006442 Black (LT)

16 67004092 Block, Filter

17 Cover, Corner

67003484 White

67003485 Black

12566605ED

Hinge, Top Left

19 67007174 Bracket, Foot

20 67006564 Screw

21 12579702 Shim, Hinge

22 Grille Assembly

(Includes Clips)

67006377 White

67006375 Black

23 67004102 Track, Water Line

24 M0286708 Nut, Speed

25 67006425 Screw

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 67006626 Screw

12575101ED

Cover, Unit

W10137519

Fill Tube Asm

W10137695

Power Cord

33 67003796 Insulation, Sound

34 67003868 Foot Brake

35 67006612 Bolt, Adjusting

(Rear)

36 M0104106 Clip, Tube

37 67001066 Tube, Drain

38 67001067 Clip, Drain Tube

39 M0104102 Clamp, Cord

40 Cabinet (Not a

Serviceable Part)

12566604ED

Hinge, Top Right

42 Cover, Right Hinge

12684202W

White

12684202B

Black

43 67005127 Roller

FREEZER LINER PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

FREEZER LINER PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (2)

(Includes RT & LT)

4 67003905 Cover, Light

5 67004017 Shaft

6 8170839 Socket, Light

8 67006473 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw

13 Bracket, Door

67004012 Left

67004013 Right

14 67003906 Housing, Lighting

15 67005633 Clip, Evap Motor

16 12002646 Switch, Light

18 Bracket, Basket

67004864 Left

67004865 Right

19 67006607 Slide, Drawer (2)

20 67003731 Gasket, Bottom

21 Bracket, Slide

67004014 Left

67004015 Right

22 13024802 Grille, Fan Shroud

23 67002777 Shroud, Evap Fan

24 12217201 Blade, Fan

(Evaporator)

25 67002780 Grommet (2)

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

REFRIGERATOR LINER PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

REFRIGERATOR LINER PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Bracket, Control

and Lights

3 67005949 Overlay

4 67005444 Housing,

Electronic Control

5 67005397 Electronic Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

10 8170839 Socket, Light

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermister

17 61006182 Union, Tube

19 67004091 Tank, Water

20 67002979 Dispenser

21 67006400 Screw

22 67001668 Plate, Filter

23 67006524 Head, Water

Filter Assembly

24 12568001 Cover, Filter

25 67006469 Filter, Water

26 12664501 Plug, Filter

Bypass

27 B8390302 Clip, Waterline

28 67006415 Screw

29 67005674 Facade, Dispenser

30 12575501 Switch, Limit

31 67002742 Plate, Switch

32 67002816 Clip, Water Tube

33 67002743 Guide, Water

Line

Following Parts Not Illustrated

8208197 Harness,

Damper Control

67005417 Harness, Controls

(Refrigerator)

(Includes # 16)

REFRIGERATOR DOOR PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

REFRIGERATOR DOOR PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024006W

White

13024006B

Black

W10137005

Stainless Steel

2 Bushing, Door

(Bottom Left)

67002732 White

67002721 Black

3 67003819 Compartment, Door

(Includes Item 4)

4 67001279 Tray, Dairy

5 67005672 Bin, Shelf(2)

(Medium)

6 67006786 Screw

7 67002935 Screw

8 Gasket, Door

W10137006

White

12723206B

Black

9 Door Handle

2319727W White

2319727B Black

2319727S Stainless

10 67004790 Stud, Handle

12 67005673 Bin, Shelf (2)

(Large)

14 Mullion, Door

67003434 White

67004131 Black

15 67005626 Caddy, Can

16 Closure, Door

67003638 White

67003639 Black

17 Stop, Door

12968202W

White

67007011 Black

18 Plug, Vent

10712401 White

67004838 Black

19 Bushing, Door

(Upper Left)

67002722 White

12395501B

Black

20 Bushing, Door

(Upper Right)

67004977 White

67004978 Black

21 67006287 Screw

22 Bushing, Door

(Lower Right)

67002732 White

67002731 Black

23 Door, Right

13024005W

White

13024005B

Black

W10137008

Stainless Steel

25 Nameplate

W10046670

White

W10046640

Black

W10046610

Grey

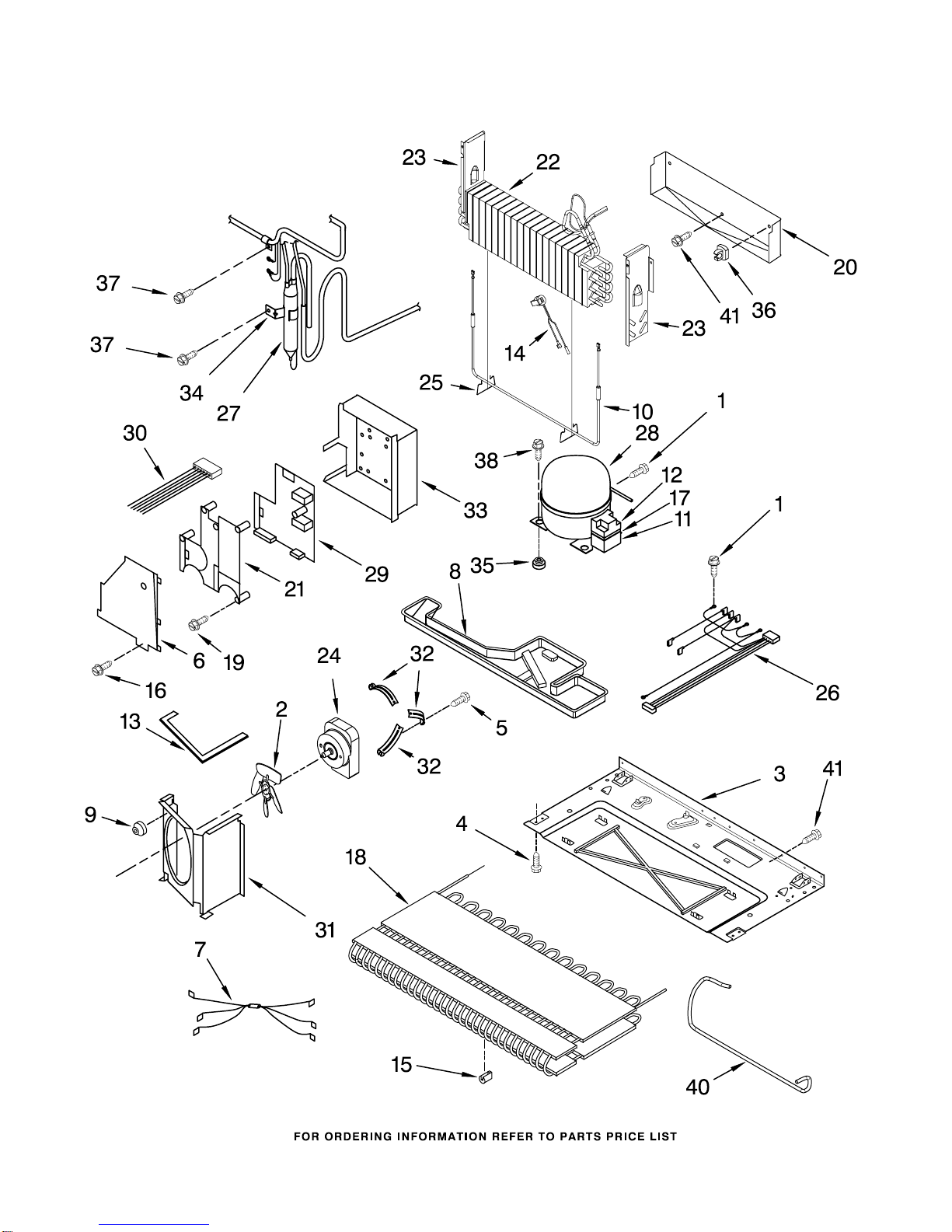

UNIT PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

UNIT PARTS

For Models: KBFS25ETWH00, KBFS25ETBL00, KBFS25ETSS00

(White) (Black) (Stainless Steel)

W10144700

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

2 67004952 Blade, Fan

3 67005889 Base

4 67006573 Screw

5 67004954 Screw

6 67005421 Cover, HV Box

7 67005679 Harness, Evap

Heater

8 67007175 Drain Pan

9 61004743 Grommet (3)

10 67002493 Evaporator Heater

11 Capacitor

(See Item # 12)

12 67005560 Overload/Relay

(Capacitor Incl.)

13 61003210 Seal

14 67003426 Bi−Metal

15 67005680 Grommet (7)

16 67006615 Screw

17 67007052 Strap

18 67006131 Condenser

19 67006550 Screw

20 67002490 Tray, Drip

21 67005719 Spacer

22 12002041 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060201 Harness, Unit

27 2317845 Drier (Service)

28 12002634 Compressor

(Includes Items

11, 12, 17,

27 & 35)

29 12782027 Control Board

30 12972902 Harness, Wiring

31 12575305 Shroud

32 67004953 Bracket, Fan Motor

33 67005718 Box, Control

34 10547003 Clip, Drier

35 67003493 Grommet (4)

36 10623002 Clip, Evaporator

37 67006737 Screw

38 67006432 Screw

40 67004700 Tube, Discharge

41 67006425 Screw

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
