KitchenAid FOR THE WAY IT'S MADE KSSS42QDX00 Manual de usuario

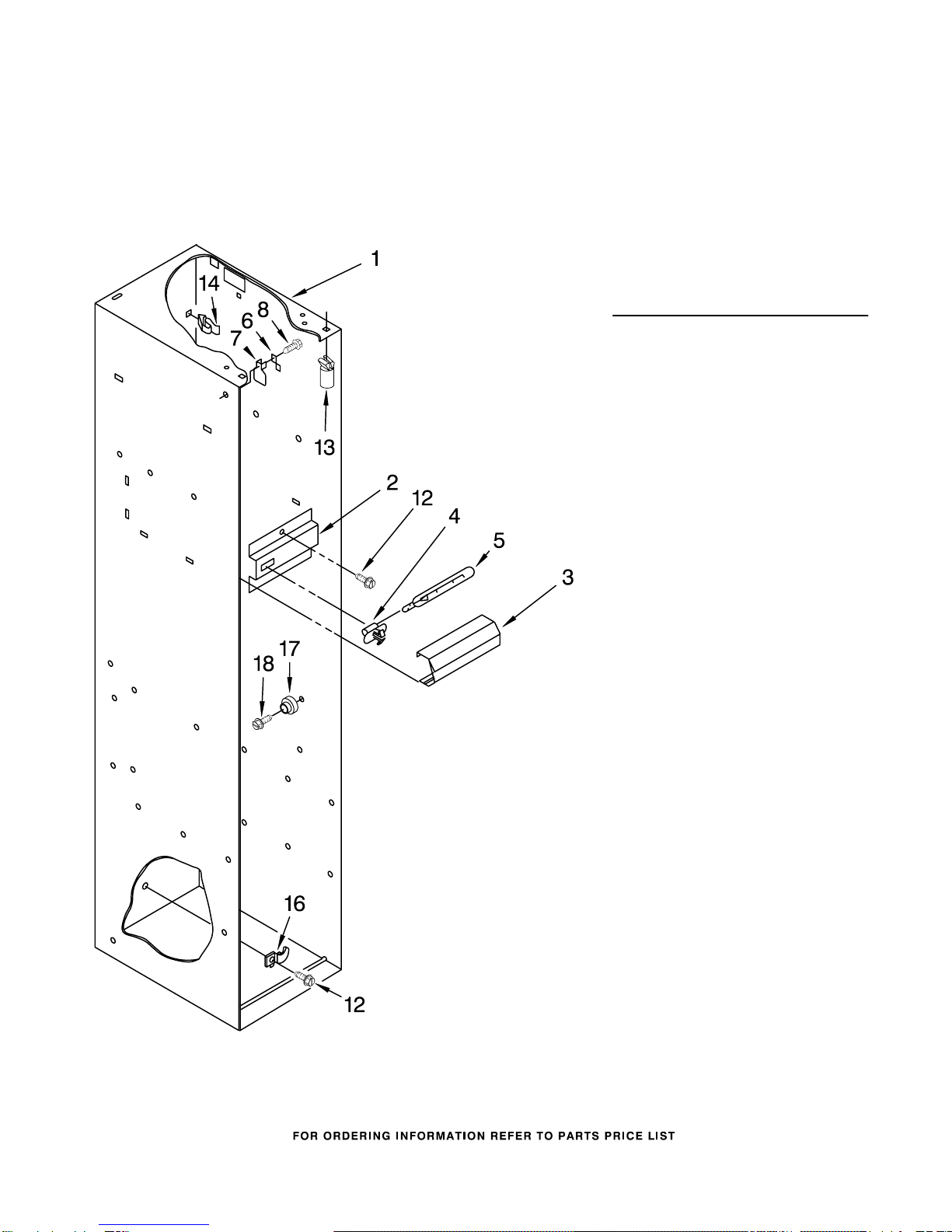

CABINET PARTS

For Model: KSSS42QDX00

5−95 Litho In U.S.A. (RCG) Part No. 4379846

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: KSSS42QDX00

4379846

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Cabinet (Not A

Serviceable Part)

1112019

Leveler, Front (2)

1112023

Roller, Front &

Rear (4)

1112695

Leveler,

Adjustable (2)

2000670

Adjusting Rod (2)

1113250

Sleeve,

Retainer (2)

1112937

Bushing, Rod (2)

489359

Screw

1112939

Hole Plug, Leveler

1112849

Cap, Grommet

2002902

Stop Screw

1113122

Grommet, Wiring

2002804

Wiring Harness,

Cabinet

1112848

Drain Fitting

2001295

Shoulder Screw

Hinge (Top)

2001976

Left Side

2001975

Right Side

2000770

Shim, Hinge

Top

1112805

Guard, Wiring

487534

Screw (2)

2002903

Bushing

1112992

Door Closer

Assembly (2)

2000333

Bracket, Door

Closer

486194

Screw

1112973

Tap Plate,

Hinge Butt (2)

1113227

Fastener (3)

Gap, Cover

Assembly (Bottom)

2003386

Left Side

2003387

Right Side

Hinge (Bottom)

2001978

Left Side

2001977

Right Side

1112942

Shim, Hinge (1)

1112943

Shim, Hinge (2)

2000490

Screw

2001266

Tube clamp

2001963

Grille Base,

Front

489238

Screw (6)

2000684

Cover, Rear

1113123

Grommet, Wiring

1113079

Grommet, Flexible

2003472

Cup, Wiring

2003474

Seal

2001377

Screw

2150347

Union

2001415

Screw (4)

489359

Screw

CABINET TRIM PARTS

For Model: KSSS42QDX00

4379846

Illus. Part

No. No. DESCRIPTION

2002194

Cabinet, Trim (2)

486194

Screw

2001297

Screw

2001189

Cabinet, Trim

(Bottom)

488649

Screw

2002229

Cabinet, Trim Top

2000007

Retainer, Unit

Base (2)

487944

Washer (2)

2002474

Retainer Clip

FREEZER LINER PARTS

For Model: KSSS42QDX00

4379846

Illus. Part

No. No. DESCRIPTION

Liner (Not A

Serviceable Part)

1113649

Bracket, Light

1113650

Lens

1112613

Light, Socket

548049

Light, Bulb

538533

Support Clip,

Icemaker (2)

2000193

Grommet, Screw (2)

488552

Screw

486194

Screw

1112591

Spacer, Control

Panel (3)

842534

Clip, Air Duct (4)

1112260

Support,

Evaporator

658944

Stud, Shelf (8)

487559

Screw

REFRIGERATOR LINER PARTS

For Model: KSSS42QDX00

4379846

REFRIGERATOR LINER PARTS

For Model: KSSS42QDX00

4379846

Illus. Part

No. No. DESCRIPTION

LINER (Not A

Serviceable Part)

1112591

Spacer, Control

Panel (3)

2001117

Ladder, Shelf (2)

520965

Screw Support,

Ladder (8)

488357

Screw

486194

Screw

1112257

Hole Plug

2000740

Meat Pan, Air

Duct Cover

2000337

Meat Pan, Air Duct

2003299

Inlay, Control

Meat Pan

2001326

Seal, Air Duct

1112218

Damper Control,

Meat Pan

2001735

Control Knob,

Meat Pan

837444

Retainer, Knob

2000343

Air Baffle

Assembly

2001073

Wiring Harness,

Air Baffle

2001146

Seal

1116793

Cover, Thermistor

1116959

Thermistor

2000736

Air Baffle Cover

2000527

Guard, Air Return

REFRIGERATOR CONTROL PANEL PARTS

For Model: KSSS42QDX00

4379846

Illus. Part

No. No. DESCRIPTION

1112641

Control Panel

2003302

Inlay, Control

Panel

2000789

Circuit Board

2001738

Control Knob

837444

Retainer, Knob

1118894

Switch, Rocker Arm

1113135

Seal, Control

Panel

489260

Screw (3)

2000153

Hole Plug (3)

1113774

Shield, Control

Panel

1112613

Socket, Light (2)

548049

Light Bulb (2)

486194

Screw

2001074

Control, Harness

2001141

Channel, Wiring

1115375

Clip, Wiring (2)

FREEZER CONTROL PANEL PARTS

For Model: KSSS42QDX00

4379846

Illus. Part

No. No. DESCRIPTION

1113626

Control Panel

2003308

Inlay, Control

Panel

1113466

Thermostat &

Barrier Assembly

488974

Screw (2)

1115373

Switch, Rocker Arm

1113134

Seal, Control

Panel

489260

Screw (3)

2000153

Hole Plug (3)

1113768

Shield, Control

Panel

1112613

Socket, Light

486194

Screw

548049

Light Bulb

2001973

Channel, Wiring

2001737

Knob, Thermostat

1115375

Clip, Wiring

REFRIGERATOR SHELF PARTS

For Model: KSSS42QDX00

4379846

REFRIGERATOR SHELF PARTS

For Model: KSSS42QDX00

4379846

Illus. Part

No. No. DESCRIPTION

2174403

Frame, Shelf

2003376

Glass, Shelf

1113547

Reflector, Shelf

1113791

Gasket, Glass

2179375

Rack, Wine

2164372

Egg Bin

2003326

Frame, Assembly

Meat Pan

2164373

Egg Carrier

1113894

Cover, Crisper

2003379

Glass, Crisper

(Includes #9)

2000742

Meat Pan,

Connector

2164374

Cover

489212

Screw

2003316

Crisper Pan (2)

2174388

Roller

1113871

Eyelet, Roller

489211

Screw

488307

Washer

2003321

Meat Pan

2002181

Retainer, Glass

2003411

Crisper Spacer,

Right Side (2)

1113169

Stop, Roller

2003410

Crisper Spacer,

Left Side (2)

486194

Screw
