OVEN PARTS

For Model:KDRP462LSS05

(Stainless Steel)

11−03 Litho in U.S.A. (cre) Part No. 8186165

36" KITCHENAID

FREE STANDING RANGE

DUAL FUEL W/GRILLE

OVEN PARTS

For Model:KDRP462LSS05

(Stainless Steel)

8186165

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Literature Parts

LIT8301169

Installation

Instructions

LIT4456611

Use & Care Guide

LIT4456556

Tech Sheet

LIT8301171

Conversion

Instructions

LIT3191638

Safer Cooking Tips

2 4449809 Screw, 8−18 x 3/8

5 4449746 Screw

6 4452260 Spacer, Foam

7 8301469 Top, Chassis

8 4448520 Bumper, Door

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

14 8300150 Frame, Front

15 8300142 Gasket, Door

16 4452152 Bracket, Mounting

19 8300184 Support, Insulation

21 4455510 Bracket, Support

24 8302156 Latch, Motorized

25 4455641 Side, Chassis

26 8300193 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

30 4449154 Screw, 8−32 x .440

31 4449040 Screw, 8−18 x 3/8

32 3196176 Screw, 8−18 x 1/2

37 8300802 Thermostat (TOD)

(Temp.) SPST

43 8300965 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8300158 Insulation, Wrap

8300159 Insulation, Back

OVEN DOOR PARTS

For Model:KDRP462LSS05

(Stainless Steel)

8186165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300152 Door Liner

2 Hinge, Door

8300579 R.Side

8300580 L.Side

3 4449259 Glass, Inner

4 8300797 Insulation, Door

5 8300190 Retainer, Glass

7 4449263 Glass, Inner

8 4449743 Screw, 8−32 x 3/8

9 4451668 Retainer, Glass

12 8300172 Assy, Door Glass

13 4455852 Door Handle

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

3400832 Screw

19 8301089 Shield, Heat

20 4449809 Screw, 8−18 x 3/8

21 8300153 Seal, Door Top

23 4451432 Retainer, Clip

3400832 Screw

24 3196184 Screw, 8−32 x .548

INTERNAL OVEN PARTS

For Model:KDRP462LSS05

(Stainless Steel)

8186165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4456105 Element, Broil

4449154 Screw

3 3195996 Grill, Broiler

4 3196076 Pan, Broiler

5 3181534 Rack, Roasting

6 8300796 Rack, Oven

7 8300204 Element, Hidden

Bake

9 4451583 Motor, Convection

10 4452226 Blade, Fan

11 4448418 Cover, Fan

12 4452227 Nut

13 4452157 Element,

Convection

14 8300799 Tray, Hidden

Bake

15 8300800 Cover, Access

16 4449154 Screw, 8−32 x .440

17 4449809 Screw, 8−18 x 3/8

CONTROL PANEL PARTS

For Model:KDRP462LSS05

(Stainless Steel)

8186165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300208 Panel, Control

2 4453000 Bracket, Display

3 8300805 Bracket, Display

Mounting

4 3196537 Screw, 8−18 x 3/8

5 8300203 Control, Zodiac

6 3196184 Screw, 6−19 x 1

7 4452842 Switch, Rocker

8 4452999 Module, Display

9 2004333 Palnut

10 2005292 Nameplate

11 8301491 Face, Control

Panel

12 4455192 Bezel, Knob

13 4454970 Knob, Control

14 4455115 Knob, Temp/Time

15 4455141 Knob, Selector

16 4452998 Button, Cancel

17 4452997 Button, Enter

18 4455719 Spacer Ring

19 4455806 Glass, Display

20 3192439 Seal, Limiter

21 8285005 Bracket, Spark

Module

22 8522426 Module, Spark

23 3400843 Screw

24 8284742 Knob, Grill

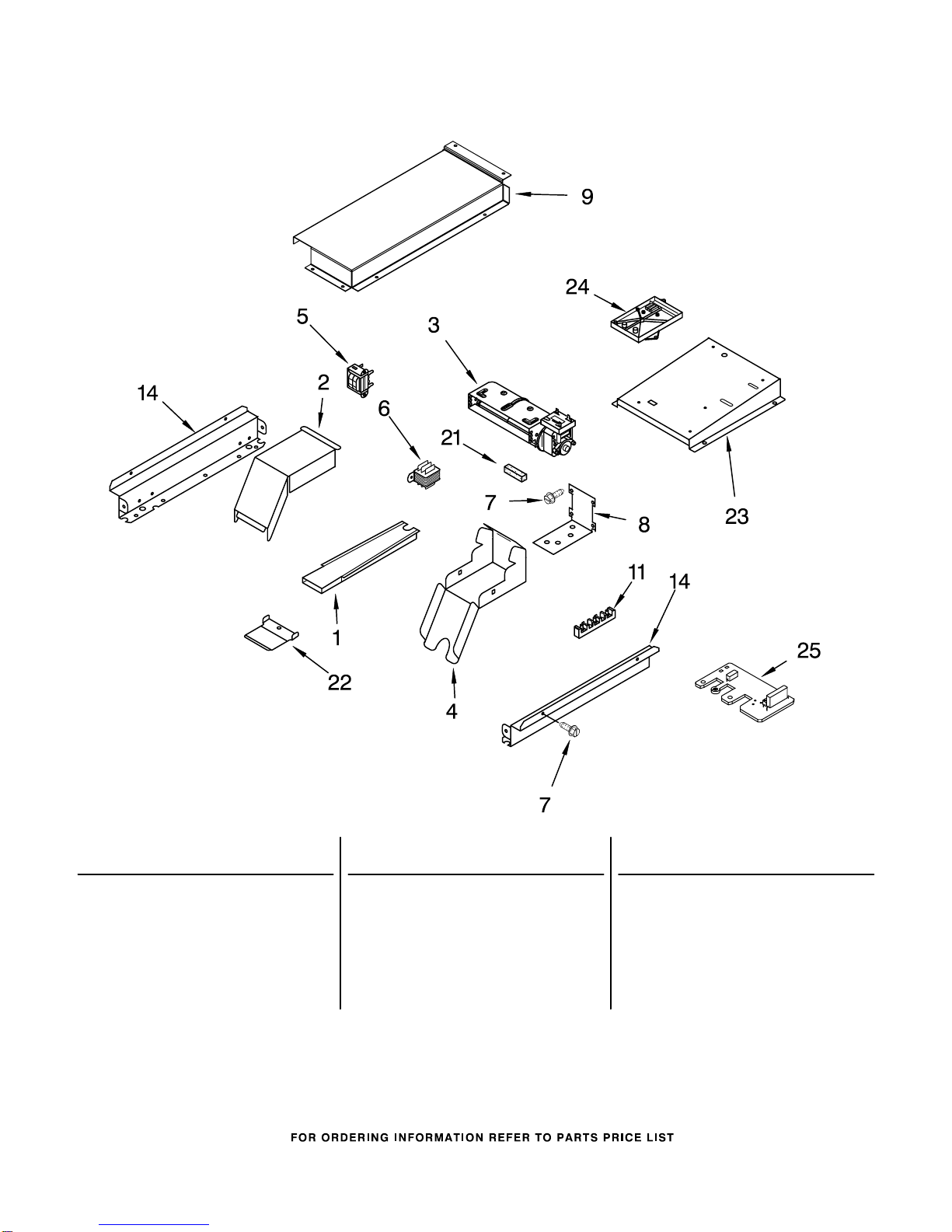

TOP VENTING PARTS

For Model:KDRP462LSS05

(Stainless Steel)

8186165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 8300223 Blower 60MM

4449809 Screw (4)

3400015 Screw (1)

4 4455177 Elbow, Vent−Bottom

5 6610122 Transformer, Light

6 8300642 Transformer,

Control

7 4449809 Screw, 8−18 x 3/8

8 4455352 Bracket, Blower

9 8301632 Box, Blower

11 4449868 Block, Terminal

14 4452442 Side, Control Top

21 4451758 Seal, Foam

22 4452489 Deflector, Vent

Box

23 8301489 Bracket, Control

Mounting

24 8300795 Control, Zodiac

25 4451985 Suppressor

3400080 Screw (4)

COOKTOP, BURNER AND GRATE PARTS

For Model:KDRP462LSS05

(Stainless Steel)

8186165

COOKTOP, BURNER AND GRATE PARTS

For Model:KDRP462LSS05

(Stainless Steel)

8186165

Illus. Part

No. No. DESCRIPTION

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 8284851 Trim, Island

8 8301056 Support, Control

Panel

9 8301041 Cover, Control

Panel

10 8284741 Grate, Grill

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

15 Holder, Orifice

Includes Orifice

4456622 Turbo (2)

4456920 Auxillary (2)

16 4454974 Support Rail

R.H.& L.H.

18 4456964 Cooktop, Black

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

25 3196176 Screw

28 4455109 Plate, Simmer

30 8284918 Frame, Wave Tray

31 8284919 Plate, Wave

32 8284917 Plate, Wave tray

3177991 Screw

BURNER BOX, GAS VALVES, AND SWITCHES

For Model:KDRP462LSS05

(Stainless Steel)

8186165

BURNER BOX, GAS VALVES, AND SWITCHES

For Model:KDRP462LSS05

(Stainless Steel)

8186165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300231 Tubing, Gas

Burner − RF

2 8300230 Tubing, Gas

Burner − RR

3 8300156 Tube, Manifold to

Regulator

5 8300187 Tubing, Gas

Burner − LF

6 8300188 Tubing, Gas

Burner − LR

7 8301045 Manifold

4449809 Screw

4450118 Nut

(Includes Items

#9 & #30)

8 4456818 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

10 4456904 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4453033 Regulator,Pressure

12 4457090 Burner Box

13 8301705 Bracket, Griddle

Valve

14 8301058 Valve, Griddle

15 Side, Burner Box

8285607 Right Hand

8285606 Left Hand

16 4456962 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456816 Valve, Burner

Auxillary

Shelf

24 4455922 Cover, Panel

25 8301292 Box, Burner

Lower

26 8284960 Guard, Rear Spill

27 3400843 Screw

28 8301066 Tube, Grill

29 4456819 Valve, Gas Grill

30 8284796 Plug, Manifold

31 4457145 Harness, Switch

Grill

32 8284787 Module, Grill

33 8284968 Bracket, Ignitor

34 8284941 Ignitor, Grill

35 3400855 Screw

36 8285052 Log Burner, Grill

37 8284900 Deflector

38 8284791 Tray, Drip

39 8285030 Guard, Spill

40 Adapter

4453115 1/2" Female

4453116 /2" Male

41 4456499 Assy, Outlet Tube
