KitchenAid KERS807SBL - 30 Inch Electric Range Manual de usuario

COOKTOP PARTS

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

2−11 Litho in U.S.A. (JMJ) (eeb) Part No. W10283311 Rev. B

30" FREE STANDING

ELECTRIC OVEN

SELF CLEAN

COOKTOP PARTS

2W10283311

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10118260

Installation

Instructiions

W10190622

Use & Care Guide

W10220962

Tech Sheet

9763467 Easy Set Guide

9757680 Anti−Tip

Instructions

Safe Cooking Tips

9762761 English

W10065852

French

2 9762768 Clip, Retainer (3)

3 9761784 Frame, Cooktop

Side

4 Cooktop

W10110276

Black/Stainless

W10110274

White

6 Trim, Cooktop

Right

W10110687

Black

W10110685

White

W10140550

Stainless

Left

W10110682

Black

W10110680

White

W10140549

Stainless

W10076030

Gasket (2)

8 8523739 Light, Indicator

9 9759944 Thermostat

10 9756821 Support, Wiring

11 9757825 Rail, Element

Center (1)

12 Element, Surface

8523696 RF

W10203294

4453909 LF, RR

13 9761423 Frame, Cooktop

Front

14 3196537 Screw

15 341196 Thermostat

16 3179559 Screw

17 9758799 Bracket, Indicator

Lamp

18 Backsplash

W10109750

Black

W10109740

White

W10156267

Stainless

19 9759094 Spring, Locator

20 9761783 Frame, Cooktop

Rear

21 9763517 Rail, Element (3)

22 246119 Screw

23 9761724 Cover, Cooktop

Rear

24 Gasket, Backsplash

9763483BL

Black/Stainless

9763483GY

White/Biscuit

25 Glass, Backsplash

9761749BL

Black/Stainless

9761749WH

White

W10153092

Panel, Backsplash

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

OVEN PARTS

W10283311

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

OVEN PARTS

4W10283311

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

Right

W10109540

Black

W10109570

White

W10140548

Stainless

Left

W10109490

Black

W10109520

White

W10140547

Stainless

2 3400832 Screw

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 3196537 Screw

6 3179559 Screw

7 8303099 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10067870

Lens, Light (2)

W10009930

Oven Light,

Assembly (2)

12 4452166 Bulb, Light (2)

13 4449154 Screw

W10115831

Frame, Front

W10074200

Gasket, Door

16 9757829 Bracket,

Transformer

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 4451478 Support, Insulation

20 Body, Side

9760723PB

Black/Stainless

9760723PW

White

21 9757461 Bracket,Side Panel

W10195934

Latch, Motorized

23 9759242 Thermostat

24 9757811 Brace, Side Panel

25 4455641 Side, Chassis

26 9759761 Back, Chassis

27 Liner, Oven

(Not Serviceable)

28 9759890 Clip, Side Panel

W10131825

Sensor

31 3196176 Screw

33 9759713 Base, Chassis

34 4448933 Retainer, Gasket

35 4448444 Grommet,

Mounting Rail

36 Vent, Bottom Upper

Assembly

W10116899

Black

W10116897

White

W10160347

Stainless

37 Vent, Bottom Lower

W10153486

Black

W10153488

White

W10154789

Stainless

38 4449743 Screw

W10111628

Transformer,

Control

43 3400080 Screw

W10165135

Box, Terminal

45 9757405 Cover, Termianl

Box

46 9759721 Insulator,

Termianl Box

47 9761958 Block, Terminal

W10181438

Appliance,

Manager

W10083460

Slide, GOC

50 9756454 Bracket, Appliance

Manager

51 9759884 Insulation

52 9759722 Insulation, Body

Side

53 9760481 Washer

54 9758583 Cover, Back

55 9759885 Pad,

Insulation(2)

56 9759945 Standoff, Rear

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

DOOR PARTS

W10283311

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

DOOR PARTS

6W10283311

Illus. Part

No. No. DESCRIPTION

1 9759413 Panel, Door

2 9757706 Glass, Inner

3 4451722 Insulation, Door

4 4457132 Retainer, Glass

5 Hinge, Oven Door

9760579 Right

9760580 Left

6 9759225 Glass, Inner

7 4457114 Shield, Heat

Bottom

8 9759229 Bracket, Glass

Side

9 4457104 Shield, Heat Top

10 9759225 Glass, Inner Door

11 9759230 Bracket, Central

12 Bracket, Handle

9763497 Right

9763496 Left

13 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

14 Assembly, Door

Kit

W10131888

Black

W10131889

White

W10155557

Stainless

15 Handle, Door

8303774BL

Black

8303774WH

White

8303774SS

Stainless

16 3196184 Screw

19 4448520 Bumper, Door

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

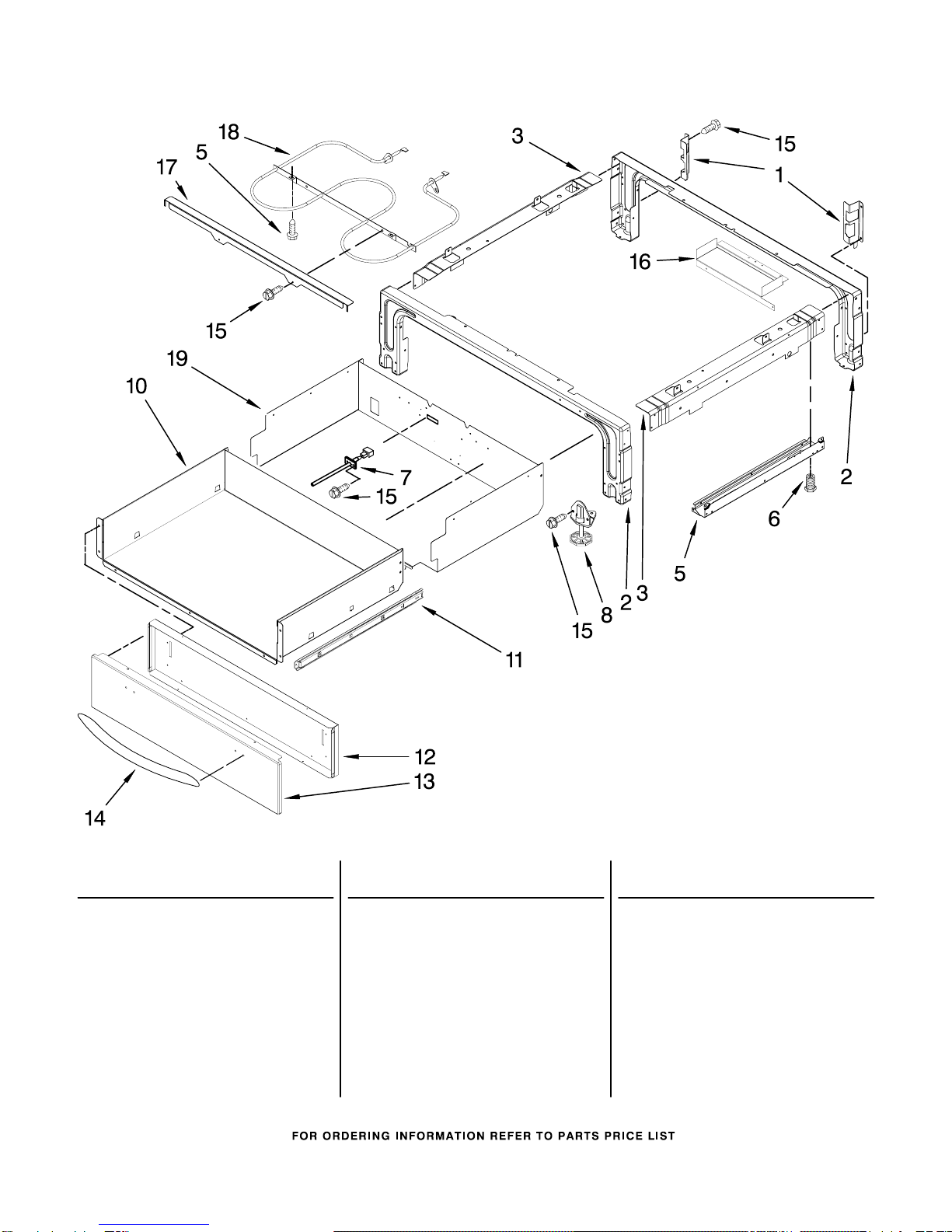

DRAWER PARTS

W10283311

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Drawer

Rail

9757687 Right

9757686 Left

9763501BL

Support, Front

& Rear

3 Brace, Drawer

4453720 Right

4453721 Left

5 Side, Base

9759953 Right

9759954 Left

W10058460

Foot

7 8274149 Thermistor

8 3196037 Foot Assembly

W10164164

Drawer

11 Drawer Slide

W10155633

Right

W10155632

Left

W10144431

Panel, Drawer

13 Front, Drawer

W10203760

Black

W10203762

White

W10203763

Stainless

14 Handle, Drawer

9761573BL

Black

9761573WH

White

9761573SS

Stainless

15 3196537 Screw

W10153100

Cover, Terminal

17 9758676 Support, Element

18 9760775 Element, Warming

Drawer

19 9763518 Enclosure, Warming

Drawer

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

CONTROL PANEL PARTS

8W10283311

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Control Panel

9761551BL

Black

9761551WH

White

W10156268

Stainless

2 Switch, Infinite

9763761 RF

9763762 LR,LF,RR

W10181439

Control, Electric

W10105370

Shield, Console

Vent

5 3196068 Lens, Indictor (2)

6 3179559 Screw

7 9761745 Bracket,

Thermostat (2)

W10116195

Gasket, Vent

Shield

9 Knob

W10193259

Black

W10193257

White

W10156261

Stainless

LR,LF,RR

W10193255

Black

W10193253

White

W10156260

Stainless

10 3196537 Screw

11 9780271 Screw

W10109430

Gasket, Console

13 9761566 Membrane, Switch

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

INTERNAL OVEN PARTS

W10283311

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 4449154 Screw

W10179152

Rack, Oven

7 9760768 Element, Bake

8 9755542 Probe, Meat

9 9760769 Element,

Convection

10 9756690 Cover, Fan

11 4455037 Tray, Hidden Bake

12 4450039 Cover, Bake Tray

W10116228

Motor, Convection

W10116349

Nut

W10116351

Blade, Fan

16 9755543 Jack, Meat Probe

17 9755547 Lock Washer

18 9755546 Hex Nut

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)

TOP VENTING PARTS

10 W10283311

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent Top

3 9759320 Blower

4 4451758 Block, Foam

5 4455177 Elbow, Vent Bottom

W10143041

Bracket, Terminal

Box

7 4449809 Screw (2)

10 4449040 Screw

11 4455352 Bracket, Blower

For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03

(Black) (Pure White) (Stainless)
