CABINET LINER AND DOOR PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

7−05 Litho In U.S.A. (djc) Part No. 8197842 Rev. A

ICE CUBE

MAKER

CABINET LINER AND DOOR PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2217251 Use & Care Guide

2217232 Service &

Wiring Sheet

2 3400886 Screw 8−18 X 1 1/4

3 2208354 Bin, Door

4 2185678 Spacer

5 2185575 Cover, Wiring

6 489442 Screw

7 Panel, Exterior

2208352W (White)

2208352T (Biscuit)

2208352B (Black)

2208352S (Stainless Steel)

8 2208353 Panel, Interior

9 489385 Clamp, Tube

10 2208377 Insulation

11 2217227 Ballast−Back, I.M.

12 2208368 Gasket, Top

13 Bracket, Door

2208376 (Left Side)

2208375 (Right Side)

14 2208483 Clamp

15 2208361 Gasket, Door

16 2208535 Clip

17 Nameplate

2212760 (White)

2212761 (Biscuit)

2212762 (Black)

18 Hinge

2208425 (Left Side)

2208426 (Right Side)

19 2208401 Shim, Hinge

20 Handle, Door

2208440W (White)

2208440T (Biscuit)

2208440B (Black)

21 8281184 Screw 8−18 X 1/2

22 2208399 Assembly,

Unit Cover

23 Screw, Handle

8281188 (White)

8281187 (Biscuit)

8281186 (Black)

24 Top, Cabinet

2929701W (White)

2929701T (Biscuit)

2929701B (Black)

25 2217225 Pad, Foam

26 2185691 Channel, Wiring

27 Endcap, Door

2208350W (White)

2208350B (Black)

2208350T (Biscuit)

28 2208453 Tube, Drain

29 2208386 Scoop

30 3400884 Screw 8−18 X 5/8

31 2208421 Clip

32 Panel, Lower

2208382W (White)

2208382B (Black)

2208382T (Biscuit)

2208382S (Stainless Steel)

33 2208487 Bracket, Spring

34 2208417 Pin, Hinge

35 489048 Screw, Ground

8−32 X 1/2

36 2208480 Spring, Hinge

37 Endcap, Panel

2208383W (White)

2208383B (Black)

2208383T (Biscuit)

38 2208529 Dampener, Spring

39 489423 Screw 10−32X11/16

40 2208449 Holder, Scoop

42 3376439 Leg, Leveler

43 2208384 Insulation

45 2185690 Shield, Electrical

47 Grill, Front

2217206W (White)

2217206T (Biscuit)

2217206B (Black)

48 489474 Screw 8−18 X 1

49 Cabinet & Liner

(NOT SERVICED)

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842

EVAPORATOR ICE CUTTER GRID AND WATER PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842

Illus. Part

No. No. DESCRIPTION

1 2217311 Valve, Complete

Water

2 2217286 Tube, Plastic

3 488687 Screw 8−15 X 5/8

4 2185523 Dispenser, Water

5 2208420 Evaporator

6 627018 Nut, Compression

7 841707 Insert, Tube

8 2172593 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208539 Fastener, Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2185673 Hose, Overflow

16 2208372 Support,

Reservoir Bracket

17 2185615 Bracket, Front

and Rear

18 2185611 Bracket, Side

Left and Right

19 2185681 Harness, Grid

20 2208427 Support, Bracket

Evaporator/Grid

21 2217310 Guide, Ice Grid

22 2208533 Tube

23 8281193 Screw

26 3400886 Screw 8−18 X 1 1/4

28 2185614 Grid Assembly

(Complete)

39 2174754 Wire, Grid Cutter

40 8281192 Screw

41 2208365 Cover, Grid

42 8281228 Thumbscrew

43 2185624 Reservoir, Water

44 3400884 Screw 8−18 X 5/8

45 2185696 Cap, Drain

46 3400909 Nut, Push−In

PUMP PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842

Illus. Part

No. No. DESCRIPTION

1 2217220 Pump, Water

(Complete)

2 3400884 Screw 8−18 X 5/8

12 2185677 Cover, Pump

13 2185585 Bracket, Connector

Assembly

CONTROL PANEL PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2185657 Transformer

3 2185592 Assembly, Switch

(ALSO ORDER #4)

4 2208317W Overlay

5 6100499 P.C. Board

6 2149705 Switch, Plunger

7 2185694 Lens, LED

8 2185692 Wiring Harness

Grid/ Light

9 745362 Bulb

10 2185788 Clamp

11 2187286 Wiring Harness,

Complete Unit

(Includes

Power Cord)

12 2217288 Thermostat, Bin

13 2185825 Clamp

14 2185703 Wiring Harness,

Main to Pump,

15 3400884 Screw 8−18 X 5/8

16 2187256 LED Assembly

18 3400850 Screw 8−16 X 3/8

20 2185680 Thermister,

Ice Control

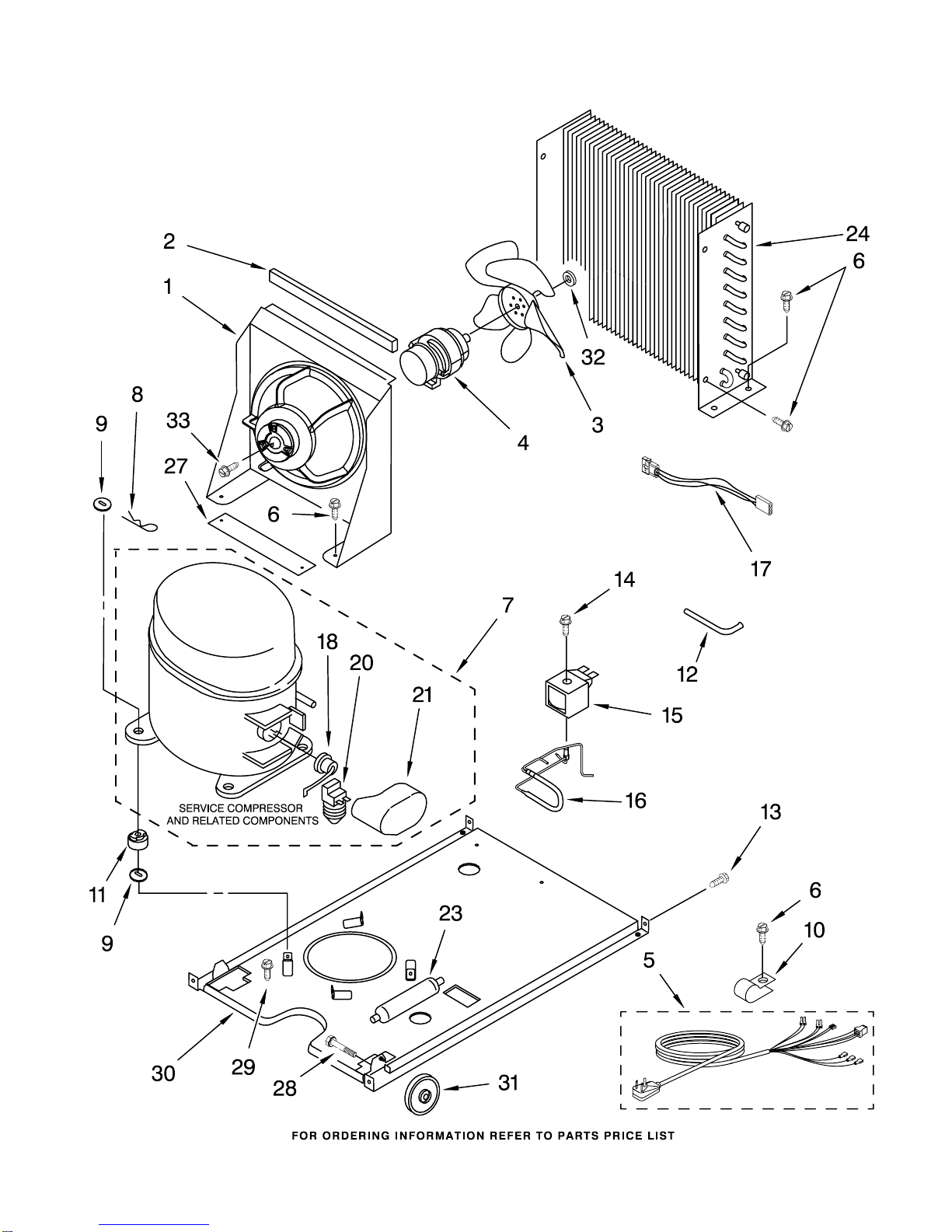

UNIT PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842

UNIT PARTS

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842

Illus. Part

No. No. DESCRIPTION

1 2185532 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2190685 Blade, Fan

4 2188537 Motor, Fan

5 Wiring Harness,

Complete Unit

(See #11 On

Control Panel

Parts Page)

6 304392 Screw 8−18 X 1/2

7 2208490 Compressor

8 A201435 Clip, Mounting

9 A201441 Shim (8)

10 2185960 Clamp (Power Cord)

11 2185965 Grommet (4)

12 2208415 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 2208413 Valve, Body

17 2187267 Wiring Harness,

Condenser Fan

18 2217223 Overload

20 2217224 Relay, Start

21 2208371 Cover, Terminal

23 2209223 Drier

24 2185529 Condenser

27 2185858 Pad, Foam (2)

28 3370389 Screw 10−32X15/16

29 488500 Screw, Ground

8−32 X 3/8

30 2217205 Base, Unit

31 302819 Wheel

32 486692 Nut, Speed

33 489494 Screw 8−32 X 3/4

REFRIGERANT CHARGE

6.5 OZ. (R134A)

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

8171307 Cleaner, Icemaker

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

For Models: KUIS185JWH2, KUIS185JBT2, KUIS185JBL2, KUIS185JBS2

(White) (Biscuit) (Black) (Stainless Steel)

8197842
