KitchenAid KUIS185GBT0 Manual de usuario

CABINET LINER AND DOOR PARTS

ICE CUBE

MAKER

For Models: KUIS185GBT0

(BISCUIT)

7-99 Litho In U.S.A. (RJS) Part No. 4398115 Rev.A

CABINET LINER AND DOOR PARTS

For Models: KUIS185GBT0

(BISCUIT)

4398115

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2181180 Shell

2 2175619 Front, Shell

3 756330 Door, Inner Bin

4 758655 Liner, Door

5 593192 Plug, Hinge

6 593104 Strip, Tapping (2)

7 2181190 Trim, Door (2)

8 593184 Rail, R.S.

593185 Rail, L.S.

9 681459 Screw,

8-32 x 5/8 (6)

10 758492 Washer (2)

11 759213 Tube, Water Fill

12 2180752 Liner (Includes

Nos. 10, 11, 17,

19, 21, and 35)

13 2172898 Gasket, Bottom

14 596023 Clamp (2)

15 758921 Gasket

16 487909 Screw #8 x 1/2

17 596807 Grommet

18 756891 Insulation,

Bottom, Foam

19 681542 Nut

20 2181187 Handle, Door

21 758220 Stud (2)

22 593183 Well, Bin

Thermostat

23 596812 Clip, Panel (12)

24 2181189 Pocket, Handle

25 2181188 Panel, Exterior

26 2181194 Panel, Outer

28 593577 Connector, Hose

29 585158 Scoop

30 680811 Screw, 10-32 x 3/8

32 2181157 Harness, Cabinet

34 680930 Thumbscrew,

10-1/2

35 596715 Well Nut (3)

36 2181196 Trim, Side (2)

37 758608 Insulation, Door

38 681196 Screw

39 681419 Thumbscrew

42 681613 Washer

44 2181195 Trim, Top

And Bottom

47 2181193 Grill, Front

49 758771 Panel, Inner

51 2181191 Trim, Door

(Lower)

52 2175604 Support, Front

53 489482 Retainer, Wire

FOLLOWING PARTS

NOT ILLUSTRATED

OPTIONAL PARTS NOT INCLUDED

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

LITERATURE PARTS

LIT2181092

Use & Care Guide

LIT2175675

Instructions,

Installation

LIT2180830

Service and Wiring

Sheet

EVAPORATOR ICE CUTTER GRID AND WATER PARTS

For Models: KUIS185GBT0

(BISCUIT)

4398115

EVAPORATOR ICE CUTTER GRID AND WATER PARTS

For Models: KUIS185GBT0

(BISCUIT)

4398115

Illus. Part

No. No. DESCRIPTION

1 759296 Valve, Complete

Water

2 585856 Tube, Plastic

3 758597 Plug (2)

4 1129798 Dispenser, Water

5 2181203 Evaporator

6 2174726 Spacer, Adjustable

(Side)

7 2174724 Spacer, Adjustable

(Front)

8 759213 Tube, Water Fill

9 489049 Screw 10-12 x 1/2

10 756564 Bracket, Grid

Mounting (2)

12 489443 Screw

13 585853 Shelf, Water Pan

15 759109 Hose, Overflow

16 596037 Screw, 10-32 x 1/2

17 2174725 Spacer, Fixed

(Rear)

18 2174727 Spacer, Fixed

(Side)

19 2174750 Harness, Grid

20 587662 Clamp

21 681676 Nut, Wing

22 841707 Insert

23 627018 Nut & Sleeve

Assembly

24 758488 Harness, Light

25 758490 Bracket, Lamp

26 681611 Thumbscrew

27 745362 Bulb

28 2174752 Grid Assembly

(Complete)

29 758489 Shield, Light

37 681245 Washer

38 2165477 Adapter

39 2174754 Wire, Grid Cutter

41 593171 Panel, Grid

42 681534 Thumbscrew,

10-32 x 5/8

43 756659 Pan

44 681419 Thumbscrew,

10 x 1/2

45 759043 Stopper, Water

Pan

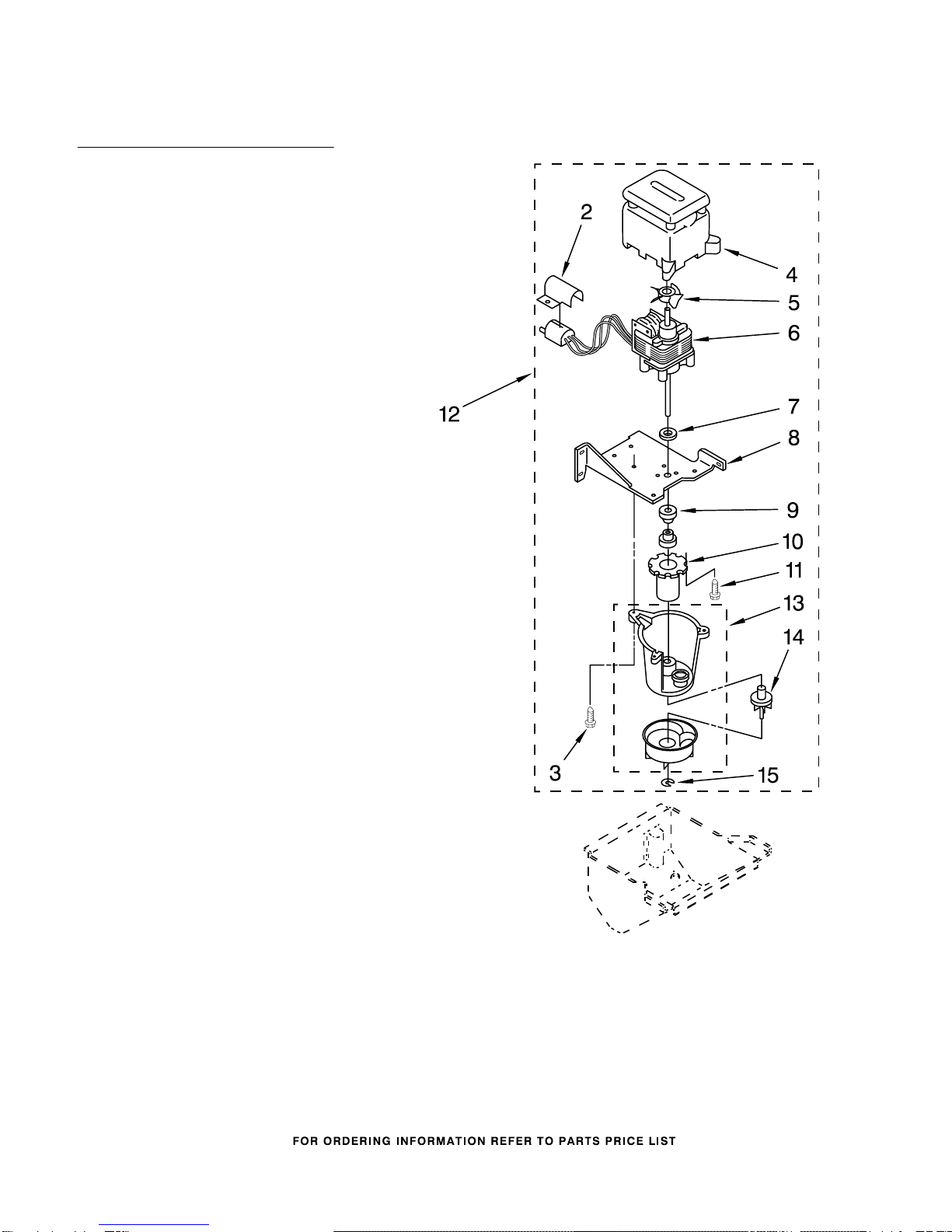

PUMP PARTS

For Models: KUIS185GBT0

(BISCUIT)

4398115

Illus. Part

No. No. DESCRIPTION

2 756124 Cover, Plug

3 681391 Screw, 8-18 x 3/4

4 583155 Housing, Motor

5 587096 Blade, Fan

6 1127834 Motor, Pump

7 583424 Washer

8 756122 Bracket, Pump

9 596016 Grommet (2)

10 593229 Sleeve

11 681390 Screw, 8-32 x 3/8

12 756782 Pump, Water

(Complete)

13 583518 Pump

14 583426 Impeller (Includes

Retaining Ring 15)

15 681301 Ring, Retainer

ESCUTCHEON AND CONTROL COMPONENTS

For Models: KUIS185GBT0

(BISCUIT)

4398115

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 2165483 Transformer

3 2165530 Escutcheon, Panel

4 2181045 Switch, Service

5 2172846 Bracket, Control

7 595005 Screw, 8-32 x 1/4

9 2181183 Escutcheon

11 759308 Thermostat,

Evaporator

12 759309 Thermostat, Bin

Control

13 681245 Washer

14 487909 Screw #8 x 1/2

15 681036 Screw

19 758567 Harness, Grid

20 2181185 Knob

21 2181182 Latch

22 680964 Screw, 8-32 x 1/2

UNIT PARTS

For Models: KUIS185GBT0

(BISCUIT)

4398115

UNIT PARTS

For Models: KUIS185GBT0

(BISCUIT)

4398115

Illus. Part

No. No. DESCRIPTION

1 2180948 Shroud

2 680811 Screw

3 572728 Blade, Fan

4 1108089 Motor, Fan

5 560817 Bracket

6 681305 Screw,

1/4-20 x 1/2 (6)

7 2176659 Compressor

8 680233 Screw (4)

9 595230 Washer (4)

10 585564 Sleeve (4)

11 596355 Grommet (4)

12 2154109 Tube, Process

14 489472 Screw

15 759112 Coil, Solenoid

16 759113 Valve, Body

18 2183404 Overload

20 2183410 Relay, Start

21 2162358 Cover, Terminal

23 2180801 Drier

24 2180808 Condenser

25 2180807 Accumulator

27 758811 Deflector, Front

29 681167 Screw, 8 x 3/8

30 2180938 Base, Unit

32 681650 Conical Washer

1/4-20 Hex

33 489199 Screw

REFRIGERANT CHARGE

6.75 OZ. (R134A)
