KitchenAid KFRU488VSS00 Manual de usuario

GRILL PARTS

KitchenAid

For Model: KFRU488VSS00

(Stainless Steel)

12−09 Litho in U.S.A. (rek) (psw) Part No. W10270307 Rev.A

48" CARTED GRILL

GRILL PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175731

Use & Care Guide

W10244182

Cover, Rear(2)

W10244183

Panel, Rear

W10244332

Panel, Access

W10247108

Bracket, Panel

Left

W10247107

Bracket, Panel

Right

W10247109

Bracket, Warming

Rack

W10128637

Cover, Access

Panel

W10244338

Clip, Wire

10 Not Serviced

W10247110

Hole Plug

W10244959

Panel, Side Left

W10244962

Bracket, Grease

Tray (Right)

W10128655

Roller, Drip Tray

W10244966

Drip Tray Assy

(Includes Rollers)

W10244965

Bracket, Grease

Tray (Left)

W10244195

Flex Tube,

Manifold

W10244963

Tray, Grease

W10140245

Harness, Wire

Light

W10285657

Nameplate

W10285660

Knob, Main Burner

W10134822

Knob, Rear Burner

W10128756

Bezel, Knob

W10244964

Tray, Grease

W10244947

Panel, Control

W10140236

Harness, Wire

Control

W10244954

Valve, Main Brnr

W10244951

Valve, Rear Brnr

W10244173

Spring, Hood

W10244957

Manifold

W10244958

Baffle, Front

W10140257

Washer, Flat

W10244341

Side Panel, Right

W10244340

Panel, Outer (RT)

W10128660

Handle, Shelf

W10128777

Thermometer

W10128779

Bezel, Thermometer

W10247023

Panel, Grease Tray

W10140208

Handle, Hood

W10128785

Endcap, Handle

(Left)

W10128786

Spacer, Handle

W10128787

Endcap, Handle

(Right)

W10128788

Hinge, Lid

W10244172

Hood

W10247115

Transformer,

Rotisserie Motor

W10247106

Bracket, Spit

W10128659

Bracket, Handle

W10136946

Shelf, Side (LF)

W10128662

Bar, Tool

W10246810

Regulator (NG)

W10246811

Kit, Orifice NG

W10246809

Connector (Brass)

W10304337

Harness, Power

W10304338

Harness, Power

W10247197

Fork, Spit

W10140240

Rod, Spit

W10167017

Motor, Rotisserie

W10247113

Bracket, Rot. Mtr.

W10244953

Valve, Sear Burner

W10244949

Valve, Side Burner

W10304339

Harness, Display

W10304340

Harness, Display

W10244955

Box, Display

W10244956

Box, UI Inner

W10244948

Wire, Display

W10244945

Display, UI

W10244946

Button, Display

W10247196

Regulator, LP

W10244337

Valve, Flange

W10244333

Connector, Brass

W10247149

Valve, Safety

W10244336

Box, Insulator

W10140243

Bracket, Middle

W10244967

Tray, Grease

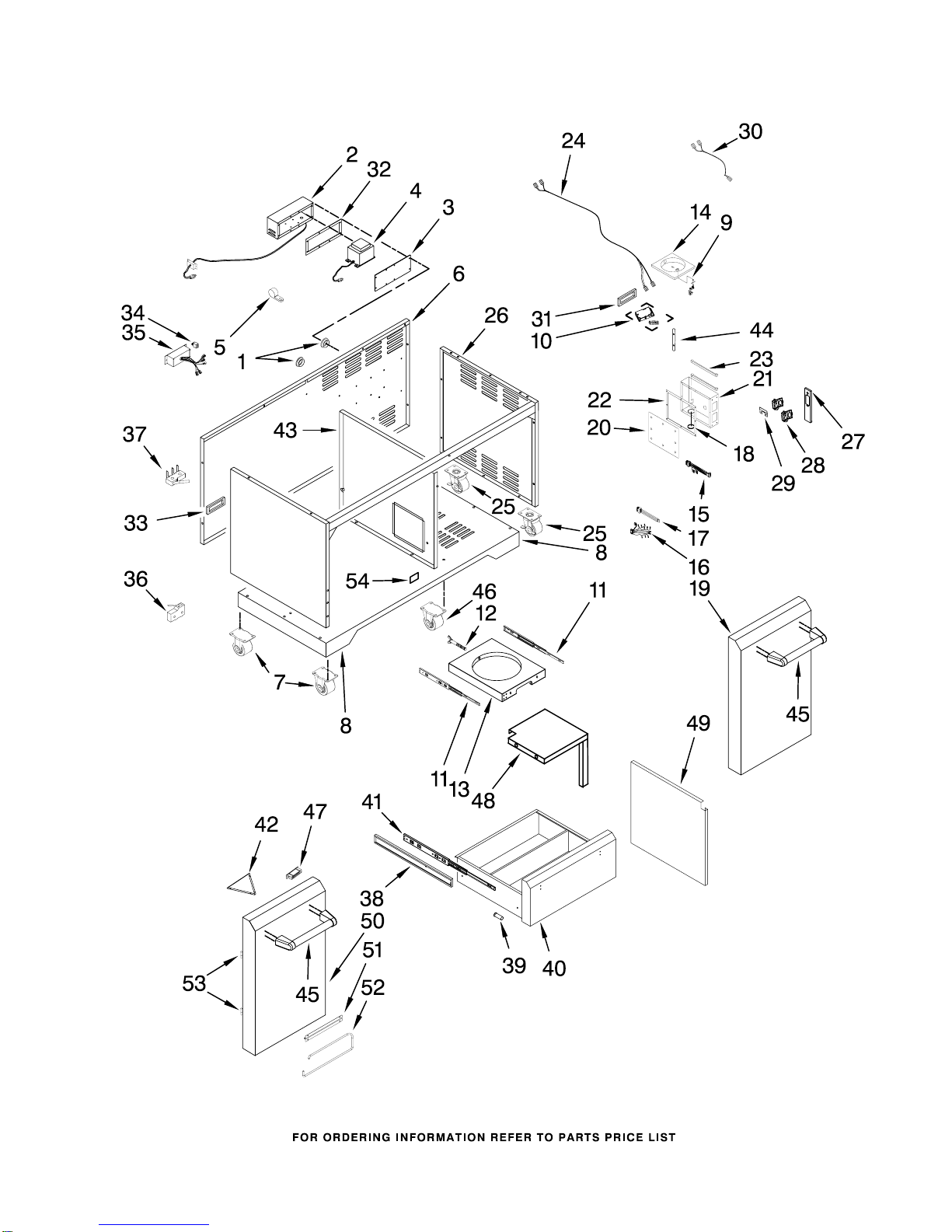

BASE PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

BASE PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10128666

Ring, Rubber

W10246630

Box,Transformer

W10246632

Cover,Transformr

Box

W10303827

Transformer

W10128670

Clamp, Wire

W10244979

Panel, Rear

W10128672

Caster

W10246758

Panel, Bottom

W10246807

Microswitch,

Load Cell

W10287226

Load Cell,

And Processor

W10137890

Slide, Tank Tray

W10247135

Bolt, Tank

W10246804

Tray, Tank

W10246806

Top, Tank Tray

Fixture

W10246872

Wire, Safety

W10247039

Wire, DC Power

W10246874

Wire, Load Cell

W10246877

Ring, Rubber

W10246808

Drawer, Tank

W10246878

Cover, Box

W10303964

Insulator, Box

W10246885

Washer,Waterproof

W10246886

Bracket, Box

W10246887

Wire, AC Power

W10128705

Caster, W/Brake

W10246633

Panel, Side Assy

W10246879

Cover, Battery

Box

W10246880

Box, Battery

W10246882

Stop, Box

W10303969

Wire, Load Cell

W10304351

Washer,Waterproof

W10303814

Washer,Waterproof

W10246627

Washer, Outlet

W10246628

Breaker, Circuit

W10246629

Outlet, Male

W10246888

Switch, Gas Valve

W10303682

Switch, UI

38 Bracket

W10137885

Left

W10137889

Right

W10128696

Plug, Door

W10246803

Drawer, Top

W10137888

Slide, Drawer

42 Guard, Tank Tray

W10137892

Left

W10247036

Right

W10246664

Partition, Cart

W10244192

Washer, Shelf

W10128661

Handle, Drawer

W10140241

Caster, Swivel

W10128697

Magnet, Door

W10136427

Rack, Storage

W10246760

Partition, Left

W10246800

Door, Left

W10246761

Bracket, Towel

Rack

W10128686

Rack, Towel

W10246759

Hinge, Door

W10246747

Latch, Magnet

DRAWER PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

DRAWER PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

Illus. Part

No. No. DESCRIPTION

W10137687

Cover, Food Pan

(Small)

W10137688

Pan, Food (Small)

W10137694

Slide, Vent

W10244976

Panel, Front

W10137875

Gasket, Drawer

W10137693

Drawer, Warming

7 4449743 Screw

W10137876

Door, Panel

W10137878

Knob, Thermostat

W10137874

Light, Indicator

W10137692

Rail, Pan (2)

W10137869

Grip, Vent

W10137689

Cover, Food Pan

(Large)

W10137690

Pan, Food (Lrg)

W10137868

Panel,Inner Cntrl

INTERNAL WARMING DRAWER PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10244974

Wrapper

2 313806 Screw (1)

W10137691

Slide Assembly

4 Panel

W10137883

Right

W10137882

Left

5 311865 Screw

W10137873

Control

W10137881

Sensor, Wrm.Drwr.

W10137879

Thermal Fuse

W10137872

Enclosure,

Electric

W10137871

Cover, Enclosure

W10137880

Harness, Wiree

W10137877

Element, Heating

W10118113

Seal, Switch

W10118073

Heat Shield

BURNERS, GRATES, AND LIGHTS PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10140223

Rack, Warming

W10244714

Rack, Large

W10244176

Rack, Small

W10244180

Plate, Sear

W10298673

Ignitor,Hot

Rear Burner

W10244204

Thermocouple,

Rear Burner

W10140211

Flex Tube,

Rear Burner

W10140227

Burner, Rear(2)

W10244186

Bracket, Rear

Thermocouple

W10244184

Cover, Rear

Thermocouple (LF)

W10244205

Orifice, Rear

Burner

W10140242

Light, Grill

W10140244

Light, Grill(Set)

W10128631

Socket, Light

W10285882

Rod, Lighting

W10285881

Bag, Lighting Rod

W10128775

Burner, Main

W10244202

Bracket,Main Brnr

W10134790

Grate, Smoke Box

W10134791

Handle, Smoke Box

W10244190

Box, Smoke

W10294369

Screen, Sear Brnr

W10137683

Rod, Connecting

W10140225

Burner, Sear

W10247018

Panel, Sear Brnr

W10244200

Igniter, Gas Coll.

W10133874

Igniter, Sear Brnr

W10244199

Bracket, Sear Ign.

W10244201

Bracket, Sear Brnr

W10244198

Collector,Gas Left

W10247024

Ignitor,Hot Surfce

W10244197

Bracket, Main Brnr

W10140258

Light Set

34 8204670 Bulb, Light

W10244196

Collectr,Gas Right

W10244185

Bracket, Ignitor

Rear Burner (LF)

W10244177

Rack, Medium

W10244189

Cover, Rear

Thermocouple (RT)

W10244188

Bracket, Ignitor

Rear Burner (RT)

SIDE BURNER PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

Illus. Part

No. No. DESCRIPTION

W10244943

Grate, Side Burner

W10140271

Shelf, Side Burner

W10137910

Tube, Side Burner

4 Igniter

W10247025

Burner, Rear

W10247024

Burner, Front

W10137052

Bracket, Handle

W10128660

Handle, Shelf

W10136956

Bar, Tool

W10244339

Shelf, Side (RT)

W10244342

Elbow, Orifice

W10244942

Manifold, Side Brn

W10137915

Hose, Side Burner

W10285667

Chain, Lid

W10244944

Stator, Chain

W10138026

Lid, Side Burner

W10285647

Bar, Tool

W10128774

Hook

W10137916

Tube, Side Brnr

OPTIONAL PARTS

For Model: KFRU488VSS00

(Stainless Steel)

W10270307

Illus. Part

No. No. DESCRIPTION

Miscellaneous

W10118101

Altitude 2K−5K LP

W10118102

Altitude 5K−8K LP

W10118104

Altitude 8K−10K LP

W10118105

Altitude 2K−5K NG

W10118106

Altitude 5K−8K NG

W10118107

ALtitude 8K−10K NG

W10118099

Conv.Kit (NG−LP)

W10118098

Conv.Kit(LP−NG)

KBDU271TSS

Smoker Box

8212703 Cover, Grill
