KitchenAid KUDS24SEAL1 Manual de usuario
1
DOOR AND PANEL PARTS
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 9743028 Door Frame
2 302868 Screw
3 9742964 Stiffener,
Door
4 Panel Front
9743212 Black Model
9743213 White Model
9743214 Almond Model
5 Access Panel
& Clip Assembly
(Includes Items 11 & 12)
9742645 Black Model
9742856 White Model
9742857 Almond Model
6 9743441 Spring, Door (2)
7 3373234 Bushing, Spring
Door (2)
8 Toe Panel
(Includes Item 11)
3375423 Black Model
9742869 White Model
9742870 Almond Model
11 3374767 Insulation
12 3378123 Clip, Grounding
13 3367670 Screw (2)
Part No. 4172113 Rev. A
1−97 Litho in U.S.A. (sms)
CONTROL PANEL PARTS
2
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 Console
(Also Order
Item 2)
9743340 Black Model
9743341 White Model
9743342 Almond Model
2 Insert
9743375 Black Model
9743376 White Model
9743377 Almond Model
3 9743241 Switch, Panel
(User Interface)
4 9743350 Spring, Handle
5 9743351 Link, Handle
6 9743412 Sponge, Vent
7 304231 Screw (3)
8 3369051 Screw (4)
9 Handle, Latch
9743188 Black Model
9743189 White Model
9743190 Almond Model
10 9743440 Barrier, Display
11 9743444 Retainer, Barrier
12 9743442 Clip, Retainer
DOOR AND LATCH PARTS
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113 3
DOOR AND LATCH PARTS
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
4
Illus. Part
No. No. DESCRIPTION
1 9743399 Cap, Dispenser
2 9743467 Shield, Switch
3 3369051 Screw, Door
4 9743554 Latch Assembly
(Includes Item 2)
6 9742625 Inner Door
Mastic Assembly
(Also Includes
Items 7, 9 & 10)
7 9742631 Seal, Door
Lower
8 9742770 Vent Assembly
(Also Order Item 9)
9 9742782 Gasket, Vent
10 9742780 Deflector, Vent
(Also Order
Item 9)
11 9742629 Dispenser,
Assembly
12 9743450 Shield,
Dispenser
13 9742623 Bracket, Controls
14 9742963 Shield, Control
16 9743486 Bracket,
Dispenser (2)
19 9743448 Control,
Electronic
20 246132 Screw (2)
22 9743451 Fuse Thermal
Electronic
24 9743154 Dispenser,
Wiring Harness
25 9743026 Sound Absorber
26 9742852 Sensor, Rinse Aid
27 3376405 Elbow, Harness
30 9743462 Wiring Harness
Main
33 3400700 Screw (6)
5
LOWER WASHARM AND STRAINER PARTS
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 9742947 Wash Arm Assembly
2 9742945 Nut, Washarm
3 9742646 Strainer (Coarse)
4 9742946 Bearing, Radial
5 3376846 Seal, Sprayarm

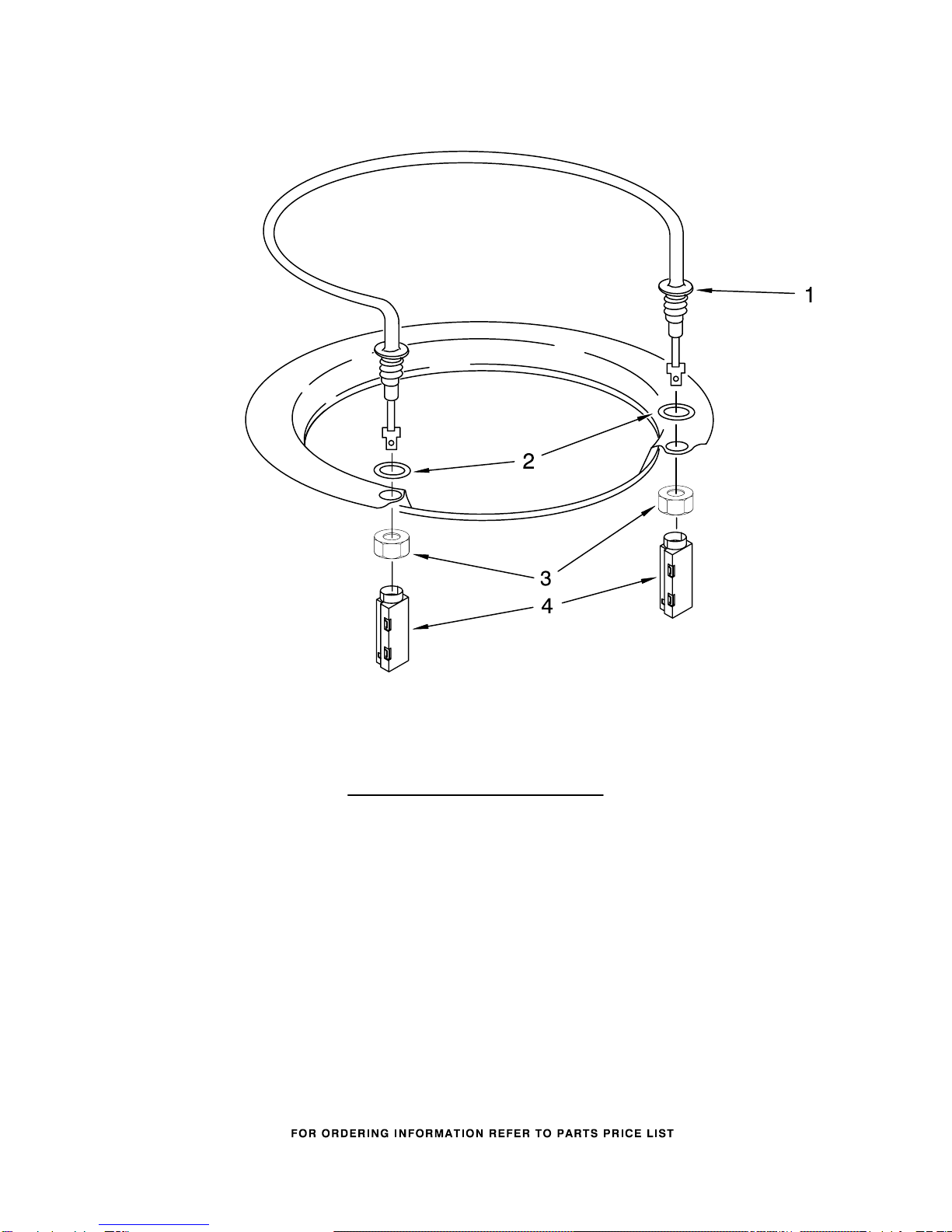

HEATER PARTS
6
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 9743495 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 9743039 Nut, Heater
Element
4 9743166 Pod, Terminal
Heater
FILL AND OVERFILL PARTS
7
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 9742938 Control, Overfill
Assembly
(Also Order
Item 14)
2 9742727 Hose, Inlet
3 9742783 Water Inlet
Assembly
(Includes
Items 4 & 5)
4 9742787 Gasket
5 9742786 Bezel, Inlet
6 301958 Clamp, Hose
7 9743559 Fill Valve
Assembly
8 304392 Screw
10 4159424 Screw
11 9740811 Switch, Overfill
Control
12 9742937 Standpipe,
Overfill
13 4161670 Gasket, Flat
14 4161596 Nut, Standpipe
15 9743070 Float & Retainer
Assembly
16 4171116 Lever, Overflow
Switch
UPPER WASH AND RINSE PARTS
8
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 3376846 Seal, Sprayarm
2 3400002 Screw
3 9742989 Sprayarm, Upper
(Also Order
Item 1)
4 9742992 Manifold, Sprayarm
5 9742994 Mount, Tiered
6 9742995 Tube, Connector
7 9742997 Holder, Water
Inlet Funnel
8 9743210 Funnel
9 9743473 Connector
(Includes Items
13, 14 & 15)
10 9742950 Feed Tube
Assembly
13 9743475 Washer
14 9740848 Screw
15 9743474 Gasket, Connector
16 9742953 Seal, Tube
17 9743194 Mount, Top
Upper Sprayarm
TUB AND FRAME PARTS
9
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
10
TUB AND FRAME PARTS
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 9742605 Tub Assembly
3 9742612 Door Seal
4 9742788 Plug Tub (2)
5 9743468 Wheel & Mount
Assembly
(Also Order
Item 6)
6 9743002 Gasket, Bracket
Mounting
7 3378056 Tub Stiffener
8 3400003 Screw (8)
9 9743149 Rear Support
Assembly
10 343641 Screw
11 9742610 Connector
Tub To Brace
12 90767 Screw (2)
13 304392 Screw
14 3370389 Screw (2)
15 302819 Wheel Leg
16 3376439 Leveler, Leg
17 9743488 Spacer, Tank − RH
18 9743489 Spacer, Tank − LH
19 3370292 Terminal Box
20 3369138 Screw
21 300068 Cover, Terminal
Box
22 3371578 Screw
23 3371579 Nut
24 3370307 Strain, Relief
25 9743460 Trim Strip, Tub
26 304666 Retainer, Push (2)
27 9742789 Corner Trim, Tub
28 9742661 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 3371618 Thermostat
31 9742722 Strike, Latch
32 9743406 Pad, Friction
33 3370225 Screw, Ground
