KitchenAid KUDE70CVSS0 Manual de usuario
DOOR AND PANEL PARTS
1
For Model: KUDE70CVSS0
(Stainless)
2−09 Litho in U.S.A. (els)(bay) Part No. W10253988 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10056407
Instructions,
Installation
W10194847
Energy Guide
W10208710
Guide, Use & Care
Spanish
W10208709
Guide, Use & Care
English/French
W10142826
Tech Sheet
W10158347
Tech Sheet, French
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener, Door
4
W10073520
Insulation, Door
5 Access Panel
W10194851
Black
6 Panel, Full Front
(Includes Items
4, 10, 16, 17,
19 AND 20)
W10137621
Stainless
7 8534008 Screw
8 Toe Panel
(Includes
Items 11 & 18)
8558252 Black
9 Handle Assy
(Includes Item 7)
W10083935
Stainless
10 8564951 Stud, Mounting
11 8268581 Insulation,
Toe Panel
12 Screw
302868 Black
13 304392 Screw
14
W10056420
Bezel
15 3400071 Screw
16 Nameplate
W10021850
Stainless
17 2004333 Nut
18 8269016 Clip, Grounding
19
W10133538
Plate, Backing
20
W10123421
Screw
21
W10056310
Panel, Access
Panel
CONTROL PANEL PARTS
2
For Model: KUDE70CVSS0
(Stainless)
W10253988
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10056419
Midnight Grey
2 8546546 Clip, Bi−Metal
3 661663 Bi−Metal
4 3369051 Screw
5
W10077360
Latch Assembly
6
W10056352
Control,
Electronic
7
W10134019
Switch, Door
8 8531873 Board,
Interconnect
9 8531877 Cable−Ribbon
DOOR AND LATCH PARTS
3
For Model: KUDE70CVSS0
(Stainless)
W10253988
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056250
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10238390
Wiring Harness
12
W10177098
Screw
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
15 8531865 Shield,
Dispenser
16 3369051 Screw
FILL, DRAIN AND OVERFILL PARTS
4
For Model: KUDE70CVSS0
(Stainless)
W10253988
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10158389
Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
15 356138 Clamp, Hose
16
W10193583
Drain Loop
with Check Valve
TUB AND FRAME PARTS
5
For Model: KUDE70CVSS0
(Stainless)
W10253988
TUB AND FRAME PARTS
6
For Model: KUDE70CVSS0
(Stainless)
W10253988
Illus. Part
No. No. DESCRIPTION
1
W10194844
Tub Assembly
(Also Includes
Heater Assembly)
2 8574123 Barrier, Moisture
Undercounter
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 3378128 Washer
Pronged Cup
6 3400014 Screw
7
W10179427
Seal, Cabinet
8 8573061 Strain Relief
9
W10084086
Door, Balance
Assembly
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13 3400924 Retainer, Push−in
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17
W10077370
Strike, Latch
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21
W10158291
Cable, Door
Balance
22 8268587 Insulator, Sound
23 304666 Retainer, Push
24 8573239 Shield, Sound
Tub
25 9742648 Bracket,
Thermostat
26 661566 Thermostat
27
W10190766
Panel, Right Side
28
W10190767
Panel, Left Side
29 3400924 Retainer, Push
PUMP, WASHARM AND MOTOR PARTS
7
For Model: KUDE70CVSS0
(Stainless)
W10253988
PUMP, WASHARM AND MOTOR PARTS
8
For Model: KUDE70CVSS0
(Stainless)
W10253988
Illus. Part
No. No. DESCRIPTION
1 8579241 Cover, Sieve
2 3400069 Screw
3 8579240 Cover, Outlet
4
W10208687
Sump With Seal
(Includes Items
12, 13 and
2 Hose Clamps)
5 8579298 Retainer,
Feed Tube
6 8579253 Screen
7
W10084508
Wash Arm Assembly
8
W10056426
Filter Cup,
Assembly
9 8579311 Hose, Inlet
(Includes 3 Hose
Clamps)
10
W10056309
Motor & Sump Assy.
(Includes Item 21)
11 8579272 Shield, Motor
12 3400072 Screw
13 8579289 Tab, Sump
14
W10158351
Pump, Drain
15 8269144 Hose, Drain
16 8579251 Disc−Valve
Diverter
17
W10208691
Motor, Diverter
Valve
(Includes Item 21)
18 356138 Hose Clamp
19
W10134017
Optical Water
Indicator
20 9741232 Screw
21
W10083167
Fuse In−Line
22
W10179455
Drain, De−Coupler
Assembly
23
W10056308
Baffle, Sump

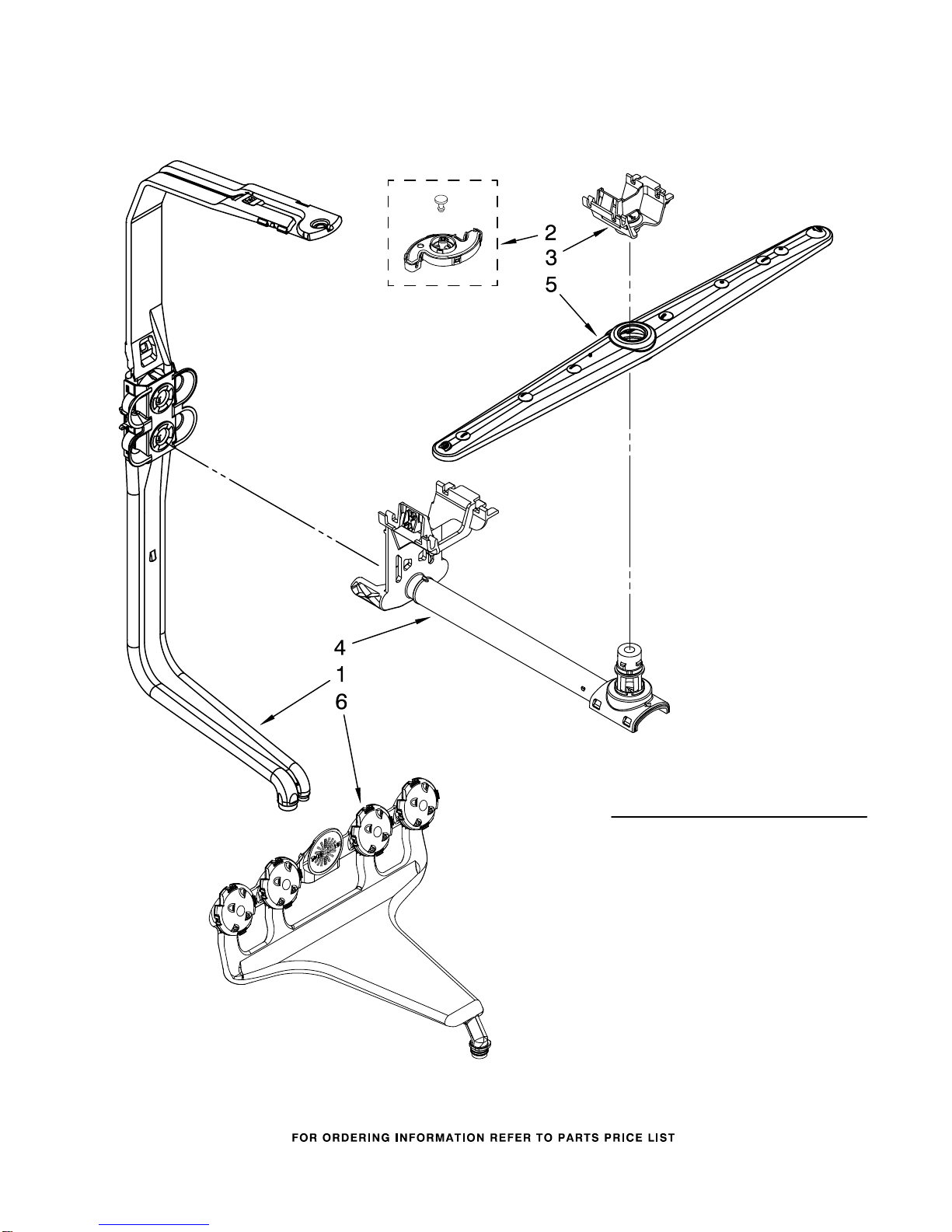

UPPER WASH AND RINSE PARTS
9
For Model: KUDE70CVSS0
(Stainless)
W10253988
Illus. Part
No. No. DESCRIPTION
1 8579262 Feed Tube
Assembly
(Also Includes
Item 3)
2 8557720 Sprayarm, 3rd
Level
3 8579242 Mount
4 8579259 Manifold
5 8579232 Sprayarm
6
W10084221
Manifold,
Turbo Wash
HEATER PARTS
10
For Model: KUDE70CVSS0
(Stainless)
W10253988
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
