DOOR AND PANEL PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

4−08 Litho in U.S.A. (els) (psw) Part No. W10200939 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10084559

Energy Guide

W10193741

Guide, Use & Care

Spanish

W10193740

Guide, Use & Care

English

W10130990

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

W10073520

Insulation, Door

5 Access Panel

8573255 Black

6 Panel, Full Front

(Includes Items

4, 11 & 12)

W10077995

Black

W10137620

Stainless

7 Toe Panel

(Includes #13)

8573286 Black

8 302868 Screw

9 304392 Screw

10 3400071 Screw

11 Nameplate

W10021860

Black

W10021850

Stainless

12 2004333 Nut

13 8269016 Clip, Ground

CONTROL PANEL PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10084152

Black

2 8268540 Spring, Handle

3 8546546 Clip, BI−Metal

4 3400412 Screw

5 8524471 Actuator, Latch

6 661663 Bi−Metal

8 3369051 Screw

9 Handle, Latch

8269117 Black

10 8524476 Bolt, Latch

W10084142

Control,

Electronic

12 8269209 Switch, Door

DOOR AND LATCH PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056249

Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572583 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10077882

Dispenser,

Assembly

9 8269258 Seal, Front

10 8545608 Harness, Vent

Motor

11 8574160 Seal, Side

12 8573176 Wiring Harness

13 8281154 Screw

14 8535660 Seal,

Console/door

15 8535637 Bracket,

Dispenser

16 8531865 Shield,

Dispenser

W10077881

Knob, Rinse Aid

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Clamp, Hose

W10137608

Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

TUB AND FRAME PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

Illus. Part

No. No. DESCRIPTION

W10164353

Tub Assembly

2 3400072 Screw

W10112096

Door Seal

W10082838

Plug Tub

5 9743002 Gasket, Bracket

Mounting

6 8269110 Seal, Cabinet

7 8573061 Strain Relief

8 8270021 Mount, Door

Balance

9 3367670 Screw

10 8269145 Bracket,

Undercounter

11 3400074 Screw

12 3370389 Screw

13 8268977 Wheel Leg

14 8524584 Leveler, Leg

15 8524474 Wheel, door

Balance

16 8270020 Spring, Door

Balance

W10078083

Wheel & Mount

Assembly

(Also Order #5)

18 3400892 Screw

19 8268991 Cover, Terminal

Box

20 8535568 Link, Door

Balance

21 304666 Retainer, Push

23 8573241 Shield, Sound

24 9742648 Bracket,

Thermostat

25 661566 Thermostat

26 8580309 Strike, Latch

27 3378128 Washer,

Pronged Cup

28 3400014 Screw

PUMP AND MOTOR PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

PUMP AND MOTOR PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

9 8535760 Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

W10084107

Sump & Motor

Assembly

(Includes

Item 13)

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 26)

17 8269144 Hose, Drain

18 8535759 Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

(Also Order

Item 26)

21 8268403 Face Seal Assembly

(Also Order

Item 26)

22 356138 Clamp, Hose

W10134016

Optical Water

Indicator

24 8535474 Capacitor

25 8534946 Shield,

Capacitor

26 8531018 Washer

UPPER WASH AND RINSE PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

Illus. Part

No. No. DESCRIPTION

W10077896

Feed Tube

Assembly

(Also Includes

Item 3)

2 8533889 Screw

3 8557720 Sprayarm, 3rd

Level

W10118464

Cover, Screw

W10082867

Mount

W10082833

Manifold

W10082832

Hanger

8 8268433 Seal, Sprayarm

W10077923

Nozzle−Feed

W10082841

Sprayarm

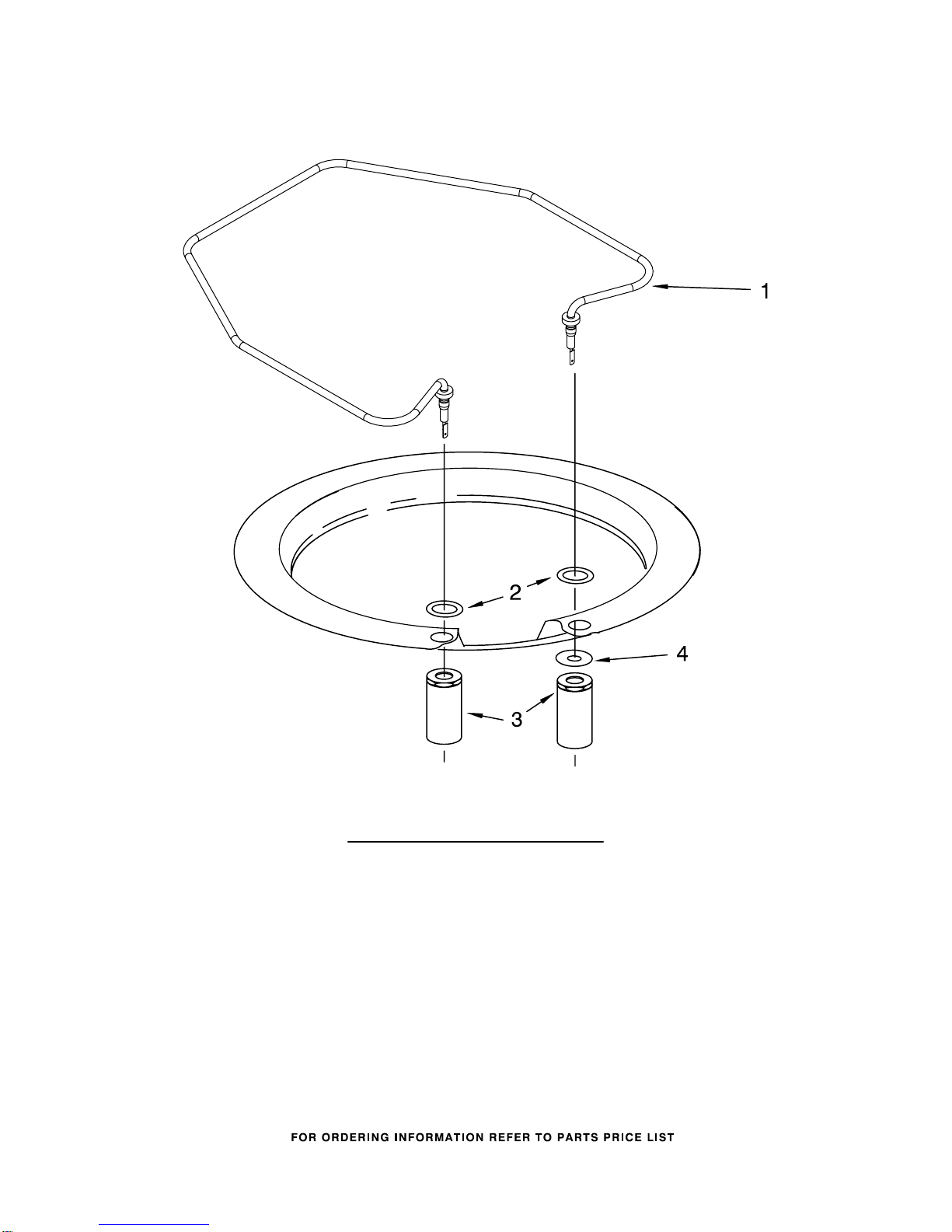

HEATER PARTS

For Models: KUDC03ITBL3, KUDC03ITBS3

(Black) (Stainless)

W10200939

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
