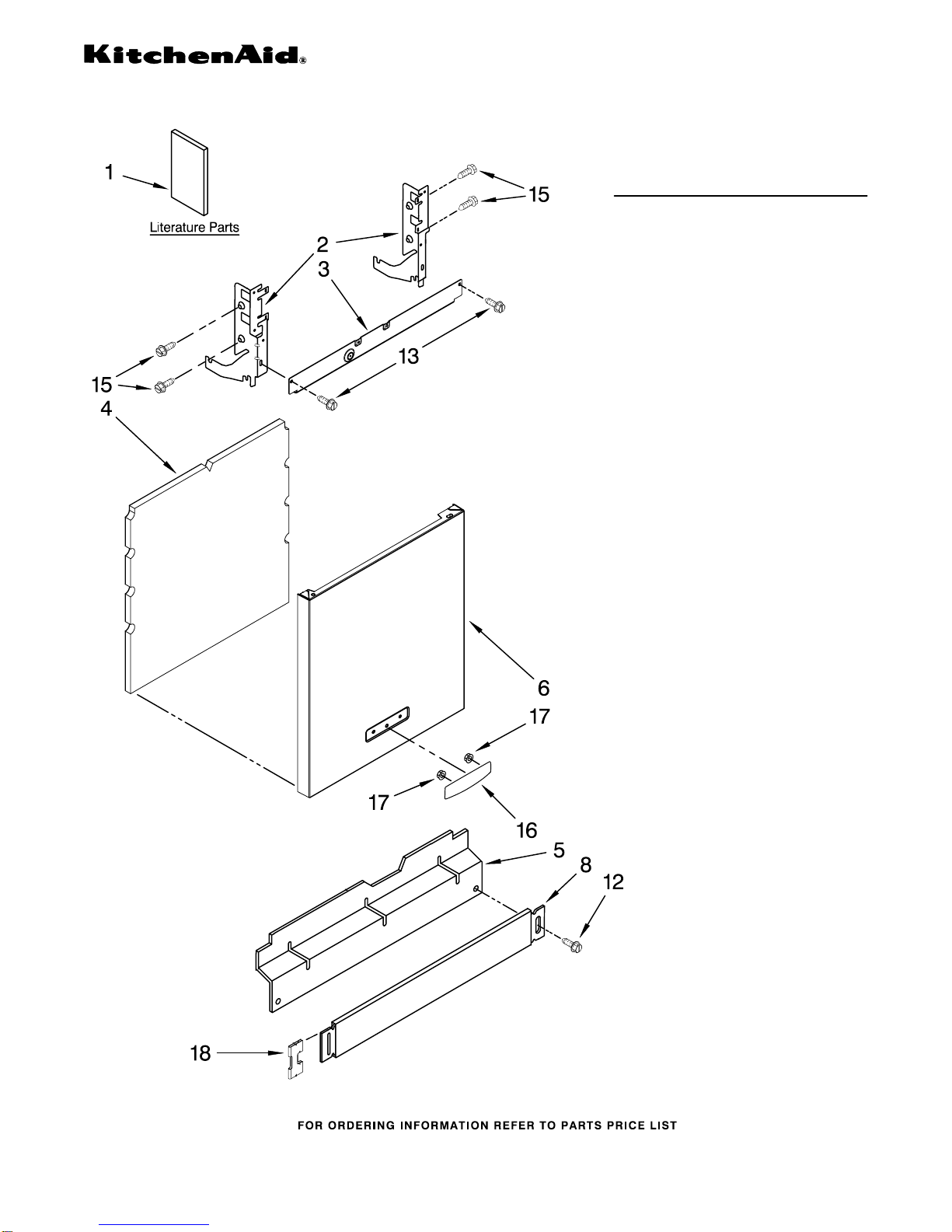

DOOR AND PANEL PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

UNDERCOUNTER

5−07 Litho in U.S.A. (els) Part No. W10122737 Rev. B

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10077822

Guide, Consumer

Reference

W10111124

Energy Guide

8574093 Guide, Use & Care

W10082651

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

4 8542577 Insulation, Door

5 Access Panel

8573255 Black

6 Panel, Full Front

(Includes Items

4,16 & 17)

W10077995

Black

W10077998

Stainless

8 Toe Panel

(Includes #18)

8573286 Black

12 302868 Screw

13 304392 Screw

15 3400071 Screw

16 Nameplate

W10021860

Black

W10021850

Stainless

17 2004333 Nut

18 8269016 Clip, Ground

CONTROL PANEL PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10078015

Black

2 8268540 Spring, Handle

3 8546546 Clip, BI−Metal

4 3400412 Screw

5 8524471 Actuator, Latch

6 661663 Bi−Metal

8 3369051 Screw (6)

9 Handle, Latch

8269117 Black

10 8524476 Bolt, Latch

11 8575277 Control,

Electronic

12 8269209 Switch, Door

DOOR AND LATCH PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

3 8530900 Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572583 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10077882

Dispenser,

Assembly

9 8269258 Seal, Front

10 8545608 Harness, Vent

Motor

11 8574160 Seal, Side

12 8573176 Wiring Harness

13 8281154 Screw (6)

14 8535660 Seal,

Console/door

15 8535637 Bracket,

Dispenser

16 8531865 Shield,

Dispenser

W10077881

Knob, Rinse Aid

LOWER WASHARM AND STRAINER PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

Illus. Part

No. No. DESCRIPTION

W10077965

Wash Arm Assembly

W10077899

Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

W10077898

Hub, Lower

Sprayarm

(Also Order

Item 3)

HEATER PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

5 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.

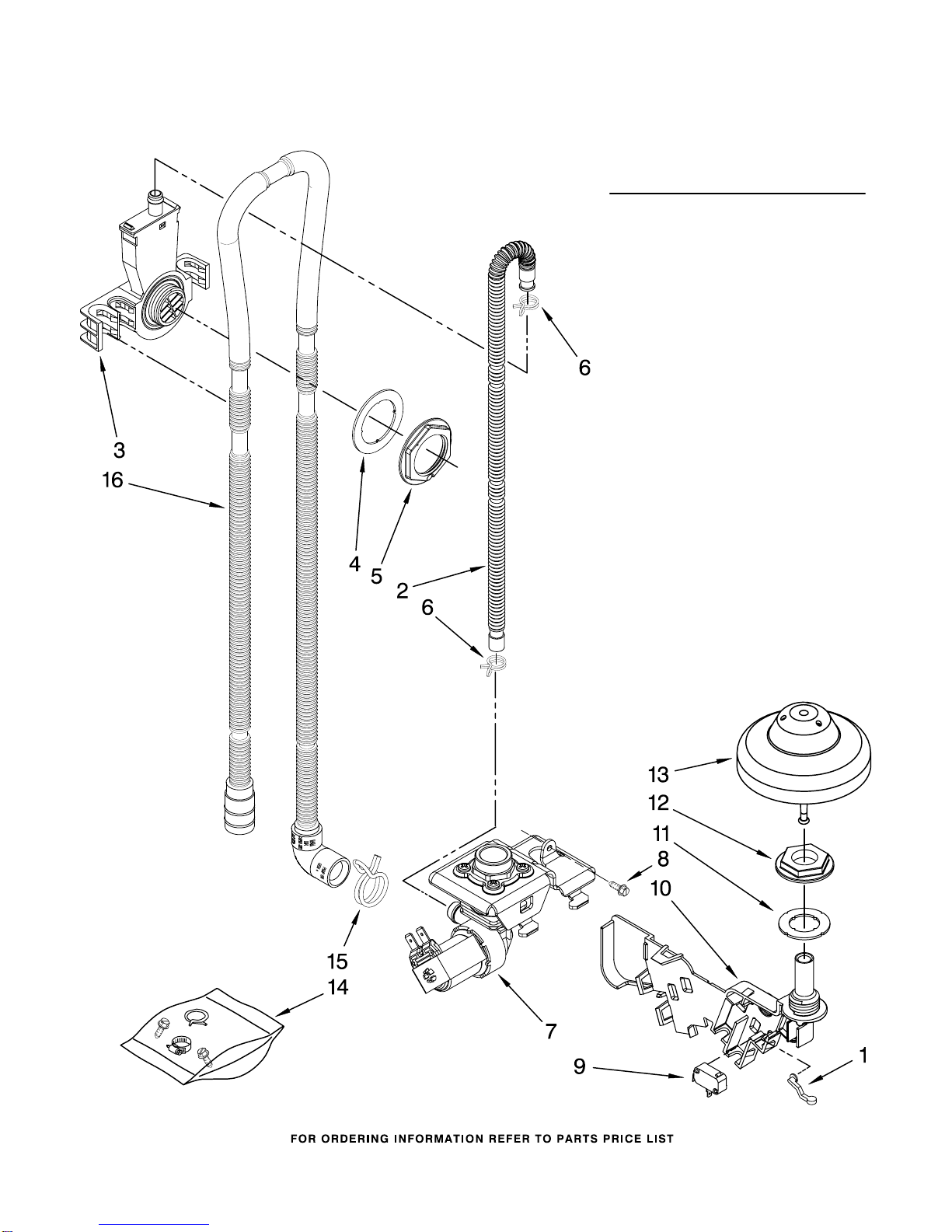

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Clamp, Hose

16 8531022 Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

TUB AND FRAME PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

Illus. Part

No. No. DESCRIPTION

W10053090

Tub Assembly

2 3400072 Screw (8)

W10112096

Door Seal

4 8270119 Plug Tub (2)

5 9743002 Gasket, Bracket

Mounting

6 8269110 Seal, Cabinet

7 8573061 Strain Relief

8 8270021 Mount, Door

Balance

9 3367670 Screw

10 8269145 Bracket,

Undercounter

11 3400074 Screw (2)

12 3370389 Screw (2)

13 8268977 Wheel Leg

14 8524584 Leveler, Leg

15 8524474 Wheel, door

Balance

16 8270020 Spring, Door

Balance

W10078083

Wheel & Mount

Assembly

(Also Order #5)

18 3400892 Screw

19 8268991 Cover, Terminal

Box

20 8535568 Link, Door

Balance

21 304666 Retainer, Push (2)

23 8573241 Shield, Sound

24 9742648 Bracket,

Thermostat

25 661566 Thermostat

26 8580309 Strike, Latch

PUMP AND MOTOR PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

PUMP AND MOTOR PARTS

For Models: KUDC03ITBL0, KUDC03ITBS0

(Black) (Stainless)

W10122737

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

10 8535760 Motor Assembly

11 3400217 Screw

12 8268391 Screen, Separation

W10084107

Sump & Motor

Assembly

(Includes

Item 15)

15 8269524 Tab, Sump

16 8533949 Nut

17 661662 Pump, Drain

18 8531019 Volute, Back

(Also Order

Items 23 & 30)

19 8269144 Hose, Drain

20 8535759 Motor

21 8268397 Seal, Volute

22 8531017 Impeller Kit

23 8268403 Face Seal Assembly

(Also Order

Item 30)

24 356138 Clamp, Hose

W10082647

Optical Water

Indicator

26 8535474 Capacitor

27 8534946 Shield,

Capacitor

30 8531018 Washer
