KitchenAid KECC562GBL0 Manual de usuario

COOKTOP PARTS

36" ELECTRIC

BUILT-IN

COOKTOP

6-99 Litho in U.S.A. (RS) Part No. 885414 Rev.A

For Models: KECC562GBL0, KECC562GWH0, KECC562GAL0, KECC562GBT0

(Black) (White) (Almond) (Biscuit)

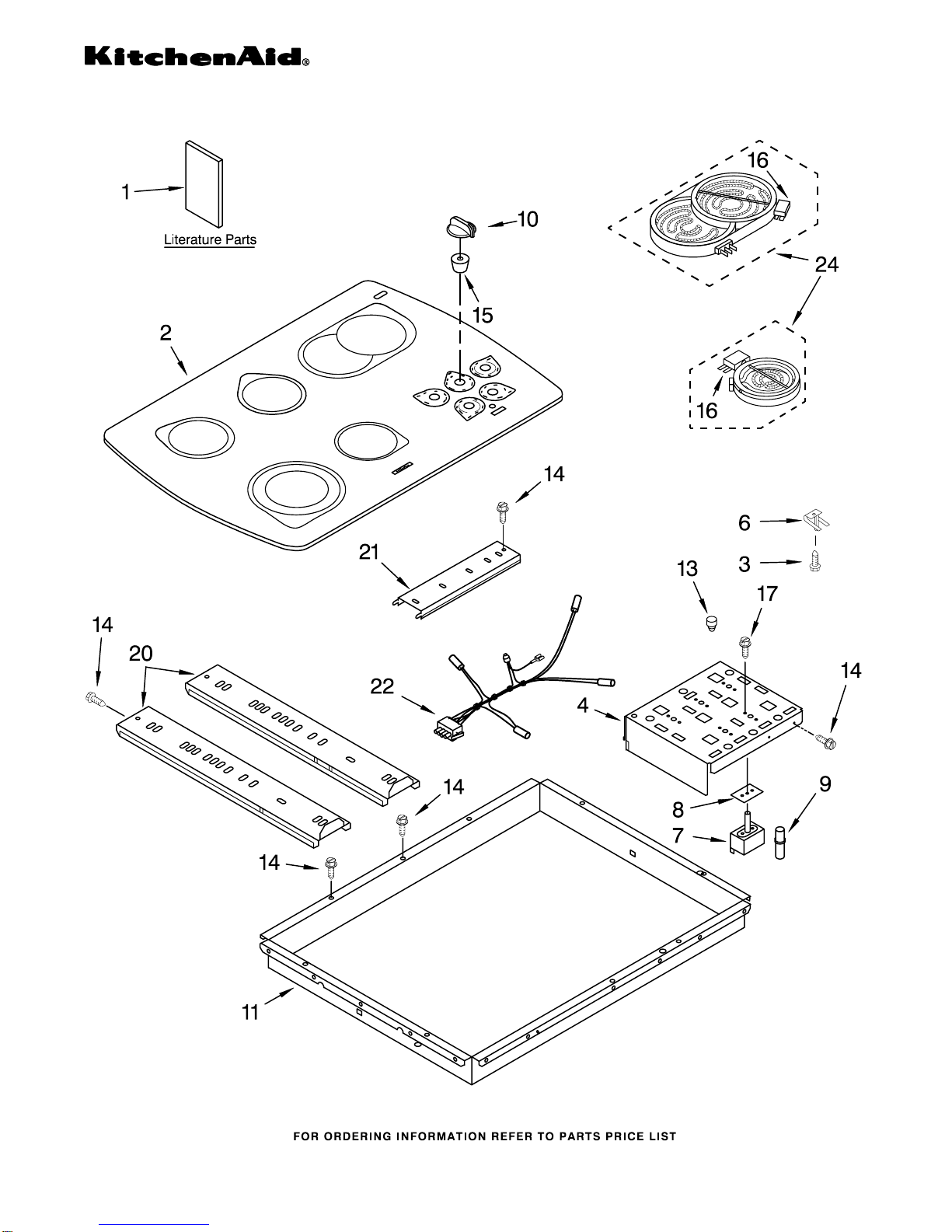

COOKTOP PARTS

For Models: KECC562GBL0, KECC562GWH0, KECC562GAL0, KECC562GBT0

(Black) (White) (Almond) (Biscuit)

885414

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3191771

Installation

Instructions

LIT3191796

Wiring Diagram

LIT3191524

Use & Care Guide

LIT3191638

Brochure,

Tips-Safe Cooking

2 Cooktop, Glass

3191944 Black

3191888 White

3191889 Almond

3 246119 Screw

4 3192162 Bracket, Switch

Mounting

6 3191791 Spring Locator(10)

246119 Screw (8)

7 Switch, Infinite

3191049 Use W/1500W

Left Rear Burner

3188516 Use W/1800/1000W

Right Rear Burner

3191049 Use W/1200W

Right Front Burner

3188516 Use W/1000/2400W

Left Front Burner

3191049 Use W/1400W

Center Rear Burner

8 3192439 Seal, Switch Shaft

311865 Screw

9 3191945 Light, Indicator

10 Knob, Control (5)

9750372FF

Black

9750372FW

White

9750372FT

Almond

9750372FC

Biscuit

11 3191163 Box, Burner

13 3192477 Bumper, Rubber

14 3196537 Screw

15 3182435 Seal, Switch (5)

16 Switch, Limiter

3191966 Use W/3191723

Element

3191990 Use W/3191984

Element

3191989 Use W/3191981

Element

3191963 Use W/3191720

Element

17 311865 Screw

20 3191515 Rail, Element (2)

21 3192269 Rail, Element (1)

22 3192222 Lamp, Hot

Surface Indicator

24 Element, Surface

(Includes # 16)

3191723 2400W LF

3191984 1200W RF

3191981 1400W LR & CR

3191720 1800W RR

MISCELLANEOUS PARTS

For Models: KECC562GBL0, KECC562GWH0, KECC562GAL0, KECC562GBT0

(Black) (White) (Almond) (Biscuit)

885414

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Mtg. Hardware Kit

3191948 Seal, Burner Box

SPLICING WIRES--25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

CLEANER, COOKTOP

3191048 Cleaner, Glass

WIRING HARNESS PARTS

3192266 Harness, Main

313438 Clip, Harness

3400015 Screw, Ground

3192221 Conduit
