COOKTOP PARTS

For Models: KECC501GBL0, KECC501GWH0, KECC501GAL0

(Black) (White) (Almond)

30" ELECTRIC

BUILT−IN

COOKTOP

10−98 Litho in U.S.A. (rle) Part No. 885411

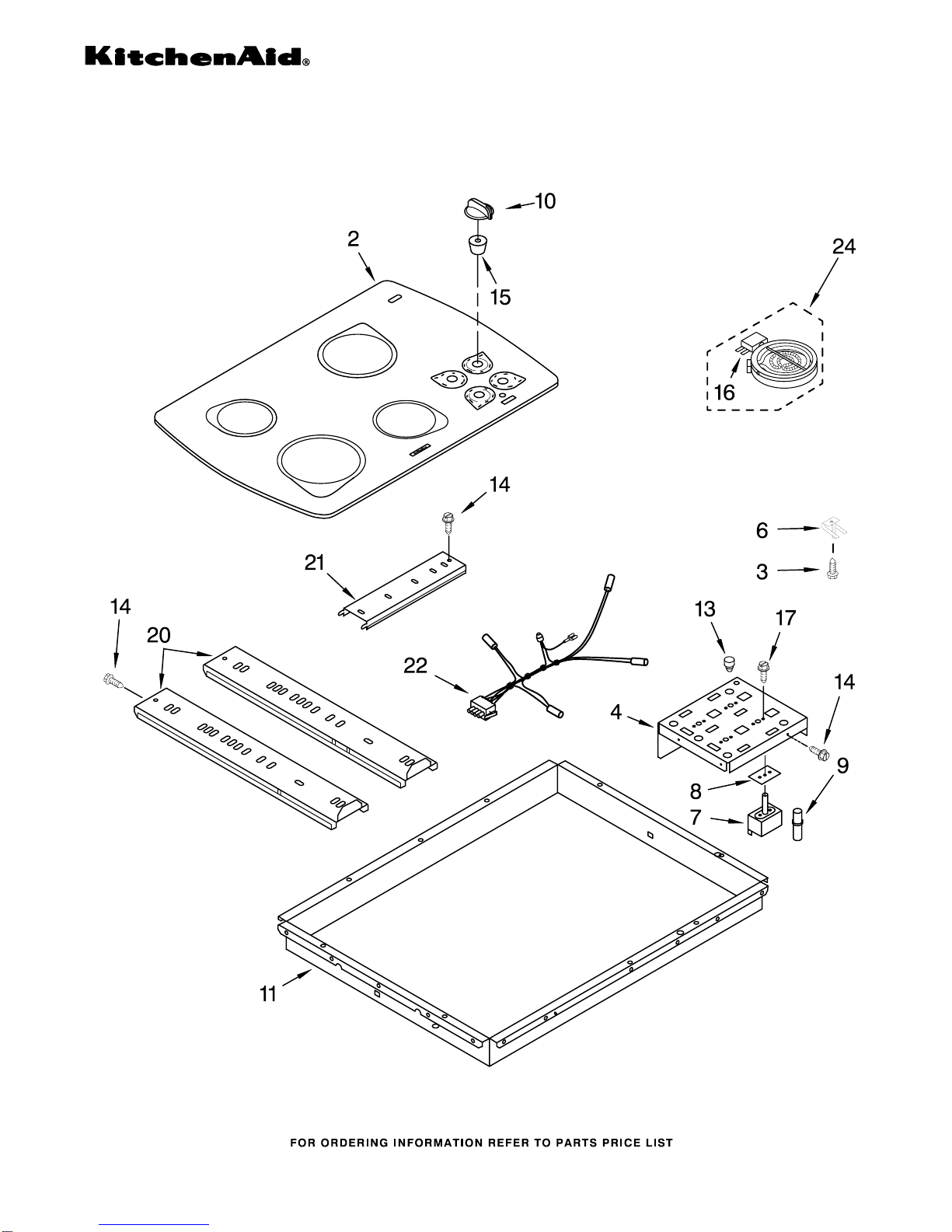

COOKTOP PARTS

For Models: KECC501GBL0, KECC501GWH0, KECC501GAL0

(Black) (White) (Almond)

885411

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 Cooktop, Glass

3191909 Black

3191878 White

3191879 Almond

3 246119 Screw

4 3192163 Bracket, Switch

Mounting

6 3191791 Spring Locator (8)

7 Switch, Infinite

4454541 Use W/2400W

Left Front Burner

3191050 Use W/1700W

Right Rear Burner

3191049 Use W/1400W

Left Rear Burner

3191049 Use W/1200 W

Right Front Burner

8 3183956 Seal, Switch Shaft

9 3191945 Light, Indicator

10 Knob, Control (4)

9750372FF

Black

9750372FW

White

9750372FT

Almond

11 3191162 Box, Burner

13 9750835 Bumper, Silicone

14 3196537 Screw

15 3182435 Seal, Switch (4)

16 Switch, Limiter

3191991 Use W/3191983

Element

3191990 Use W/3191984

Element

3191988 Use W/3191982

Element

3191989 Use W/3191981

Element

17 311865 Screw

20 3191515 Rail, Element (2)

21 3192268 Rail, Element (1)

22 3191343 Lamp, Hot

Surface Indicator

24 Element, Surface

(Includes # 16)

3191983 2400W Left Front

3191984 1200W Right Front

3191982 1700W Right Rear

3191981 1500W Left Rear

MISCELLANEOUS PARTS

For Models: KECC501GBL0, KECC501GWH0, KECC501GAL0

(Black) (White) (Almond)

885411

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3191771

Installation

Instructions

LIT3191793

Wiring Diagram

LIT3191524

Use & Care Guide

Miscellaneous

3172515 Hardware, Mounting

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3184477 Cleaner, Glass

3183488 Scraper, Glass

WIRING HARNESS PARTS

3192263 Wiring Harness

Surface Unit

313438 Clip, Harness

3400015 Screw, Ground

3192220 Conduit
