KitchenAid KDRP462LSS08 Manual de usuario
OVEN PARTS
1
For Model:KDRP462LSS08
(Stainless Steel)
9−09 Litho in U.S.A. (cre) (psw) Part No. 8186669
36" KITCHENAID
FREE STANDING RANGE
DUAL FUEL W/GRILLE
OVEN PARTS
2
For Model:KDRP462LSS08
(Stainless Steel)
8186669
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10044930
Installation
Instructions
W10086260
Use & Care Guide
8302207 Tech Sheet
9759441 Conversion
Instructions
3191638 Safer Cooking Tips
9759133 Safer Cooking Tips
2 4449809 Screw, 8−18 x 3/8
5 4449746 Screw
6 4452260 Spacer, Foam
7 8301469 Top, Chassis
8 9760749 Bumper, Door
9 4452158 Tube, Vent
10 4452163 Lens, Light
11 4448972 Oven Light Assy
4449748 Screw
12 4452164 Bulb, Light
13 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
14 9760757 Frame, Front
15 8300142 Gasket, Door
16 4452152 Bracket, Mounting
19 8300184 Support, Insulation
21 4455510 Bracket, Support
24 9760888 Latch, Motorized
26 8300193 Back, Chassis
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
30 4449154 Screw, 8−32 x .440
31 4449040 Screw, 8−18 x 3/8
32 3196176 Screw, 8−18 x 1/2
37 8300802 Thermostat (TOD)
(Temp.) SPST
43 8300965 Base, Chassis
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
8300158 Insulation, Wrap
8300159 Insulation, Back
OVEN DOOR PARTS
3
For Model:KDRP462LSS08
(Stainless Steel)
8186669
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8300152 Door Liner
2 Hinge, Door
9760579 R.Side
9760580 L.Side
3 4449259 Glass, Inner
4 8300797 Insulation, Door
5 8300190 Retainer, Glass
7 4449263 Glass, Inner
8 4449743 Screw, 8−32 x 3/8
9 4451668 Retainer, Glass
12 8300172 Assy, Door Glass
13 9760548 Door Handle
14 Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
19 8301089 Shield, Heat
20 4449809 Screw, 8−18 x 3/8
21 8300153 Seal, Door Top
23 4451432 Retainer, Clip
3400832 Screw
24 3196184 Screw, 8−32 x .548

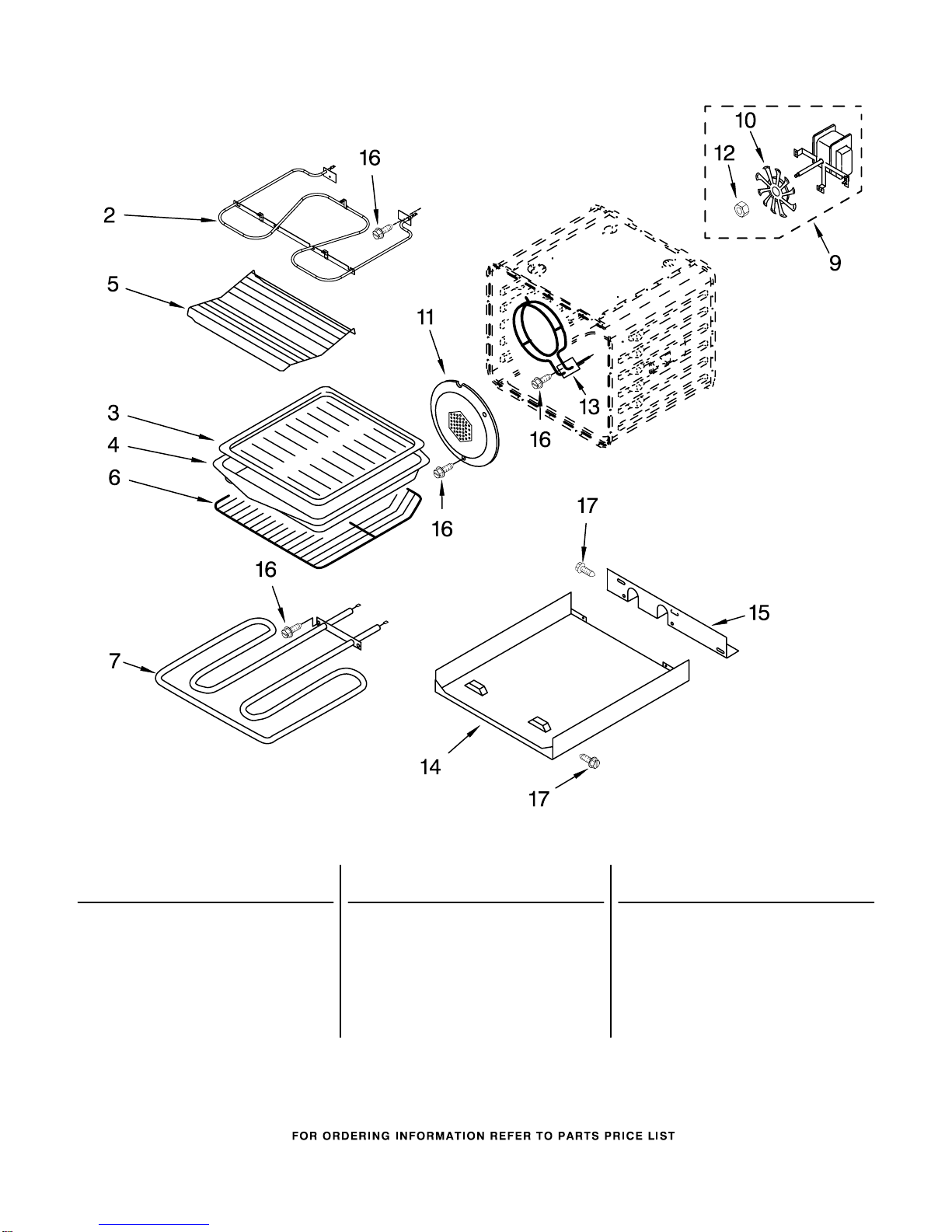

INTERNAL OVEN PARTS
4
For Model:KDRP462LSS08
(Stainless Steel)
8186669
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2 9760773 Element, Broil
4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 9759437 Rack, Oven
7 9760770 Element, Hidden
Bake
9 4451583 Motor, Convection
10 4452226 Blade, Fan
11 4448418 Cover, Fan
12 4452227 Nut
13 9760769 Element,
Convection
14 8300799 Tray, Hidden
Bake
15 8300800 Cover, Access
16 4449154 Screw, 8−32 x .440
17 4449809 Screw, 8−18 x 3/8
CONTROL PANEL PARTS
5
For Model:KDRP462LSS08
(Stainless Steel)
8186669
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4457167 Panel, Control
2 4453000 Bracket, Display
3 8300805 Bracket, Display
Mounting
4 3196537 Screw, 8−18 x 3/8
5 8300203 Control, Zodiac
6 3196184 Screw, 6−19 x 1
7 4452842 Switch, Rocker
8 4452999 Module, Display
9 2004333 Palnut
10 2005292 Nameplate
11 4457166 Face, Control
Panel
12 4455192 Bezel, Knob
13 4454970 Knob, Control
14 4455115 Knob, Temp/Time
15 4455141 Knob, Selector
16 4457218 Button, Cancel
17 4452997 Button, Enter
18 4455719 Spacer Ring
19 4455806 Glass, Display
20 3192439 Seal, Limiter
21 4457260 Bracket, Spark
Module
22 8522426 Module, Spark
23 3400843 Screw
24 8284742 Knob, Grill
25 4457152 Bezel, T−Stat
Knob
TOP VENTING PARTS
6
For Model:KDRP462LSS08
(Stainless Steel)
8186669
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 8300223 Blower 60MM
4449809 Screw (4)
3400015 Screw (1)
4 4455177 Elbow, Vent−Bottom
5 9760588 Transformer, Light
6 8300642 Transformer,
Control
7 4449809 Screw, 8−18 x 3/8
8 4455352 Bracket, Blower
9 8301632 Box, Blower
11 4449868 Block, Terminal
14 4452442 Side, Control Top
21 4451758 Seal, Foam
22 4452489 Deflector, Vent
Box
23 8301489 Bracket, Control
Mounting
24 8302210 Control, Zodiac
25 4451985 Suppressor
3400080 Screw (4)
COOKTOP, BURNER AND GRATE PARTS
7
For Model:KDRP462LSS08
(Stainless Steel)
8186669
COOKTOP, BURNER AND GRATE PARTS
8
For Model:KDRP462LSS08
(Stainless Steel)
8186669
Illus. Part
No. No. DESCRIPTION
2
W10157567
Backsplash
3 9762603 Support,Backsplash
4 3196537 Screw, 8−18 x 3/8
5 4457149 Grate, Burner
6 8284851 Trim, Island
8 8301056 Support, Control
Panel
9 8301041 Cover, Control
Panel
10 4457151 Grate, Grill
13 Cap, Burner
4455243 14K (2)
8284669 6K (2)
15 Holder, Orifice
Includes Orifice
4456622 Turbo (2)
4456920 Auxillary (2)
16 4454974 Support Rail
R.H.& L.H.
18 9760865 Cooktop, Black
19 Burner Head 14K
4455849 Turbo (2)
4455979 Auxillary (2)
20 3368921 Screw, 7−18 x 3/4
25 3196176 Screw
28 4455109 Plate, Simmer
30 8284918 Frame, Wave Tray
31 8284919 Plate, Wave
32 8284917 Plate, Wave tray
3177991 Screw
BURNER BOX, GAS VALVES, AND SWITCHES
9
For Model:KDRP462LSS08
(Stainless Steel)
8186669
BURNER BOX, GAS VALVES, AND SWITCHES
10
For Model:KDRP462LSS08
(Stainless Steel)
8186669
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8300231 Tubing, Gas
Burner − RF
2 8300230 Tubing, Gas
Burner − RR
3 8301252 Tube, Manifold to
Regulator
5 8300187 Tubing, Gas
Burner − LF
6 8300188 Tubing, Gas
Burner − LR
7 8301045 Manifold
4449809 Screw
4450118 Nut
(Includes Items
#9 & #30)
8 4456818 Valve, Burner
(Turbo)
9 8523704 Bolt, Valve
10 4457317 Burner Switch &
Harness Assembly
3191387 Seal, Switch
11 9759091 Regulator,Pressure
12 4457090 Burner Box
13 8301705 Bracket, Griddle
Valve
14 8301058 Valve, Griddle
15 Side, Burner Box
8285607 Right Hand
8285606 Left Hand
16 9759139 Support, Rear
17 488130 Hex Nut
18 3192811 Bracket, Burner
19 3177991 Screw, 8−18 x 1/4
20 4456816 Valve, Burner
Auxillary
Shelf
24 4455922 Cover, Panel
25 8301292 Box, Burner
Lower
26 8284960 Guard, Rear Spill
27 3400843 Screw
28 8301066 Tube, Grill
29 4456819 Valve, Gas Grill
30 8284796 Plug, Manifold
31 9760722 Harness, Switch
Grill
32 8284787 Module, Grill
33 8284968 Bracket, Ignitor
34 8284941 Ignitor, Grill
35 3400855 Screw
36 8285052 Log Burner, Grill
37 8284900 Deflector
38 8284791 Tray, Drip
39 8285030 Guard, Spill
40 Adapter
4453115 1/2" Female
4453116 /2" Male
41 4456499 Assy, Outlet Tube
