CONTROL PANEL PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4−95 Litho in U.S.A.(RS) Part No. 4174492

SUPERBA

27" BUILT−IN ELECTRIC

DUAL THERMAL CONVECTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

Membrane, Switch

4454368

Black

4454369

White

4454370

Almond

3181889

Bracket, Mounting

Membrane Switch

3187895

Microcomputer

3185648

Screw (2)

3183705

Retainer, Bracket

3182939

Screw

3148443

Screw

3182985

Clip, (3)

Retainer

3182162

Hinge, Vent Door

Door, Latch Handle

3182151

Black

3182157

Almond

3182154

White

3178001

Screw (2)

3183702

Trim, Panel

3184321

Bracket (2)

3182939

Screw (2)

309133

Screw (2)

Frame, Control

Panel

3187954

Black Model

3187955

White Model

3187956

Almond Model

3184567

Clip, Control

Frame

3148443

Screw

LITERATURE PARTS

LIT3187226

Tech Sheet

LIT3187360

Installation

Instructions

LIT3188197

Use & Care Guide

LIT3150693

Cookbook T/C Oven

LIT3183987

Guide, Auto Set

OPTIONAL PARTS (NOT INCLUDED)

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

18 Ga. 80 c Rating

350806

Yellow

16 Ga. 80 c Rating

242829

Blue

14 Ga. 150 c Rating

242820

Black

242821

Blue

242822

Brown

242823

Green

242824

Orange

242825

Red

242826

White

242827

Yellow

14 Ga. 200 c Rating

242830

Brown

242831

Red

242832

Yellow

12 Ga. 150 c Rating

242828

Black

242829

Red

PAINT, TOUCH−UP (1/2oz.)

72017

White

72107

Almond

72110

Harvest Gold

72112

Toast

72113

Platinum

72032

Black

261869

Citrine White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930

White

350956

Almond

261890

Harvest Gold

285365

Toast

285366

Platinum

830864

Black

350942

Primer

350941

Leveler (Primer)

PAINT, BULK (1 qt.)

799344

White

978883

Almond

261891

Harvest Gold

285367

Toast

285368

Platinum

ADHESIVE

482338

Sealer, Silastic

(3 Oz.)

591014

Adhesive, Loctite

(1/3 Oz.)

UPPER OVEN PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

CONVECTION FAN PARTS

UPPER OVEN PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3177545

Bracket, Conduit

3177741

Cabinet, Back

3185647

Screw

3178143

Cabinet, Top

3185647

Screw

3183748

Top, Module

3185647

Screw

Side, Cabinet

3177440

Right Hand

3177443

Left Hand

3185647

Screw

3186684

Tube, Vent

3185648

Screw (3)

3150505

Oven Light Assy.

3184533

Gasket, Light

311255

Bulb, Oven

Light

3185085

Plug, Button

Bulb

3186950

Frame, Front

3179813

Seal, Door

3179848

Clip, Oven Seal

3177681

Bracket, Switch

3177923

Insulator, Switch

3177621

Module, Bottom

3179220

Rail, Support (4)

3185647

Screw

3177434

Support, Oven

3185647

Screw

3178612

Shield, Radiation

3179795

Screw (6)

3185647

Screw

3177433

Bracket, Hinge

3185647

Screw

3177561

Back, Module

3185647

Screw

3185563

Liner, Oven

3178298

Hinge, Door (2)

4173553

Switch, Door

4159117

Nut (2)

313489

Screw (2)

3179587

Retainer, Seal

4168863

Screw (2)

3179776

Screw (8)

Vent, Middle Trim

3187883

Black Model

3187885

White Model

3187887

Almond Model

3188645

Screw (4)

3183791

Vent, Tube

4168203

Cover, Cap Tube

3183752

Bracket, Control

3177991

Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4454418

Insulation, Wrap

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3178512

Mounting Plate

4173193

Screw (3)

4173194

Lockwasher (3)

4173237

Nut(Left Hand)

4173236

Fan

3182088

Motor

4173238

E−Ring

4173185

Bracket Guard

3179790

Gasket, Foam

LOWER OVEN PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

LOWER OVEN PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3183748

Top, Module

3185647

Screw

3186684

Tube, Vent

3185648

Screw (3)

3185563

Liner, Oven

311255

Bulb, Oven Light

3150505

Oven Light Assy.

3184533

Gasket, Light

3188161

Frame, Front

3179813

Seal, Door

3179848

Clip, Oven Seal

3177681

Bracket, Switch

3177991

Screw (2)

3177923

Insulator, Switch

3177551

Bottom, Oven

3179220

Rail, Support (2)

3185647

Screw

3177433

Bracket, Hinge (2)

3179795

Screw (6)

3185647

Screw

3177621

Bottom, Module

3178612

Shield, Radiation

3179795

Screw (6)

3185647

Screw

3177434

Support, Oevn

3185647

Screw

3177561

Back, Module

3185647

Screw

3179848

Clip, Seal (3)

3178298

Hinge, Door (2)

3185085

Button, Plug

3182159

Vent Tube, Lower

3185647

Screw

3182160

Vent Tube, Upper

4173553

Switch, Door

4159117

Nut (2)

313489

Screw (2)

Side Trim,

Door (2)

3187875

Black Model

3187878

White Model

3187881

Almond Model

3179587

Retainer, Seal

4168203

Cover, Cap Tube

4159445

Screw

Trim, Lower Vent

3177787

Black

3177789

Brushed Chrome

4163883

Cover, Probe

3149652

SPST Thermostat

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4454418

Insulation, Wrap

OVEN DOOR PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3185497

Liner, Door

3185462

Gasket, Window

3185457

Glass, Clear

3185460

Insulation, Door

3188815

Insulation

Retainer

4168863

Screw (4)

3185458

Glass, Reflective

Glass, Door

3187863

Black

3187867

Almond

3187865

White

3185439

Retainer, Glass

3185459

Glass, Clear

Handle, Door

3185986

Black Model

3185988

Almond Model

3185987

White Model

3185438

Plate, Latch

Frame, Door

3187850

Black Model

3187852

White Model

3187854

Almond Model

3182138

Spacer, Handle

3188599

Bushing, Handle

3188635

Foil, Adhesive

3188633

Foil, Adhesive

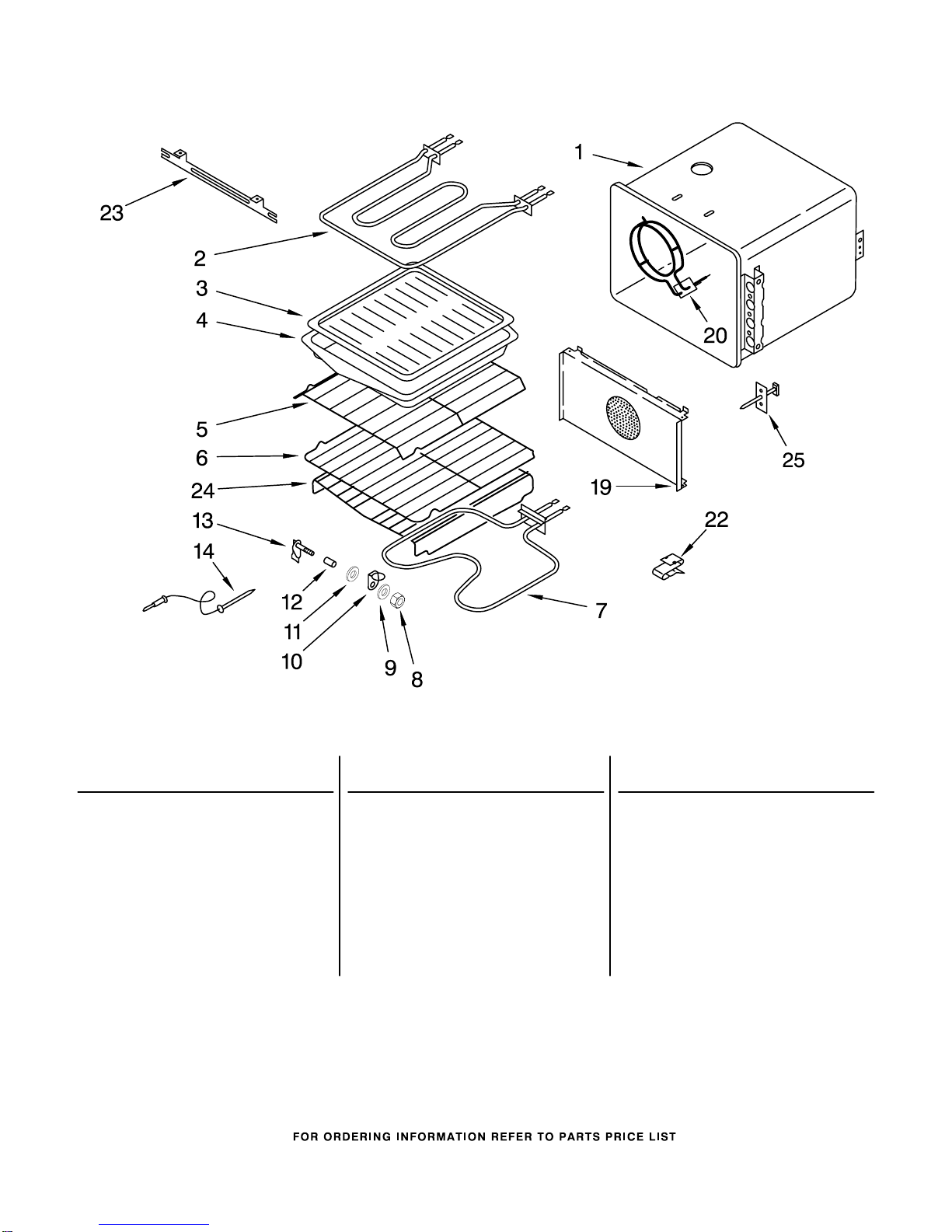

INTERNAL OVEN PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3185563

Liner, Oven

661415

Element, Broil

3147563

Grill, Broiler

3147845

Pan, Broiler

3185367

Rack, Offset

3185368

Rack, Oven

661416

Element, Bake

3185648

Screw (2)

4167277

Nut, Meat Probe

4163975

Gasket, Meat Probe

4167266

Probe Cover

4159557

Washer

3179672

Spacer − Tubing

3150107

Meat Probe Jack

3150144

Meat Probe

3180815

Cover, Fan

3185648

Screw (4)

3178517

Element, Convect.

3185648

Screw (3)

313570

Clip, Tubing

3180694

Bracket, Element

3185648

Screw (2)

3181534

Rack, Roasting T/C

3148440

Sensor

LATCH AND VENT PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

LATCH AND VENT PARTS

For Models: KEBS278BBL2, KEBS278BAL2, KEBS278BWH2

(Black) (Almond) (White)

4174492

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3183748

Module, Top

258076

Block, Terminal

308043

Screw

3183784

Switch, Latch

98106

Screw

254225

Screw

3178185

Insulator, Switch

3177662

Guard, Latch

3177991

Screw

Handle, Latch

3177969

Upper Oven

3184037

Screw (2)

3181963

Lower Over

3185414

Screw

3184039

Knob, Handle

3183294

Screw

3178410

Latch Mechanism

3177496

Plate, Mounting

3177991

Screw

3183954

Nozzle, Vent

Bottom (2)

3183955

Nozzle, Vent

Top (2)

3183999

Box, Vent

4173231

Screw

3183964

End, Vent Box

3185647

Screw

3183533

Bracket, Mounting

Fan

3177991

Screw

3183720

Blower, Fan

3183791

Vent, Tube

3149650

SPST Thermostat

3185647

Screw

3183785

Shield, Heat

3177991

Screw

3183953

Box, Vent

4173231

Screw

3179116

Screw

3183965

End, Vent Box

3185647

Screw

3183793

Vent Tube, Lower

Oven

3183532

Clamp, Tube

313755

Seal, Foam

3179847

Screw (2)

4159035

Bushing

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Horno de convección de KitchenAid

KitchenAid

KitchenAid KEBU107 Manual de usuario

KitchenAid

KitchenAid KDRS407VSS Manual de usuario

KitchenAid

KitchenAid Superba KEBS278 Manual de usuario

KitchenAid

KitchenAid SUPERBA KEMS308 Manual de usuario

KitchenAid

KitchenAid KDRP487M Manual de lista de piezas

KitchenAid

KitchenAid KERA205PBL1 Manual de usuario

KitchenAid

KitchenAid KDRS467VBU00 Manual de usuario

KitchenAid

KitchenAid KMBP107ESS Manual de usuario

KitchenAid

KitchenAid KCO273SS0 Manual de usuario

KitchenAid

KitchenAid KEBS107Y Manual de usuario

KitchenAid

KitchenAid W10162185A Manual de usuario

KitchenAid

KitchenAid KEBS278BAL0 Manual de usuario

KitchenAid

KitchenAid W10284348A Manual de usuario

KitchenAid

KitchenAid KDRS463VMW Manual de usuario

KitchenAid

KitchenAid KEBC149BSS Manual de usuario

KitchenAid

KitchenAid W10285550A Manual de usuario

KitchenAid

KitchenAid KEBN107Y Manual de usuario

KitchenAid

KitchenAid KEHC309 Manual de usuario

KitchenAid

KitchenAid KDRP707R Manual de lista de piezas

KitchenAid

KitchenAid KDRU767VSS Manual de usuario

KitchenAid

KitchenAid KEBC107 Manual de usuario

KitchenAid

KitchenAid Koss 6610 Dimensiones

KitchenAid

KitchenAid KOSC104FSS Manual de usuario

KitchenAid

KitchenAid KEBS278BAL1 Manual de usuario

Manuales populares de Horno de convección de otras marcas

Aroma

Aroma ABT-266SC Manual de usuario

Smeg

Smeg ALFA341VE Manual de usuario

homark

homark 01-711000 Manual de instrucciones

Vulcan-Hart

Vulcan-Hart C4ED Manual de usuario

Whirlpool

Whirlpool OBI M50 Manual de usuario

Jenn-Air

Jenn-Air SVE47600 Manual de usuario

Waring

Waring WCO500 Manual de usuario

Dometic

Dometic DOTRC11B Manual de usuario

NuWave

NuWave PRO PLUS 2 Manual de usuario

Moffat

Moffat turbofan E25 Manual de usuario

Whirlpool

Whirlpool GSC278 Manual de usuario

Deni

Deni Quick-n-Easy 10400 Manual del propietario

Sharp

Sharp R-980J Manual de usuario

Wells

Wells WVOC-4HF Manual de usuario

Convotherm

Convotherm The MINI OES-6.08 Manual de usuario

DeLonghi

DeLonghi AD699 Manual de usuario

LG LSWS306ST Manual de usuario

DeLonghi

DeLonghi AS-1070 Manual de usuario
