Kioti L3503 Manual de usuario

Congratulations, and welcome to the fabulous world of L3503/LK45 ownership, where serious work is made

fun again!

This versatile tractor is a culmination of the entire tractor and diesel knowledge gained by the Daedong In-

dustrial Co.,LTD over the years since 1947 and has been designed with the nest materials and under rigid

quality control standards set forth by the KIOTI Engineering Department.

Knowledge of tractor operation is essential for many years of dependable service and reliability. To help new

owner's familiarize themselves with the KIOTI L3503/LK45, it is the policy of KIOTI tractor to provide an

owner's manual which includes helpful information about tractor safety, operation and maintenance. If the in-

formation you seek is not found in this manual, your KIOTI tractor dealer will be happy to help you.

Please feel free to contact DAEDONG IND. CO.,LTD / DAEDONG-USA, INC. with your questions/concerns.

FOREWORD

L3503_LK45-호주향-00.indd 1 2008-12-17 오후 1:55:30

This manual includes information titled as WARNING, CAUTION, IMPORTANT

and NOTE. These titles indicate the following:

SAFETY AND VEHICLE DAMAGE WARNING

NOTE

This indicates that interesting or helpful information is being

provided.

This indicates that a condition may result in damage to your

vehicle or its equipment if the caution is not heeded. Follow

the advice provided with the caution.

This indicates that a condition may result in harm, serious in-

jury or death to you or other persons if the warning is not

heeded. Follow the advice provided with the warning.

This mark indicates emphasis on notable characteristics of

working procedures, and information on about technology for

easier operation.

WARNING

CAUTION

IMPORTANT

L3503_LK45-호주향-00.indd 2 2008-12-17 오후 1:55:30

ABBREVIATIONS DEFINITIONS

4WD Four Wheel Drive

API American Petroleum Institute

ASAE American Society of Agricultural Engineers, USA

ASTM American Society of Testing and Materials, USA

fpm Feet Per Minute

Hi-Lo High Speed-Low Speed

HST Hydrostatic Transmission

m/s Meters Per Second

P.T.O Power Take Off

RH/LH Right-hand and Left-hand sides are determined by facing in the direction of forward travel

ROPS Roll-Over Protective Structures

m-1 (rpm) Revolutions Per Minute

S-1 (r/s) Revolutions Per Second

SAE Society of Automotive Engineers, USA

SMV Slow Moving Vehicle

ABBREVIATION LIST

L3503_LK45-호주향-00.indd 3 2008-12-17 오후 1:55:30

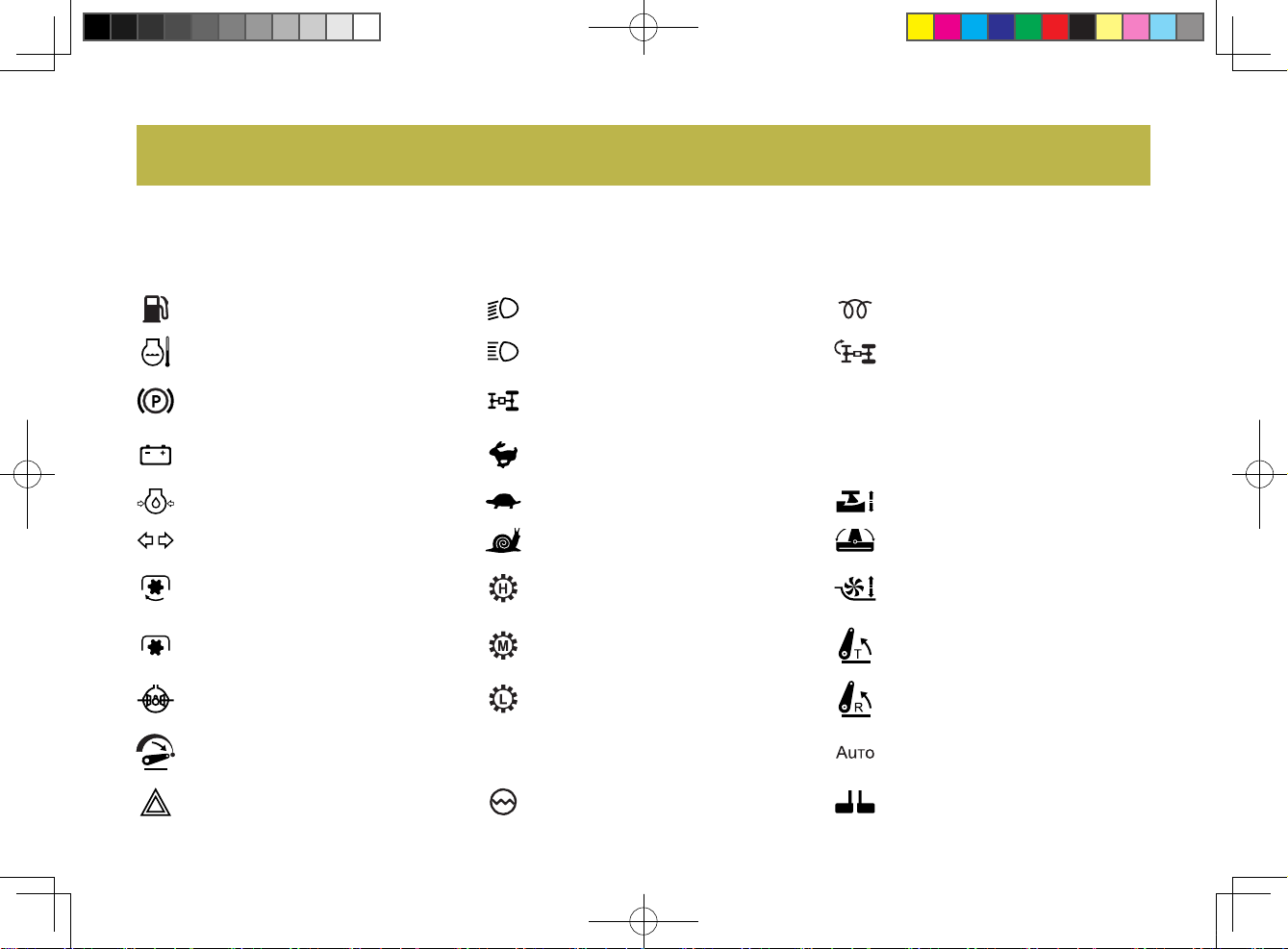

Various universal symbols have been used on the instruments and controls of your KIOTI tractor. Below is a

list of the universal symbols and their meanings.

UNIVERSAL SYMBOLS

Fuel-Level

Hazard Warning Lights Coolant Single brake light

Position Control-Lowered Po-

sition Neutral Position Auto switch

Differential Lock Low Range Back up light

Power Take-Off Clutch Con-

trol-ON Position Middle Range Turn up light

Power Take-Off Clutch Con-

trol-Off Position High Range Auto tilling depth work light

Turn Signal Creep Auto level work light

Engine Oil-Pressure Slow Auto draft work light

Battery Charging Condition Fast L low beam

Parking Brake Four-Wheel Drive-ON H low beam

Engine Coolant-Temperature Headlight-High Beam QT lamp

Headlight-Low Beam Preheat

L3503_LK45-호주향-00.indd 4 2008-12-17 오후 2:06:22

SAFETY PRECAUTIONS ...................................................

SERVICING OF TRACTOR ................................................

SPECIFICATIONS...............................................................

DESCRIPTION OF OPERATING SYSTEM ........................

OPERATION .......................................................................

PERIODIC SERVICE ..........................................................

STORAGE...........................................................................

TROUBLE SHOOTING.......................................................

INDEX..................................................................................

TABLE OF CONTENTS

SECTION

L3503_LK45-호주향-00.indd 5 2008-12-24 오후 2:23:25

L3503_LK45-호주향-00.indd 6 2008-12-17 오후 1:55:35

BEFORE OPERATING THE TRACTOR....................... 1-2

OPERATING THE TRACTOR....................................... 1-5

dRIVING THE TRACTOR............................................. 1-8

PARKING THE TRACTOR ........................................... 1-9

OPERATING THE P.T.O ............................................... 1-9

USING 3-POINT HITCH.............................................. 1-10

SERVICING THE TRACTOR ...................................... 1-10

TRACTOR SAFETY LABELS .................................... 1-14

SAFETY PRECAUTIONS

L3503_LK45-호주향-01.indd 1 2008-12-18 오후 1:51:45

-2

L3503 / LK45

A careful operator is the best oper-

ator. Most accidents can be avoid-

ed by observing certain precautions.

To help prevent accidents, use these

safety precautions, and pay attention

to the job at hand. If you can prevent

an accident, your time will have been

well spent.

BEFORE OPERATING THE

TRACTOR

5. Keep safety decals clean of dirt

and debris.

6. Watch where you are going at all

times so that you are able to avoid

obstacles that can cause injury or

damage to your tractor.

7. When starting the tractor make

sure your path is clear of people to

avoid accidents caused by sudden

movements.

8. Before making reverse move-

ments with your tractor, you should

always check to see that the path

is clear.

1. It is recommended that you read

and understand this entire manual

before operation of your new trac-

tor. Failure to do so could result in

accidents or injury.

2. Only persons who are properly

trained should be allowed to oper-

ate the tractor.

3. Read and follow all warning labels

and decals afxed to the tractor.

4. Replace any missing or dam-

aged decals as soon as it is prac-

tical. A list of decals is shown on

page1-14~16.

621O101a 621O102a

L3503_LK45-호주향-01.indd 2 2008-12-18 오후 1:51:46

-3

SAFETY PRECAUTIONS

16. All persons using the tractor

should have knowledge of its

proper operation and should read

this manual carefully.

17. Never get off the tractor without

setting the parking brake, lower-

ing the implement to the ground

and shutting of the tractor.

18. No alterations should be made

to your KIOTI tractor without rst

consulting your KIOTI dealer.

12. Never start the engine while

standing on the ground.

13. Only the operator should ride on

the tractor unless a passenger

seat is installed. Keep bystand-

ers away from the tractor while in

operation.

14. When getting on and off the trac-

tor, handholds and step plates

should always be used. This will

help to prevent accidental slips

trips and falls.

15. Be sure to scrape off mud or soil

from your shoes before mounting

the tractor.

621O103a 621O104a 621O105a

9. Never operate this tractor or

any other agricultural equipment

while under the inuence of alco-

hol, drugs or while fatigued.

10. While working in cooperation with

other tractors always communi-

cate your intentions.

11. Do not start your tractor by short-

ing across the starter.

L3503_LK45-호주향-01.indd 3 2008-12-18 오후 1:51:46

-4

L3503 / LK45

A ROPS should never be modified

by welding, grinding or cutting, as

this can weaken the ROPS structure.

If any components of the ROPS unit

is damaged, it must be replaced.

If the ROPS unit is removed or loos-

ened for any reason, the parts should

be fitted back to their original posi-

tions and all bolts should be properly

torqued.

21. Extra caution should be taken

when driving tractors with narrow

tread widths. For added stability

you should adjust your rear wheel

tread width, see page 5-39.

19. Before starting your tractor you

should depress the clutch and

make sure that all shift levers are

in the neutral position.

20. For your safety ROPS with a seat

belt is recommended for most

applications.

(1) Tread

621O106a 621O107a

NOTE

Always use seat belt when the

tractor is equipped with a ROPS.

Never use the seat belt when

tractor is not equipped with a

ROPS.

(ROPS: Roll-Over Protective

Structures)

L3503_LK45-호주향-01.indd 4 2008-12-18 오후 1:51:47
