KINGSONG KS-X1 PRO Manual de usuario
KS-X1 PRO
User
Manual
Cautions
Electric scooter is a recreational personal transporter. Before
mastering riding skills, you need to do practice. You will be
responsible for any injuries or damage caused by a rider’s
inexperience or failure to follow the instructions in this manual.
Please understand that you can reduce the risk by following all
the instructions or warnings in this manual, but you cannot
eliminate all the risks.
Please following the local traffic laws or restrictions when
riding into public areas.
Please always wear a helmet properly when riding to protect
your head, as well as other necessary protectors, such as
elbow pads, kneecap.
Please slow down the riding speed when riding on crossing,
going across the crowd, making a turn, climbing or downing a
hill, passing a school and other place that high speed may
bring damage to people.
Please do not allow kids of age below 12 to use the scooter on
pubic area. Riders under the age of 18 years old should ride
under adult supervision.
Please do not use the scooter in serious environments, to
avoid scooter
malfunction, which may cause damage to body or property,
such as Rainy, Snowfield, Grassland, Miriness, Fog, Smoke
and so on.
Please do not use the other chargers to charge E-scooter,
Only use King Song supplied charger.
Please do not charge E-scooter, if the charger or power outlet
is wet.
Please do not disassemble the scooter body or other modify
without professional person from distributors.
Please do not allow others to ride your e-scooter unless he/her
has carefully read and follow the instructions in this manual.
Contents
1. Product Details--------------------------------------------------------01
2. Features ----------------------------------------------------------------04
3. Button Usage ----------------------------------------------------------05
4. Assembly and Set-up------------------------------------------------06
5. APP Usage ------------------------------------------------------------07
6. Folding and Carrying-------------------------------------------------17
7. Adjusting the disc brake--------------------------------------------18
8. Adjust the handlebar------------------------------------------------19
9. Battery ------------------------------------------------------------------19
10. Clean and Maintenance-------------------------------------------20
11. Warranty--------------------------------------------------------------22
1. The Device & Accessories

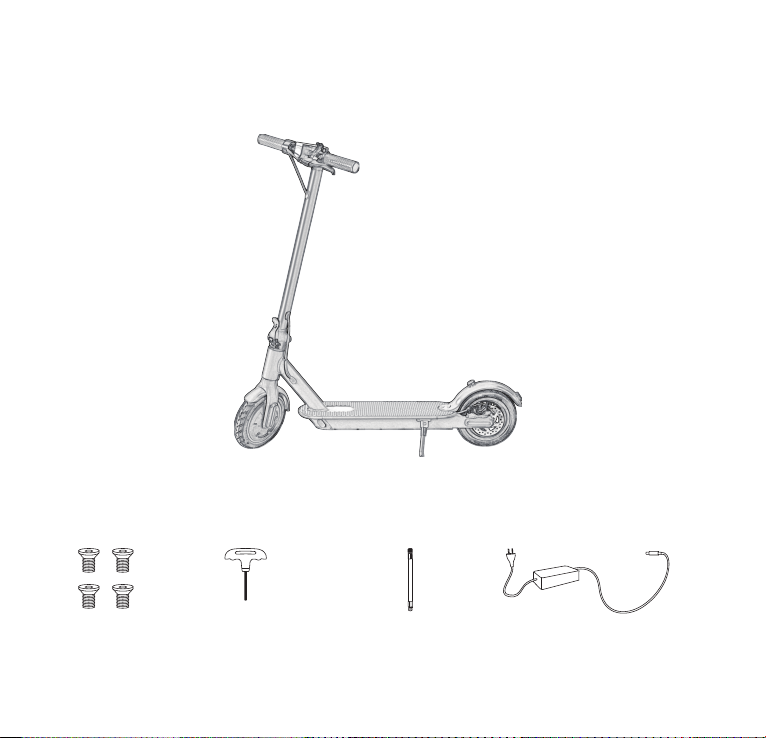

1.1 Diagram: KS-X1 PRO
Accessories
-----------------------------------------------------------------------------------
Screws Hex Wrench Valve Stem Extension Charging Adapter
01
1.2 Functions
02
1.3 Specifications
Model No
Size
Top Speed
Mileage
Gradeability
Battery Capacity
Running Condition
Storage Condition
Max Load
Charger
Charging Time
Motor
Port
Headlight
Brake Light
Applicable Height
KS-X1 PRO
8.5 inch Inflatable Tyre
30 km/h
Around 45km
Around 20°
37V, 12.8Ah
-10℃/+80℃; 0-90% Humidity
-10℃/+50℃; 0-90% Humidity
125kg
Input: 100-240V; Output: 42V/2A
Around 6hrs.
500W
Charge Port *1
4W
LED
1200-2000mm
03
Parking Mode
Cruise Control
Reminder
Accelerator
Brake
Display
Battery Display
Dimension(Unfold)
Dimension(Folded)
Net Weight
Packing List(pcs)
Kick-stand
System control
Mechanical Bell
Throttle Button
EABS+Rear Disc Brake
LED
5 Bars in monitor
1130*430*1190mm
1130*430*480mm
14kg
User Manual*1, Certificate*1, Charger*1,
Screws *4, Hex Wrench*1,
Valve Stem
Extension*1
2. Features
• Superior Aviation Aluminum Alloy.
• Real-time Temperature Monitoring, Short Circuit /
Low Voltage / Overcurrent / Overcharging Protection.
04
• Digital Speedometer Display, Easy to Read Speed.
• Real-time 5 Bars Battery Display.
• 1~3 Speed Gear, Press Button to Switch.
• Malfunction Display.
3. Button Usage
• Power ON/OFF: Long press the button for 3 seconds, all
icons are lighting, showing speed & battery.
• Headlight ON/OFF: Click the button (Headlight ON: )
00
km/h mph
ECO D S
00
km/h
mph
ECO
D
S
00
km/h
mph
ECO
D
S
05
