KingSlim D6 Manual de usuario
D6
DASH CAM
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
User agreement
By purchasing KINGSLIM Dash cam, it is assumed that by default you agree with
precautions, user warnings and all the terms & conditions of warranty. If for any
reason you do not agree with any of the terms mentioned in this manual, then
you may return the product in its original packaging unused within its return
window for a full refund.
Heads up:
• Do not expose this product to rain, moisture or water under any circumstances
or it will result in external or internal damage.
• Do not put the unit in a damp environment. This device is not designed to be
damp proof.
• Do not try to open the cover or try to repair it yourself. If the accessories for this
device have any problem, please contact the seller for assistance. This camera is
intended to use inside motor vehicle.
• Don’t install it where it will block the driver’s view of the road including mirrors or
the deployment of airbags.
• Please read this manual very carefully before using the camera or installation
and keep it safe for future reference. It will be helpful if you have any questions
or encounter any operational problems.
Pre-cautions
Please read and understand all instructions before using this product. If any
damage is caused by failure to follow the instructions, the warranty will be voided.
Warnings
Failure to comply with safety warnings and regulations can result in serious injury
or death.
• Do not place the camera loose on top of the dashboard or in-front of the air
bags.
• Do not mount the camera where it can be a distraction if it became loose and
fall off the windshield while driving.
Important Messages
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
• Do not expose this device to an excessive heat, dust or use any chemical
substance or cleaning solvent to clean this device. Instead use soft moist cloth
for cleaning. Pay careful attention when cleaning the lens surface. Use a soft,
moist cloth to clean the lens to avoid scratches which may compromise video
quality.
• Removing the camera from the vehicle when not in use is recommended. This
prevents likelihood of theft or exposure to excessive heat to prevent damage to
unit. Do not operate or install the camera while driving, or attempt to change any
setting etc.
• Pull off the road first and only do so when it is safe. Do not drop, puncture or
disassemble this product.
• Do not use the charger if the cord is broken or damaged. Keep out of reach of
children.
• Do not leave the camera in the direct sunlight for a long period of time or where
temperature could go above 158°F (70°C).
Some countries or USA states prohibit drivers from mounting anything on
windshield or prohibit mounting on certain area of the windshield. It is owner/op-
erator’s responsibility to mount or use of this device incompliance with local laws.
• The company is NOT responsible for the loss of any data or your content during
operation or in any circumstance.
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
Getting Started
Please read and understand warnings & safety instructions before operating.
1. Memory card
Before turning ON the camera, please insert the memory card in Class10 U3 or
above of the known brand at maximum of 256GB. Please format the memory card
before use.
Note:
1. The memory card is a consumable item and has a certain service life (please
refer to the description of the memory card of relevant brand for the specific
product life).
2. If the machine prompts that it cannot be formatted, the card is wrong, or
frequently prompts to format, please replace the card with a new one. To
ensure better protection of your memory card and machine, please format it
regularly within 2 months.
2. First-time charging
Now plug in to the power. The camera will turn on automatically as soon as it
receives the power and then it will prompt you with the initial setup on the screen
for the first-time use. Make sure to keep your camera plugging into the power all
the time because the internal battery is ONLY for emergency recording during
parking mode.
Note:
1. You can use your iPhone or Android phone’s USB charger and USB cable to
plug your dash cam into your 110V power outlet.
2. If you don’t get the initial setup prompts for any reason, you can set the
camera to factory default settings, then re-start the camera to start the initial
setup again.
3. Recording
KINGSLIM 4K D6 dash cam is programmed to turn ON and start recording automatically
when it receives power, and when the power gets disconnected, it will stop
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
recording, save the last video safely and then shut down within 5 seconds
automatically.
4. Settings
Now, by default all the settings are pre-set in a way that you can just start using
the camera. However, you can customize it further by learning more about the
camera by either watching How to Video or reading the User Manual so you can
get the maximum benefit out of it and the best use experience.
5. Setting date & time
Please set the correct date and time based on your location under the Time Zon
Setting by going to camera’s system settings menu.
Note: The GPS module is not included in the package.
6. How to hide power cable inside your car’s dash board?
Many people on YouTube already demonstrated how and where
to hide power cable inside your car. You can view one of the
possible ways on the link (this video is NOT recorded by us).
Video link: https://www.youtube.com/watch?v=CZYaV5Dh4ok
7. How to transfer videos to PC/Mac?
Insert memory card directly to your PC/Mac to view or download them. You can
also connect your camera to your PC/Mac with the USB data cable. Then Select
Connect as a Flash Drive. We recommend VLC Media Player to view your videos.
You can get it free at www.videolan.org.
8. Wifi
You can also connect KINGSLIM D6 Car Dash Cam to your smart phone directly by
using built-in Wifi feature. After your mobile phone is connected to the hotspot of
our device, the 4G signal of the mobile phone will be blocked, and it will automatically
recover after disconnection. It is recommended that you exit the APP or manually
disconnect the device hotspot when you do not need to connect the device to
your phone.
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
LCD touch screen 2-inch IPS
Video resolution 4K+2K (Front+Rear), 4K+1080P (Front+Interior)
Photo resolution 12M
Lens aperture F/1.8
GPS Included
Wifi Built-in
Video format MP4
Memory card Above Class10 U3 speed, max up to 256GB
G-sensor Built-in 3-Axis
Anti flicker 50 Hz / 60 Hz
Loop recording Support-seamless recording
Parking Mode Support
24 hours/12 hours Support
Mic/Speaker Built-in Micro Phone & Speaker
Mini USB Function 1. Storage 2. Charging
Auto Power ON/OFF Support
Power Interface 5V/1.5A
Battery Built-in li-ion 250 mAH battery
Operation Temperature -4°F (-20°C) ~ 140°F (60°C)
SupportY/M/D D/M/Y M/D/Y
9. Camera Specifications
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
10. What is in the Box
Dual Dash Cam D6
×1
Car Charger with 3.5M
Power Cable× 1
Cable Clip
×5
Car Crowbar
×1
QuikStart Guide
×1
Double-sided Adhesive
Tape for Dash Cam× 2
Electrostatic Sticker
×2
Dash Cam Bracket
×1
Suction Cup Mount
×1
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
Function button
Front camera
Indicator light
Display screen
Rearview camera
IR Fill light
Type C power port
Card slot
11. Camera Overview
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32

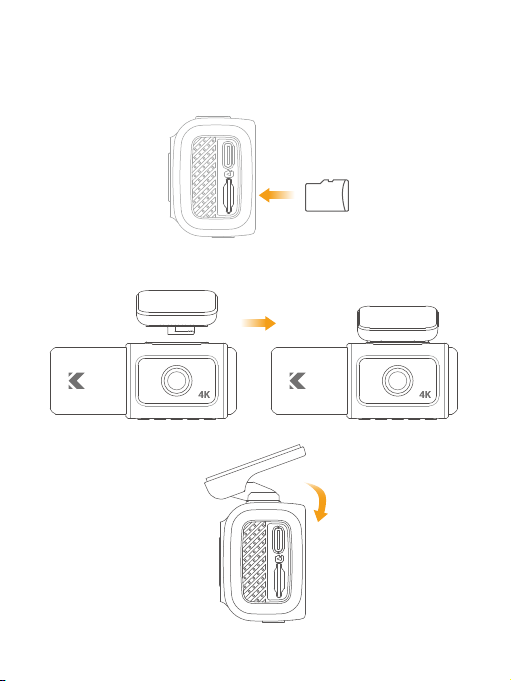

12.1 Insert the memory card.
Tips: The dash cam supports up to 256GB memory card of Class 10 or above.
Warm Tip: You can also insert the suction cup mount into the bracket slot.
12.2 Insert the bracket into the bracket slot.
memory
card
12. Installation
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
①Remove the film of the suction cup.
12.3 Install the suction cup mount.
②Insert the suction cup into the bracket slot and make sure there is no air inside
the suction cup. Rotate to secure the bracket.
01 02 03 04 05 06
07 08 09 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31 32
