King Industrial KC-EB100 Manual de usuario

INSTRUCTION ANUAL

ODEL: KC-EB100

EDGE BA DER

WARRANTY INFOR ATION

2-YEAR

LI ITED WARRANTY

FOR THIS EDGE BANDER

KI G CA ADA TOOLS

OFFERS A 2-YEAR LI ITED WARANTY

FOR NON CO ERCIAL USE.

PROOF OF PURCHASE

Please keep your dated proof of purchase for warranty and servicing purposes.

PARTS DIAGRAM & PARTS LISTS

Refer to the Parts section of the King Canada web site for the most updated parts

diagram and parts list.

LIMITED TOOL WARRA TY

King Canada makes every effort to ensure that this product meets high quality and

durability standards. King Canada warrants to the original retail consumer a 2-year

limited warranty as of the date the product was purchased at retail and that each

product is free from defects in materials. Warranty does not apply to defects due

directly or indirectly to misuse, abuse, normal wear and tear, negligence or

accidents, repairs done by an unauthorized service center, alterations and lack of

maintenance. King Canada shall in no event be liable for death, injuries to persons

or property or for incidental, special or consequential damages arising from the use

of our products.

To take advantage of this limited warranty, return the product at your expense

together with your dated proof of purchase to an authorized King Canada service

center. Contact your retailer or visit our web site at www.kingcanada.com for an

updated listing of our authorized service centers. In cooperation with our authorized

service center, King Canada will either repair or replace the product if any part or

parts covered under this warranty which examination proves to be defective in

workmanship or material during the warranty period.

OTE TO USER

This instruction manual is meant to serve as a guide only. Specifications and

references are subject to change without prior notice.

KI G CA ADA I C. DORVAL, QUÉBEC, CA ADA H9P 2Y4

www.kingcanada.com

GENERAL

SAFETY INSTRUCTIONS

VOLTAGEWAR I G: Before connecting the tool to a power source (receptacle, outlet,

etc.) be sure the voltage supplied is the same as that specified on the nameplate of the

tool. A power source with voltage greater than that for the specified tool can result in

SERIOUSI JURY to the user - as well as damage to the tool. If in doubt DO OT

PLUGI THETOOL. Using a power source with voltage less than the nameplate is

harmful to the motor.

1. K OW YOUR TOOL

Read and understand the owners manual and labels affixed to the tool. Learn its

application and limitations as well as its specific potential hazards.

2. REMOVE ADJUSTI G KEYS A D WRE CHES.

Form habit of checking to see that keys and adjusting wrenches are removed from tool

before turning it on.

3. AVOID DA GEROUS E VIRO ME T.

Don’t use power tools in damp or wet locations or expose them to rain. Keep work area

well lit and provide adequate surrounding work space.

4. KEEP CHILDRE AWAY.

All visitors should be kept a safe distance from work area. Use padlocks, master

switches or remove starter keys.

5. WEAR PROPER APPAREL.

Do not wear loose clothing, gloves, neckties or jewelry (rings, watch) because they could

get caught in moving parts. Non-slip footwear is recommended. Wear protective hair

covering to contain long hair. Roll up long sleeves above the elbows.

6. ALWAYS WEAR SAFETY GLASSES.

Always wear safety glasses (ANSI Z87.1). Everyday eyeglasses only have impact

resistant lenses, they are OT safety glasses. Also use a face or dust mask if cutting

operation is dusty.

7. DISCO ECT TOOLS.

Before servicing, when changing accessories or attachments.

8. CHECK DAMAGED PARTS.

Before further use of the tool, a guard or other parts that are damaged should be

carefully checked to ensure that they will operate properly and perform their intended

function. Check for alignment of moving parts, breakage of parts, mounting, and any

other conditions that may affect its operation. A guard or other parts that are damaged

should be properly repaired or replaced.

SPECIFIC SAFETY INSTRUCTIONS

SPECIFIC SAFETY RULES

Safety is a combination of common sense, staying alert and knowing how your Edge

Bander and heat gun works. Read and understand the following safety rules before

operating.

Keep Away From Flammables or Combustibles

Never operate this tool near flammables or combustibles. Failure to comply may cause

serious injury or death.

ever Touch Heat ozzle with Hands After Heating

Nozzle retains elevated temperature long after tool has been turned off. Do not rest

nozzle on or near any flammable objects.

ever Point Heat Gun at People or Animals

aximum heat output approaches 593ºC! Do not attempt to use this tool as a hair dryer

or similar device.

Use a Respirator or Face Mask

Failure to use a respirator device for some applications may be hazardous to your health.

Always keep work area well ventilated. If you have any doubt about whether or not a

respirator or face mask is needed, it would be wise to wear one.

Heat Gun Produces Flameless Heat

The Steinel®heat gun produces up to 5930C of flameless heat at the nozzle. Never direct

airstream at clothing, hair or any other body part.

ALWAYS ALLOW THE TOOL TO COOL DOW BEFORE STORAGE

Do ot Restrict the Flow of Air

Do not restrict the flow of air in or out of the tool. Nozzles that are not designed for use

with this tool can cause it to overheat.

ELECTRICAL INFOR ATION

ELECTRICAL I FORMATIO

WAR I G: YOUR EDGE BANDER CO ES WITH A HEAT GUN WHICH UST BE

CONNECTED TO A 120V, 15-A P. BRANCH CIRCUIT.

120V OPERATIO

As received from the factory, the heat gun

supplied with this Edge Bander is ready to run

for 120V operation. This Edge Bander is

intended for use on a circuit that has an

grounded outlet and a grounded plug which

looks like the one illustrated in Fig.1.

GROU DI G

This Edge Bander must be grounded. If it should

malfunction or breakdown, grounding provides a

path of least resistance for electric current, to

reduce the risk of electric shock. This Edge Ban-

der is equipped with a cord having an equip-

ment-grounding conductor. The plug must be

plugged into an appropriate outlet that is proper-

ly installed and grounded in accordance with all

local codes and ordinances.

WAR I G: TO AINTAIN PROPER

GROUNDING OF YOUR EDGE BANDER, DO

NOT RE OVE OR ALTER THE HEAT GUN

PLUG GROUNDING PRONG IN ANY AN-

NER.

Not all outlets are properly grounded. If you are not sure if your outlet is properly grounded,

have it checked by a qualified electrician.

WAR I G: IF NOT PROPERLY GROUNDED, THIS EDGE BANDER CAN CAUSE

ELECTRICAL SHOCK, PARTICULARLY WHEN USED IN DA P LOCATIONS. TO AVOID

SHOCK OR FIRE, IF THE POWER CORD IS WORN OR DA AGED IN ANY WAY, HAVE

IT REPLACED I EDIATELY.

EXTE SIO CORDS

The use of any extension cord will cause some loss of power. Use the chart in Fig.2 to

determine the minimum wire size (A.W.G-American Wire Gauge) extension cord. Use only

extension cords which accept the tool’s plug.

For circuits that are further away from the electrical circuit box, the wire size must be

increased proportionately in order to deliver ample voltage to the heat gun motor. Refer

to Fig.2 for wire length and size.

Tool’s

Amperage

Rating

3-6

6-8

8-10

10-12

12-16

Cord Size in A.W.G.

Cord Length in Feet

25 50 100 150

18 16 16 14

18 16 14 12

14 12 - -

FIGURE 1

FIGURE 2

GROU DED

120V OUTLET

CURRE T

CARRYI G

PRO GS

GROU DI G

PRO G

Getting to know your Edge Bander with Steinel®Heat Gun

1. Base

2. elamine work table

3. Outfeed guide fence

4. Roller

5. Infeed guide fence

6. Upper guide

7. Heat gun nozzle

8. Palm strike knob

9. Lower guide

10. Heat gun safety guard

11. Steinel®heat gun

12. Banding material support post

13. Heat gun variable temperature dial

14. Heat gun on/off switch

GETTING TO KNOW

YOUR EDGE BANDER

Specifications

odel ........................................................................................................KC-EB100

aximum thickness ................................................................................................2”

Voltage ......................................................................................120V, 1 phase, 60Hz

otor ............................................................................................1500W, 12.5 Amp.

Variable temperature settings ..............................................................490C to 5930C

Air speed ....................................................................................14.8 CF @1500W

ASSE BLY

ASSEMBLY

Installing Rear Support Table & Support Post

1. Remove the two cap screws and washers

(A) Fig.3 at the rear of the Edge Bander

base.

2. Tilt the Edge Bander and install rear support

table (A) Fig.4 to the base (B) as shown using

the two cap screws and washers (C).

3. Locate the hex. bolt (A) Fig.5, leaving the hex.

nut (B) on the hex. bolt as shown in Fig.5.

4. Insert the hex. bolt through the hole in the

center of the support table from underneath.

The hex. nut on the bolt should be under the

support table as shown in Fig.5.

5. Lower the Edge Bander onto its base. The hex.

bolt under the support table serves as a table

support. Adjust the hex. bolt until the hex. bolt

is in contact with the surface under the support

table.

6. Thread the support post (A) Fig.6 onto the hex.

bolt from the top of the support table.

7. Secure the height of the hex. bolt by tightening

the hex. nut (B) Fig.5 under the support table.

FIGURE 3

FIGURE 4

FIGURE 5

FIGURE 6

ADJUST ENTS

ADJUSTME TS

Adjusting Upper & Lower Guides

1) The upper guides (A) Fig.7 and lower guides

(B) can be adjusted by loosening the cap

screws (C) using the 5mm hex. key.

2) The lower guides (A) should be set slightly

below the work table, once adjusted, no further

adjustments should be necessary.

3) Adjust the upper guides (B) to suit the width of

your edge banding material.

OTE: The edge banding material must move

freely through the lower and upper guides.

Adjusting infeed and outfeed guide fences

The infeed guide fence (A) Fig.8 and the outfeed

guide fence (B), guide and support the edge of

your workpiece. Normally, the guide fences are

recessed about 1/32” to 3/64” from the edge of

the roller (C). This setting was set at the factory

but you may want to double-check it before

operating.

1) Both guide fences should be positioned in

relation to the roller to allow for the thickness of

the edge banding material being used.

2) If the outfeed guide fence needs to be

adjusted, loosen the two cap screws (A) Fig.9

and reposition the outfeed guide fence as

needed.

3) To adjust the position of the infeed guide fence

(A) Fig.8, the Steinel®heat gun must be

removed before making the adjustment.

Remove the two pan head screws (A) Fig.10

and remove heat gun. This will allow you to

gain access to the infeed guide fence cap

screws from the top of the Edge Bander.

Loosen cap screws and reposition the infeed

guide fence as needed.

FIGURE 7

FIGURE 8

FIGURE 9

FIGURE 10

OPERATION

OPERATIO

Steinel® Heat Gun Controls

1) The Steinel®heat gun (A) Fig.11 comes with

an on/off switch (B) at the end of the handle.

Push switch downwards to turn heat gun On,

push switch upwards to turn heat gun Off.

2) The Steinel®heat gun also comes with a

variable temperature control dial (C) which sets

the heat gun temperature range (490C to

5930C). Turn dial clockwise to increase heat

and counterclockwise to reduce heat.

IMPORTA T: The heat gun temperature setting is directly linked to the speed which you

need to feed your workpiece. It is recommended to start the operation at a lower

temperature and make adjustments as you gain experience.

SELECTIO OF BA DI G MATERIAL (not included)

The edge banding material required must have a hot melt adhesive backing. Selecting the

width of the edge banding material you need depends on the thickness of your workpiece.

The Edge Bander will accept banding material up to 2” wide. To avoid wasting banding

material, it is recommended that the banding material be approximately 1/16” wider than

the thickness of your workpiece. This creates only about 1/32” of excess to remove from

either side of the workpiece. Use the supplied double edge trimmer or a sharp knife to trim

banding material.

OPERATIO GUIDELI E

1) Position the roll of edge banding material (not supplied) on the support table. Position

the banding material so it is oriented with the adhesive backing facing the heat gun.

2) ake sure the lower guides have been set slightly below the work table. This will place

the bottom edge of the banding material slightly below the edge of the workpiece.

3) Slide the leading end of the banding material

(A) Fig.12 through the guides (B), and adjust

the upper guides to the width of the banding

material. Banding material must move freely

between the guides.

4) Position the leading end of the banding

material in front of the nozzle and roller.

5) Set the desired heat setting using the

temperature control dial on the heat gun.

FIGURE 11

FIGURE 12

OPERATIO GUIDELI E continued...

6) Plug the heat gun power cord into a 120V power source and push the On/Off switch

upwards to turn heat gun on.

ote: Allow approximately 30-40 seconds for the hot air gun to reach operating

temperature. Adjust temperature if necessary.

7) As the banding material adhesive softens at the front end, hand feed the banding

material up to the edge of the roller. A general indicator that the adhesive is hot enough

is when it begins to bubble slightly.

8) Place workpiece on the table and against the infeed fence.

9) Push the edge of the workpiece along the infeed fence and against the edge banding

material. The edge banding material will be trapped between the roller and the

workpiece. The edge banding material will bond to the workpiece.

10) Guide the workpiece along the roller at a steady, moderate speed. The edge banding

material will continue to bond to the edge of the workpiece and will be pulled through

the guides by the movement of the workpiece.

11) ake sure the adhesive is bonding to the workpiece. If you feed the workpiece too

fast, or the hot air gun temperature is set too low, the bond will be poor. Adjust as

needed to obtain a good bond.

12) As you move the workpiece forward, always maintain pressure on the roller while you

are edge banding.

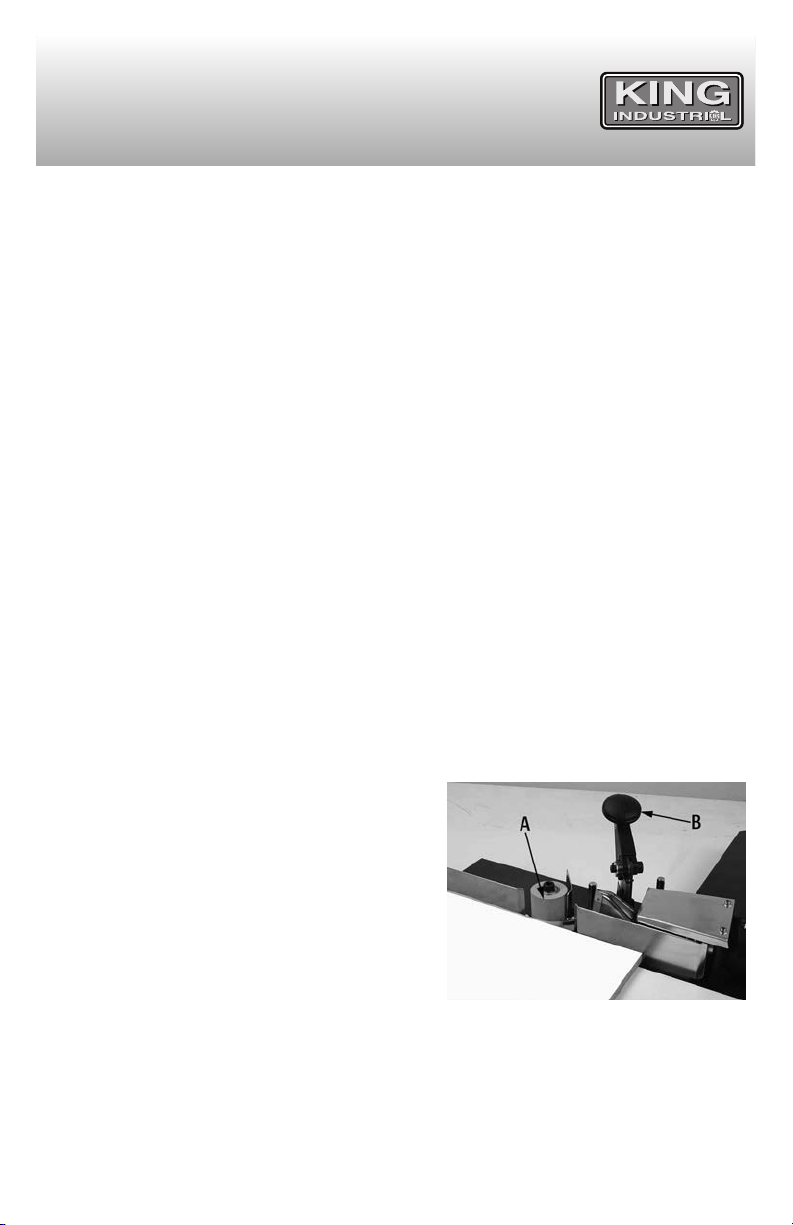

13) When the trailing end of the workpiece gets

to approximately 5” from the center of the

roller (A) Fig.13 as shown, firmly push down

on the palm strike knob (B) to cut the edge

banding material.

14) Continue to push the workpiece forward until

the entire edge of the workpiece has been

banded. The end of the banding material will

extend slightly beyond the trailing end of the

workpiece.

15) Trim excess banding material using the

double edge trimmer (1/2” to 1” thick

capacity) provided or a knife. Position double edge trimmer over the banded edge of

the workpiece and squeeze firmly to clamp it against the workpiece edge. Continue to

squeeze it firmly, and slide the double edge trimmer down the edge of the workpiece

in the direction of the arrows. Use steady, even pressure for best results.

16) Turn off the heat gun and allow it to cool completely before storing the Edge Bander.

When the Edge Bander is not being used, unplug it from the power source.

FIGURE 13

OPERATION

Tabla de contenidos

Otros manuales de Herramientas eléctricas de King Industrial

King Industrial

King Industrial 12" Industrial Jointer KC-125FX Manual de usuario

King Industrial

King Industrial KC-366SH Manual de usuario

King Industrial

King Industrial KC-6HJC Manual de usuario

King Industrial

King Industrial KC-120FX Manual de usuario

King Industrial

King Industrial MA-1050ST Manual de usuario

King Industrial

King Industrial KC-60FX Manual de usuario

King Industrial

King Industrial KC-32VS Manual de usuario

King Industrial

King Industrial KC-70FX Manual de usuario

King Industrial

King Industrial 8" Industrial Jointer KC-85FX Manual de usuario

King Industrial

King Industrial KC-75FX Manual de usuario

King Industrial

King Industrial KC-351S Manual de usuario

King Industrial

King Industrial KRT-100 Manual de usuario

King Industrial

King Industrial KC-119FC-LS Manual de usuario

King Industrial

King Industrial KC-122FC-LS Manual de usuario

King Industrial

King Industrial KC-4900S Manual de usuario

King Industrial

King Industrial KC-122FC Manual de usuario

King Industrial

King Industrial KC-30FC Manual de usuario

King Industrial

King Industrial KC-122FC Manual de usuario

King Industrial

King Industrial KC-118FC Manual de usuario

King Industrial

King Industrial KC-70FX Manual de usuario

King Industrial

King Industrial KC-15HS-VS Manual de usuario

King Industrial

King Industrial 52" Foot Shear BB-F5216 Manual de usuario

King Industrial

King Industrial KC-15VS Manual de usuario

King Industrial

King Industrial CT-204 Manual de usuario

Manuales populares de Herramientas eléctricas de otras marcas

AEG

AEG OMNI-JS Manual de usuario

SIP

SIP 01533 Manual de usuario

Ribimex

Ribimex PRS499 Manual de usuario

3M Fiber Optic Connector Crimp Tool Manual de usuario

Ryobi

Ryobi P524 Manual de usuario

ROJEK

ROJEK FSN 300A Manual de usuario

Kemper

Kemper 1740PRO Manual de usuario

WABCO

WABCO OptiTire Manual de usuario

EINHELL

EINHELL TE-MS 18/210 Li Manual de usuario

Orgapack

Orgapack OR-T 85 Guía rápida

TOUGHCUT

TOUGHCUT Diamond 400 Manual de usuario

Yaros

Yaros PB-3603 Manual de usuario

Fein

Fein BSS 2.0 E Guía de configuración

Baileigh Industrial

Baileigh Industrial SS-2725 Manual de usuario

Milwaukee

Milwaukee 2674-20 Manual de usuario

Fein

Fein BLs 1.6 Manual de usuario

Princess

Princess Electric Multi Sharpener Manual de usuario

FOREDOM

FOREDOM K.1050 Manual
