Kincrome Evolution K7963 Manual de usuario

Non-Locking

Castors (3)

Locking

Castors (3)

4 x Hex 5mm

Bolts for

Trolley Handle

13mm x 24 Bolts

(24) for Castors

(with Washers)

Trolley Handle x 1

2 People 13mm Spanner

For Castors:

5mm Hex Key

For Handle:

Tool Trolley

14 x Liners

Keys x 2

K7963

13 Drawer Extra Wide

1350mm (53”)

Operation Manual

Parts List

IMPORTANT: This operating manual contains important safety information,

read carefully & understand all information before operating

the trolley. Save this manual for future use.

Tools & Assistance

Required for Trolley:

Included

Measurements: Weight: 96kg

(External - With Castors - 125 x 50mm (5 x 2”) x2 Locking)

WIDTH 1347 mm DEPTH 466 mm HEIGHT 963 mm

Measurements - Top Section

WIDTH 1347 mm DEPTH 466 mm HEIGHT 15 mm

Large Shallow Drawers (Left)

WIDTH 566 mm DEPTH 405 mm HEIGHT 62 mm

Large Deep Drawers (Left)

WIDTH 566 mm DEPTH 405 mm HEIGHT 104 mm

Large Shallow Drawers (Right)

WIDTH 566 mm DEPTH 405 mm HEIGHT 62 mm

Large Deep Drawers (Right)

WIDTH 566 mm DEPTH 405 mm HEIGHT 104 mm

Extra Large Top Drawer

WIDTH 1242 mm DEPTH 405 mm HEIGHT 104 mm

Oversize

This productrequires a two person lift

- use properlifting techniques

Tool Trolley

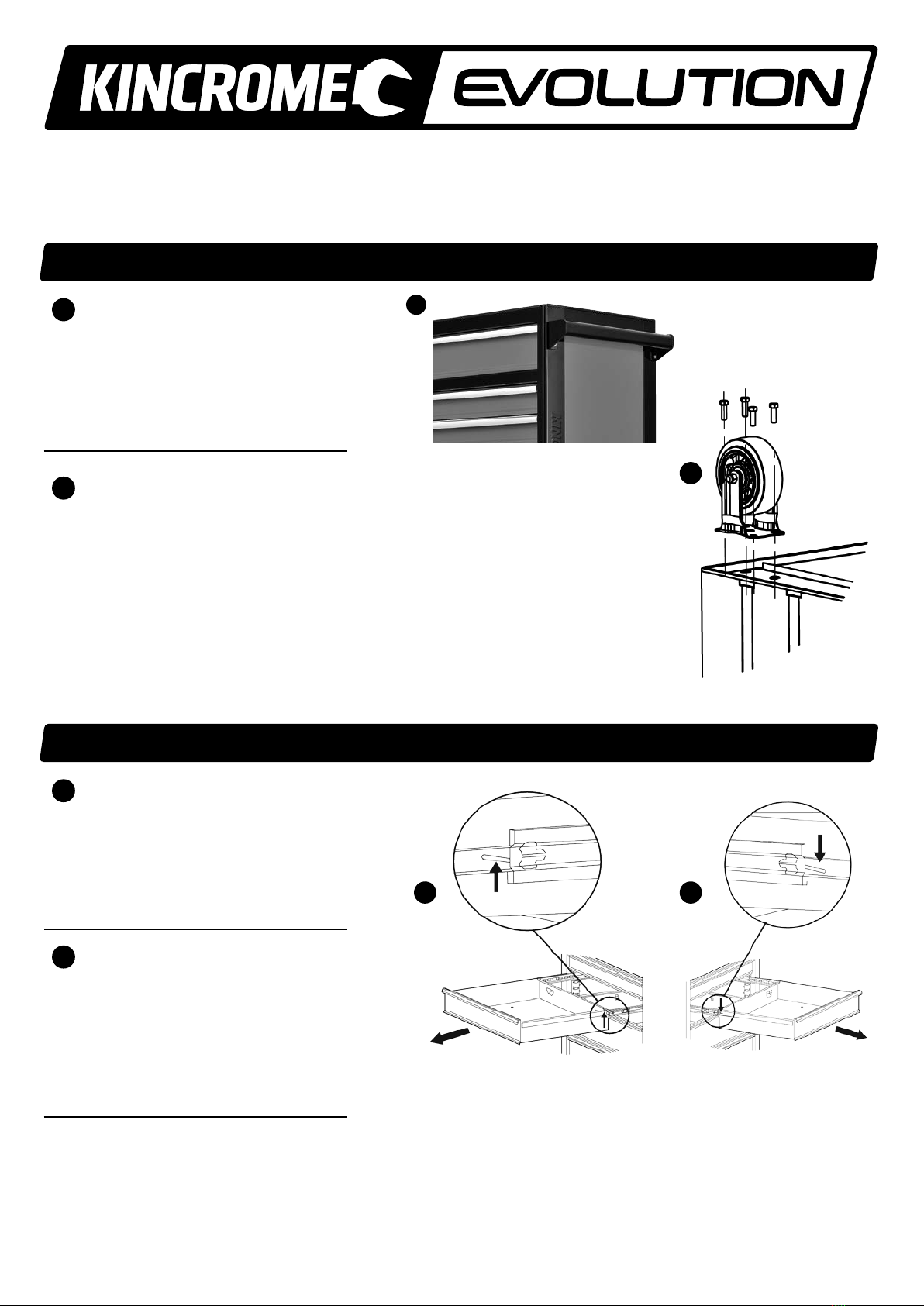

Assembly Instructions

Maintenance

Removing the Drawers

• Fully extend the empty drawer.

• Push up the right grey release lever while

pushing down the left grey release lever.

• Pull the drawer outward until it is

released from the drawer slide.

Re-Inserting The Drawers

• Extend the drawer slides.

• Insert the brackets on each side of the

drawer into the slots on the slides, being

careful that they are properly positioned.

• Once properly inserted, completely close

the drawer to set the slides in their

proper positions.

• Periodically tighten all hardware

• Periodically lubricate castors

• Lubricate the slides twice a year

• Lubricate the lock with graphite annually

• Use a damp Microﬁbre cloth to clean

all surfaces

Push up the

right grey release lever

Pull down the

left grey release lever

Handle Installing

• Position the trolley side handle behind the

holes on the trolley.

• Attach with (4) bolts, and tighten with

a 5mm Hex Key.

Castor Installing (If applicable)

• Be sure the drawers are locked and lay

the trolley on its side.

• Secure castors to the unit using the

13mm bolts provided.

• Tighten with a 13mm Spanner.

• Repeat this process for the castors on

the opposite of the trolley.

• Return the trolley to its upright position.

Caution: Do not over tighten the bolts.

Caution: Both locking castors must be

ﬁtted to front of trolley.

1a 1b

K7963

13 Drawer Extra Wide

1350mm (53”)

National Head Office

National Distribution and Showroom

3 Lakeview Dve, Caribbean Business Park

Scoresby Victoria 3179 Australia

E enquiries@kincrome.com.au

W kincrome.com.au

Administration

T(03) 9730 7100 F(03) 9730 7199

ABN 41 007 185 006

Customer Service Centre

T1300 657 528 F1300 556 005

National Head Office

National Distribution and Showroom

3 Lakeview Dve, Caribbean Business Park

Scoresby Victoria 3179 Australia

E [email protected]

W kincrome.com.au

Administration

T(03) 9730 7100 F(03) 9730 7199

ABN 41 007 185 006

Customer Service Centre

T1300 657 528 F1300 556 005

Made to Kincrome Tools & Equipment Pty Ltd Global

specifications and quality standards in China

Australia & Global UK & EU

www.kincrome.com.au www.kincrome.co.uk

enquiries@kincrome.com.au enquiries@kincrome.co.uk

Kincrome UK Ltd PO Box 468 Southampton SO30 9EP

Spare Parts

1 & 2

ITEM PART NO. DESCRIPTION QUANTITY

1 K7999-10 Lock & Key 1

2 K7999-11 Key Only (Specify Number) 1

3 K7999-12 Trolley Handle 1

4 K7999-8 Ball Bearing Slide (Pair) 13

ITEM PART NO. DESCRIPTION QUANTITY

5 K7999-29 Eva Mat Pack 14 Pce 1

6 K7999-13 Castor Swivel x 1 3

7 K7999-14 Castor Swivel x 1 (Brake) 3

K7999-15 Castor Bolt Pack

Tool Trolley

Parts List

K7963

13 Drawer Extra Wide

1350mm (53”)
