KidKraft 53181A Manual de usuario

Item# 53181A

Large Kitchen

Assembly Instructions

Please retain this information

for future reference

To order replacement parts,

please visit www.kidkraft.com

Customer Service

1-800-933-0771

www.kidkraft.com 1

USE AND MAINTENANCE:

-Use on level surfaces only

-Please check assembly at regular intervals,

and frequently tighten hardware if necessary.

If maintenance is not carried out, the product

could cease to function properly

16 17 18

27 28

33 34 35 36 37 38 39

21 22

WARNING: CHOKING HAZARD

Small parts and sharp points, not

suitable for children under 3 years.

CAUTION: Adult Assembly Required.

Hardware contains small screws with

sharp points. Keep unassembled parts

out of reach of small children.

Item# 53181A

Large Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com2

A. Pink Cross Dowel Bolt

x 10 pcs

2 3/16 in, 55 mm

B. White Cross Dowel Bolt

x 20 pcs

2 3/16 in, 55 mm

C. Yellow Cross Dowel Bolt

x 2 pcs

2 3/16 in, 55 mm

D. Cross Dowel Bolt

x 4 pcs

2 3/16 in, 55 mm

E. Cross Dowel Nut

x 36 pcs

F. Cross Dowel Bolt

x 1 pc

1 3/16 in, 30 mm

G. Pink Screw x 6 pcs

1 in, 25 mm

H. Pink Screw x 4 pcs

1 3/8 in, 33 mm

I. White Screw x 2 pcs

1 1/4 in, 31 mm

J. Screw x 2 pcs

5/8 in, 15 mm

K. Screw x 10 pcs

5/16 in, 8 mm

L. Yellow Screw

x 6 pcs

1 in, 25 mm

M. Blue Screw

x 2 pcs

1 in, 25 mm

N. Nylon Nut x 2 pcs

O. Washer x 3 pcs

P. Large Washer

x 1 pc

Q. Small Washer

x 2 pcs

R. Cam Lock x 2 pcs

S. Twist Nut x 2 pcs

T. Latch x 5 pcs

Allen Wrench x 1 pc

Wrench x 1 pc

The following tool

(not included) is

required for assembly:

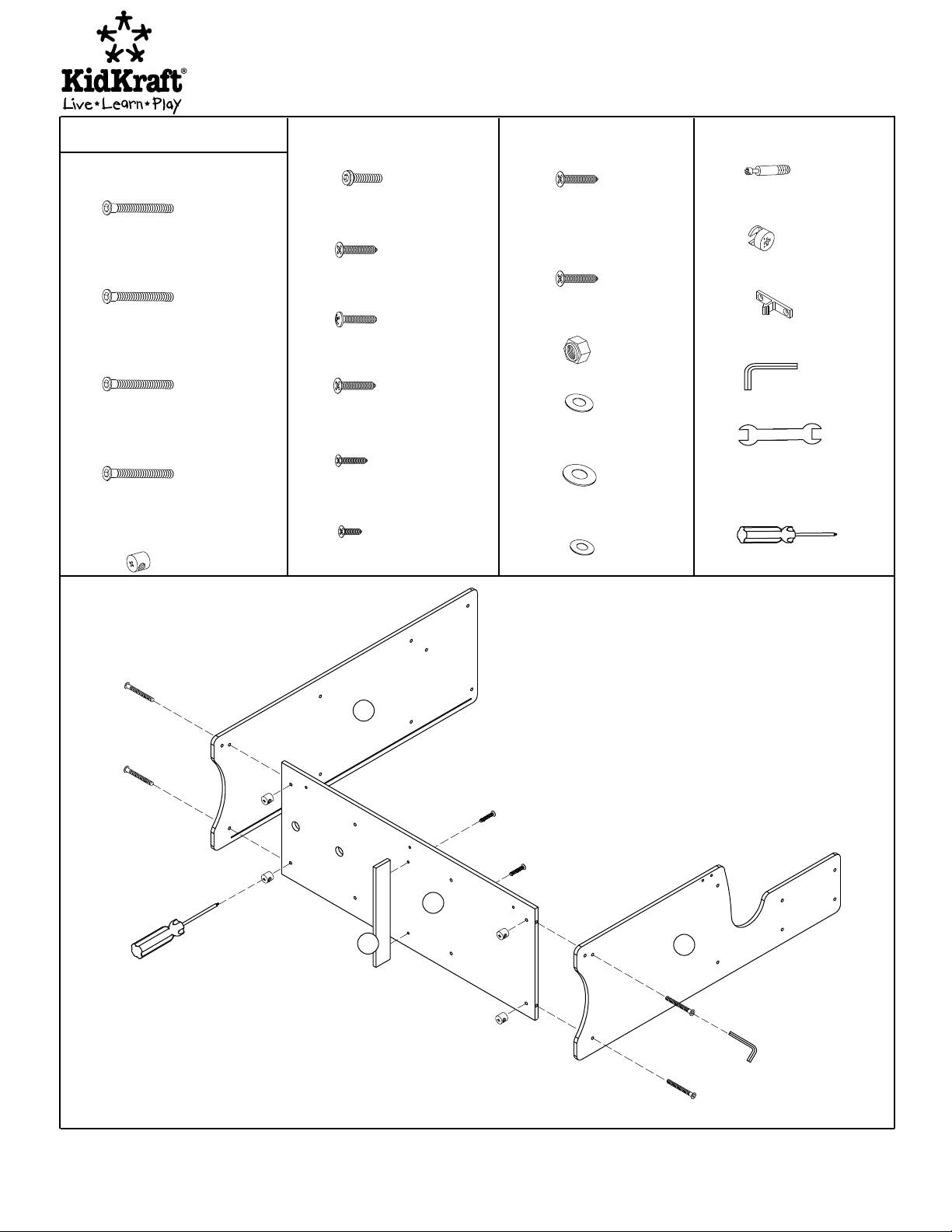

HARDWARE

Step 1

5 2

Phillips®screwdriver

Item# 53181A

Step 2

Step 3

Large Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com3

Step 4

Step 5

Customer Service

1-800-933-0771

www.kidkraft.com4

Large Kitchen

Assembly Instructions Item# 53181A

Item# 53181A

Large Kitchen

Assembly Instructions

Step 6

Step 7

Customer Service

1-800-933-0771

www.kidkraft.com5

KT39

Item# 53181A

Large Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com6

Step 8

Step 9

Item# 53181A

Large Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com7

Step 10

Step 11

JJ N

180°

Step 12

Step 13

F33

Large Kitchen

Assembly Instructions Item# 53181A

Customer Service

1-800-933-0771

www.kidkraft.com

Item# 53181A

Large Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com9

Step 14

Step 15

Item# 53181A

Large Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Step 16

Step 17
